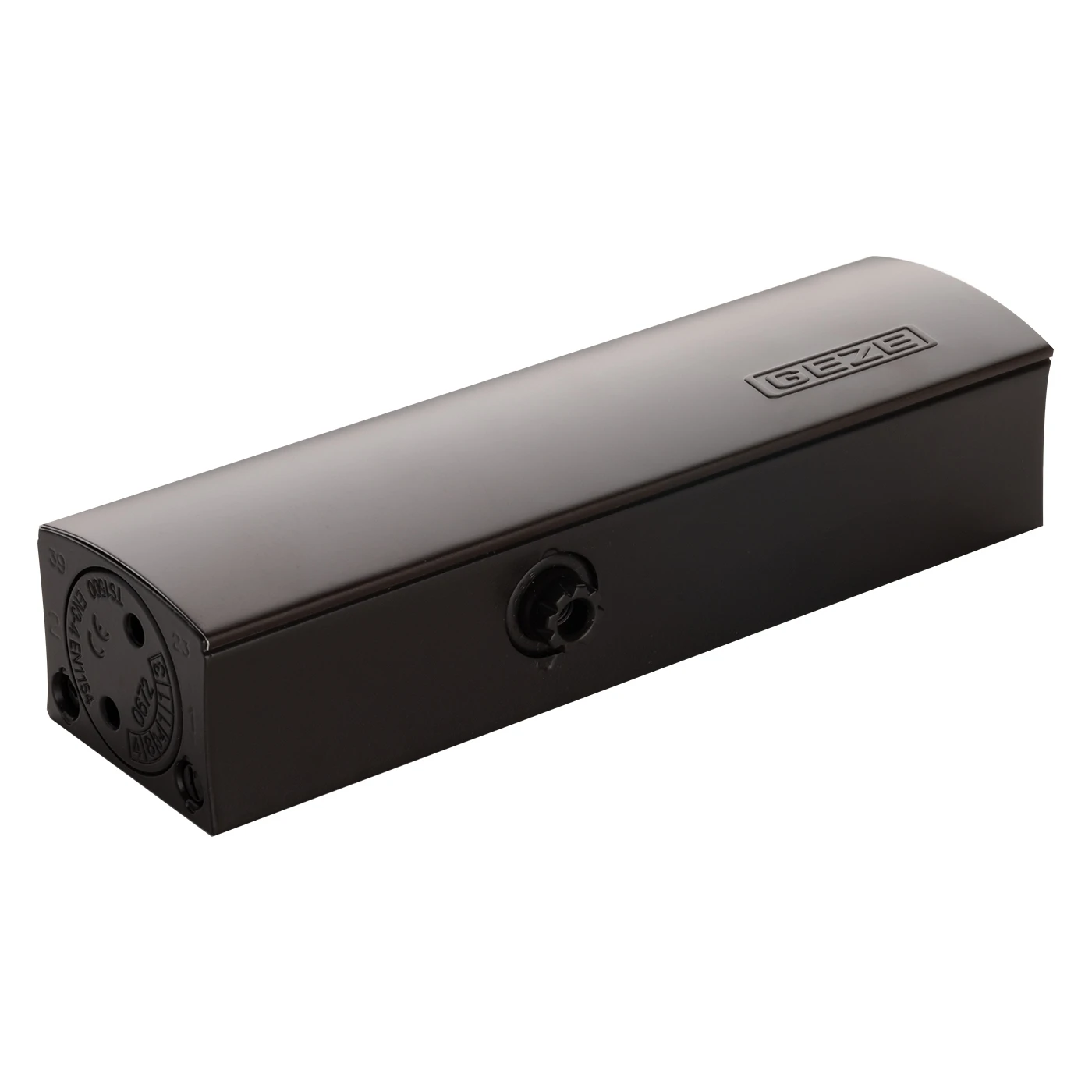

GEZE TS 1500 – Brown Hydraulic Door Closer without Arm EN 3-4

The GEZE TS 1500 hydraulic door closer in brown is a compact and reliable solution designed for single-leaf internal and external doors — both right- and left-handed. Thanks to its adjustable EN 3-4 closing force, it works perfectly on doors up to 1100 mm wide and weighing up to 90 kg. The product is supplied without an arm — the mounting arm is selected separately to suit the specific installation situation.

The elegant brown body allows the door closer to blend discreetly into the building's décor — whether in office buildings, hotels, or public facilities. Durability confirmed by 500,000 cycles (category 8 according to PN-EN 1154) guarantees years of trouble-free operation even under intensive use.

Adjustable closing force and flexible installation

The GEZE TS 1500 allows the closing force to be matched to the width of the door leaf by changing the mounting position. Force EN 3 handles doors up to 950 mm wide, while force EN 4 handles doors up to 1100 mm. In addition, the latching (final closing) adjustment valve allows precise setting of the last closing stage, preventing slamming and ensuring the door closes securely. Closing speed is also adjustable — the installer can optimally tune the closer's operation to the conditions at the site.

Fire and smoke protection

The door closer meets the requirements of EN 1154:1996/A1:2002/AC:2006 and is approved for use on fire and smoke control doors. This is a key feature for projects requiring compliance with fire protection regulations — office buildings, hotels, hospitals, schools, and other public facilities. Using a certified door closer eliminates the risk of objections from fire inspectors during acceptance inspections.

Installation options

The design of the GEZE TS 1500 allows for three installation variants, making it a versatile solution regardless of the frame configuration:

The maximum door opening angle is 180°, ensuring full freedom of use.

Technical specifications
