GEZE GD 1500 – Surface-Mounted Overhead Door Closer, Silver
0
Description
GEZE GD 1500 – Surface-Mounted Overhead Door Closer, Silver

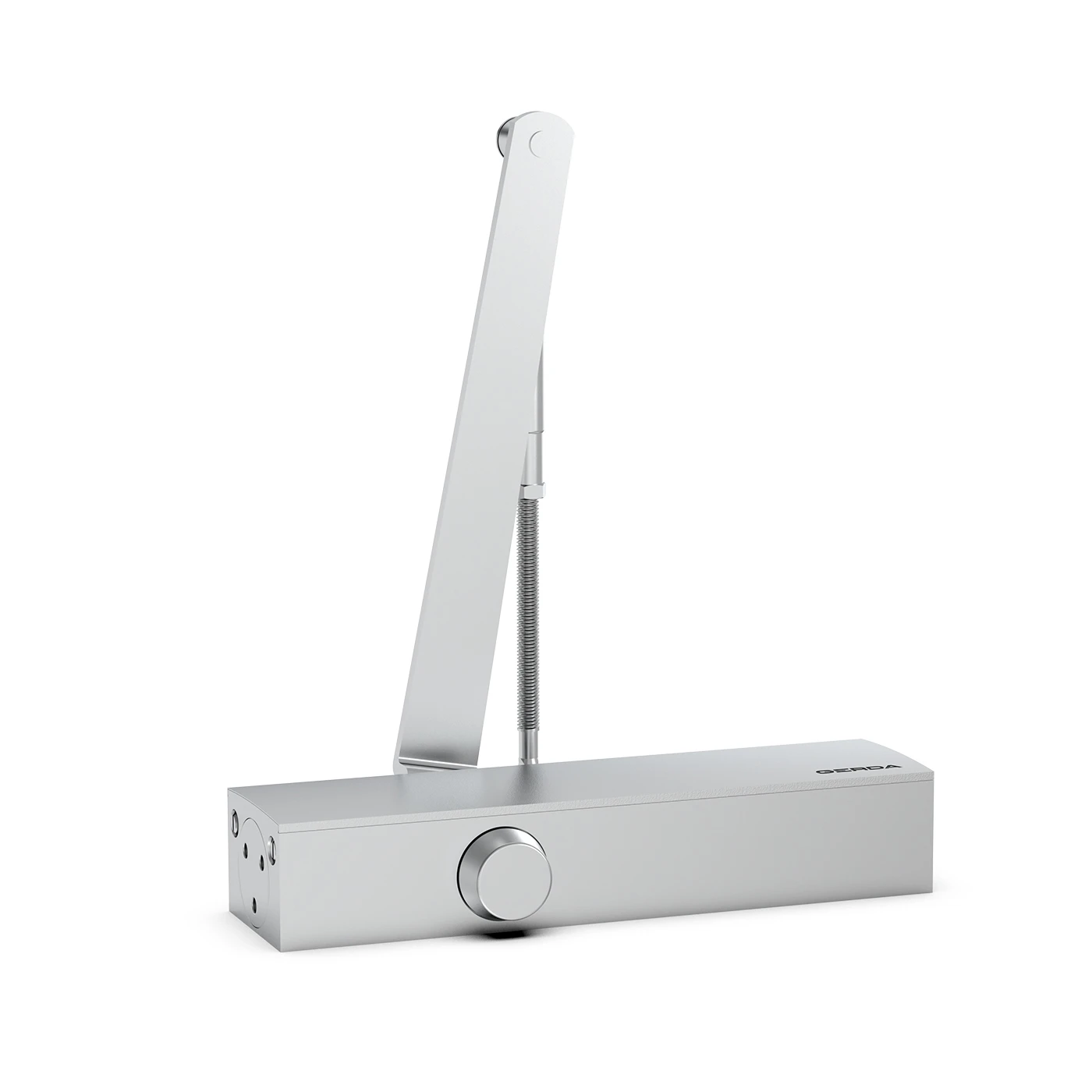

GEZE GD 1500 is a surface-mounted door closer with a hydraulic closing mechanism, designed for professional installation on internal and external doors. The silver, compact housing and sturdy scissor arm provide reliable automatic door closing — an ideal solution for commercial, office and public-use buildings where continuous control of door closing is required.
The GEZE door closer guarantees high durability and precise adjustment of operating parameters. Thanks to surface mounting, the device can be installed quickly, without the need to mortise the door — reducing installation time and labour costs. The compact housing dimensions (250 × 150 mm) allow for discreet installation even on narrow door leaves.
Technical data
- Manufacturer: GEZE
- Series: GD 1500
- Type: surface-mounted with scissor arm
- Mechanism: hydraulic
- Colour: silver
- Housing length (L): 250 mm
- Housing height (H): 150 mm
- Net weight: 2.18 kg
- EAN: 5902203345368

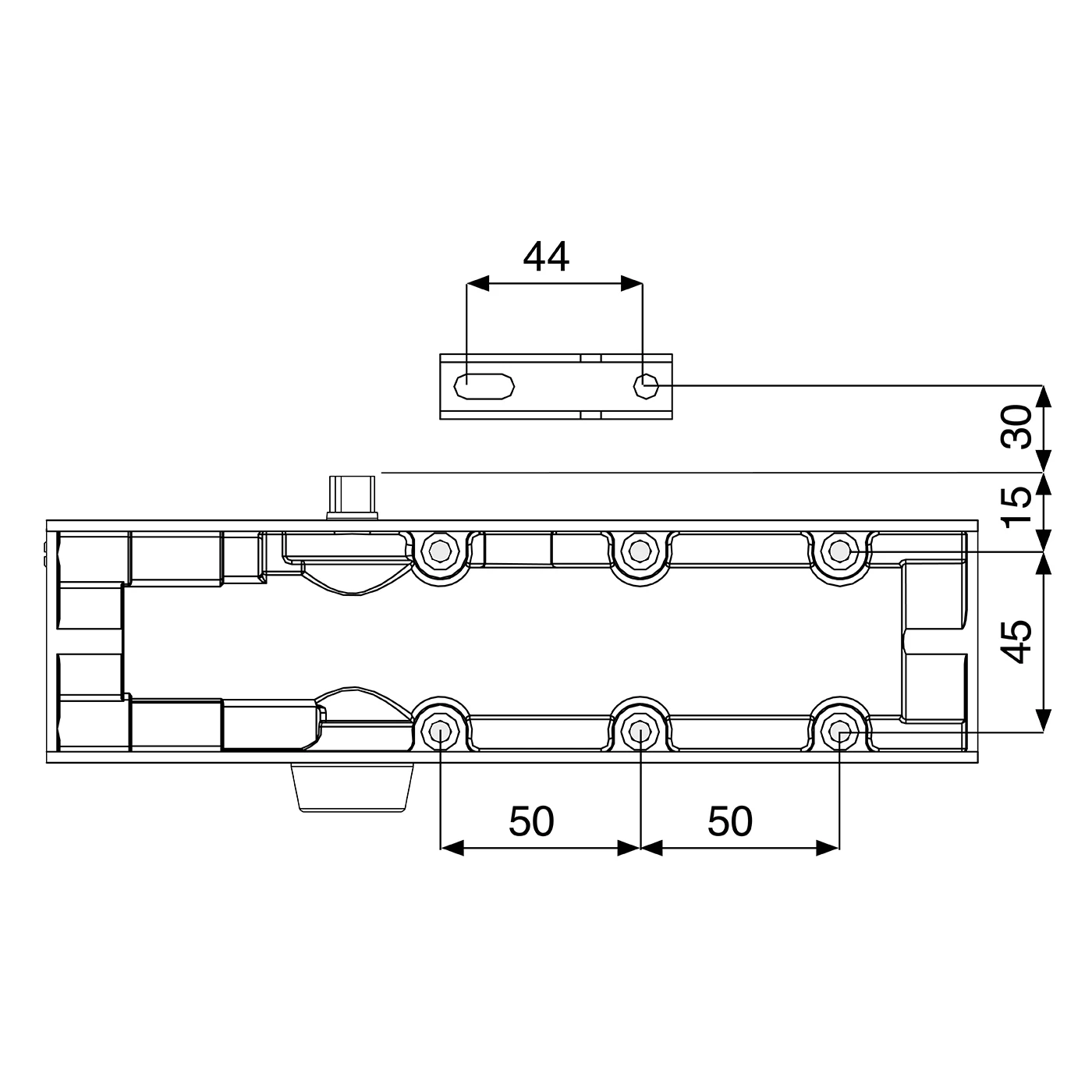

Mounting dimensions
- Arm bracket hole spacing: 44 mm
- Bracket offset from top edge of the body: 30 mm
- Offset of upper hole row axis from top edge of the body: 15 mm
- Vertical spacing between mounting hole rows: 45 mm
- Horizontal hole spacing within a row: 50 mm (two 50 mm gaps)
The precisely arranged mounting holes allow for repeatable and quick installation on the door frame or leaf. The included mounting template further speeds up installation in series — particularly important when fitting out entire facilities.
Application and benefits
The GEZE GD 1500 door closer is ideal wherever controlled, automatic door closing is required — in office buildings, hotels, educational facilities, retail premises and fire zones. The hydraulic mechanism ensures smooth and quiet closing of the leaf, eliminating door slamming and increasing user comfort. For installation companies, this product combines the renowned GEZE brand, ease of installation and long-term trouble-free operation — resulting in fewer complaints and higher end-customer satisfaction.
