GEZE GD 1000 C – hydraulic door closer with arm, silver
0
Description
GEZE GD 1000 C – hydraulic door closer with arm, silver
GEZE GD 1000 C is a compact door closer with a scissor arm, designed for installation on interior doors and light exterior doors. The PVC housing in silver provides an aesthetic appearance and protects the hydraulic mechanism from dust and dirt. Thanks to its small dimensions and weight of just 1.756 kg, the device is suitable for quick installation without the need for specialist tools — an ideal solution for installation teams carrying out complete building fit-outs.
The door closer provides controlled door closing with an adjustable closing speed, which increases user comfort and eliminates door slamming. The scissor arm guarantees smooth operation throughout the product's entire service life.
Technical parameters
- Manufacturer: GEZE
- Model: GD 1000 C
- Type: hydraulic door closer with scissor arm
- Housing: PVC, silver
- Net weight: 1.756 kg
- Dimensions (L × H): 200 × 150 mm
- EAN: 5902203345351

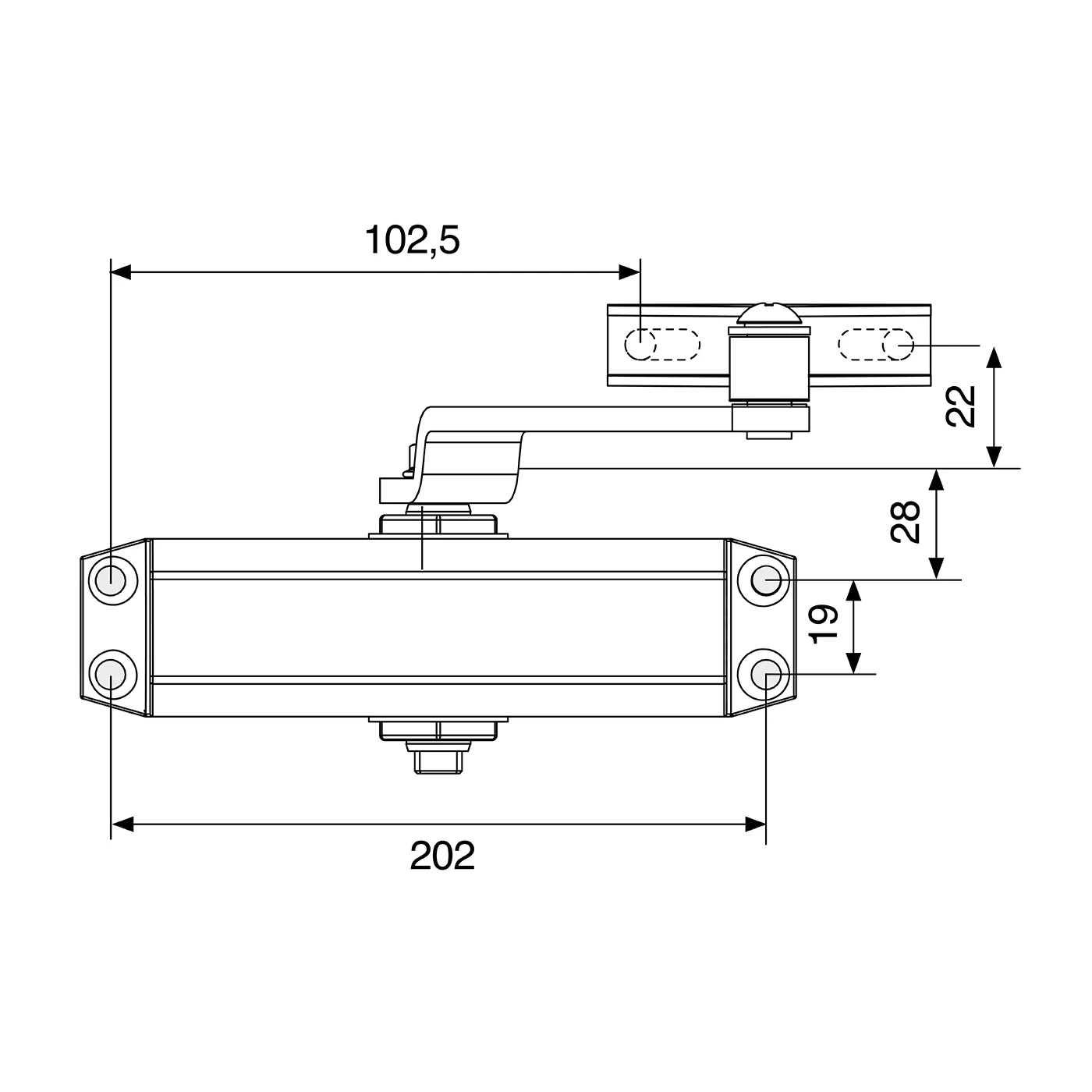

Mounting dimensions
- Horizontal spacing of body mounting holes: 202 mm
- Vertical spacing of body mounting holes: 19 mm
- Horizontal offset of the arm bracket from the body axis: 102.5 mm
- Vertical distance from the body to the bracket edge: 28 mm
- Distance from the bracket edge to the axis of the mounting holes: 22 mm
Precisely positioned mounting holes in the body and arm bracket make repeatable installation on door series easy — just lay out the template once to achieve the correct position of the door closer every time.
Application
The GEZE GD 1000 C door closer is suitable wherever automatic door closing is required — in office buildings, public facilities, service premises and multi-family residential buildings. Its compact construction and neutral silver colour allow for discreet integration with various types of door joinery. For installation companies, this is a product with high installation repeatability and the proven quality of the GEZE brand.
