Fuse switch 3P 63A D02 L73M HAGER
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.37 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

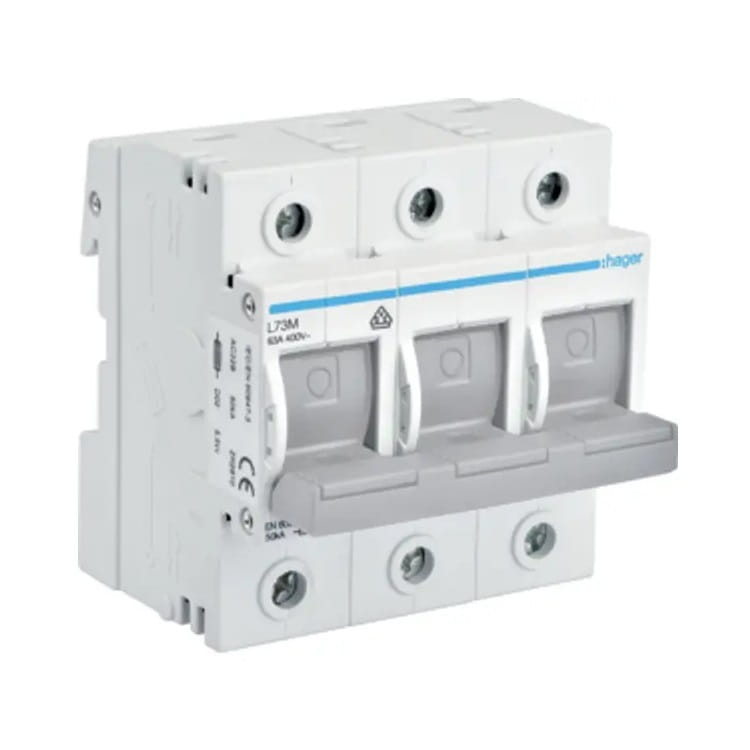

Fuse switch 3P 63A D02 L73M HAGER
Fuse switch 3P 63A D02 L73M by HAGER provides protection for electrical installations against short circuits and overloads. Fuse disconnectors are commonly used in distribution networks and main switchboards of residential buildings and in electrical installations.
Equipped with three poles, this disconnector allows easy and quick installation on a TS35 rail. Wiring connection is via cage terminals - flexible conductors (wire) with a cross-section of 1.5/35 mm², as well as rigid conductors (wire) with a cross-section of 1.5/35 mm².
Specification
Manufacturer
HAGER
Number of poles [xP]
3 P
Rated current [A]
63 A
Insert type
D02
Characteristics
3-phase
Number of modules
4.5
Rated voltage [V]
400/440
Size
D02
Operating temperature
-20 to 60 °C
Dimensions
85x81x70 mm
Series and type
Fuse switch 3P 63A D02 L73M HAGER
Design material
Plastic, metal
Clamp type
Cage clamps
Width
81 mm
Degree of contamination according to IEC 60664 / IEC 60947-2
3
Degree of protection
IP40
Available Configuration
Technical data
| Application | AC (mains) |
| Disconnector Type | fuse switch disconnector |
| Rated current [A] | 63A |
| Number of poles | 3P |
| Brand | HAGER |
