Fuse Base 2P 32A 10x38mm 1000V DC
Leave feedback on the product
2P 32A fuse base for 10x38 mm cartridges, rated 1000V DC. DIN rail TH-35 mounting, terminals 0.5-10 mm², protection class IP20. Designed for photovoltaic installations.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Description
Fuse Base 2P 32A 10x38 1000V DC

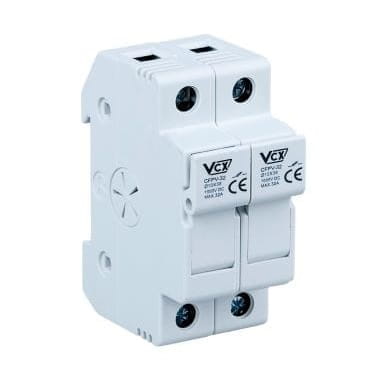

Fuse base 2P 32A 10x38 1000V DC CFPV-32 CF PV32 2P VCX designed for fuse links with dimensions 10x38, intended for use in photovoltaic installations. The maximum permissible operating voltage is 1000V DC, and the maximum permissible current is 32A.
SPECIFICATION
| Parameter | Value |
|---|---|
| Type and series: | modular fuse base CFPV-32 PV 2P 10x38mm 1-32A 1000V CF PV32 2P VCX |
| Maximum current | 32A |
| Rated voltage (Un) | 1000 V DC |
| Rated current (ln) | max 320 A |
| Terminal capacity | 0.5-10 mm² |
| Mounting method | TH-35 rail |
| Number of modules | 2 |
| Fuse link size | 10.3 x 38 |
| Frequency | 50/60 Hz |
| Operating temperature | -25 to 50 °C |
| Dimensions | 36x78x60 mm |
| IP rating | IP20 |
