FRONIUS

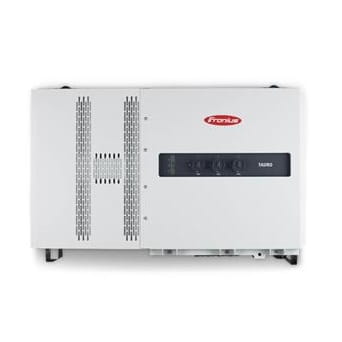

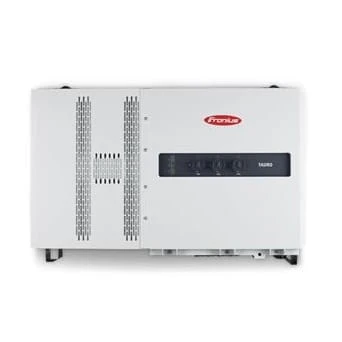

Fronius Tauro Eco 50kW 3-Phase Grid-Tied PV Inverter 1MPPT

Go to Product feedback

3-phase 50kW inverter with 1 MPPT tracker, max power 75kWpeak, efficiency 98.5%. Voltage range 580-1000V, integrated DC switch and surge protection Type 1+2. Interfaces: Wi-Fi, 2x Ethernet, 2x RS485, datalogger and webserver.

Go to full description
with VAT without VAT
Price €5,946.58
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

Main parameters

  • Type On-grid
  • Power > 20 kW
  • Number of phases Three-phase
  • Number of MPPT 1 MPPT
  • WiFi Yes
  • DC switch Yes

Description

PV Grid-Tied Inverter 50KW 3-Phase 1MPPT 50-3-D Tauro Eco Fronius

PV Grid-Tied Inverter 50KW 3-Phase 1MPPT 50-3-D Tauro Eco Fronius guarantees the highest performance even in the most challenging conditions.

Thanks to intelligent hardware solutions, it enables not only BOS cost optimisation, but also unprecedented flexibility in system design. Additionally, simple installation and quick servicing ensure maximum safety.

Input Data

ParameterValue
Number of MPP trackers1
Maximum input current (Idc max)87.5 A
Maximum module short-circuit current75 / 75 A
Input voltage range (Udc min - Udc max)580 - 1000 V
Start-up voltage (Udc start)650 V
Usable MPP voltage range (Umpp min - Umpp max)580 - 930 V
Number of DC connections (PV1 / PV2 / PV3)7 / 7 / -
Maximum PV generator power (Pdc max)75 kWpeak

Output Data

ParameterValue
Rated AC power (Pac,r)50,000 W
Maximum output power50,000 VA
AC output current (Iac nom)76 A
Grid connection (voltage range Uac,r)3~ NPE 400/230 V ; 3~ NPE 380/220 V
Frequency (frequency range fmin - fmax)50 Hz / 60 Hz (45 - 65 Hz)
Power factor (cos φac,r)0 - 1 ind. / cap.

Standards

ParameterValue
Certificates and compliance with standards[[AS/NZS 4777.2:2015, IEC62109-1/-2, VDE-AR-N 4105:2018, IEC62116, EN50549-1:2019 & EN50549-2:2019, VDE-AR-N 4110:2018, CEI 0-16:2019, CEI 0-21:2019]]

AC Connection Terminals

ParameterValue
Cable diameter35 - 240mm²
AC conductor materialAl and Cu
Connection terminalsCable lugs or V-clamps
Single-core option (single-core cable)Cable gland: 5 x M40
Multi-core option (multi-core cable)Cable gland: 1 x multi-core connection Ø 16 – 61.4mm + 1 M32
AC daisy-chaining option (single-core cable)Cable gland: 10 x M32

Efficiency

ParameterValue
Maximum efficiency98.5 %
European weighted efficiency (ηEU)98.2 %
MPP tracking efficiency> 99.9 %

Protection

ParameterValue
DC disconnectorIntegrated
Overload behaviourOperating point shift, output power limitation
Reverse polarity protectionIntegrated
RCMUIntegrated
DC insulation measurementIntegrated
DC surge protectionType 1+2 integrated, Type 2 optional
String protection with gPV fusesIntegrated, 15A or 20A

Interfaces

ParameterValue
Wi-FiFronius Solar.web, Modbus TCP Sunspec, Fronius Solar API (JSON)
2x Ethernet LAN RJ45[[10/100Mbit; max. 100m Fronius Solar.web, Modbus TCP Sunspec, Fronius Solar API (JSON)]]
USB (Type A socket)1A @5V max.
Wired Shutdown (WSD)Emergency shutdown
2x RS485Modbus RTU SunSpec / battery communication
6 digital inputs and 6 digital inputs/outputsProgrammable ripple control receiver interface, energy management, load control
Datalogger and web serverIntegrated
