Flat handrail mounting bracket 64×24×4 mm – AISI 304 stainless steel satin finish
0
Description

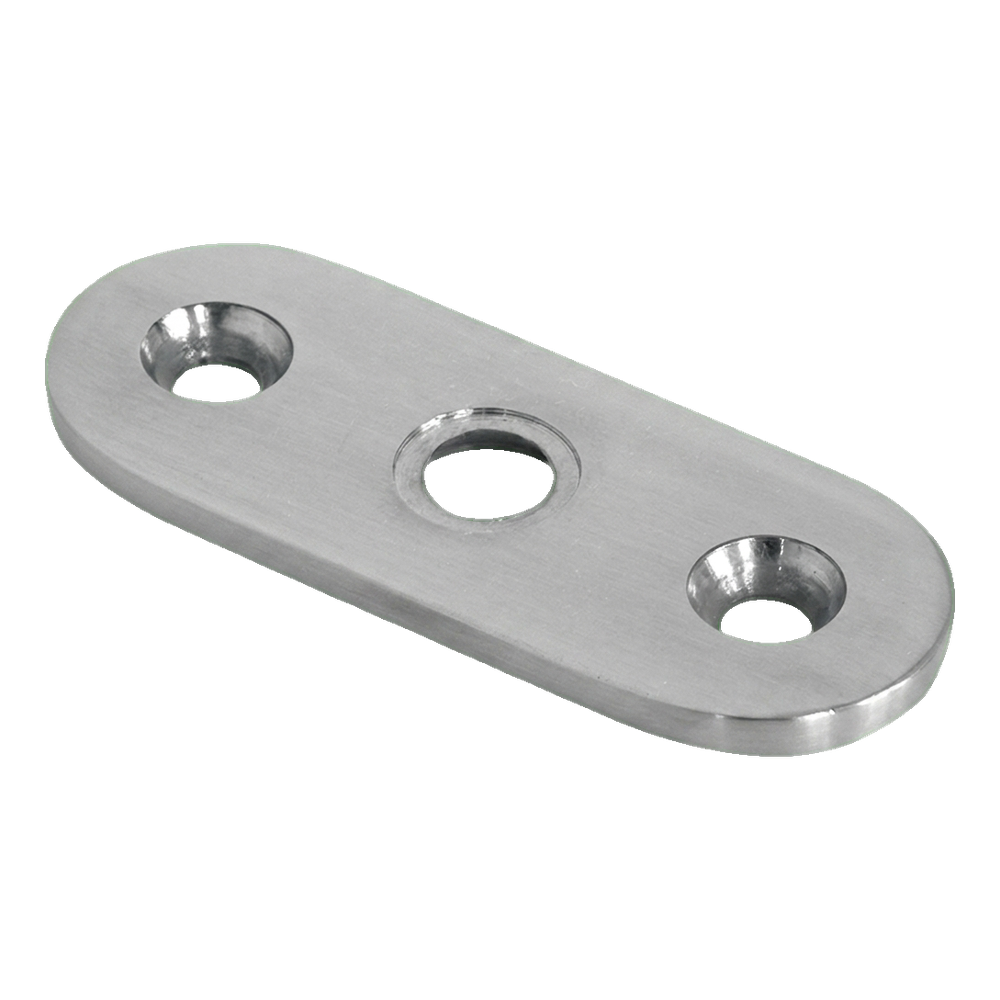

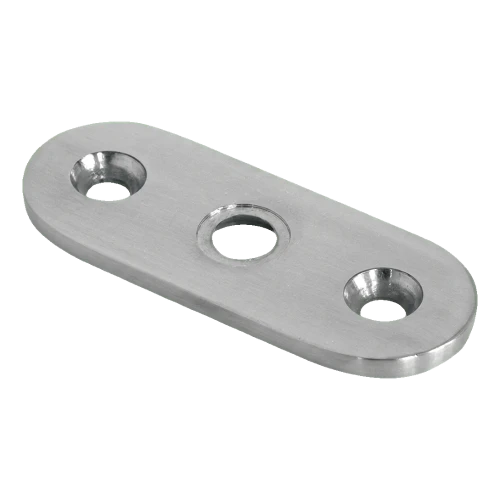

Flat handrail mounting bracket 64×24×4 mm – AISI 304 stainless steel satin finish
Handrail mounting bracket designed for installation on flat surfaces — an ideal solution for constructing balustrades and handrail systems from stainless steel. Thanks to compact dimensions of 64 × 24 × 4 mm and three mounting holes, the component ensures secure, stable connection of the handrail bracket to the substrate.
The bracket is designed for flat handrail systems and is secured from the top using screws. The central hole with countersunk recess allows for the use of countersunk head screws, guaranteeing a flush, aesthetically pleasing installation. Two side mounting holes provide additional stabilisation and even load distribution.
Made from AISI 304 stainless steel — a material with high corrosion resistance, excellently suited for both internal and external applications. The satin finish gives the component a modern, matt appearance that coordinates with other balustrade system components.

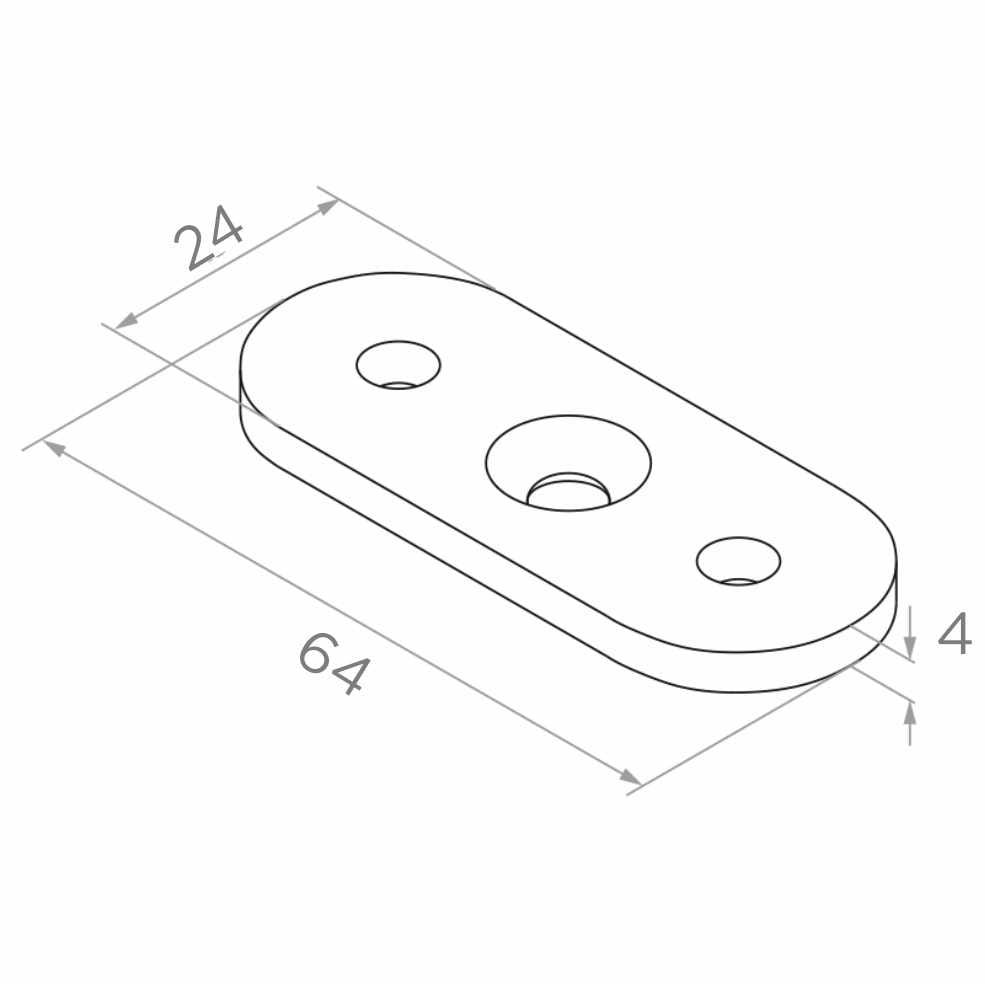

Dimensions and technical data
- Length: 64 mm
- Width: 24 mm
- Thickness: 4 mm
- Shape: oval (rectangle with rounded ends)
- Mounting holes: 3 pcs (1 central with countersunk recess + 2 side holes)
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.04 kg
- System: flat handrail
- Installation: top-mounted, secured with screws
- EAN: 5901289672122
The mounting bracket is an essential component in professional stainless steel balustrade systems. Thanks to the use of AISI 304 steel, installers can use it in residential buildings, commercial facilities, and outdoors — without risk of corrosion. The minimal thickness of 4 mm allows for discrete installation, whilst the satin finish harmoniously coordinates with other handrail system components.
Technical data
| Material | AISI 304 |
| Finish | Satin |
