Flat bar bracket B for 50x4mm galvanized steel
Leave feedback on the product
Flat bar holder up to 50×4 mm | Galvanised steel | 54×26×30 mm. Wall-mounted for lightning protection installations.
Product code: 000-172
Description

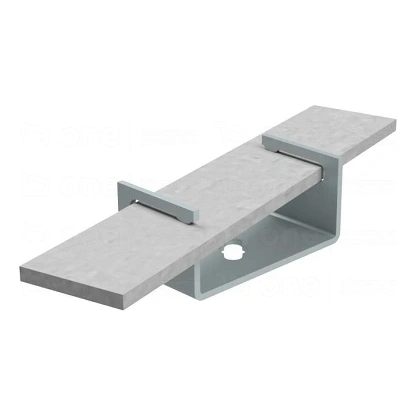

Flat Bar Holder B for 50×4 mm – Galvanised Steel
Flat bar holder designed for permanent mounting of lightning protection flat conductors on building walls. Accepts flat bars with a width of up to 50 mm and thickness of up to 4 mm, allowing use with the most popular flat conductor dimensions used in lightning protection installations.
Made from galvanised steel, ensuring high corrosion resistance and long-lasting protection in outdoor conditions. Galvanising provides a uniform, smooth protective coating across the entire surface of the holder.
Simple and quick installation — the holder is fixed to the wall using a screw or anchor through the mounting hole in the base. The flat bar is inserted from the top and held securely in place thanks to the holder's geometry.
Technical specifications
- Material: galvanised steel
- Flat bar range: up to 50×4 mm (B – maximum flat bar width)

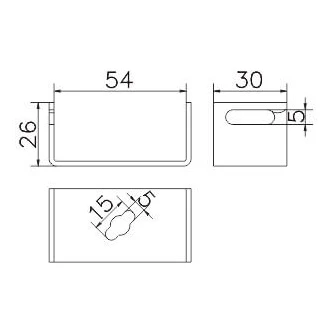

- Holder dimensions: 54×26×30 mm
- GTIN: 5901832919636
Application: the holder is ideal wherever flat bars need to be routed along building walls — both on facades and in technical rooms. Its compact design allows for discreet installation without compromising the aesthetics of the facade.
