Fence Panel Connector for Screwing H80 Black Semi-Matt RAL 9005
Leave feedback on the product
PSG fence panel connector made from S235JR steel, black semi-matt RAL 9005. Height 80 mm, width 25 mm, sheet thickness 3 mm. Hole spacing 60 mm, diameter Ø8.8 mm. Mounting lug 30x36 mm with kidney-shaped hole 20x9 mm. Weight 0.08 kg. Coating: galvanic zinc plating with lacquer.
Product code: 000-651
Description
Fence Panel Connector for Screwing H80 Black Semi-Matt RAL 9005

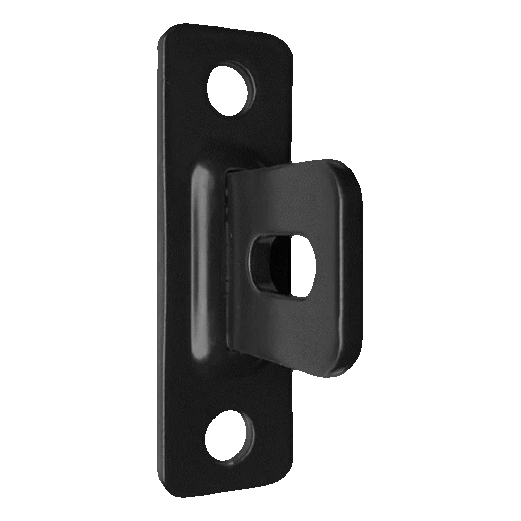

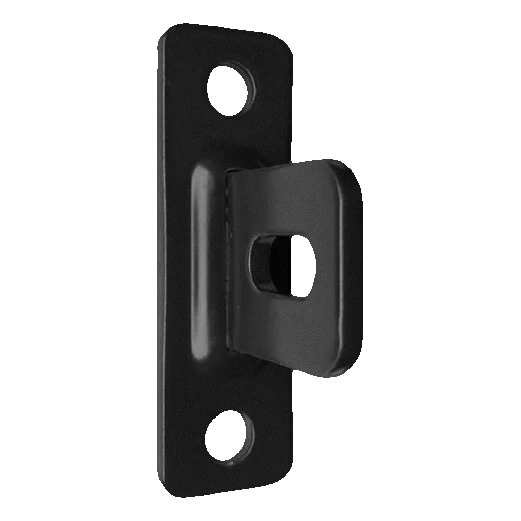

Screw-on fence panel connector by PSG is a robust steel element for permanent connection of fence panels to fence posts. Made from S235JR steel with galvanically zinc-plated and lacquered coating in black semi-matt RAL 9005, it provides high corrosion resistance and an aesthetic, modern fence appearance.
The connector is mounted using two screws through holes in the plate (spacing 60 mm, hole diameter Ø8.8 mm), allowing secure attachment to the fence post. The protruding mounting lug with kidney-shaped hole enables smooth vertical adjustment of the panel position, significantly facilitating levelling of the entire structure during installation. Thanks to its compact dimensions and weight of only 0.08 kg, the connector is convenient to transport and quick to install — ideal for large fencing projects.

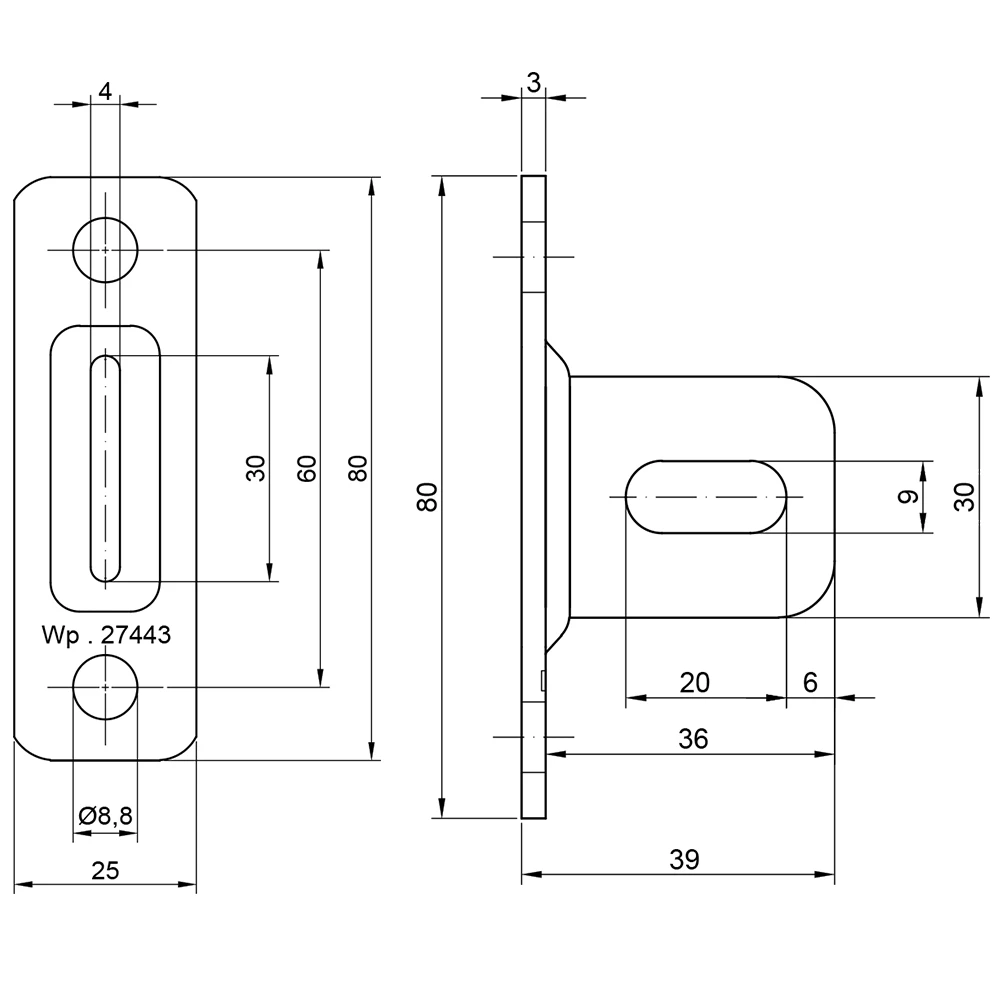

Mounting plate dimensions
- Height: 80 mm
- Width: 25 mm
- Plate thickness: 3 mm
- Mounting hole spacing: 60 mm
- Mounting hole diameter: Ø8.8 mm
Mounting lug (kidney hole) dimensions
- Lug height: 30 mm
- Lug reach (from plate): 36 mm
- Total depth (with plate): 39 mm
- Kidney hole length: 20 mm
- Kidney hole width: 9 mm
- Lug thickness: 4 mm
Installation method

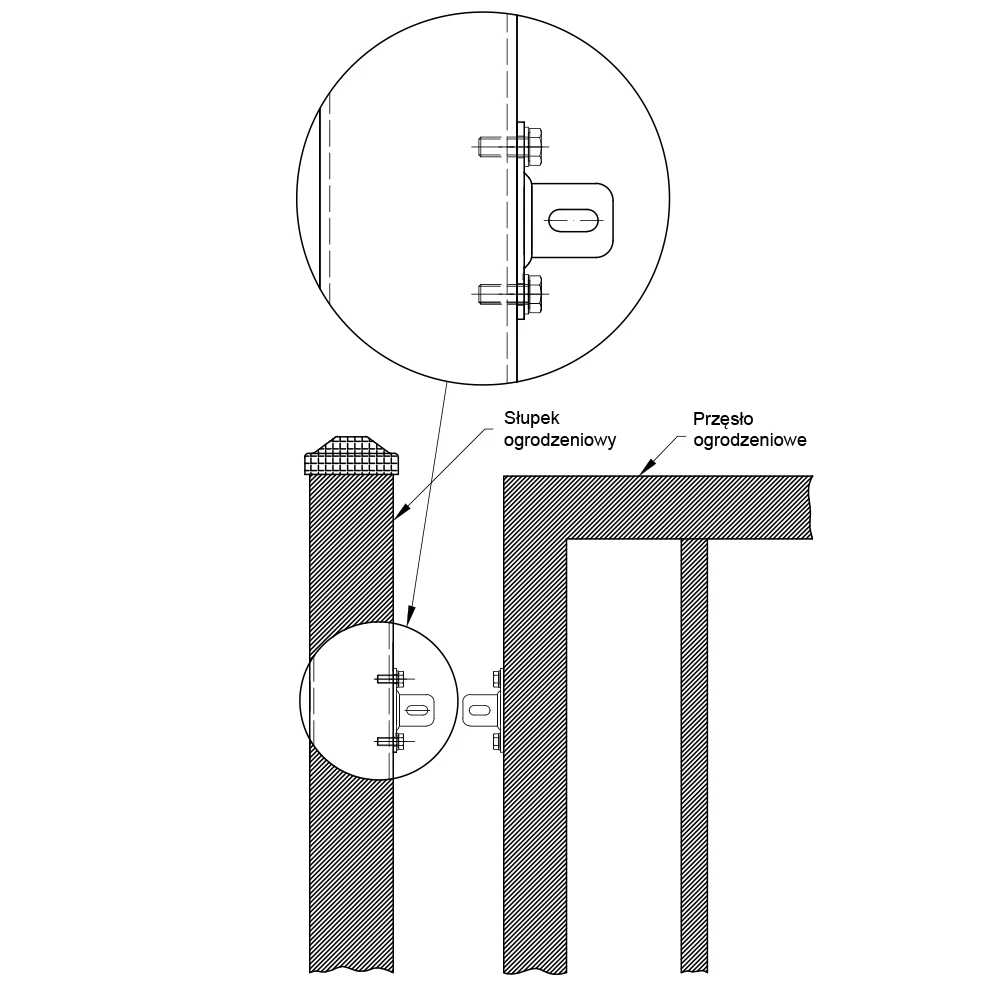

The connector is screwed to the fence post using two screws passing through the Ø8.8 mm holes in the plate. The fence panel is hung on the mounting lug by inserting the panel bar or slat into the kidney-shaped hole. The elongated hole shape (20 × 9 mm) enables vertical adjustment of the panel position, allowing precise levelling of the entire fence line even on uneven terrain.
Technical specification
- Manufacturer: PSG
- Material: S235JR steel
- Coating: galvanic zinc plating + lacquer
- Colour: black semi-matt RAL 9005
- Weight: 0.08 kg
- Volume: 78 cm³
- EAN: 5901431940543
