Equipotential busbar 7x 25mm², 1x B up to 30mm, 1x 8-10mm
Leave feedback on the product
Equipotential bonding bar made of nickel-plated brass for potential equalisation in accordance with PN-EN 62305. Connections for 7x 25 mm², flat conductor up to 30 mm and rod Ø 8–10 mm.
Product code: 000-177
Description

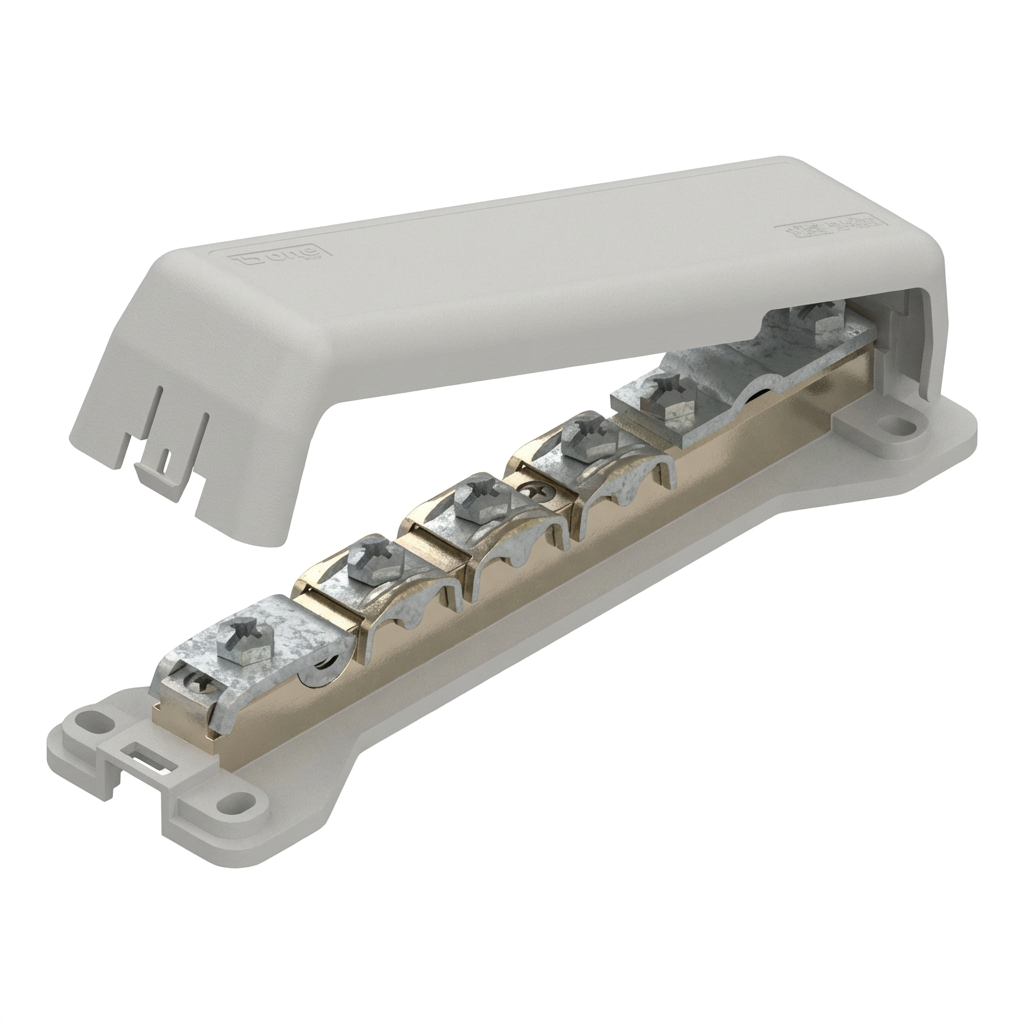

Equipotential Bonding Bar 7x 25mm² / 1x Flat Conductor up to 30mm / 1x 8-10mm
Equipotential bonding bar designed for potential equalisation in lightning protection and earthing installations. Its compact construction with a protective cover allows multiple conductors to be safely connected at a single connection point.
The bar accommodates 7 conductors with a cross-section of 25 mm², 1 flat conductor (tape) up to 30 mm wide and 1 round conductor with a diameter of 8–10 mm, making it a versatile equipotential bonding point for residential buildings and commercial premises.
Materials and Durability
The bar is manufactured from nickel-plated brass, with structural components made from galvanised steel. This combination of materials ensures excellent corrosion resistance and reliable electrical contact throughout the product's service life.
Technical Specifications
- Conductor connections: 7x 25 mm²
- Flat conductor connection: 1x tape up to 30 mm
- Round conductor connection: 1x Ø 8–10 mm
- Bar material: nickel-plated brass
- Structural material: galvanised steel
- Standard: EN 62305
- GTIN: 5906764383357
Applications
The equipotential bonding bar is used in potential equalisation systems in accordance with standard EN 62305. It can be installed in distribution boards, junction boxes and directly on walls — wherever a bonding connection is required for lightning protection, earthing systems and metallic structural elements of a building.
