End post right/left ø 42.4x1060mm AISI304 2 glass clamps floor-mounted
Description

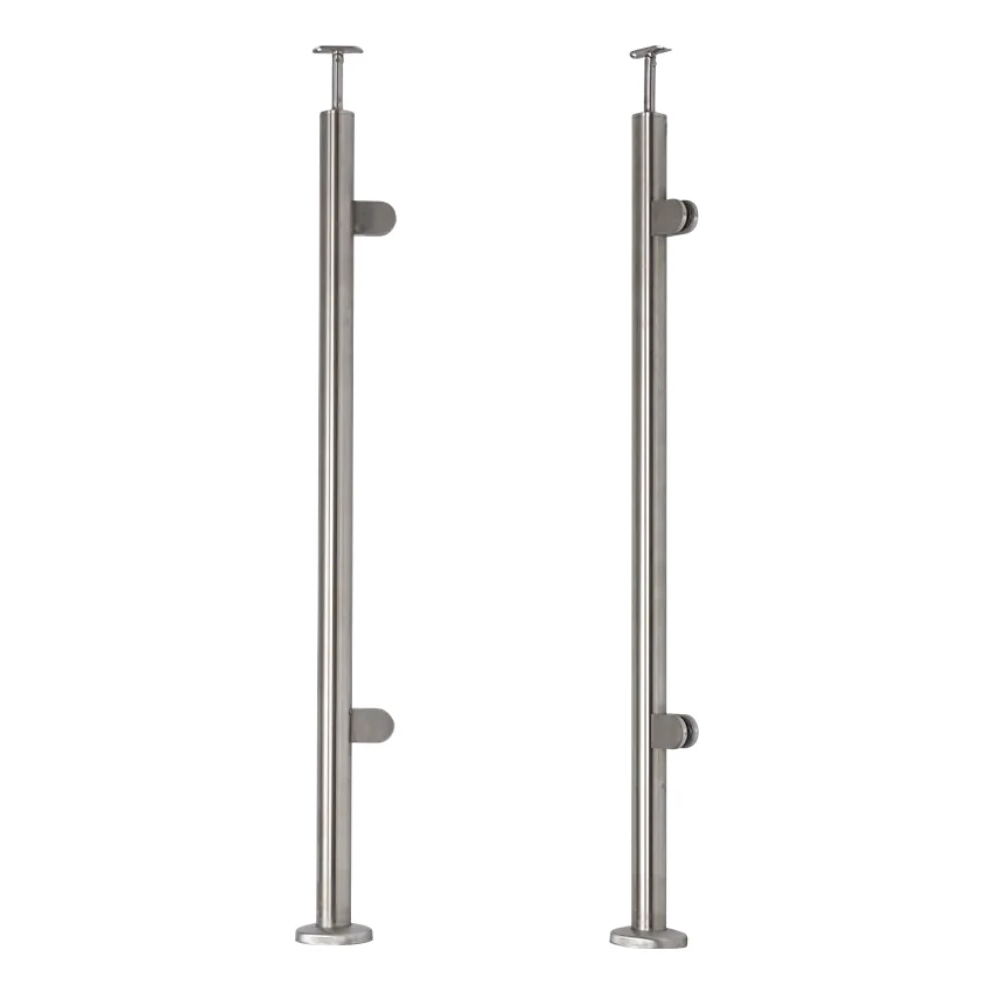

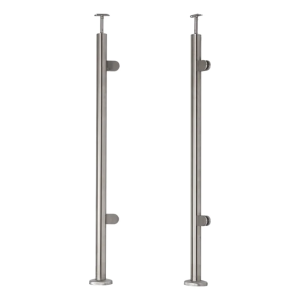

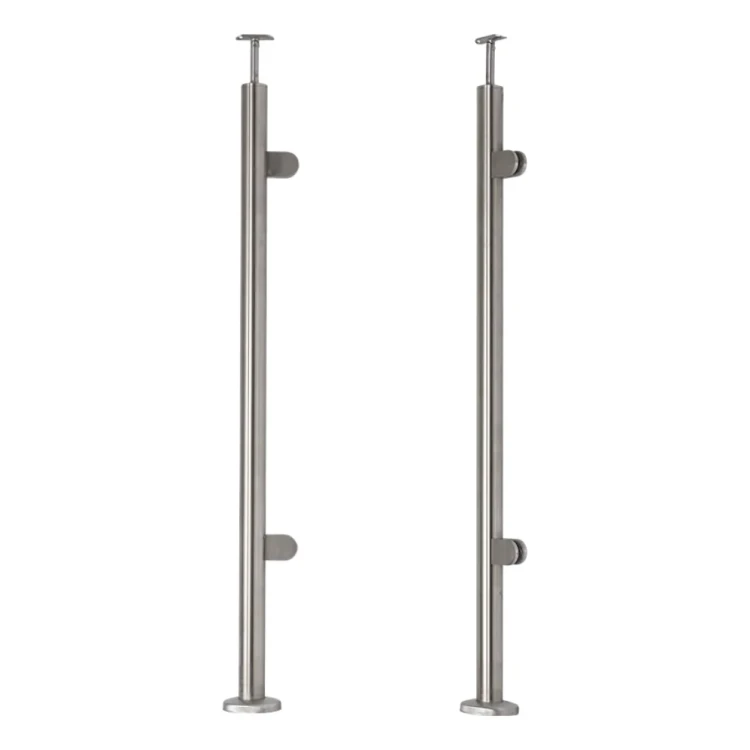

End balustrade post made from stainless steel ø 42.4 mm with glass clamps
End balustrade post right/left made from stainless steel AISI 304 with satin finish (brushed). Complete set designed for building balcony and staircase balustrades with glass infill. Post mounted in floor, equipped with 2 glass clamps, handrail connector and base cover plate — ready for quick installation.
Main features of the post
- Material: AISI 304 stainless steel — high resistance to corrosion and mechanical damage
- Finish: satin (brushed)
- Post diameter: ø 42.4 mm, wall thickness: 2 mm
- Post height: 1060 mm
- Total height with handrail: 1102.4 mm
- Type: end right/left — universal, suitable for various architectural projects
- Mounting method: in floor
- Glass clamps: 2 pcs
- Glass thickness range: 6–10.76 mm (includes rubber seals for 8 mm glass)
- Weight: 3.2 kg

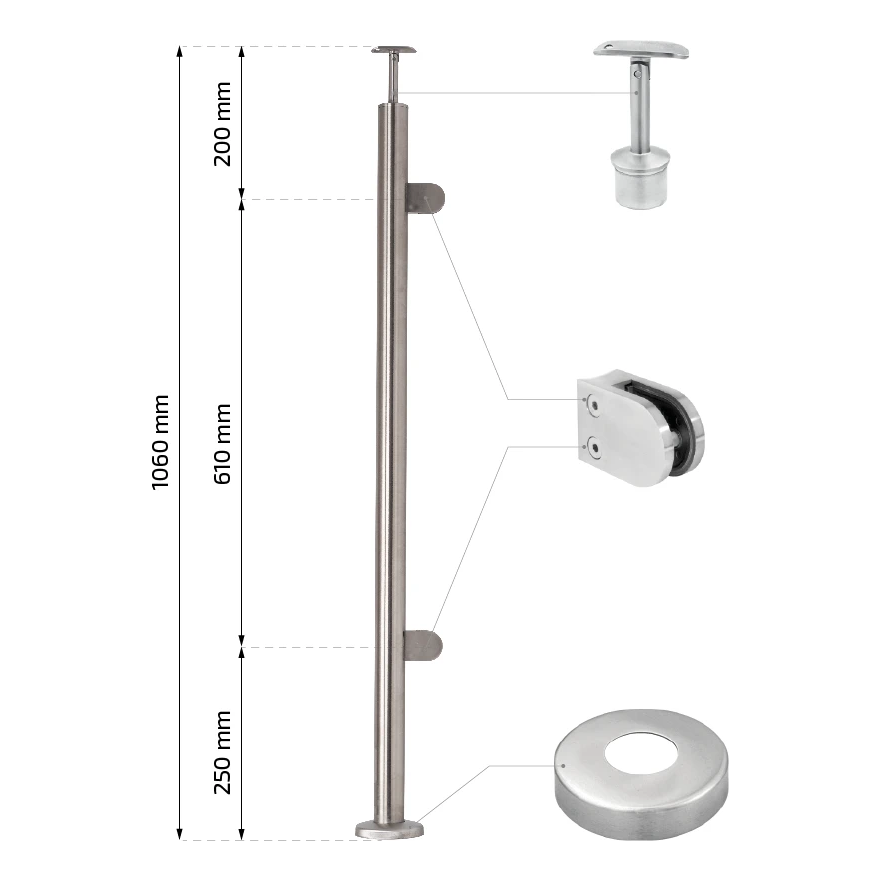

Clamp positioning on post
Glass clamps are positioned symmetrically on the post. Distance from top edge of post to centre of upper clamp is 200 mm, centre-to-centre spacing of clamps is 610 mm, and distance from lower clamp to base is 250 mm. Clamp mounting holes: 2× M8.
Set contents
- Post ø 42.4 × 2 mm, height 1060 mm
- Handrail connector (top bracket) — height 80 mm, pin ø 14 mm, fitted for handrail ø 42.4 mm
- Glass clamps — 2 pcs, dimensions 50 × 40 × 40 mm, mounting hole ø 8.5 mm
- Base cover plate (rosette) — diameter 105 mm, height 20 mm, hole ø 42.4 mm
- Complete set of rubber seals for 8 mm glass

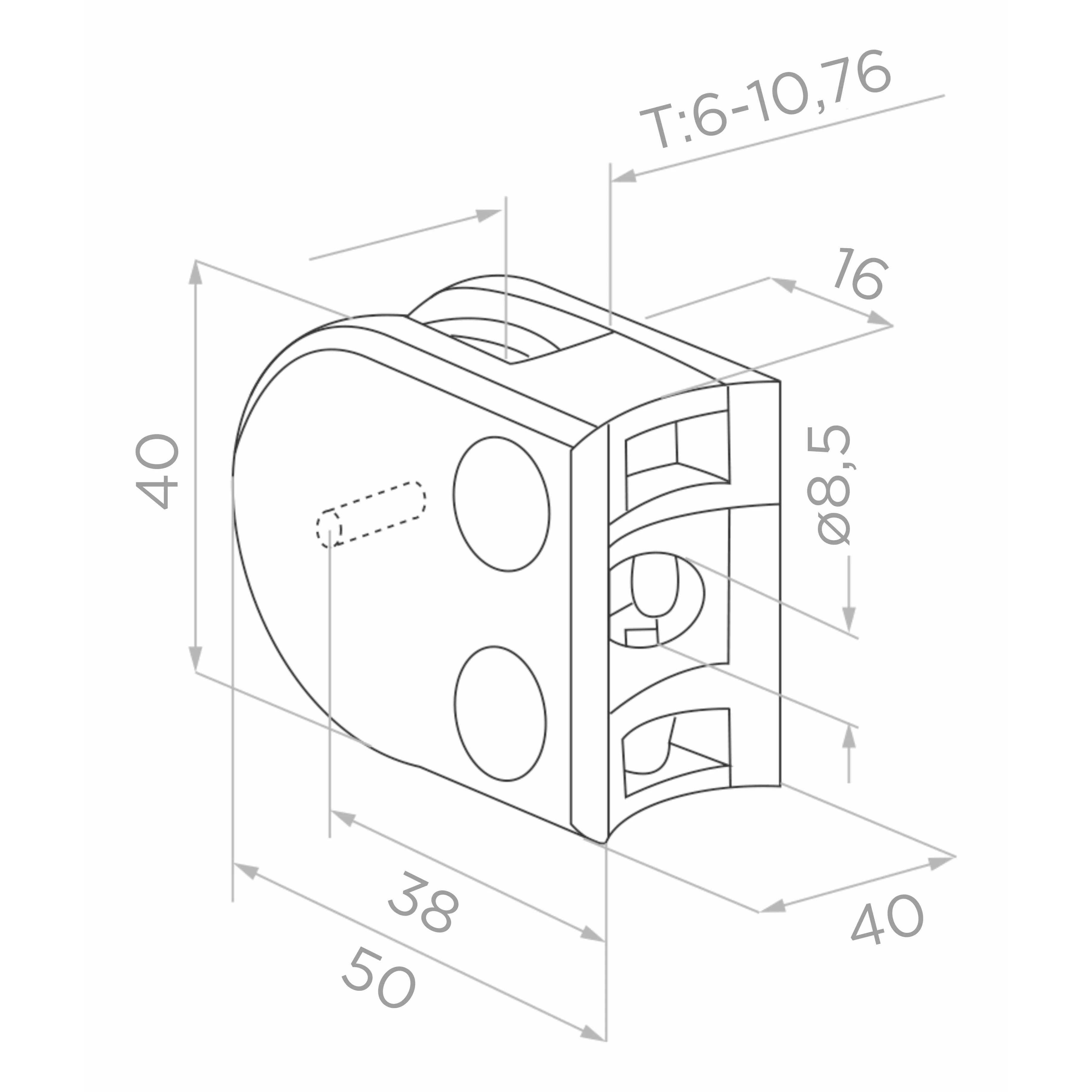

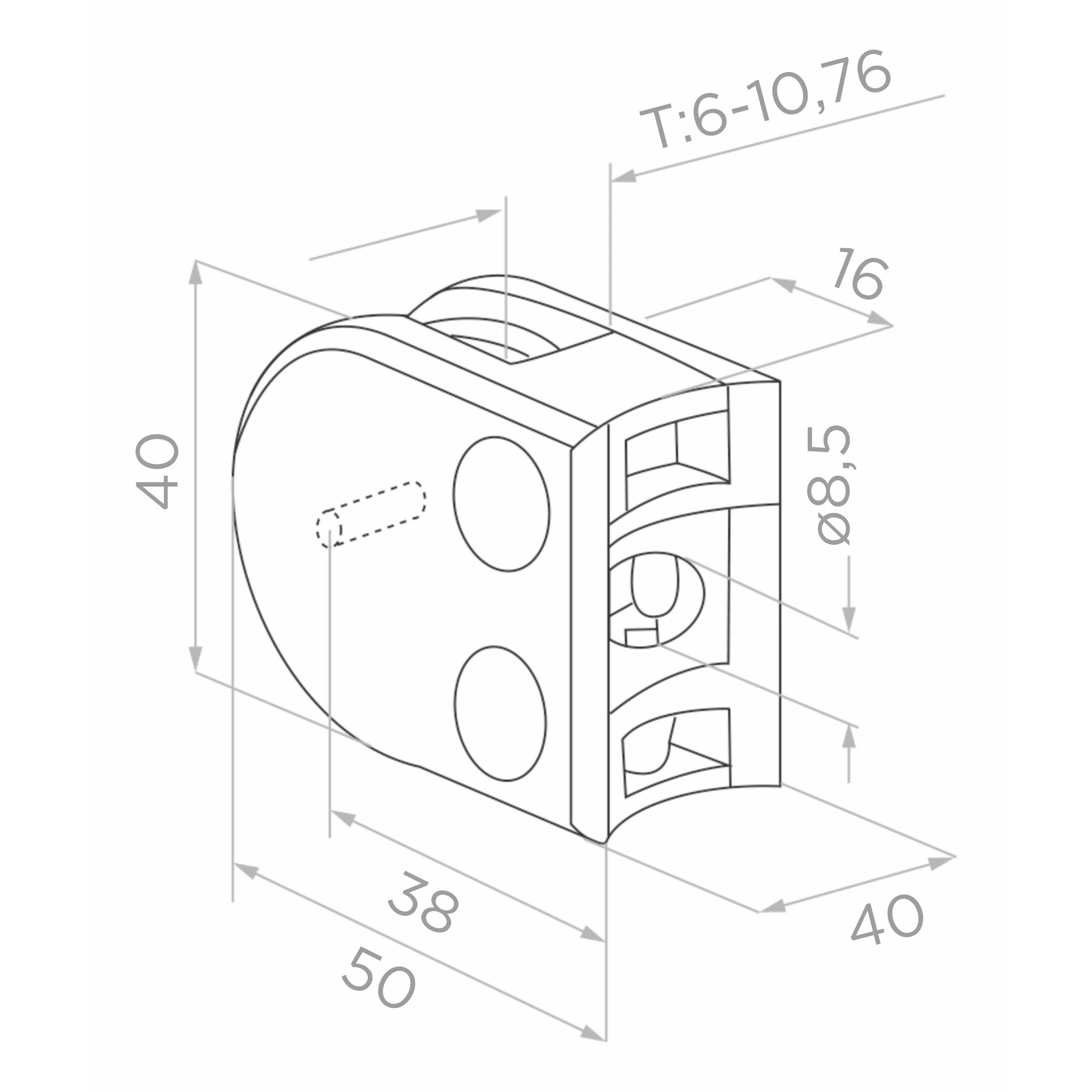

Glass clamp dimensions
- Total length: 50 mm, mounting section: 38 mm
- Height: 40 mm
- Width: 40 mm
- Glass panel thickness range: 6–10.76 mm
- Distance from glass edge to centre of lock: 16 mm
- Mounting hole diameter: ø 8.5 mm

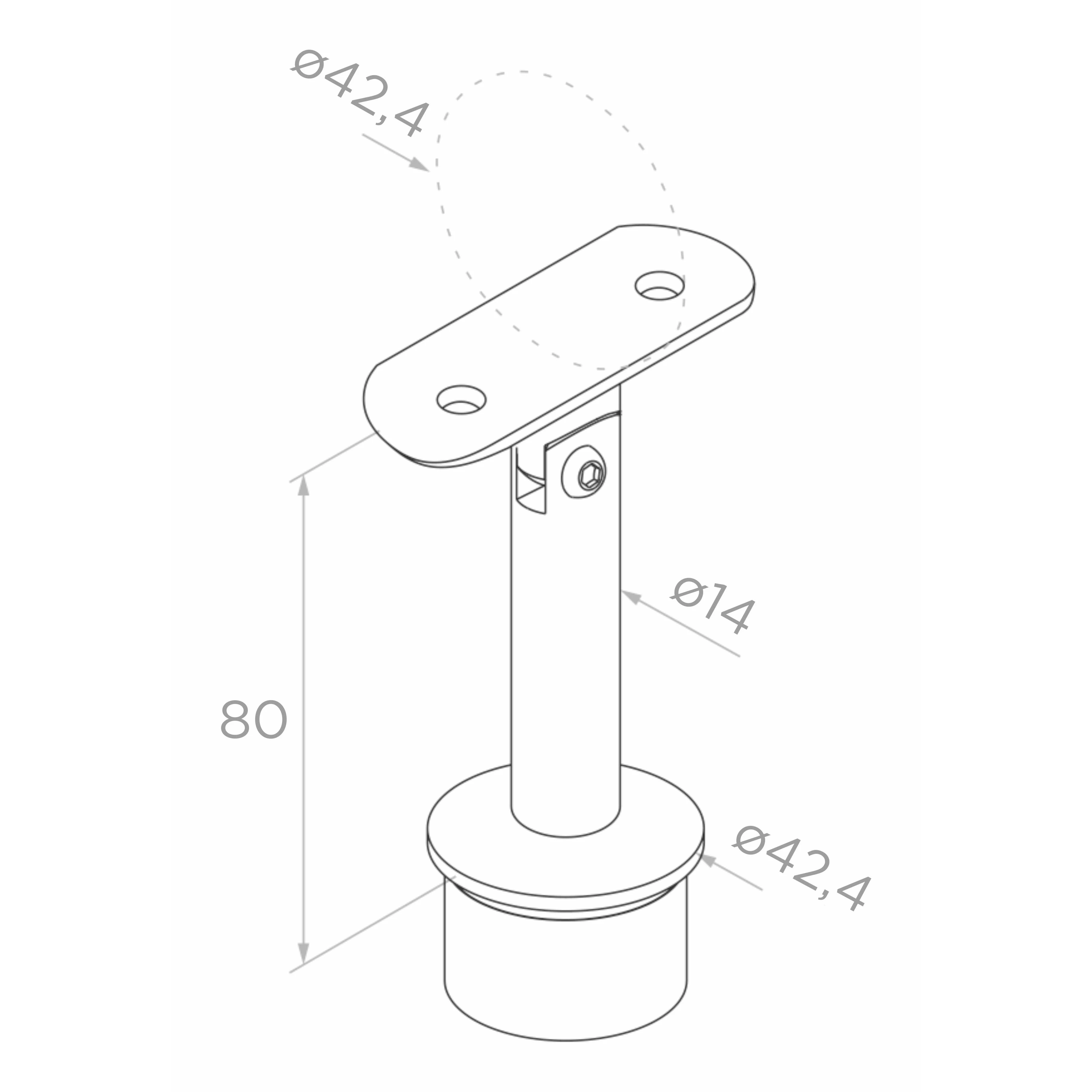

Handrail connector (top bracket)
Adjustable handrail connector with height 80 mm and pin ø 14 mm inserted inside the post tube. Top platform fitted for handrail ø 42.4 mm with angle adjustment capability. This makes handrail mounting easier and allows the post to be adapted to specific site conditions. In case of uneven flooring, the post can be additionally shortened.

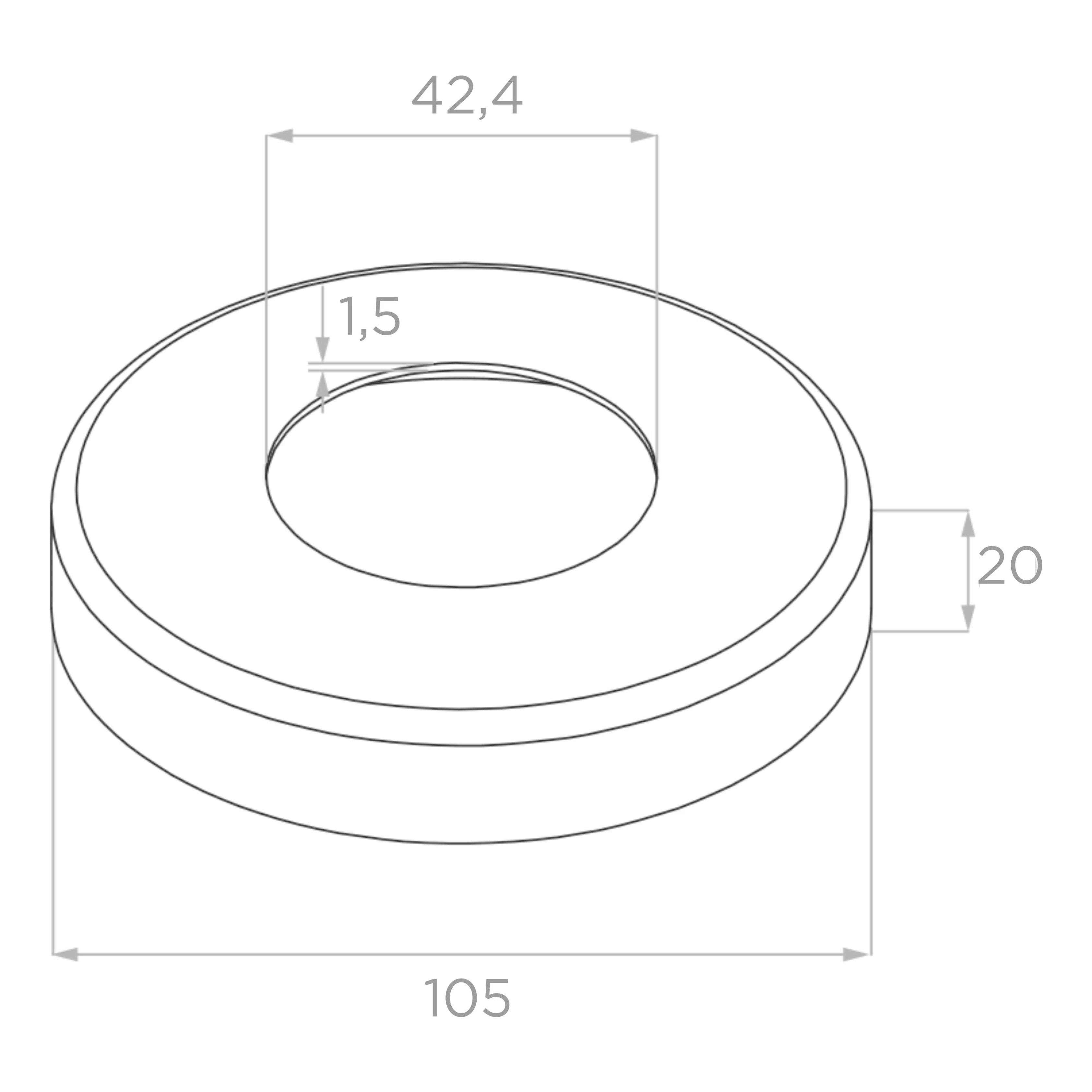

Base cover plate (rosette)
Decorative rosette with external diameter 105 mm and height 20 mm aesthetically covers the post mounting point in the floor. Internal hole ø 42.4 mm, flange material thickness 1.5 mm.

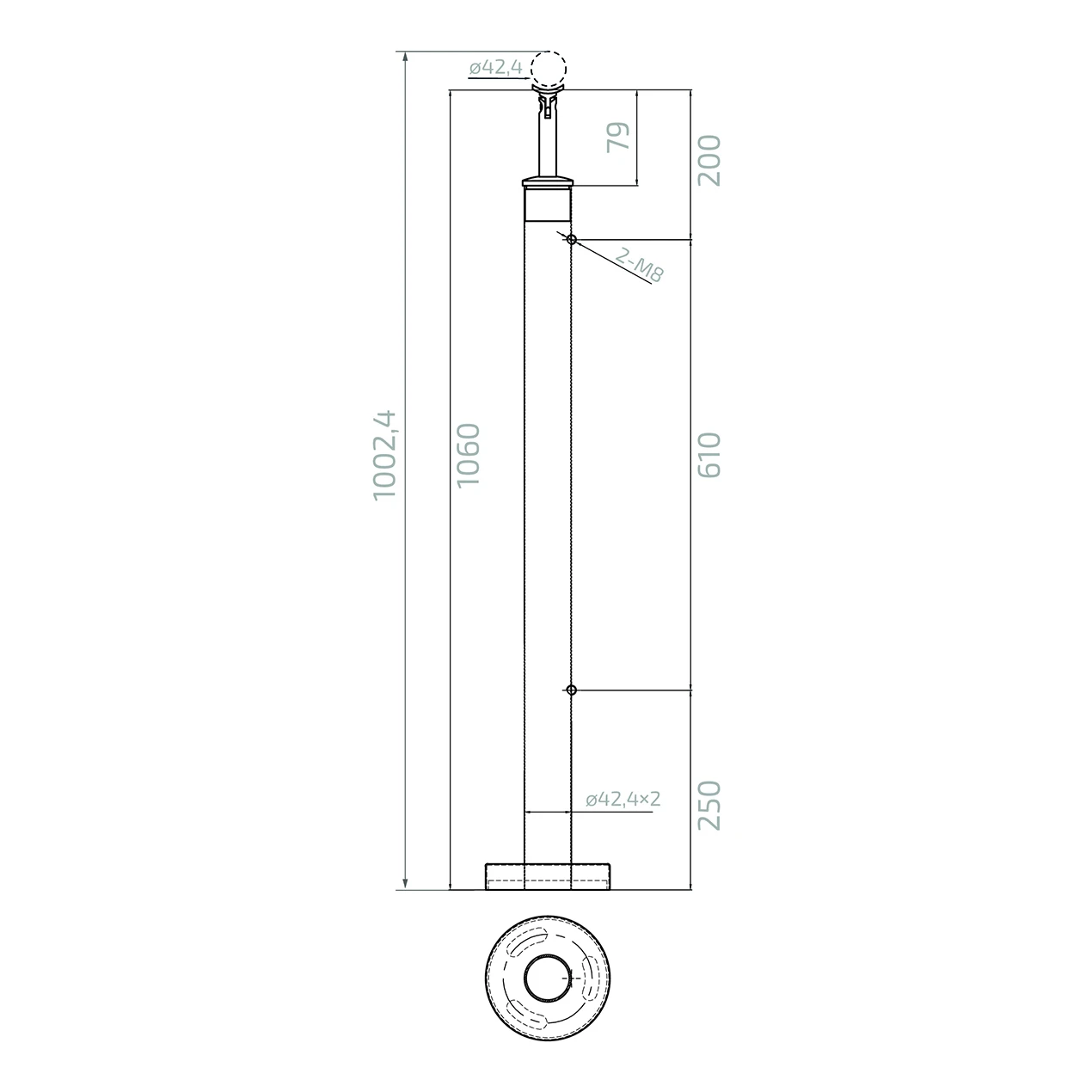

Post mounting dimensions
- Tube diameter: ø 42.4 × 2 mm
- Post tube height: 1060 mm
- Height from base to handrail centre: 1002.4 mm
- Handrail bracket height: 79 mm
- Distance upper clamp – post top: 200 mm
- Clamp spacing (centre-to-centre): 610 mm
- Distance lower clamp – base: 250 mm
- Clamp mounting holes: 2× M8
- Handrail diameter: ø 42.4 mm
Important mounting information
The connectors and handrail fixings included with the product are not permanently attached. It is recommended to use specialist anaerobic adhesive for stainless steel to ensure proper fixing. When mounting glass panels with thickness other than 8 mm, appropriate sized rubber seals should be obtained.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
