Electricity meter single-phase LCD 50A 1-module type: LEM-02 ZAMEL
Availability:
In stock (almost sold out)
Delivered within:
10 Business days
Weight:
0.12 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

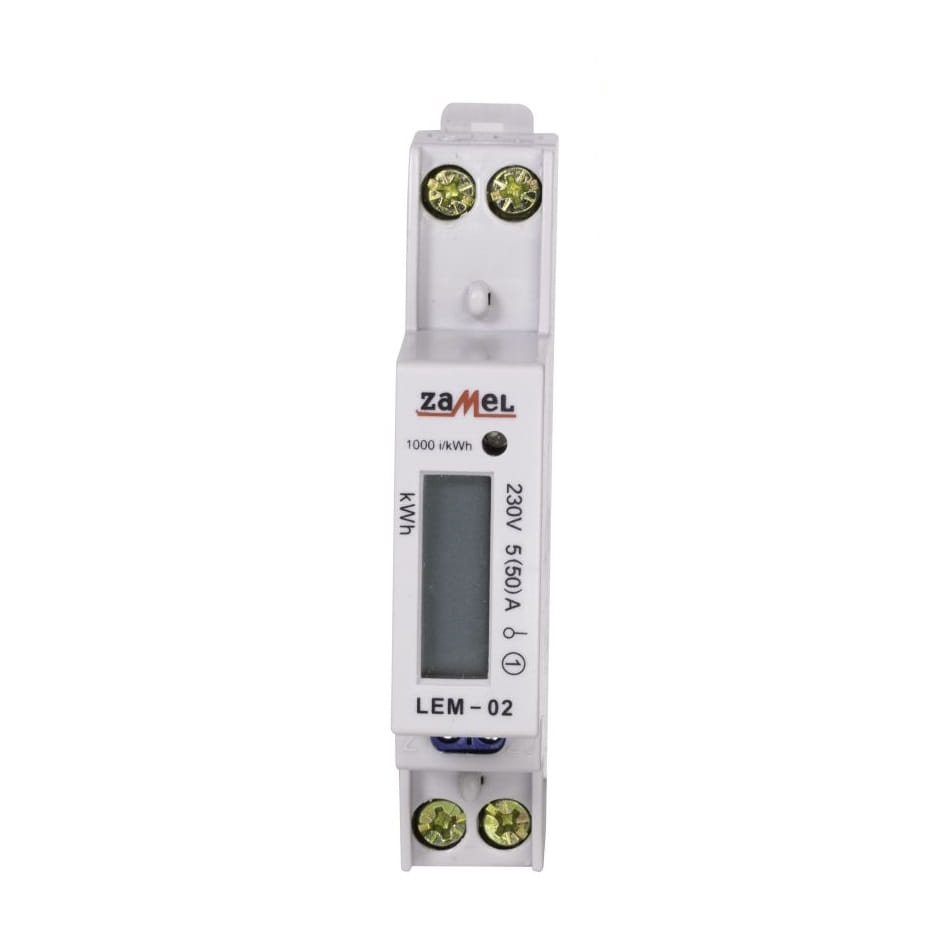

Electricity meter single-phase LCD 50A 1-module type: LEM-02 ZAMEL
Electricity meter single-phase LCD 50A 1-module type: LEM-02 ZAMEL can act as an electricity sub-meter for single-phase AC.
The LEM-02 model is equipped with a pulse output, which allows an additional energy counting device to be connected. The reading is indicated by an LED and the results are displayed on the LCD screen. The meter has plastic terminal covers that can be sealed to prevent illegal power consumption.
SPECIFICATION
Manufacturer
ZAMEL
Rated supply voltage
230 V AC
Display
Digital
Mounting
TH 35 rail
Voltage tolerance
-15% to +10%
Number of tariffs
Single tariff
Rated frequency
50/60 Hz
Base / maximum current
5 A / 50 A
Width expressed in number of modules
1
Degree of protection
IP20
Type of energy measured
Active power
Pulse output
Electric
Pulse output type
S0
Number of pulses
1000/1000 Imp/kWh (kvarh)
Number of phases
Single-phase
Power supply terminals
Line L: 1(L IN), 3 (L OUT), line N: 4, 6
Operating temperature
From -20 to +45 °C
Available Configuration
Files to download:
Technical data
| Phases | 1 |
| Maximum current [A] | 50 |
| Voltage [V] | 230 |
| RS‑485 | No |
| MID Legalisation | No |
| DIN width [modules] | 1 |
| IP | 20 |
| Phases | 1 |
| Maximum current [A] | 50 |
| MID legalization (YES/NO) | No |
| Communication interface | None |
| Rated current [A] | 50A |
| Number of Phases | 1-fazowy |
| MID Certificate | No |
| Communication | None |
| Brand | ZAMEL |
