Electricity meter 3 phase 80A MID OR-WE-520 ORNO
Electricity meter 3 phase 80A MID OR-WE-520 by ORNO is designed for direct measurement of active power in three-phase installations. Equipped with a special electronic circuit, the meter generates pulses proportional to the electricity consumed under the influence of the flowing current and the applied voltage.

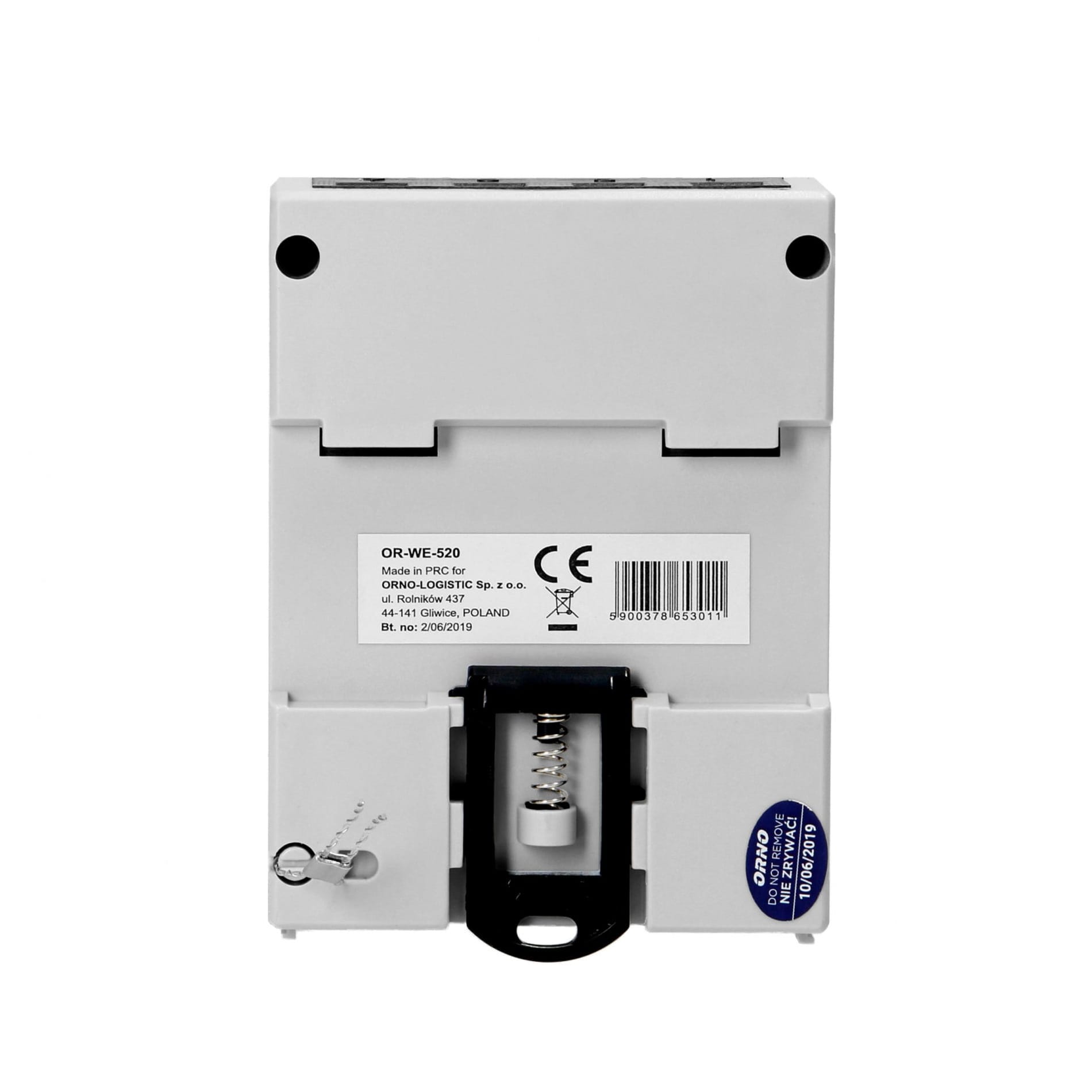

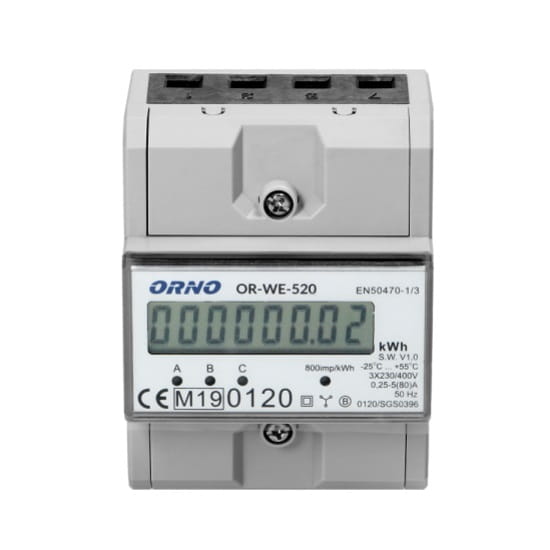

The sum of the pulses from the three phases is converted into the total energy consumed in the three-phase system, the value of which is displayed on the LCD screen (6+2). The measurement results are presented in kilowatt-hours (kWh). The meter's casing, with a width of 4.5 modules, is designed for mounting on a DIN TH-35 rail. Energy measurement is performed in accordance with EN50470-1:2006 and EN50470-3:2006 standards.
Specification
Available Configuration
Files to download:
Technical data
| Phases | 3 |
| Maximum current [A] | 80 |
| Voltage [V] | 400 |
| RS‑485 | No |
| MID Legalisation | Yes |
| DIN width [modules] | 4.5 |
| IP | 51 |
| Phases | 3 |
| Maximum current [A] | 80 |
| MID legalization (YES/NO) | Yes |
| Communication interface | None |
| Rated current [A] | 80A |
| Number of Phases | 3-fazowy |
| MID Certificate | Yes |
| Communication | None |
| Brand | ORNO |
