Electricity meter 3-phase 100A SIMLIC LCD-3F/4M 85402010 SIMET
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.5 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

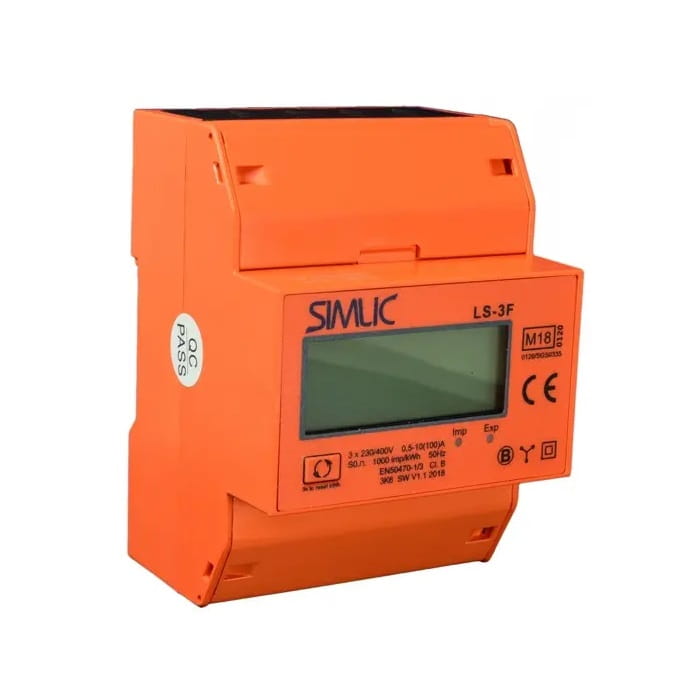

Electricity meter 3-phase 100A SIMLIC LCD-3F/4M 85402010 SIMET
Electricity meter 3-phase 100A SIMLIC LCD-3F/4M 85402010 by SIMET is a three-phase electricity meter or sub-meter. A lit LED indicates that the meter is measuring and the individual values can be read directly from the LCD display.
The LCD-3F/4M meter can be connected to a counting device via the pulse output. It is possible to seal the meter with plastic covers, which also have a masking function. The device meets the requirements of the European MID Directive.
Specification
Manufacturer
SIMET
Number of phases
3-phase
Power supply [V]
230
Display
Digital
Accuracy
0.01 kWh
Current draw indication
Yes
Rail mounting
TH35
Self-consumption of the meter
2 W / 10 VA
Display
5+2 characters
Display accuracy
0.01 kWh
Available Configuration
Files to download:
Technical data
| Phases | 3 |
| Maximum current [A] | 100 |
| Voltage [V] | 230 |
| RS‑485 | No |
| MID Legalisation | Yes |
| DIN width [modules] | 4 |
| IP | 65 |
| Phases | 3 |
| Maximum current [A] | 100 |
| MID legalization (YES/NO) | Yes |
| Communication interface | None |
| Rated current [A] | 100A |
| Number of Phases | 3-fazowy |
| MID Certificate | Yes |
| Communication | None |
| Brand | SIMET |
