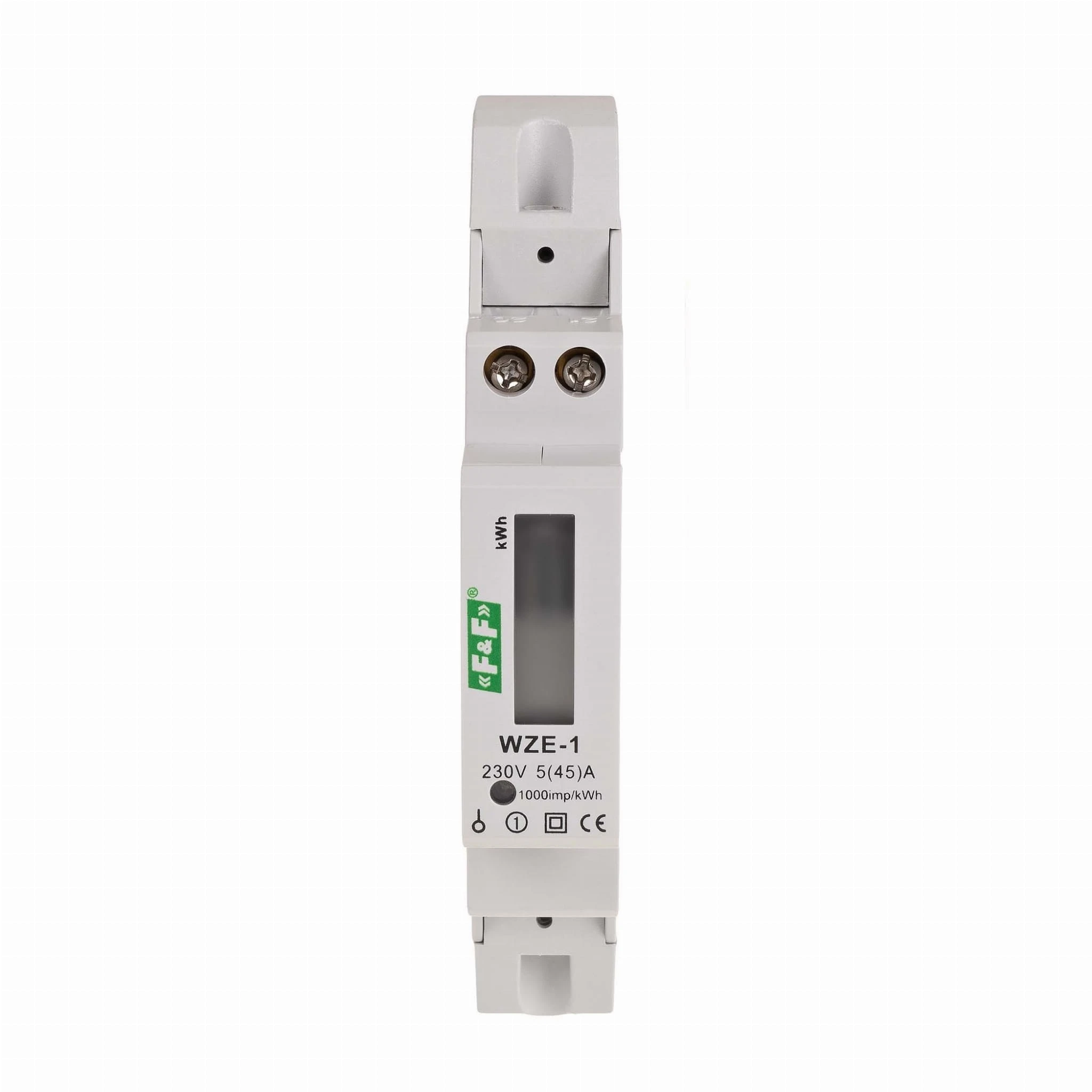

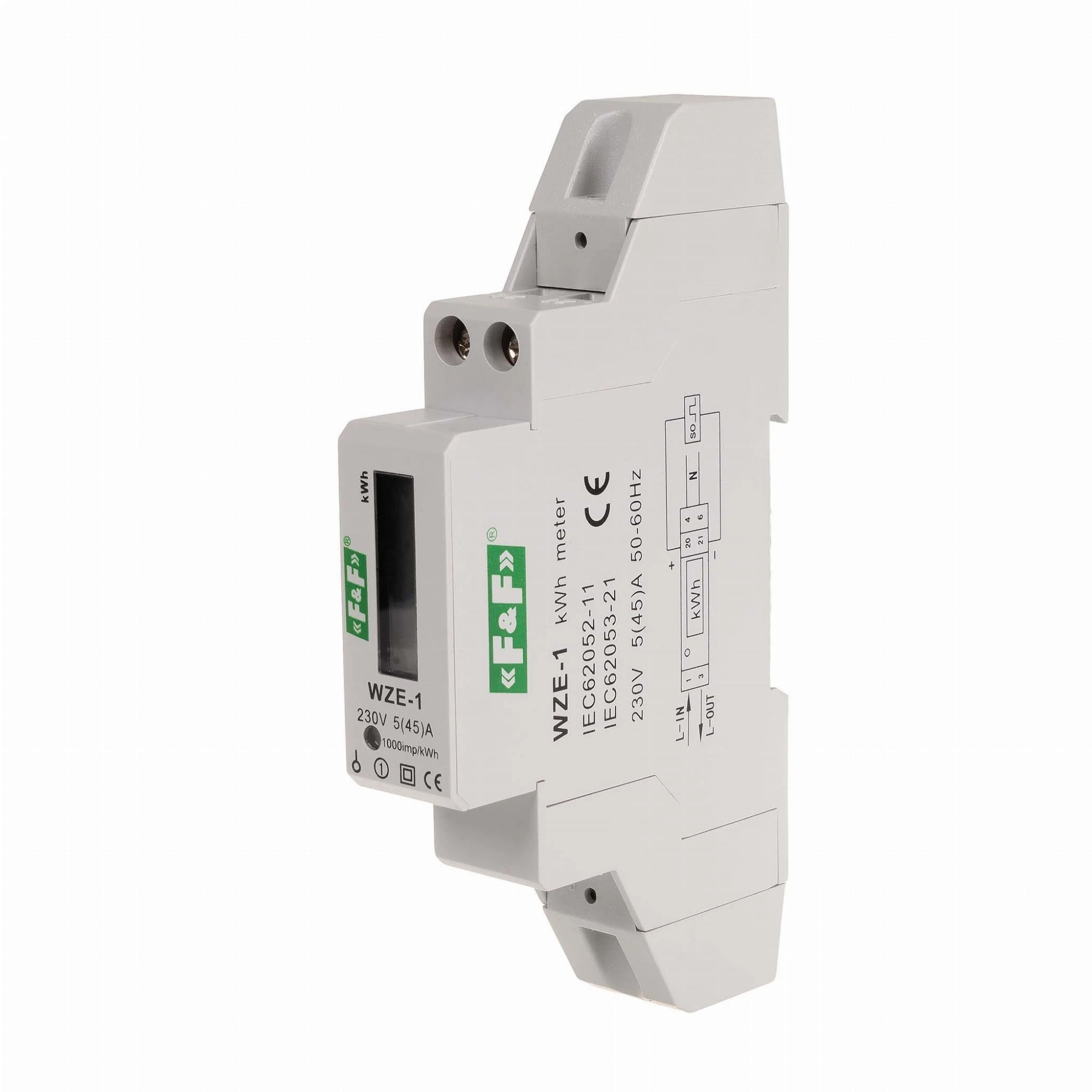

Electricity meter 1 phase 45A WZE-1 F&F FILIPOWSKI
Electricity meter 1 phase 45A WZE-1 F&F FILIPOWSKI is a device designed to measure the parameters of a single-phase network, enabling precise monitoring of electricity consumption.
It has been made from the highest quality materials, ensuring a long service life and resistance to mechanical damage. The product is MID compliant.
SPECIFICATION
Manufacturer
F&F
Reference voltage
230 V AC ±30%
Base current
0.25÷5 A
Maximum current
50 A
Minimum measured current
0.02 A
Meter self-consumption
8 VA, 0.4 W
Peak signalling
LED red
Accuracy class
B
Dimensions
1 module (18 mm)
Mounting
On a 35 mm rail
Degree of protection
IP20
Available Configuration
Files to download:
Technical data
| Phases | 1 |
| Maximum current [A] | 50 |
| Voltage [V] | 230 |
| RS‑485 | No |
| MID Legalisation | Yes |
| DIN width [modules] | 1 |
| IP | 20 |
| Phases | 1 |
| Maximum current [A] | 50 |
| MID legalization (YES/NO) | Yes |
| Communication interface | None |
| Rated current [A] | 50A |
| Number of Phases | 1-fazowy |
| MID Certificate | Yes |
| Communication | None |
| Brand | F&F FILIPOWSKI |
