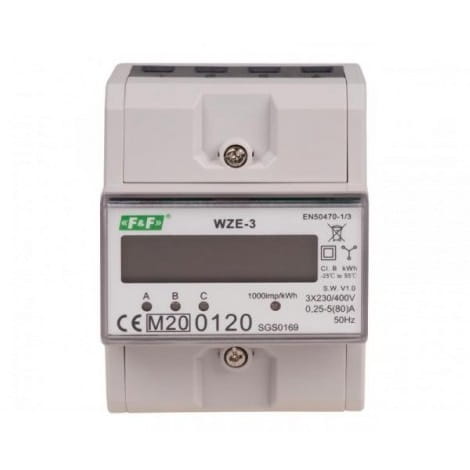

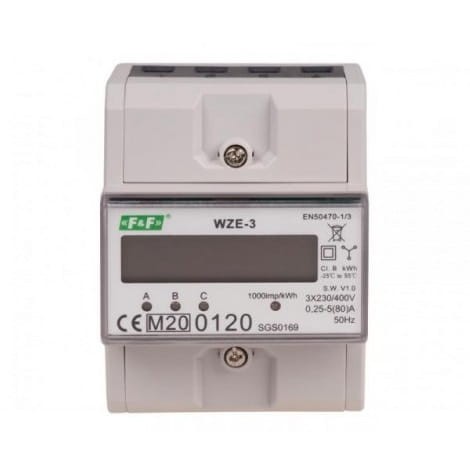

Electric energy meter 3-phase 80A MID WZE-3 F&F FILIPOWSKI
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.1 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description
Electric energy meter 3-phase 80A MID WZE-3 F&F FILIPOWSKI
Electric energy meter 3-phase 80A MID WZE-3 by F&F FILIPOWSKI is designed to measure electricity consumption in a three-phase network. The device generates electrical pulses corresponding to energy consumption in each of the three phases. The meter meets the requirements of the MID directive, which proves its precision and reliability.
Made of the highest quality materials, it guarantees long life and resistance to mechanical damage. It has a degree of protection IP20, which provides protection against access to dangerous parts by both foreign bodies and hands.
Specification
Manufacturer
F&F
Number of phases
3-phase
Base current
0.25÷5 A
Maximum current
80 A
Power supply [V]
230
Reference voltage
3×230/400 V+N
Display
Digital
Readout indication
Red LED
Mounting
On 35 mm rail
Dimensions
4.5 modules (75 mm)
Series and type
Three-phase energy consumption meter 80A MID WZE-3 F&F
Self-consumption of the meter
10 VA, 2 W
Degree of protection
IP20
Available Configuration
Technical data
| Phases | 3 |
| Maximum current [A] | 80 |
| Voltage [V] | 400 |
| RS‑485 | No |
| MID Legalisation | Yes |
| DIN width [modules] | 4.5 |
| IP | 20 |
| Phases | 3 |
| Maximum current [A] | 80 |
| MID legalization (YES/NO) | Yes |
| Communication interface | None |
| MID Certificate | Yes |
| Communication | None |
| Brand | F&F FILIPOWSKI |
| Rated current [A] | 80A |
| Number of Phases | 3-fazowy |
