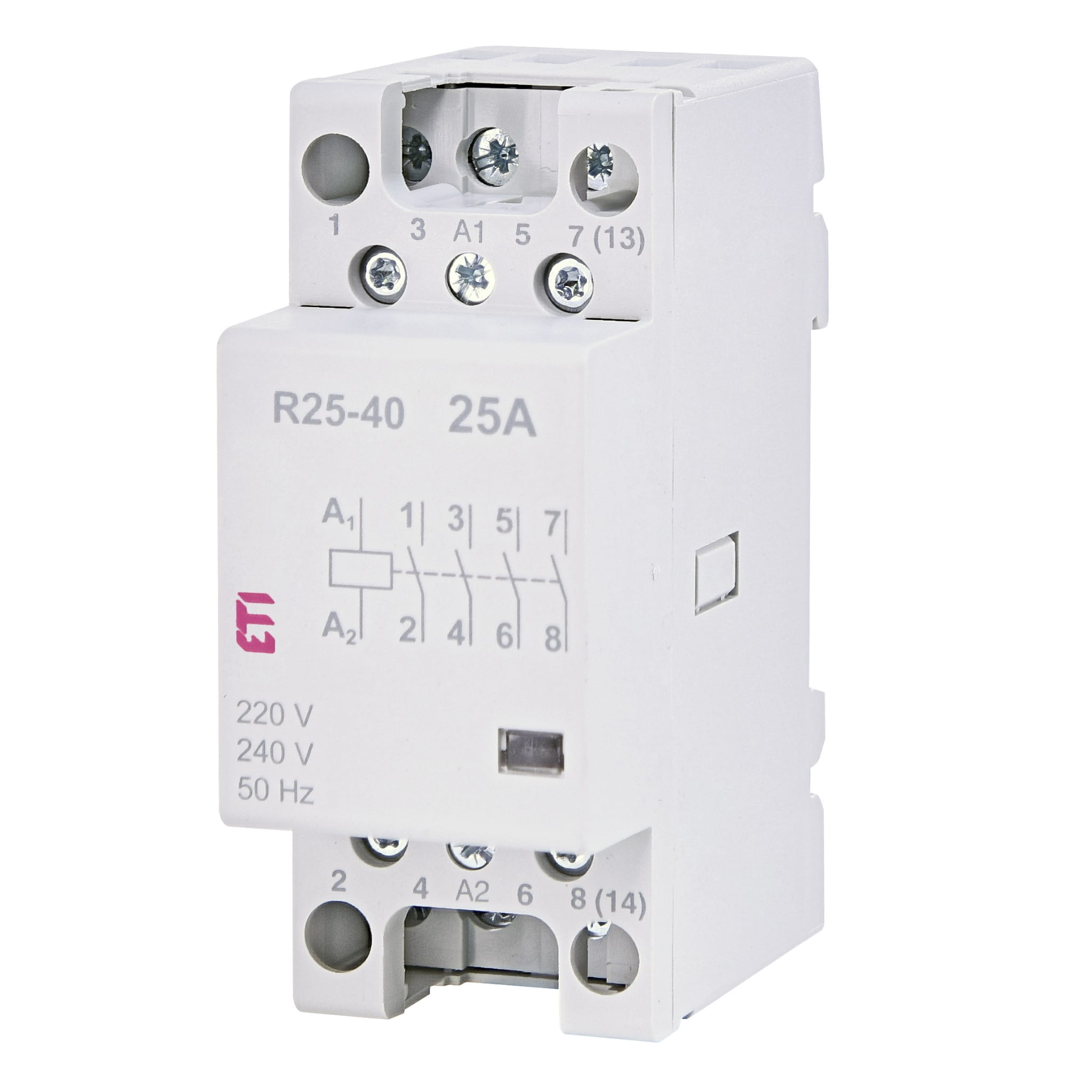

ETI Modular contactor 230V AC 4NO 25A
Modular contactor 230V AC 4NO 25A R25-40 002462310 ETI is a reliable switching device for heavy-duty electrical installations.
With a control voltage of 230V AC, four normally open contacts (4NO) and a rated current of 25A, it is ideal for controlling lighting, ventilation and other systems requiring frequent switching. Its compact, modular design saves space in the switchboard, making it an excellent choice for professional installations.
Key features and functions:
- Modular design: Ergonomic design to save space in the switchboard.
- High performance: Rated operating current of 25A to handle heavy loads.
- Multifunctional: Ideal for controlling lighting, ventilation and other systems.
- Reliability: Low-current coil control and short response time to the control impulse.
- Durability: High mechanical durability - 10⁶ cycles.
Applications
- Control of industrial and commercial lighting
- Control of ventilation systems
- Management of pumps and electric motors
- Industrial and building automation
Additional features:
- High switching frequency: 600/300 cycles/hour (AC1/AC3)
- Possibility of sealing the connection terminals
- Compliant with standard PN-IEC 60947-4-1
- Variants with different contact configurations available (4-0, 1-3, 2-2, 3-1, 0-4)
Advantages:
- Versatility: Wide range of applications in various electrical installations.
- Reliability: High quality workmanship guarantees long-lasting and trouble-free operation.
- Ease of installation: Modular design for easy installation in the switchboard.
- Security: The possibility of sealing the terminals increases the security of the installation.
SPECIFICATION
Manufacturer
ETI
Number of NO contacts [NO]
4Z
Rated control voltage [V]
230 V
Type of control voltage [AC/DC]
AC
Rated current
25A
Control of circuits up to
230V
Coil voltage U [V AC]
230
Number of modules
2
Degree of protection
IP20
Design material
Plastic, metal
Class name
Modular contactor
Rated operational current Ie AC-1/AC-7a (A)
25
Rated operational voltage (V AC)
440
Available Configuration
