Double-wing gate stop with bolt holes – galvanised 97 mm
0
Description

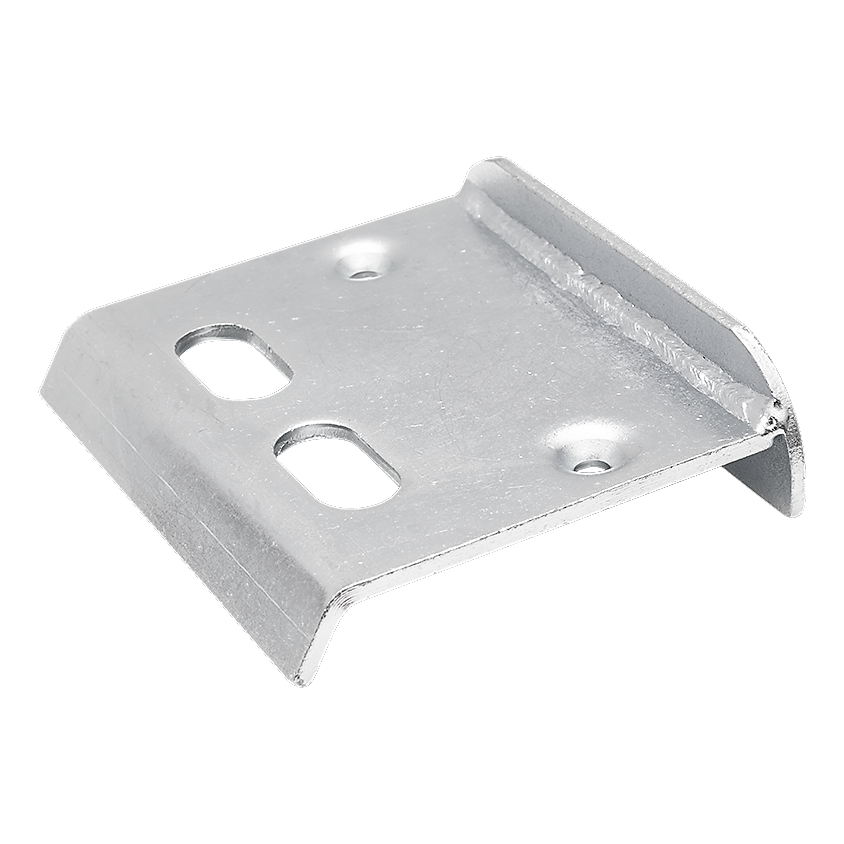

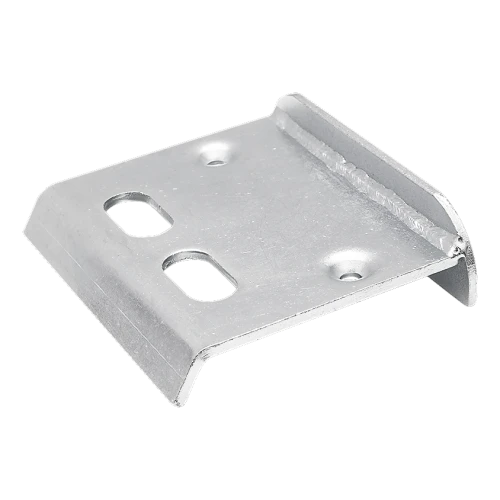

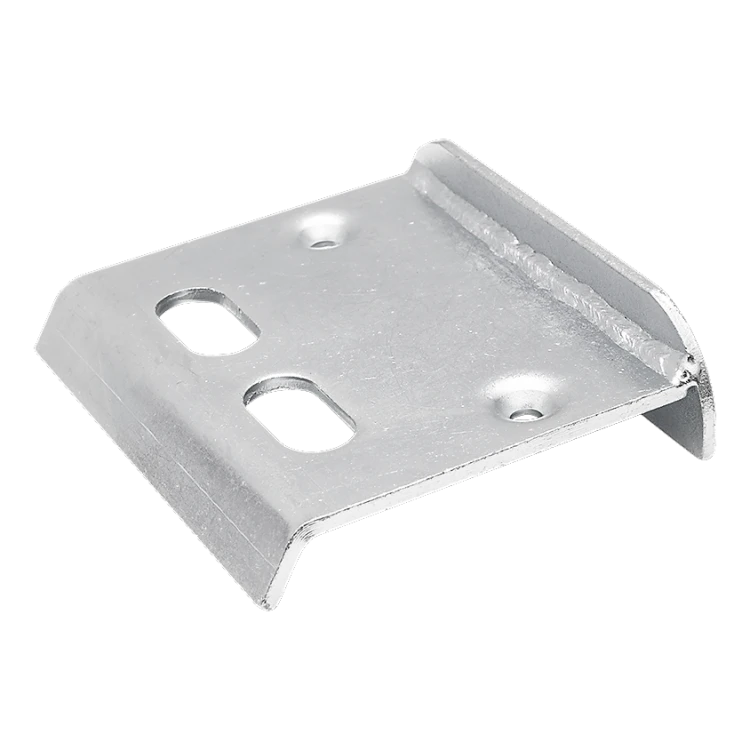

Double-wing gate stop with bolt holes – galvanised 97 mm
Gate stop with bolt holes is a durable stopper designed for double-wing gates. Mounted directly on the entrance surface (bolted to the ground), it effectively blocks the gate leaf in the closed position. The bolt holes allow additional gate security, whilst complete hot-dip galvanising ensures years of corrosion resistance and protection against atmospheric conditions — even in demanding outdoor environments.
Solid construction from steel sheet with 5 mm thickness guarantees mechanical durability, whilst the thoughtful profile with bends ensures rigidity and stability once installed. Two round holes (Ø 8.5 mm) are used to bolt the stop to the ground, whilst two oblong holes allow mounting of the bolt with position adjustment capability.

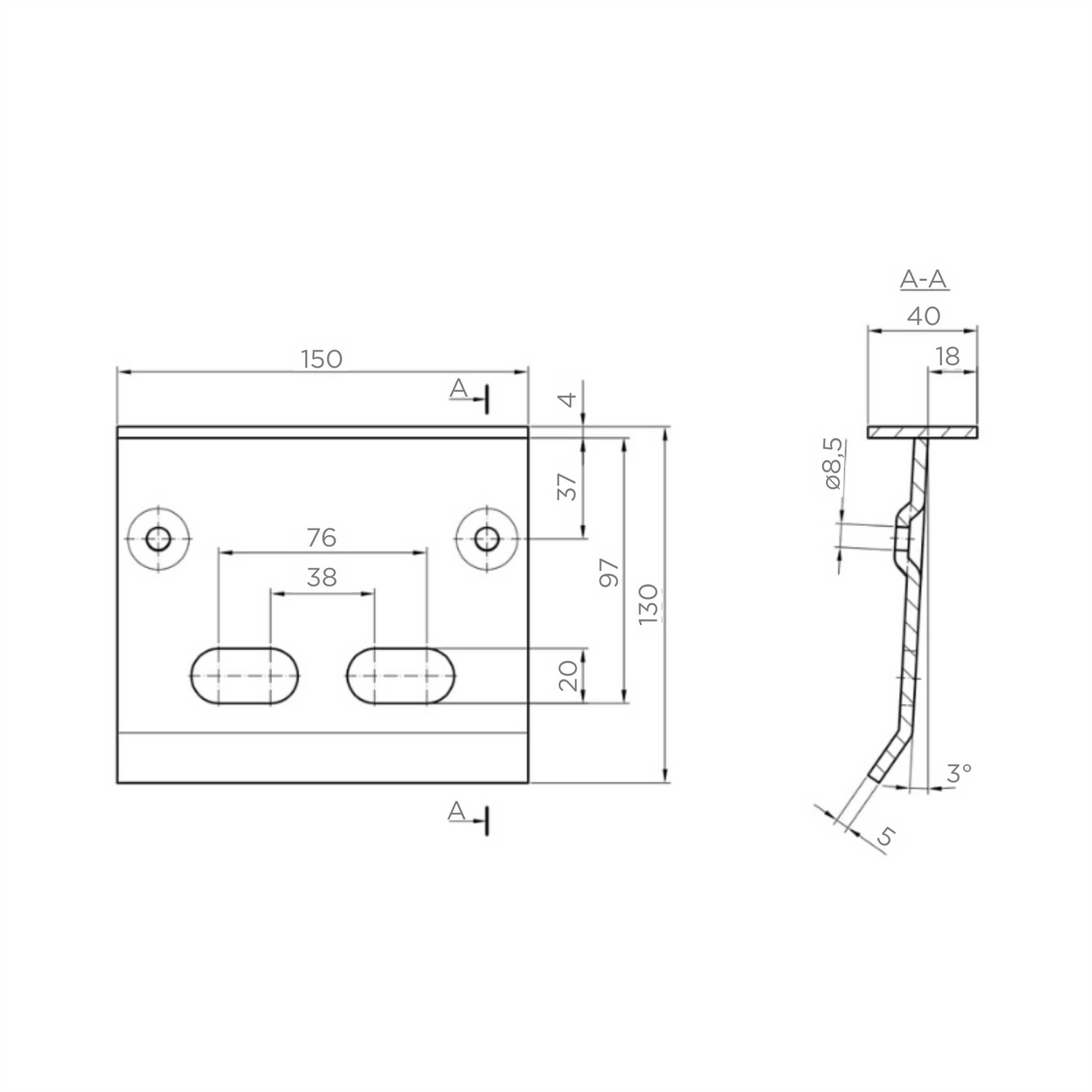

Dimensions and technical parameters
- Plate width: 150 mm
- Plate length: 130 mm
- Height (mounting dimension): 97 mm
- Sheet thickness: 5 mm
- Upper flange thickness: 4 mm
- Upper flange depth: 40 mm
- Mounting hole diameter: Ø 8.5 mm
- Round hole spacing: 76 mm
- Oblong hole spacing: 38 mm
- Oblong hole length: 20 mm
- Profile bend angle: 3°
- Material: galvanised steel
- Weight: 0.92 kg
- Colour: silver (zinc)
Application and installation
The stop is mounted on the entrance surface — bolted to concrete or block paving using anchor bolts (selected according to the type of substrate). Two round holes ensure secure mounting to the ground, whilst the oblong holes enable bolt installation with adjustment of position within a 20 mm range. This makes installation quick and allows precise adjustment to the specific gate.
Product dedicated to professional double-wing gate installations in residential, industrial and commercial fencing systems. Complete galvanising guarantees maintenance-free outdoor operation for many years.
Technical data
| Material | Steel |
