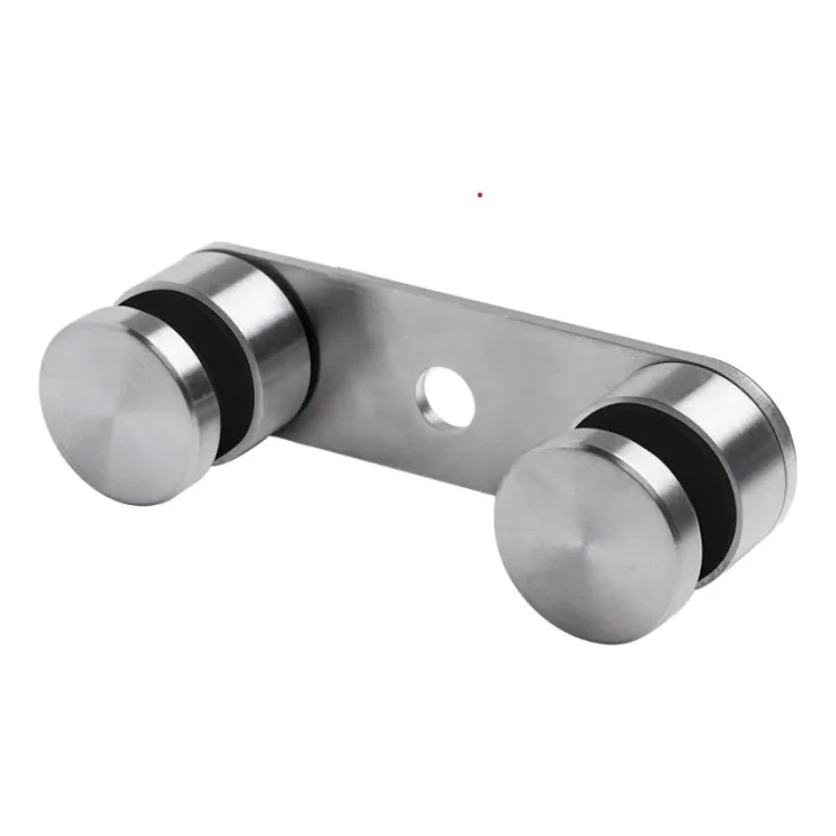

Double glass clamp 8-21.52mm fi 50/M10 L=170mm AISI 304 satin
Description
Double Glass Clamp fi 50 mm L=170 mm – AISI 304 Stainless Steel Satin Finish
Double point glass clamp with a diameter of fi 50 mm and a length of 170 mm, designed for mounting glass panels with a thickness ranging from 8 to 21.52 mm in stainless steel balustrades. It provides structural rigidity and effective stabilisation of glass infill panels, while maintaining a modern, minimalist aesthetic.
The clamp is manufactured from AISI 304 stainless steel with a satin finish, ensuring high corrosion resistance and an elegant, understated appearance. The dual-point fixing design, mounted on a shared flat bar with centres spaced 120 mm apart, guarantees even load distribution and a secure hold on the glass panel.
Application and Installation
Point glass clamps are widely used in glass balustrades, which are valued for their high aesthetic appeal and maximum use of natural light. The clamp features a central mounting hole with a diameter of ø11 mm and an M10 thread, enabling secure fixing to the supporting structure. Allen-head screws allow precise adjustment of the glass clamping pressure without the need to disassemble the entire clamp — significantly speeding up installation and simplifying any on-site adjustments.
The clamp requires the use of rubber gaskets, which should be selected to match the thickness of the glass being installed. Gaskets are available as separate accessories — allowing the installer to flexibly configure the assembly for the specific panel thickness within the range of 8–21.52 mm.

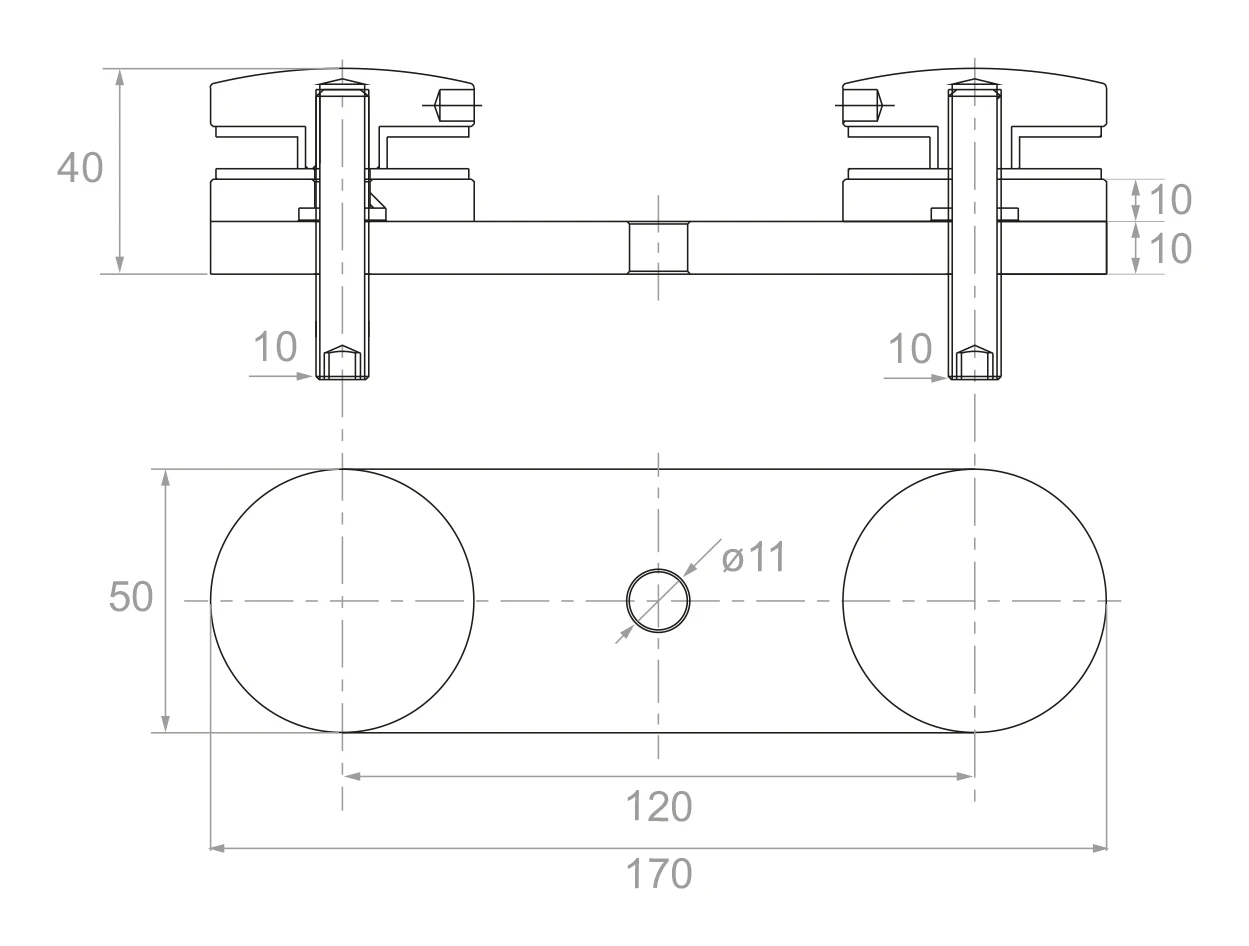

Dimensions and Technical Specifications
- Material: AISI 304 stainless steel
- Finish: satin
- Overall length: 170 mm
- Clamping disc diameter: fi 50 mm
- Clamp centre spacing: 120 mm
- Overall height: 40 mm
- Flat bar thickness: 10 mm
- Glass slot width: 10 mm
- Central hole diameter: ø11 mm
- Fixing thread: M10
- Compatible glass thickness: 8–21.52 mm
- Type: universal
- Weight: 1.17 kg
- EAN: 5903313205610
Key Benefits for the Installer
- Dual fixing point on a single component — faster installation and fewer holes required in the supporting structure
- Allen-screw clamping adjustment without disassembly — convenience and precision on site
- Wide glass thickness range (8–21.52 mm) — versatile application across a variety of projects
- AISI 304 steel in satin finish — durability, corrosion resistance and an elegant appearance
- Gaskets selected separately — flexible configuration to suit the exact panel thickness
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
