Double glass clamp 8-21.52mm ø30/M8 L=150mm AISI304 universal satin
Description

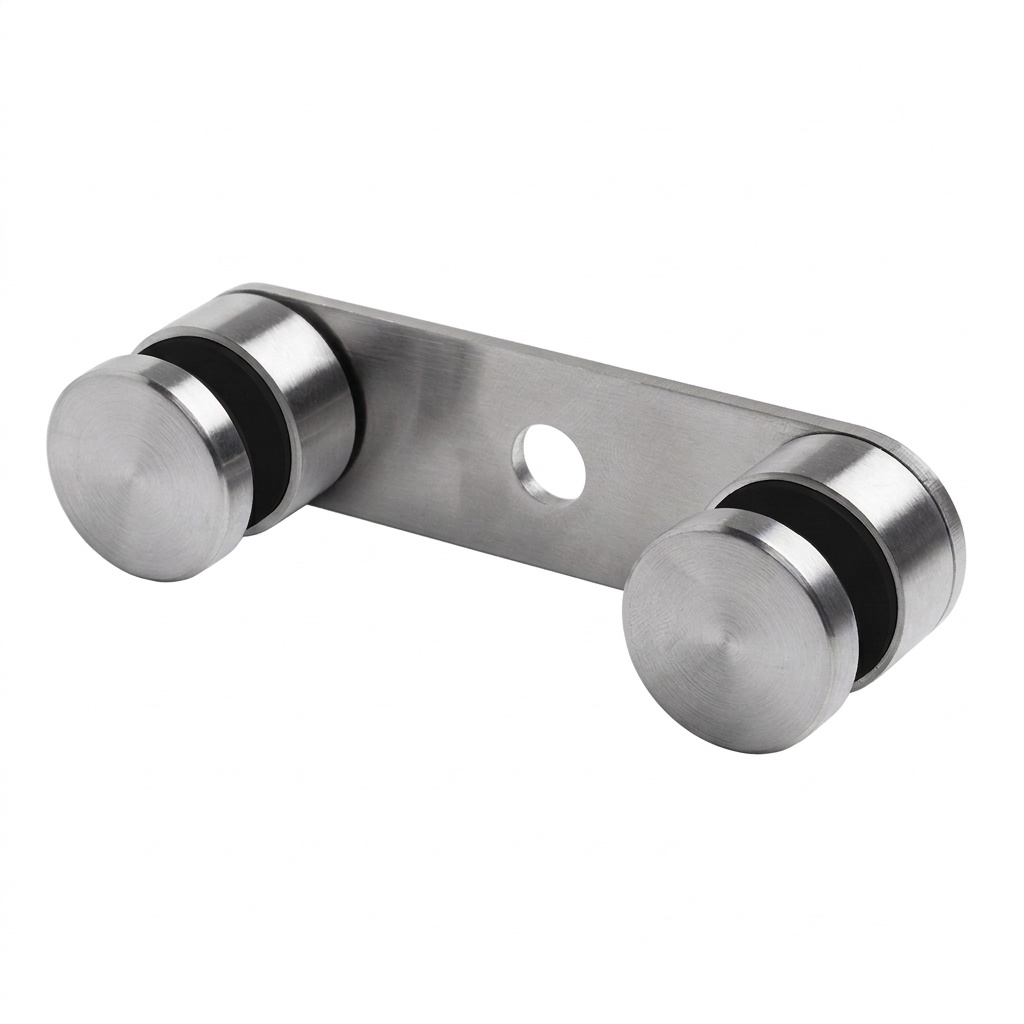

Double glass clamp ø30 L=150 mm – AISI 304 stainless steel satin
Double point glass clamp with diameter ø30 mm and length 150 mm, designed for fixing glass panels with thickness from 8 to 21.52 mm. Perfect element for balustrades with glass infill — ensures structural rigidity and stable mounting of glass panels. Made of AISI 304 stainless steel with satin finish, which guarantees high corrosion resistance and aesthetic, modern appearance both indoors and outdoors.
Application and advantages
Point glass clamps find wide application in glass balustrades, which are distinguished by high aesthetics and excellent daylight illumination of interiors. Double design of the clamp ensures even load distribution and greater stability of glass panel mounting compared to single clamps. Central mounting hole with diameter ø11 mm enables secure attachment of the clamp to the load-bearing structure of the balustrade.
Universal design allows application with glass of various thicknesses — from tempered glass 8 mm to laminated glass 21.52 mm. Thread M8 in both clamp pins ensures reliable mounting and easy installation using standard screws.

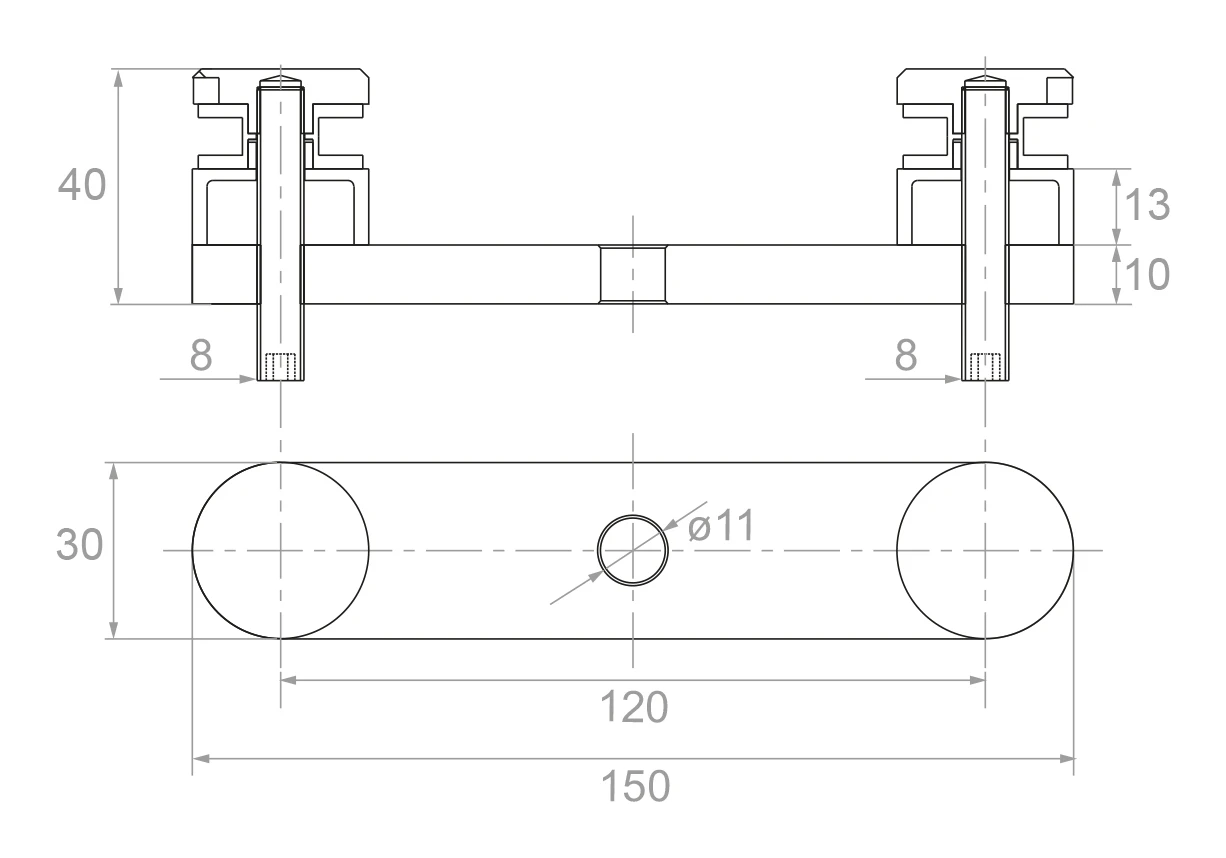

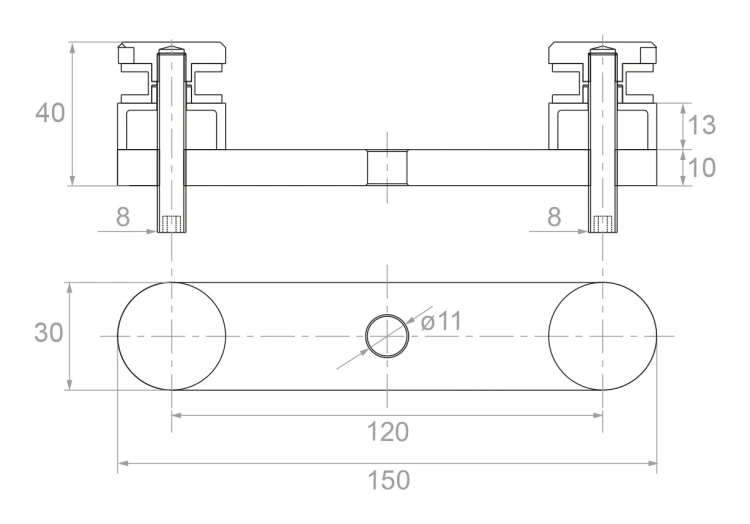

Dimensions and technical data
- Material: AISI 304 stainless steel
- Finish: satin
- Ball diameter: ø30 mm
- Total length: 150 mm
- Centre distance of clamps: 120 mm
- Total height: 40 mm
- Base thickness (plate): 10 mm
- Spacer height: 13 mm
- Mounting hole diameter: ø11 mm
- Pin thread: M8
- Glass thickness: 8–21.52 mm
- Weight: 0.49 kg
- EAN: 5901289670005
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Universal |
| Glass Thickness [mm] | 8-21,52 |
