Double 2-hole through connector galvanized
Description

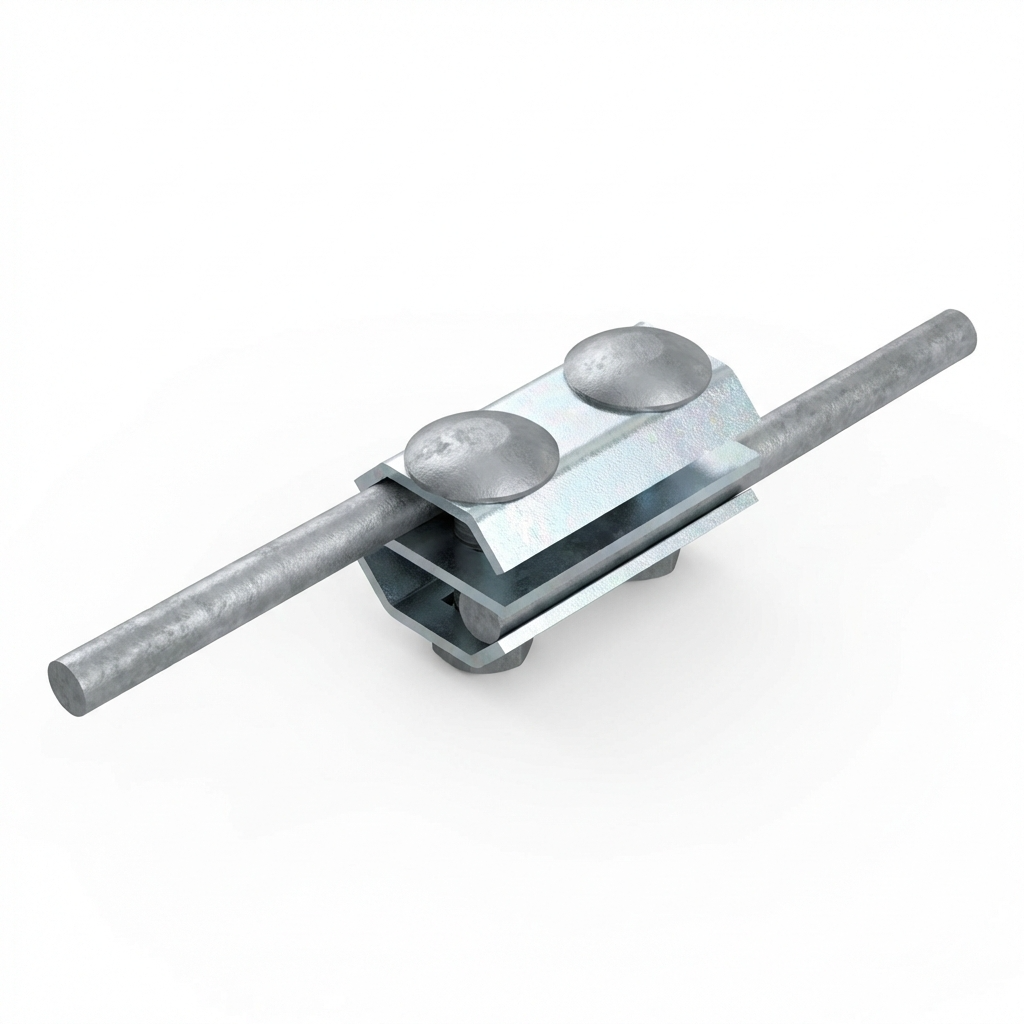

2-hole double through connector (galvanised steel)
2-hole double through connector is used for making permanent through connections of round conductors in lightning protection systems. This is a reliable component of the lightning protection system, suitable for both rooftop and ground-level installations.
The product features the highest class of anti-corrosion protection thanks to a special galvanic zinc plating process and polymer coating sealing. Quality is confirmed by BBJ-SEP testing. AH Hardt is the only manufacturer in Poland with its own electrolytic zinc plating facility, guaranteeing full control over the quality of the protective coating.
The connector has been tested in accordance with EN 62561-1 standard, achieving class H – resistance to lightning impulse current of 100 kA.
Technical data
- Material: electrolytically galvanised steel
- Round conductor range: Ø8 mm
- Bolts: 2×M8×30
- Bolt and nut material: galvanised steel
- Dimensions: 29 × 50 mm
- GTIN: 5901832911012
Why choose this connector?
- Highest anti-corrosion protection: galvanic zinc plating with polymer sealing
- Proven quality: BBJ-SEP testing and compliance with EN 62561-1 standard
- Class H: resistance to lightning impulse current of 100 kA
- Secure installation: 2 M8 bolts ensure stable and durable connection of Ø8 mm round conductors
