Decorative pin for belt hinge fi 14 mm for swing gates - for bolting
Leave feedback on the product
Decorative pin for belt hinge fi 14 mm for swing gates. Shaft height 38 mm, mounting plate 112×35 mm, thickness 4 mm. Installation by bolting with coach bolts through 8.4 mm holes. Weight 0.18 kg.
Product code: 001-510
Product features
[PIM] zawiasy #113
- Diameter 14
- Mounting Method Bolt-On
- Material Steel
Description
Decorative pin for belt hinge fi 14 mm for swing gates - for bolting

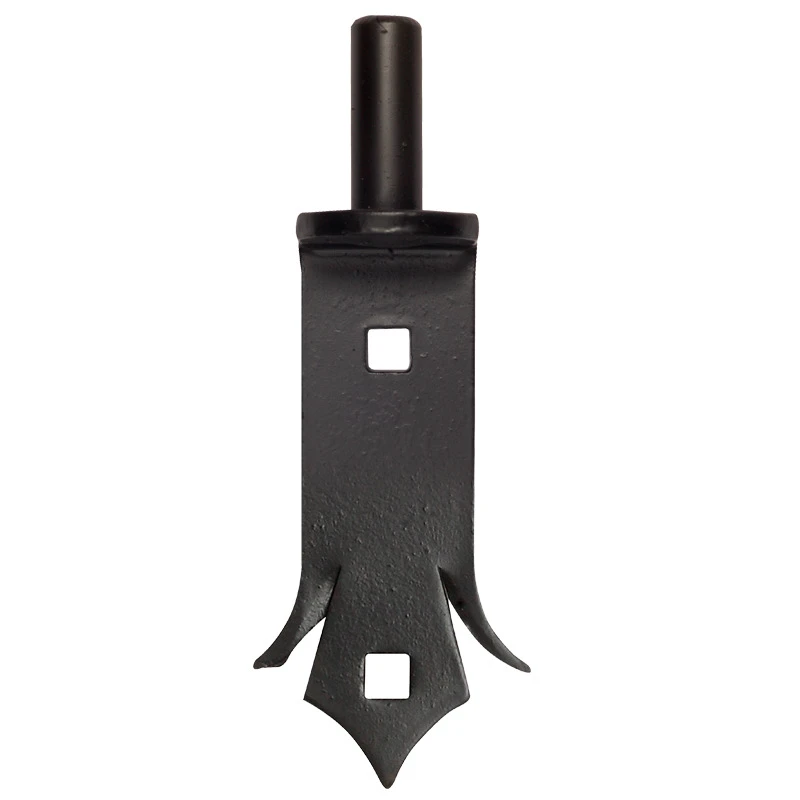

Decorative pin for belt hinge designed for swing gates and garden gate panels. Shaft with fi 14 mm diameter is mounted to the post by bolting - two square mounting holes ensure solid and durable fastening. Decorative profile of the mounting plate with characteristic spike gives the gate an aesthetic, wrought appearance.

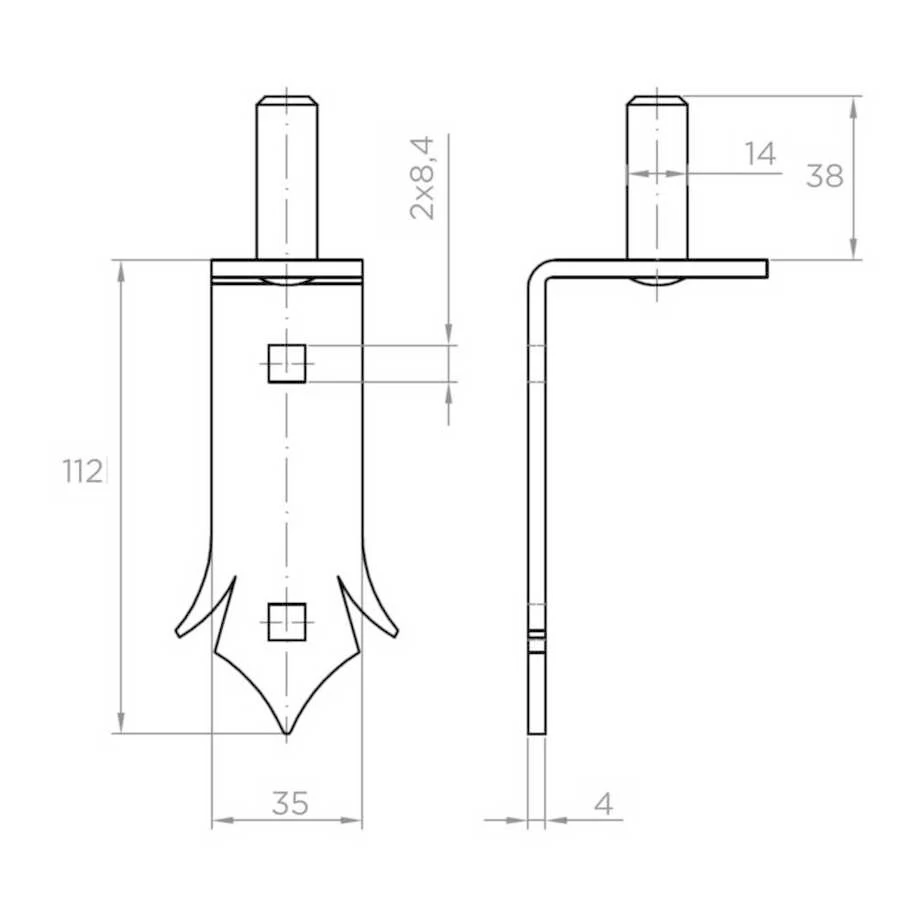

Dimensions and technical parameters
- Shaft diameter: fi 14 mm
- Shaft height (working): 38 mm
- Mounting plate height: 112 mm
- Mounting plate width: 35 mm
- Material thickness: 4 mm
- Mounting holes: 2 × 8.4 mm (square, for coach bolts)
- Overall length: 148 mm
- Weight: 0.18 kg
- EAN: 5901431940680
Installation and application
The pin is mounted to the gate post in vertical position - the angular L-shaped profile fits against the post, and the shaft points upwards. Two square holes enable bolting of the element with coach bolts, which guarantees secure connection and resistance to pulling out. An ideal solution for swing gate installers who are looking for a hinge combining strength with decorative finish.
