Decorative mounting plate 100x100 mm for adjustable hinge M20 – galvanised
0
Description
Decorative mounting plate 100x100 mm for adjustable hinge M20 – galvanised

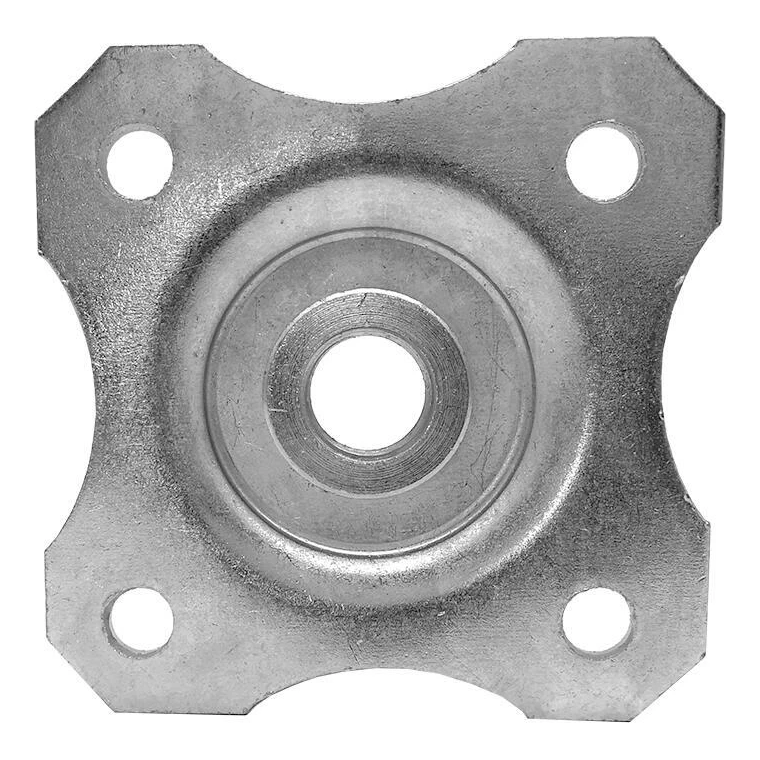

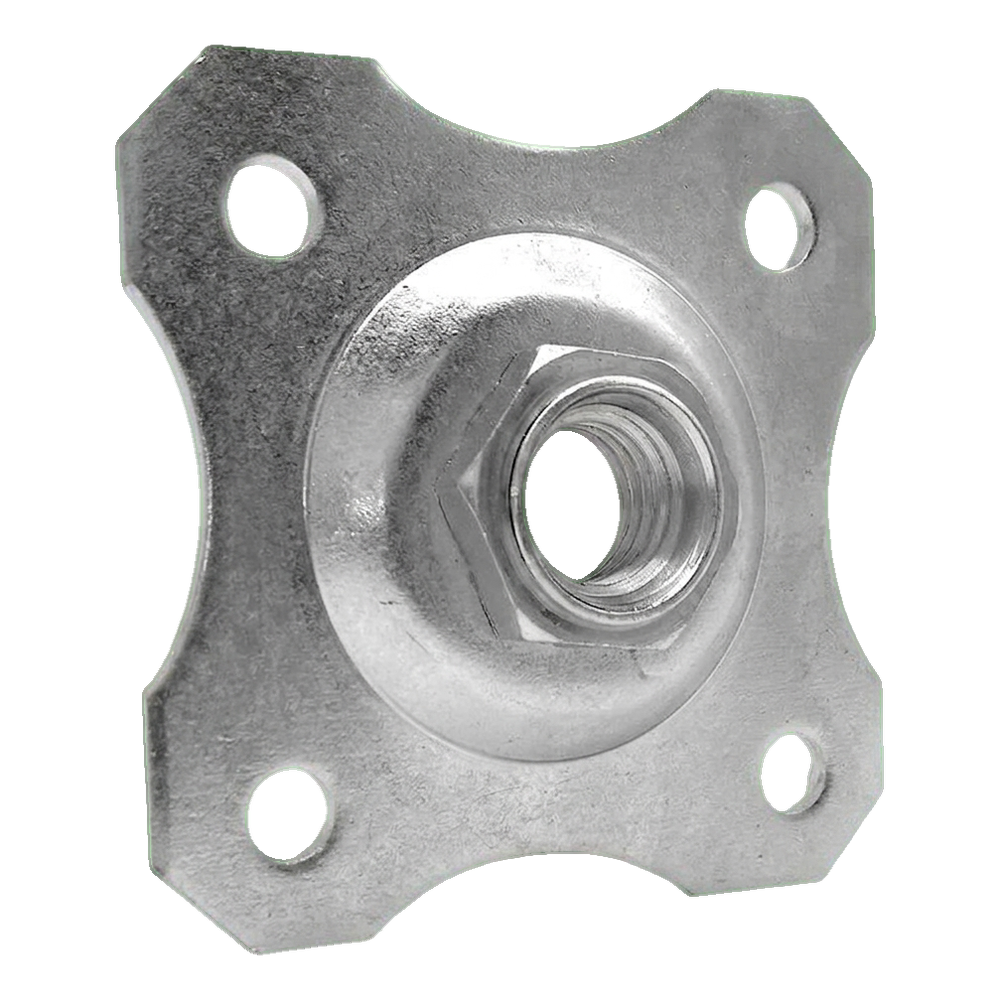

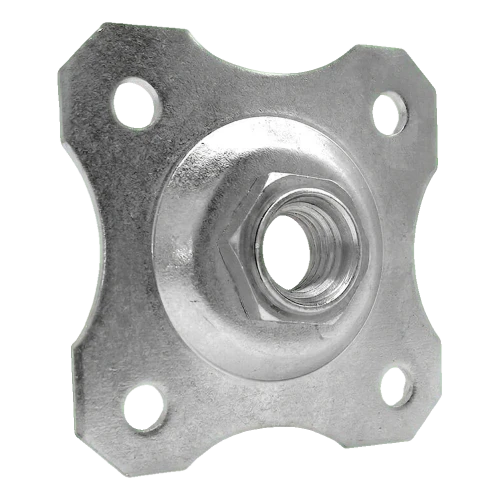

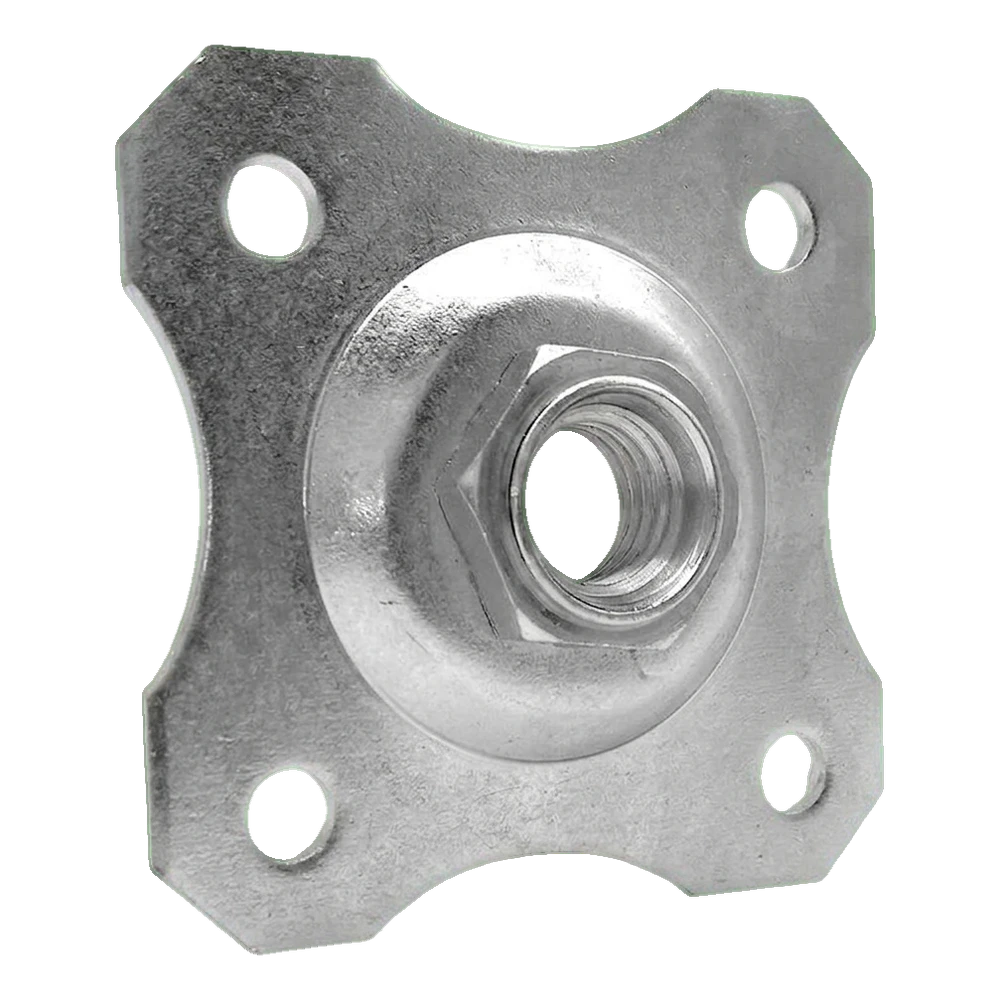

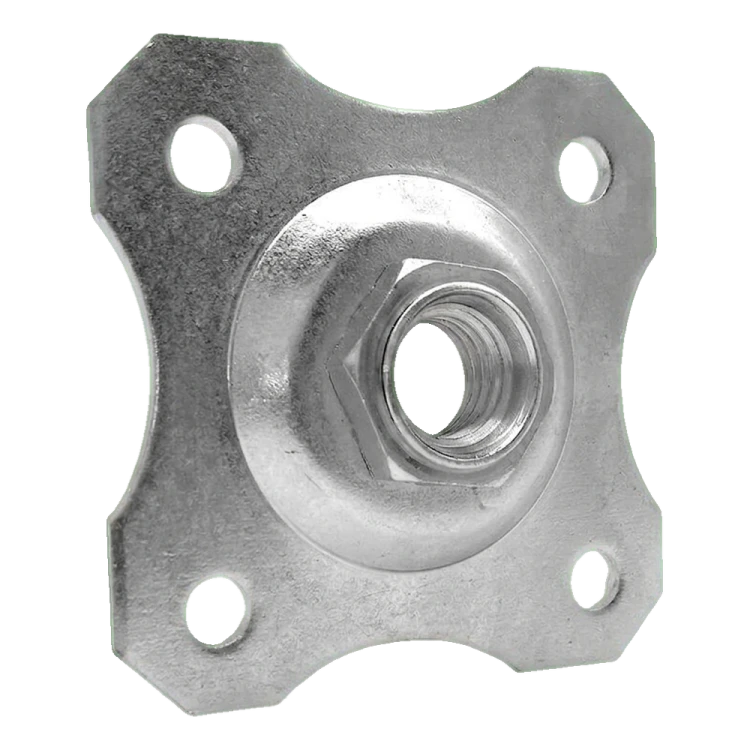

Decorative mounting plate 100 × 100 mm is an aesthetic mounting element designed for use with adjustable hinge with M20 screw. Four mounting holes ensure secure and durable attachment to gate or fence posts, whilst the galvanised coating guarantees years of corrosion resistance and protection against variable weather conditions.
Thanks to its carefully profiled shape with concave sides, the plate gives gates or fences a professional, finished appearance. It complements both modern and classic fencing perfectly — when mounted on a post, it forms a decorative hinge base whilst distributing load over a larger surface area.
Technical specifications
- Plate dimensions: 100 × 100 mm
- Thickness: 4 mm
- Central thread: M20
- Number of mounting holes: 4
- Material: galvanised steel
- Weight: 0.28 kg
- EAN: 5903313202060
Application and installation
The plate is designed to work with adjustable hinges fitted with M20 screw. Installation involves securing the plate to the fence post using four screws (through corner holes), then screwing the hinge pin into the central thread. This connection method allows for easy hinge adjustment and potential replacement without dismantling the entire structure.
The zinc coating effectively protects the plate against rust, moisture and UV radiation, making it an ideal solution for external applications — for entrance gates, garden gates and property fencing.
Technical data
| Thread type | M20 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
