Decorative centre strap hinge with ball for leaf gates 400 mm
Leave feedback on the product
Decorative centre strap hinge with ball made of steel, painted. Length 400 mm, width 50 mm, thickness 5 mm. Pin diameter 16 mm, rotating sleeve 27 mm. Weight 1.64 kg. Square mounting holes. For wooden and steel leaf gates.
Product code: 001-499
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description

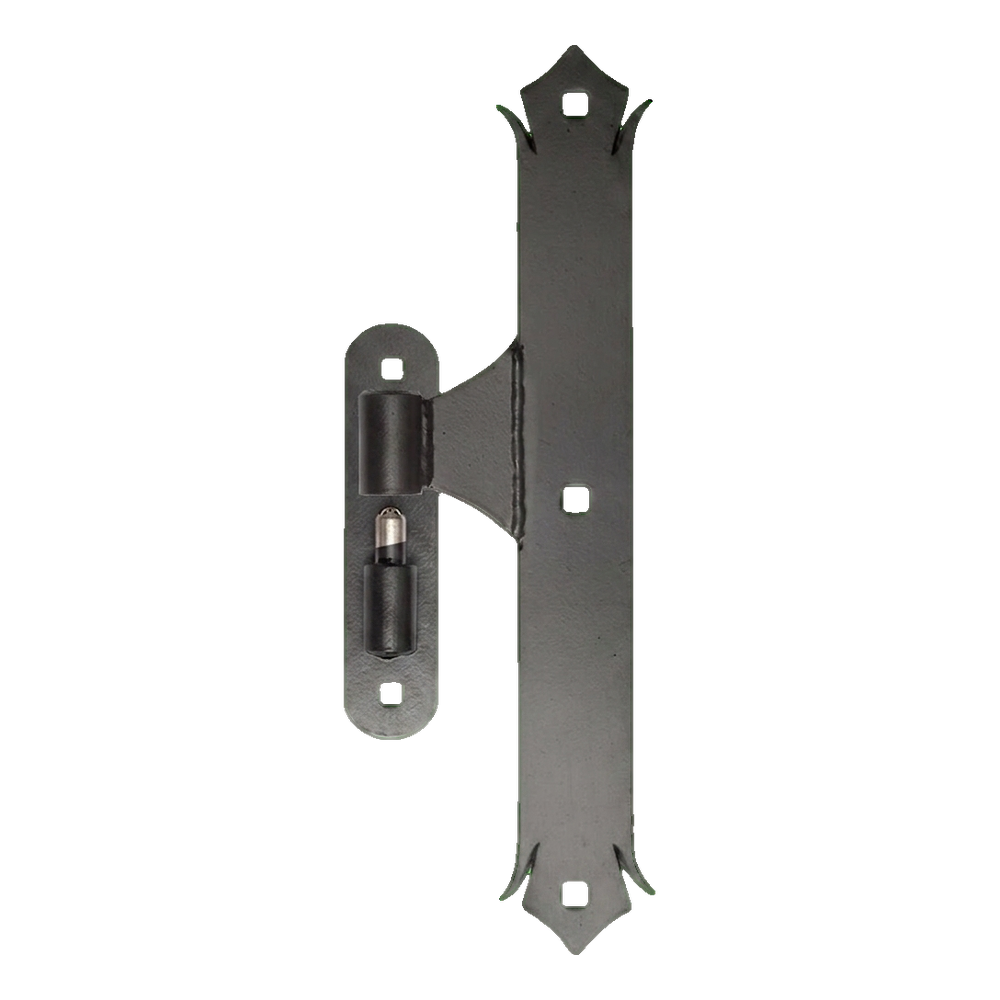

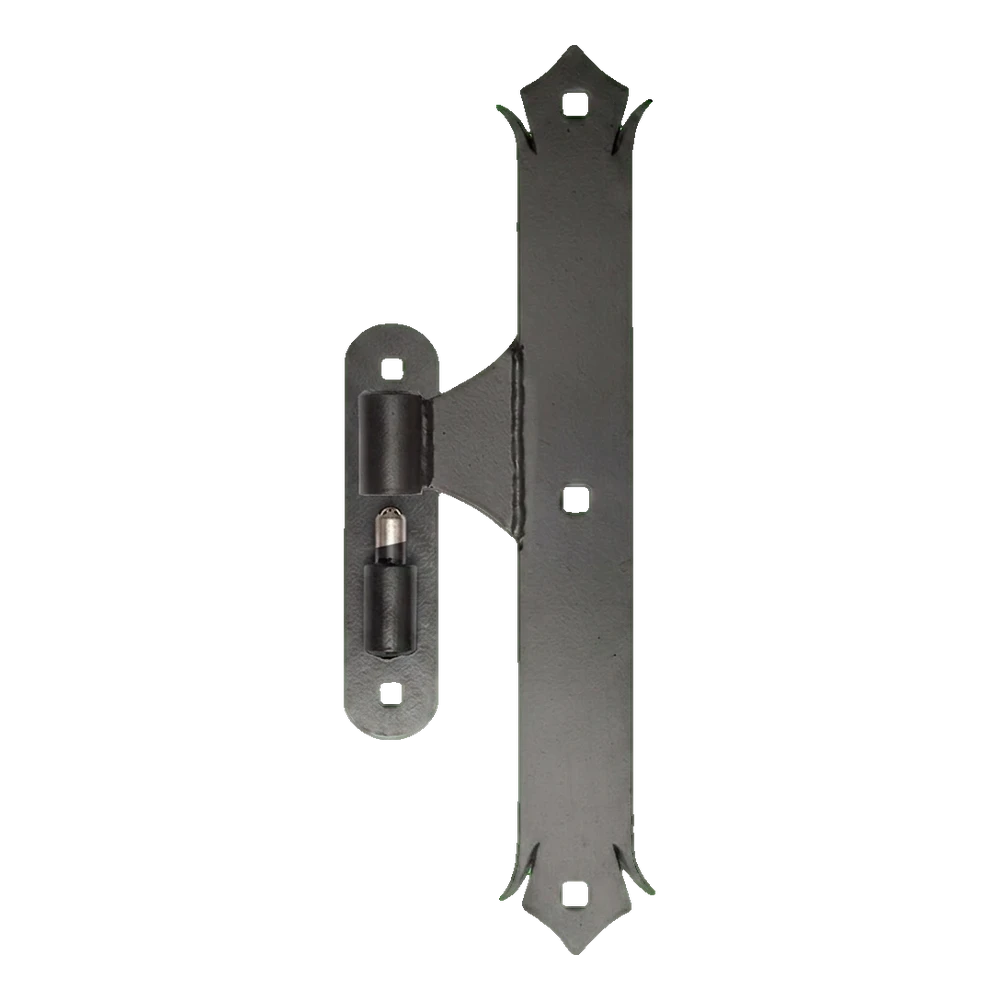

Decorative centre strap hinge with ball for leaf gates 400 mm
Decorative centre strap hinge with ball designed for mounting on leaf gates. Decorative plate endings in the form of stylised leaves give the gate an elegant, forged character, whilst the massive construction made from 5 mm flat bar ensures durability and reliability for years. The hinge is equipped with a rotating sleeve with pin, which guarantees smooth operation of the gate leaf.
The centre hinge is mounted on the central suspension of the gate leaf, ensuring even load distribution. Square mounting holes allow the use of cup head bolts, which do not protrude above the plate surface and prevent unauthorised unscrewing from the external side. This is a practical solution that enhances both the aesthetics and security of the installation.

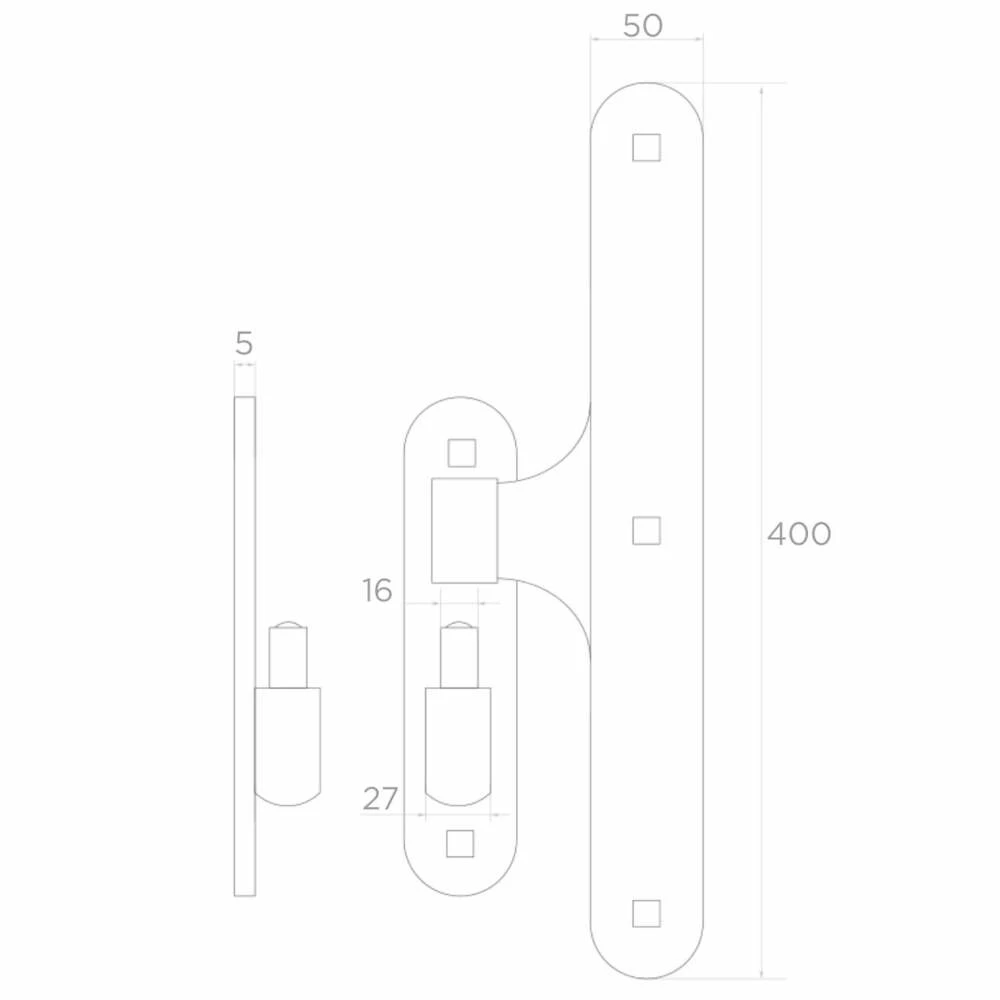

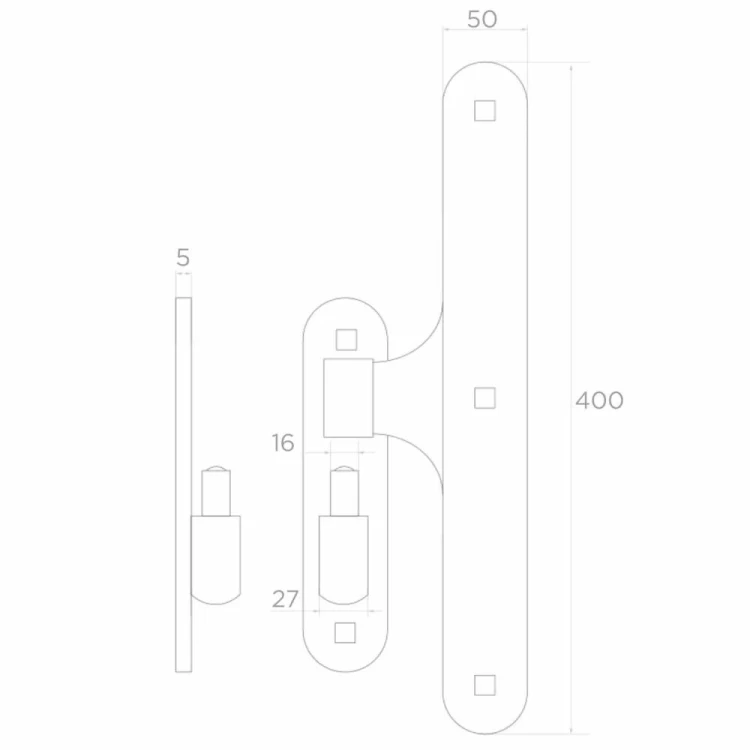

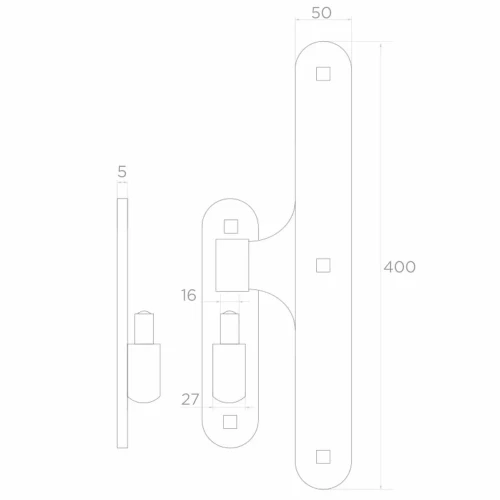

Dimensions and technical parameters
- Plate length (H): 400 mm
- Plate width (L): 50 mm
- Flat bar thickness: 5 mm
- Pin diameter: 16 mm
- Rotating sleeve diameter: 27 mm
- Weight: 1.64 kg
- Mounting holes: square (for cup head bolts)
- Material: steel
- Finish: painted / powder coated
- EAN: 5901431940840
Application
The hinge is designed for professional installation of leaf gates — both wooden and steel. The decorative form makes it ideal for gates with a traditional, rustic or wrought iron character. Thanks to its solid construction and weight of 1.64 kg, it provides stable support even for heavy gate leaves.
