Decorative angle hinge with pin H400 x L650 – complete set for one leaf, black
Leave feedback on the product

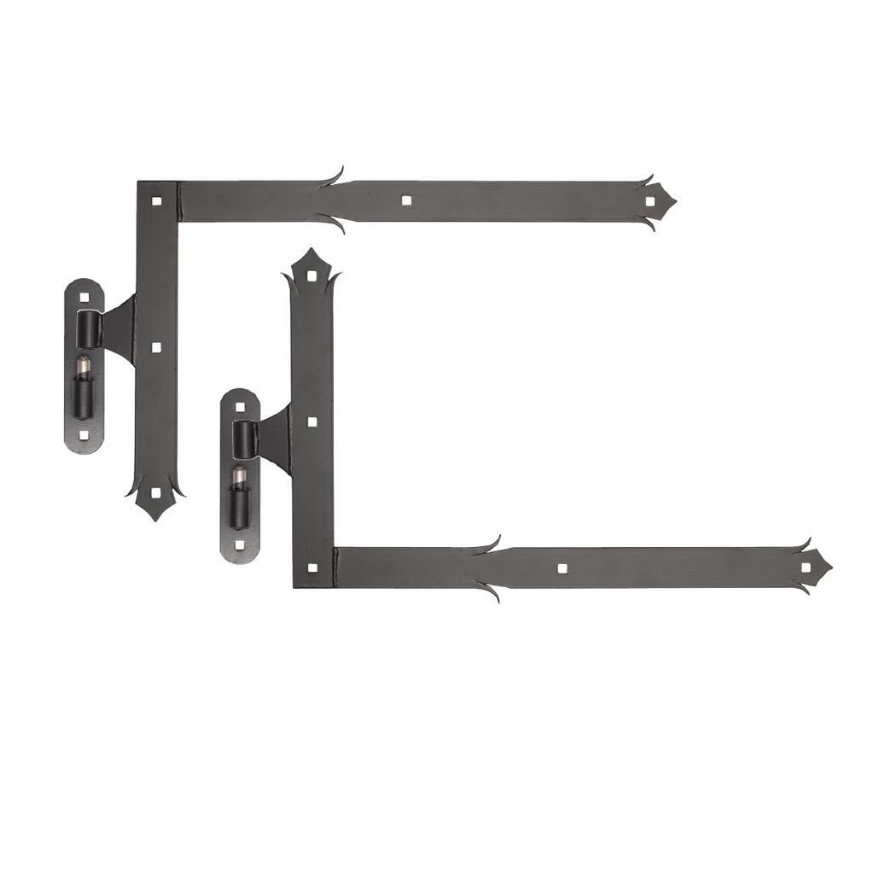

Decorative angle hinge with pin, complete upper and lower set for one leaf. Height 400 mm, length 650 mm, flat bar 50×5 mm, pin Ø16 mm. Steel with BASF cataphoretic coating, black colour. Weight 5.64 kg.
Product code: 001-505
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Decorative angle hinge with pin H400 x L650 – complete set for one leaf, black
Complete set of decorative angle hinges with pin designed for mounting large doors, gates and entrance gates — particularly in farm buildings and facilities with traditional character. The set includes two hinges (upper and lower) for one leaf, allowing complete equipment of the mounting opening within a single order.
Aesthetically finished arms with decorative terminals give the hinge a prestigious appearance, ideal for entrance gates, garden gates and doors in rustic style. Massive construction made of steel with sheet thickness of 5 mm ensures high load capacity — the hinges do not bend even under the weight of heavy leaves.
Durable anti-corrosion protection
The hinge surface is covered with industrial primer paint used in the automotive industry. The paint coating is applied using cataphoresis method with BASF technology — components are baked at 200°C after paint application. Before painting, products undergo thorough cleaning using HENKEL technology, which guarantees maximum coating adhesion and highest quality anti-corrosion protection. The final result is a smooth, black surface resistant to mechanical damage and weather conditions.

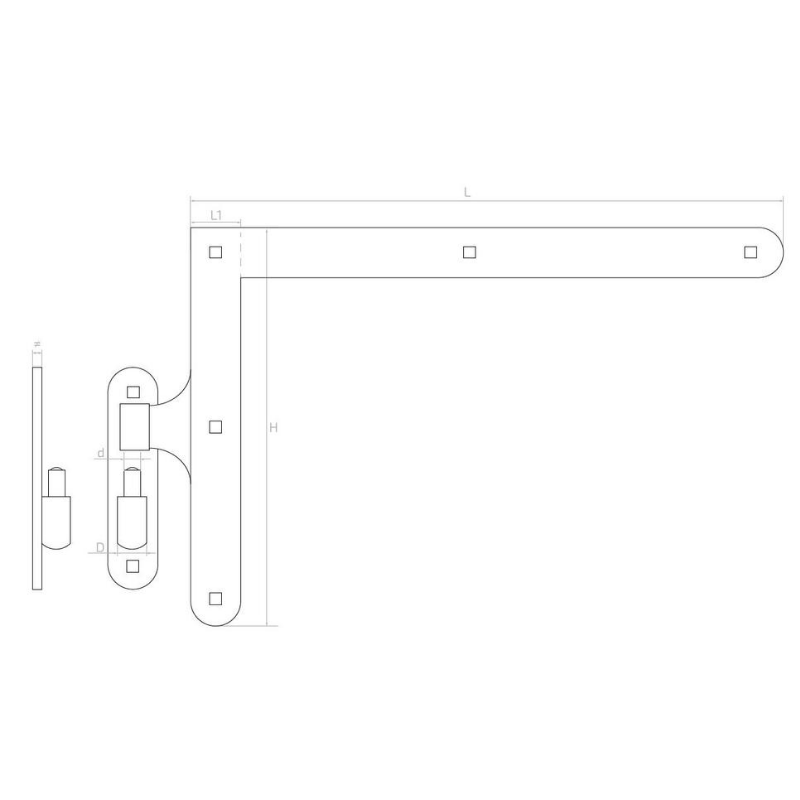

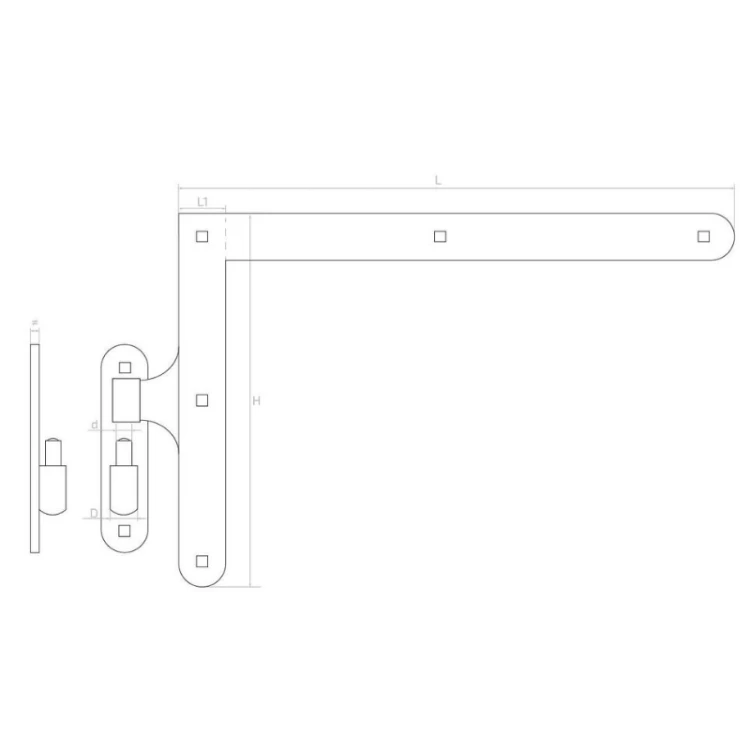

Technical parameters
- Type: decorative angle hinge with pin
- Complete set: upper + lower for one leaf
- Vertical arm height (H): 400 mm
- Horizontal arm length (L): 650 mm
- Flat bar dimensions: 50 × 5 mm
- Pin diameter: 16 mm
- Material: steel
- Colour: black
- Anti-corrosion protection: cataphoretic painting (BASF technology)
- Complete set weight: 5.64 kg
Advantages for installer
- Complete set for one leaf — no need to order hinges separately
- High strength — massive construction does not bend under load
- Corrosion resistance — industrial BASF cataphoretic coating
- Mechanical damage resistance — paint baked at 200°C
- Aesthetic appearance — decorative arm terminals, smooth black surface
