Cross connector 4-hole 3-plate; B up to 40mm galvanised
Description

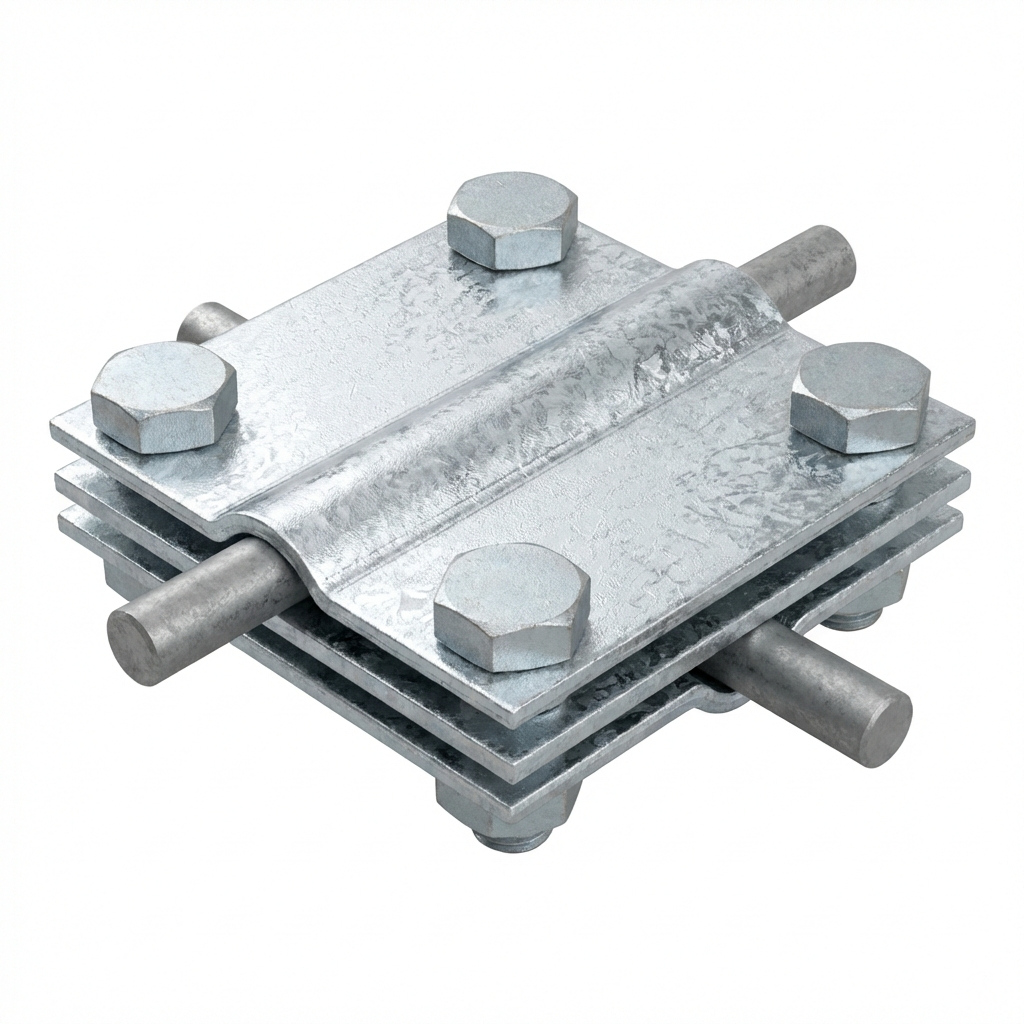

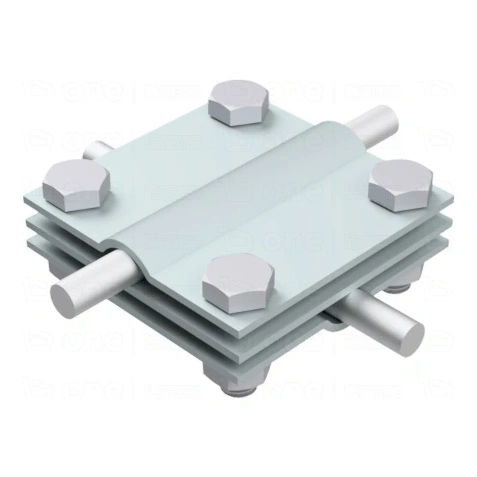

4-hole 3-plate cross connector B up to 40 mm (galvanised steel)
4-hole 3-plate cross connector is used for creating permanent cross connections of round and flat conductors in lightning protection systems. This is a reliable component of the lightning protection system that performs well both on roofs and in ground-level installations.
The product features the highest class of anti-corrosion protection thanks to the use of a special galvanic zinc plating process and polymer coating sealing. Quality is confirmed by BBJ-SEP testing. AH Hardt, as the only manufacturer in Poland with its own electrolytic zinc plating facility, guarantees full control over the production process and the highest quality repeatability.
The connector has been tested in accordance with PN-EN 62561-1 standard, achieving H2 class – resistance to lightning impulse current of 200 kA. The 3-plate construction provides greater contact surface area and better connection stability compared to 2-plate variants, which is particularly important for wider tape conductors.
Technical specifications
- Material: galvanised steel
- Round/flat conductor range: Ø8–10 mm / tape up to 40 mm
- Bolts: 4×M8×30
- Bolt and nut material: galvanised steel
- GTIN: 5901832910220
The connector dimensions are 67 × 67 × 50 mm, ensuring solid construction whilst maintaining full functionality. The B designation in the product name refers to the maximum tape width that can be secured in the connector.
Why choose this connector?
- Highest anti-corrosion protection: galvanic zinc plating with polymer sealing
- Proven quality: BBJ-SEP testing and compliance with PN-EN 62561-1 standard
- H2 class: resistance to lightning impulse current of 200 kA
- Versatility: connects round conductors Ø8–10 mm with tape up to 40 mm
- Secure mounting: 4 M8×30 bolts ensure stable and durable connection
