Cross connector 4-hole 2-plate B up to 30mm galvanized
Leave feedback on the product
4-hole cross connector for Ø8 conductors and strip up to 30mm. Galvanised steel, class H2, resistance 200 kA. Dimensions 51×51×35mm.
Product code: 000-136
Description

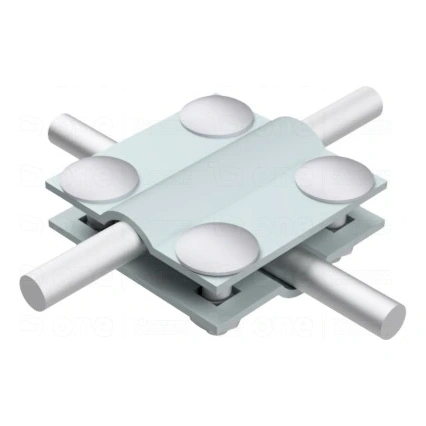

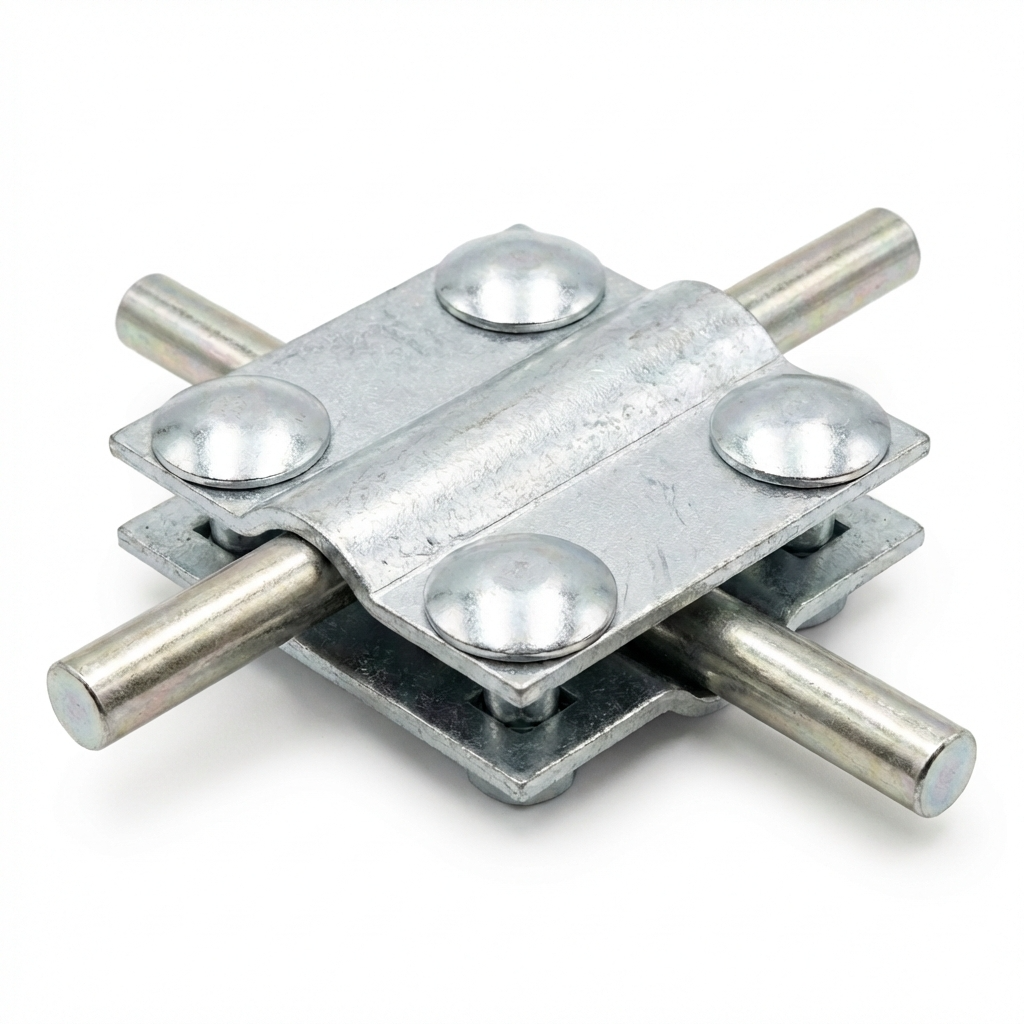

4-hole 2-plate cross connector type B up to 30 mm (galvanised steel)
4-hole 2-plate cross connector is used for making permanent cross connections of round and flat conductors in lightning protection systems. This reliable lightning protection component is suitable for both rooftop and ground-level installations.
The product features the highest class of anti-corrosion protection thanks to a special galvanic zinc plating process and polymer sealing of the coating. Quality is confirmed by BBJ-SEP testing. The connector has been tested in accordance with standard PN-EN 62561-1, achieving class H2 – resistance to lightning impulse current 200 kA.
Technical specifications
- Material: galvanised steel
- Round/flat conductor range: Ø8 / tape up to 30 mm
- Bolts: 4×M6×20
- Bolt and nut material: galvanised steel
- GTIN: 5901832910190
The connector dimensions are 51 × 51 × 35 mm, ensuring compact construction whilst maintaining full functionality. The designation B in the product name refers to the maximum width of tape that can be secured in the connector.
Why choose this connector?
- Highest anti-corrosion protection: galvanic zinc plating with polymer sealing
- Proven quality: BBJ-SEP testing and compliance with standard 62561-1
- Class H2: resistance to lightning current 200 kA
- Versatility: connects Ø8 mm round conductors with tape up to 30 mm
- Secure mounting: 4 M6 bolts ensure stable and durable connection
