Corner post balustrade 45x45x1283mm aluminium glass 8.72mm dark grey Kozza KR7500
Leave feedback on the product
Kozza KR7500 external corner post made from aluminium, dark grey RAL 7021. Dimensions 45×45×1283 mm, weight 2.3 kg. For 8.72 mm laminated glass. Side mounting, 4 mounting holes. Powder coating resistant to weather conditions.
Product code: 000-889
Product features
[PIM] Cat 134 #134
- Material Aluminium
- Finish Dark Grey
- Mounting System Flat
Description

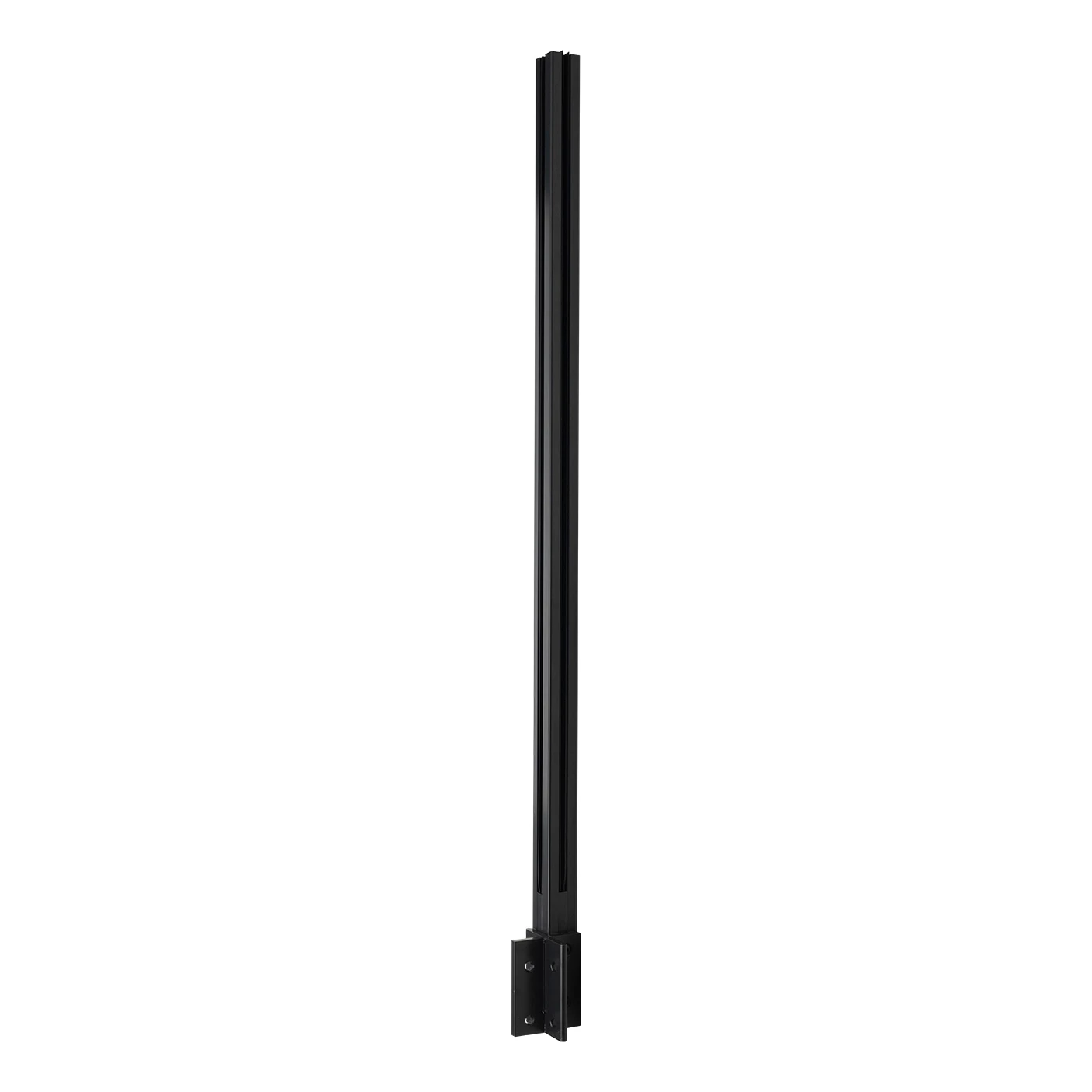

Kozza KR7500 – external corner balustrade post aluminium 45×45×1283 mm dark grey
Kozza KR7500 is an aluminium external corner post designed for balustrades with 8.72 mm laminated glass. Designed for guiding glass panels at balcony, terrace and stair corners, it provides stable and aesthetic line breaking of the balustrade without the need for additional reinforcing profiles. The side mounting system leaves the usable surface free, whilst the dark grey RAL 7021 finish gives the whole structure a modern, elegant character.
Key construction features
- Post variant: external corner — stable glass guidance at angles on corners
- Material: aluminium — lightweight, corrosion resistant and mechanically strong
- Profile cross-section: 45×45 mm — high rigidity and stability at corner locations
- Finish: dark grey RAL 7021, powder coating — durable weather-resistant coating
- Dedicated glass thickness: 8.72 mm — eliminates risk of incorrect glass selection

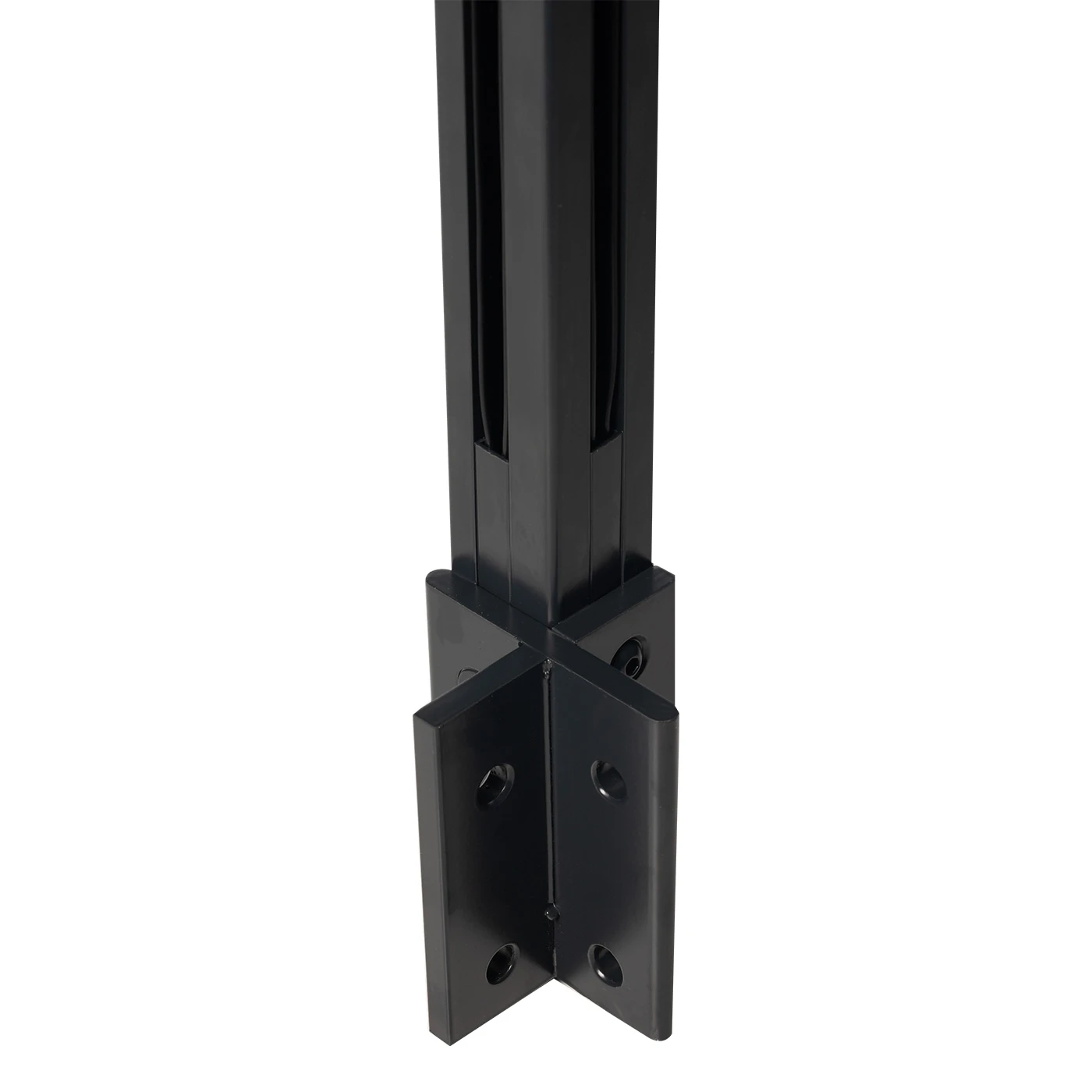

- Mounting: side, 4 mounting holes — glass guidance at plate edge
- Weight: 2.3 kg
- EAN: 5903313208130

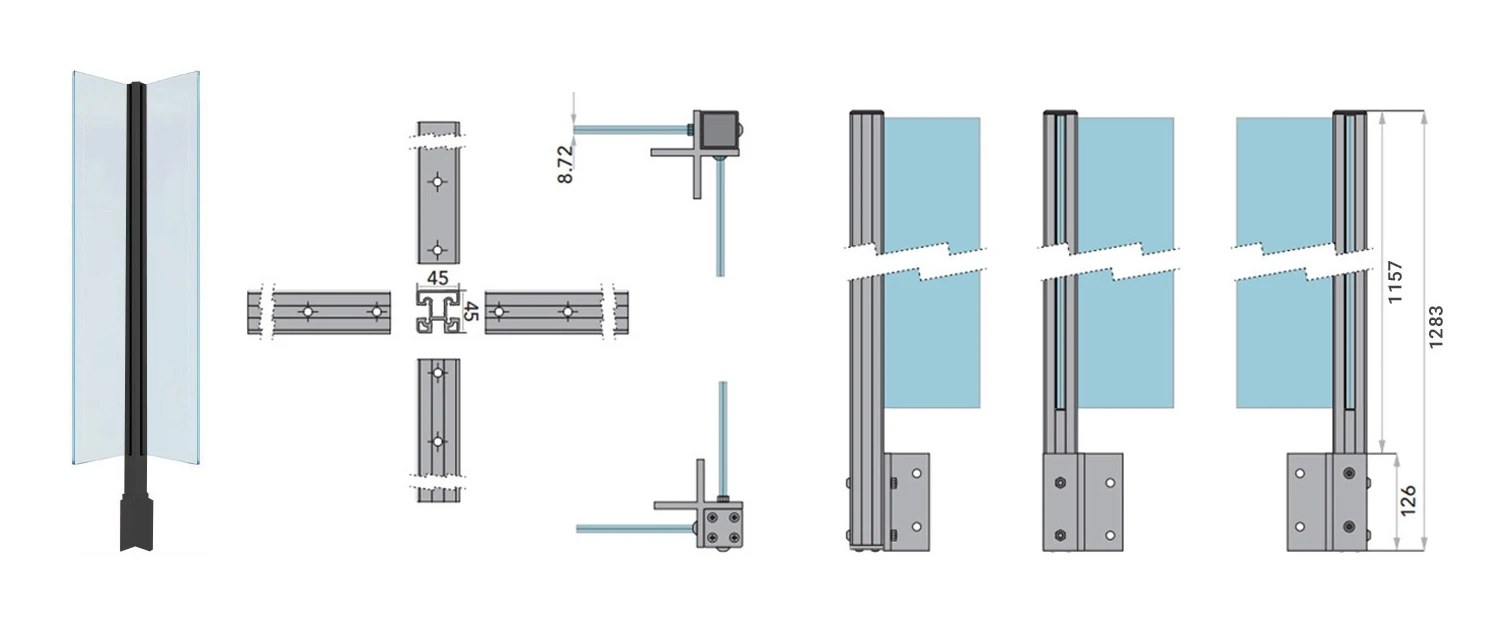

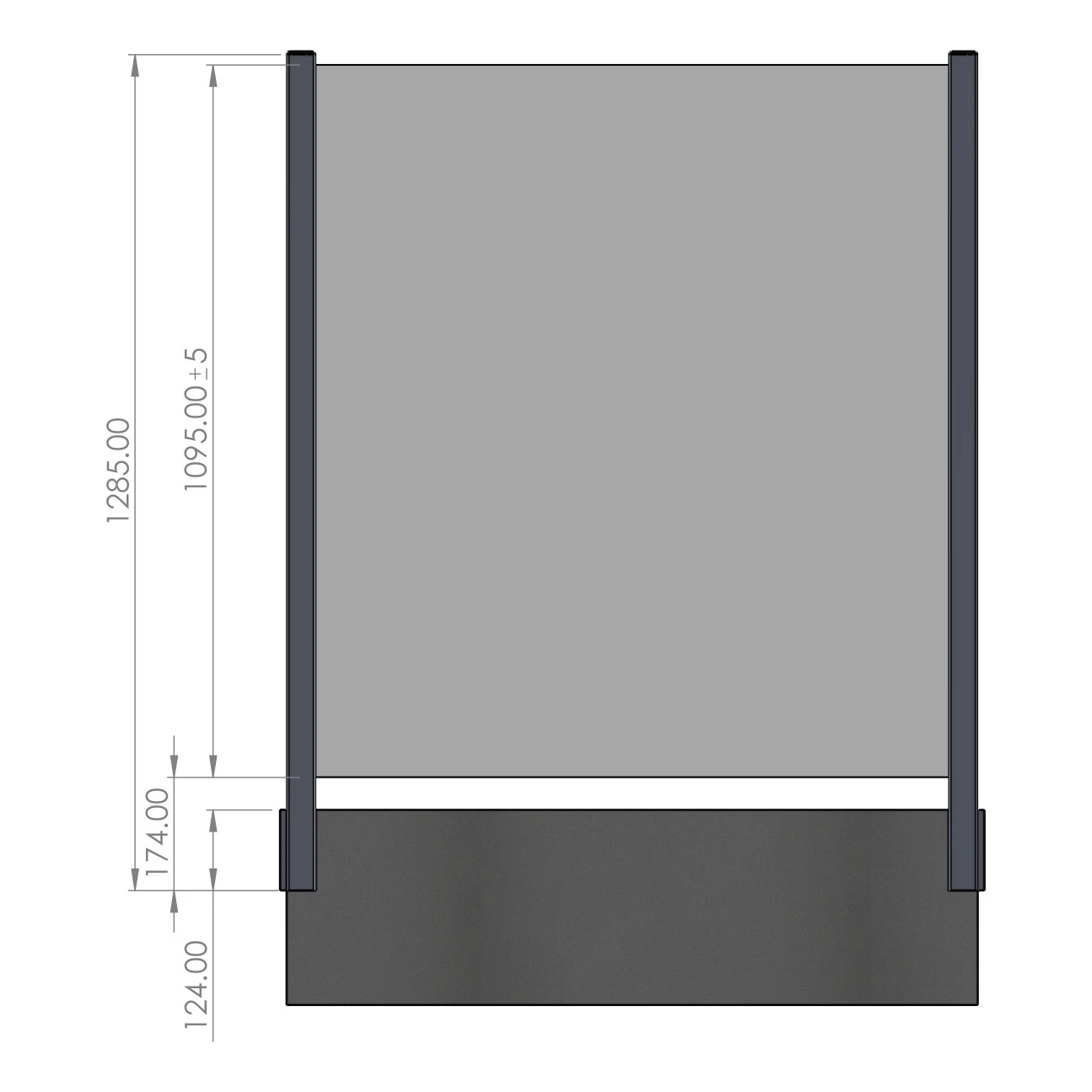

Dimensions and tolerances
- Post dimensions: 45×45×1283 mm
- Total section height (with glass): 1285 mm
- Maximum glass height: 1095 mm (tolerance ±5 mm)
- Post height above mounting element: 1157 mm
- Distance from bottom edge of glass to bottom of post: 174 mm
- Base/mounting element height: 124–126 mm
Kit contents
- Post (profile with side mounting)
- Glass seal
- End cap
Safety confirmed by testing
Corner posts from the KR7500 series have undergone strength testing which confirms their stability and compliance with building safety standards. Kozza manufacturer provides certificates and static test reports, giving confidence that the element will meet usage requirements both in daily use and under increased loads. This allows installers to use these posts with full confidence in residential and commercial projects.

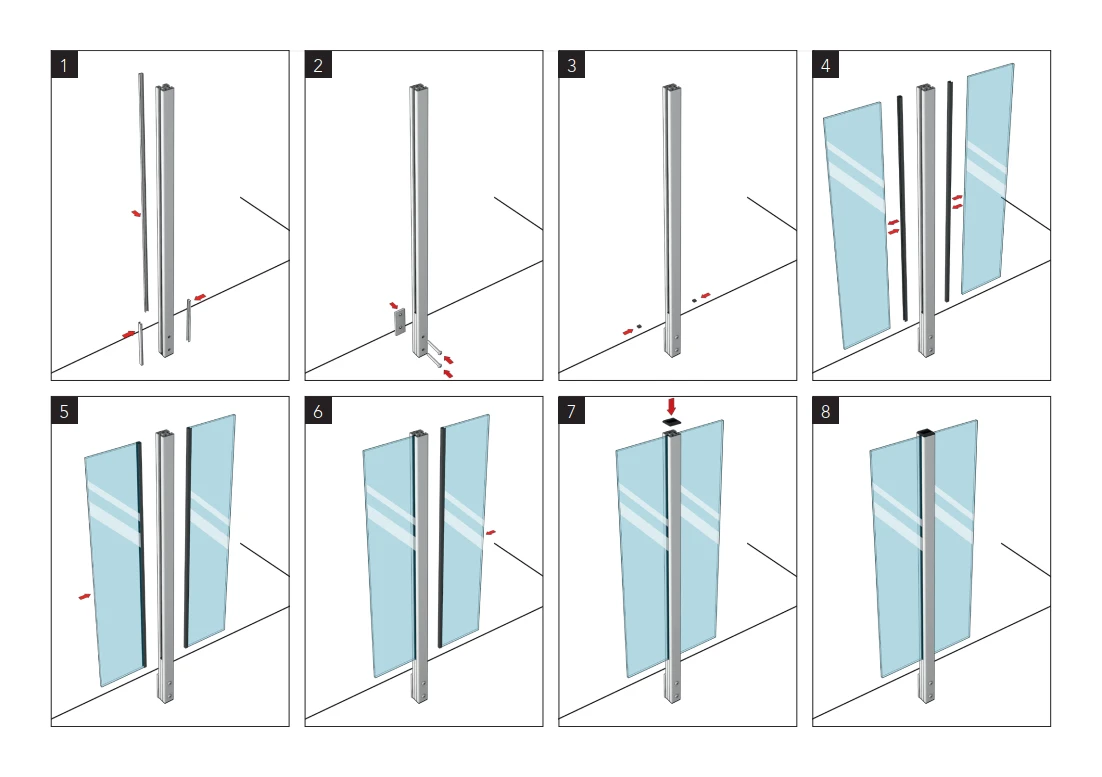

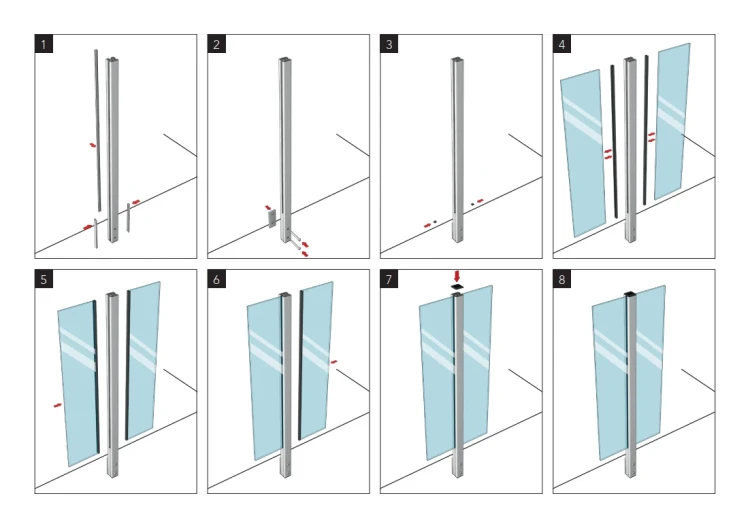

Step-by-step installation
The installation instructions illustrate 8 consecutive installation stages — from setting the profile and fixing it to the face of the structure, through inserting the glass and fitting the seals, to securing with the end cap. The entire process is simple and intuitive, allowing efficient completion of even large balustrade projects.

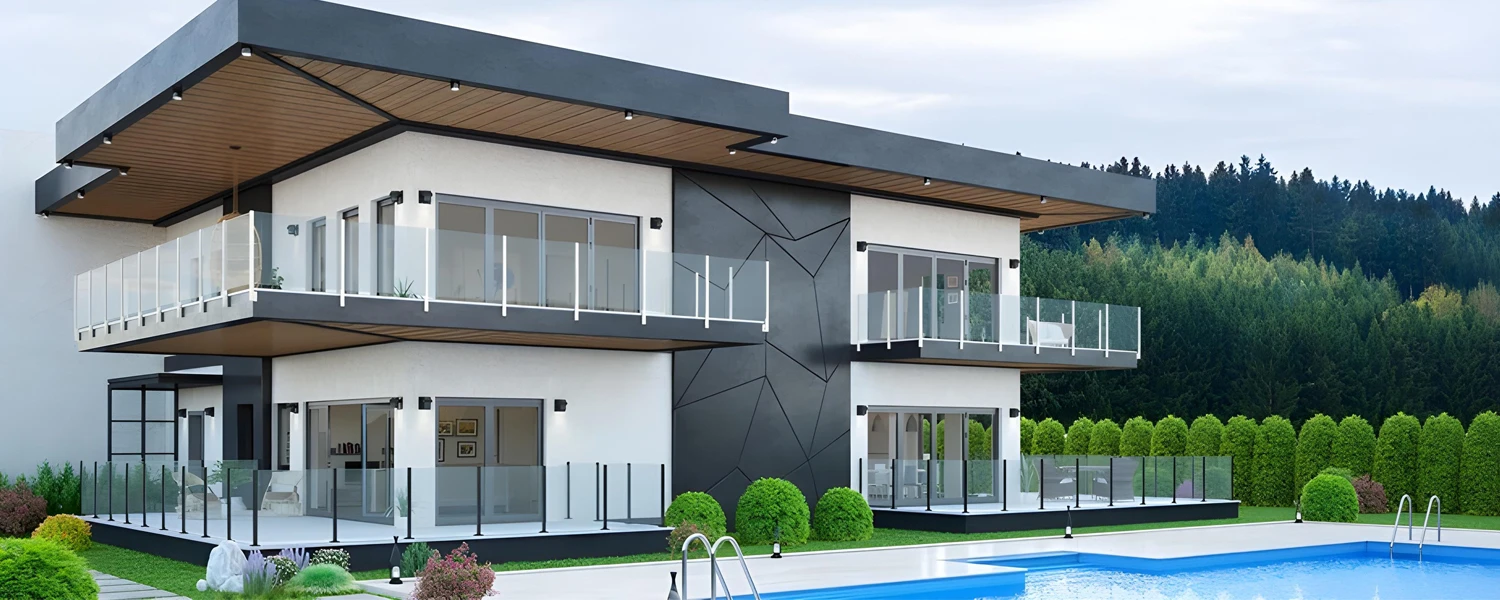

Aesthetics and universal application
The dark grey RAL 7021 finish complements perfectly with various façade materials — architectural concrete, wood, stone and decorative renders. The solution eliminates the need for additional reinforcing profiles at corners, ensuring visual lightness of the construction. The KR7500 series works well in both residential construction and prestigious commercial projects where harmony of form and functionality is required.
