Corner handrail bracket 42.4 mm for 40x40 mm post – stainless steel AISI 304 satin
0
Description

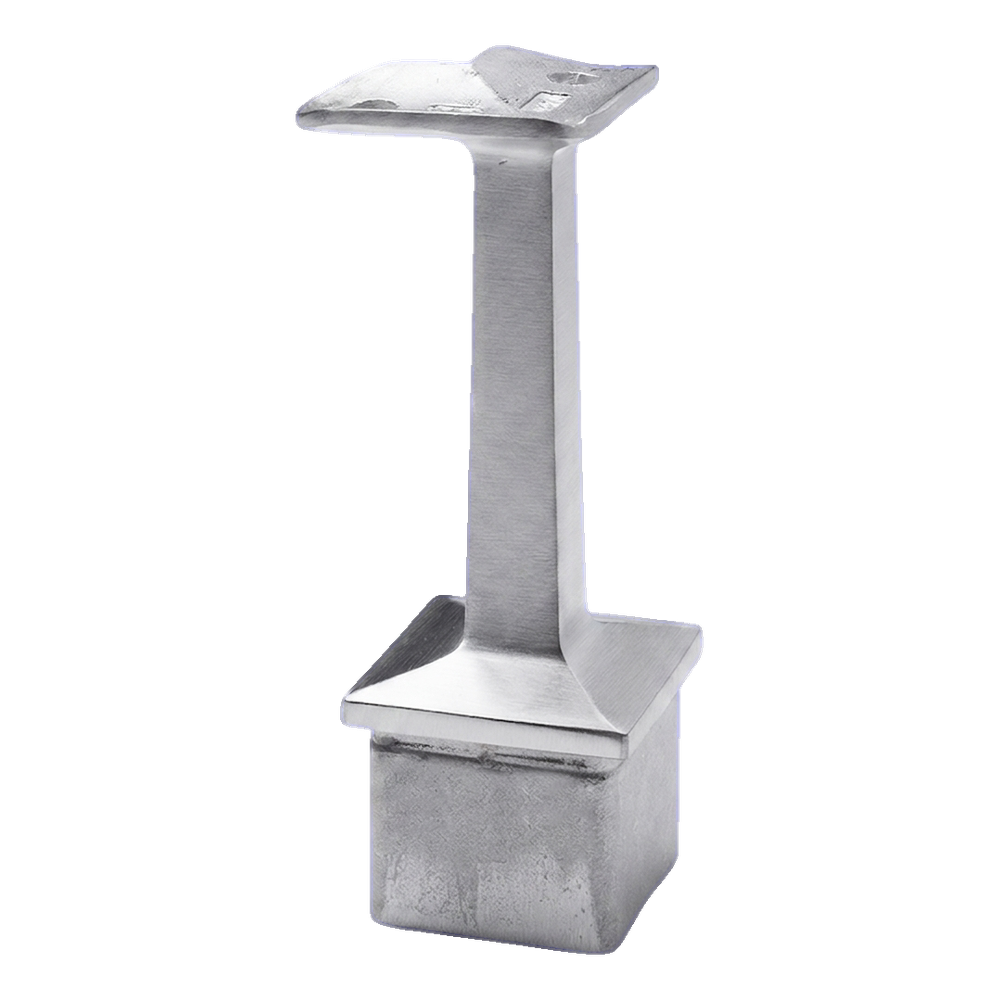

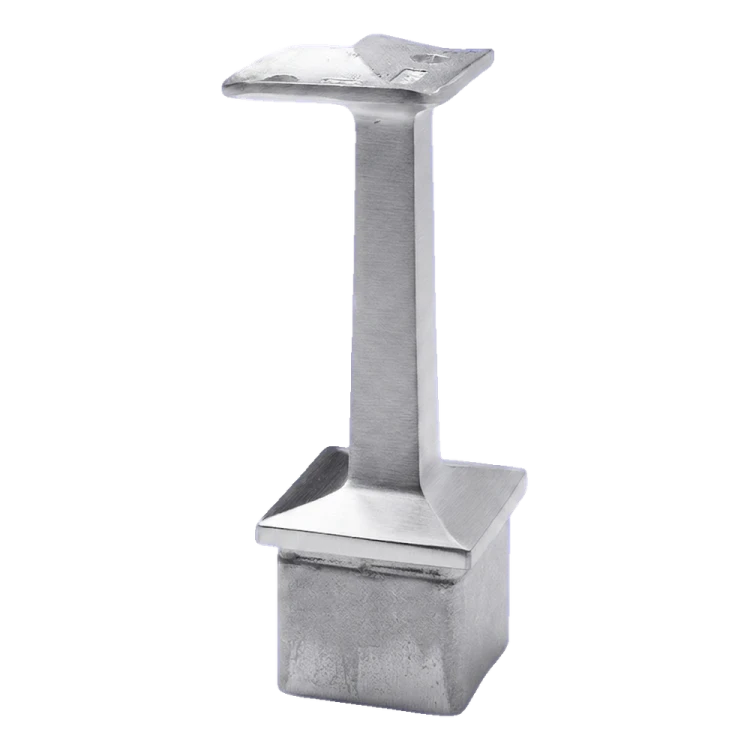

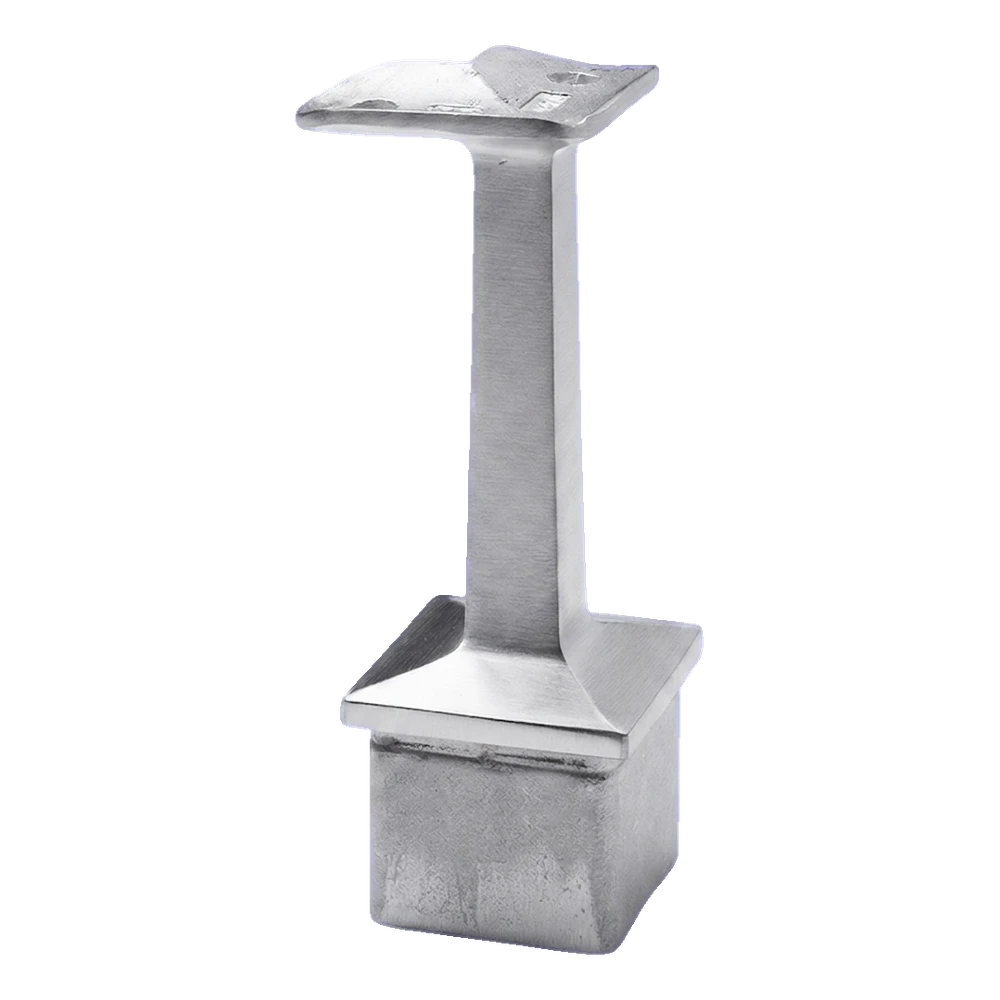

Corner handrail bracket 42.4 mm for 40x40 mm post – stainless steel AISI 304 satin
Corner handrail bracket designed for balustrade systems with square posts 40×40 mm. The element connects the post with a circular handrail of 42.4 mm diameter at a 90° angle, creating a durable and aesthetic corner connection. Made from high-quality stainless steel AISI 304 in satin finish — corrosion resistant and easy to maintain.
The bracket is designed for adhesive bonding using anaerobic adhesive. The adhesive bonds upon contact with metal and hardens by cutting off the air supply, ensuring a durable, invisible connection without the need for welding or mechanical fastening. This mounting method significantly reduces installation time and eliminates machining marks.

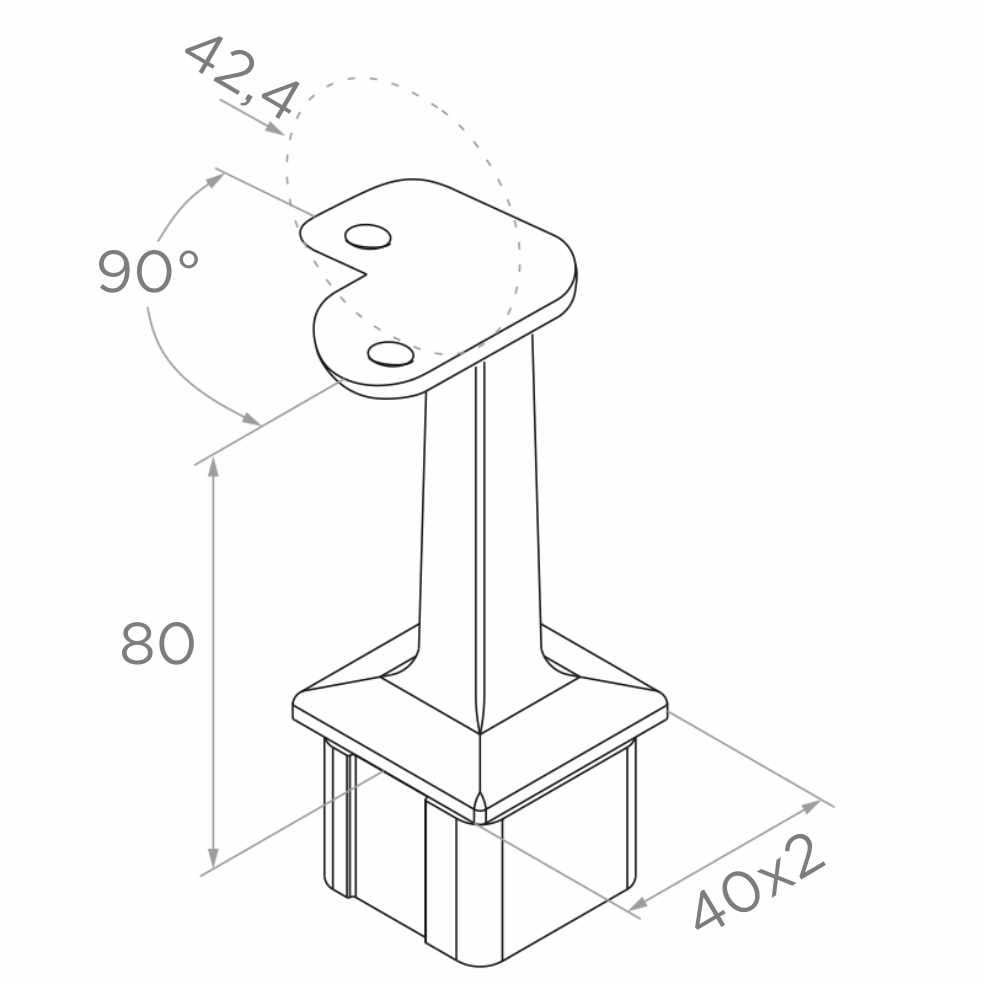

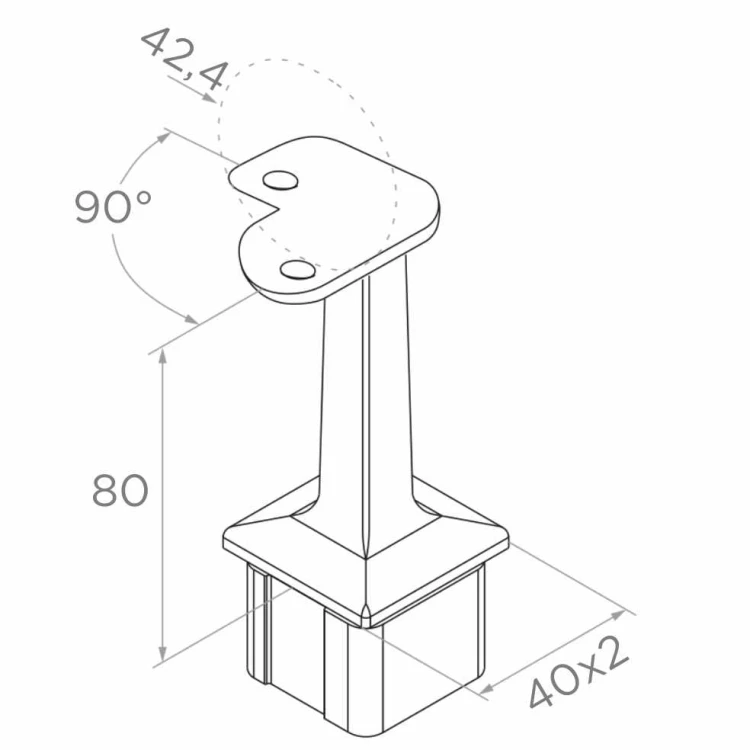

Dimensions and technical parameters
- Handrail diameter: 42.4 mm
- Corner angle: 90°
- Bracket height: 80 mm
- Post profile: 40×40 mm, wall thickness 2 mm
- Spindle cross-section: 14×14 mm
- Material: stainless steel AISI 304
- Finish: satin
- Mounting method: adhesive bonded (anaerobic adhesive)
- Weight: 0.26 kg
- EAN: 5901289672030
Application
The bracket is dedicated to corner connections of handrails with square posts in the 40×40 mm system. It works well in internal and external balustrades — on staircases, terraces, balconies and mezzanines. The satin finish of stainless steel optically enlarges the space, provides natural lighting and harmoniously complements modern arrangements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
