Corner bracket clamp twist h=7cm galvanised
Description

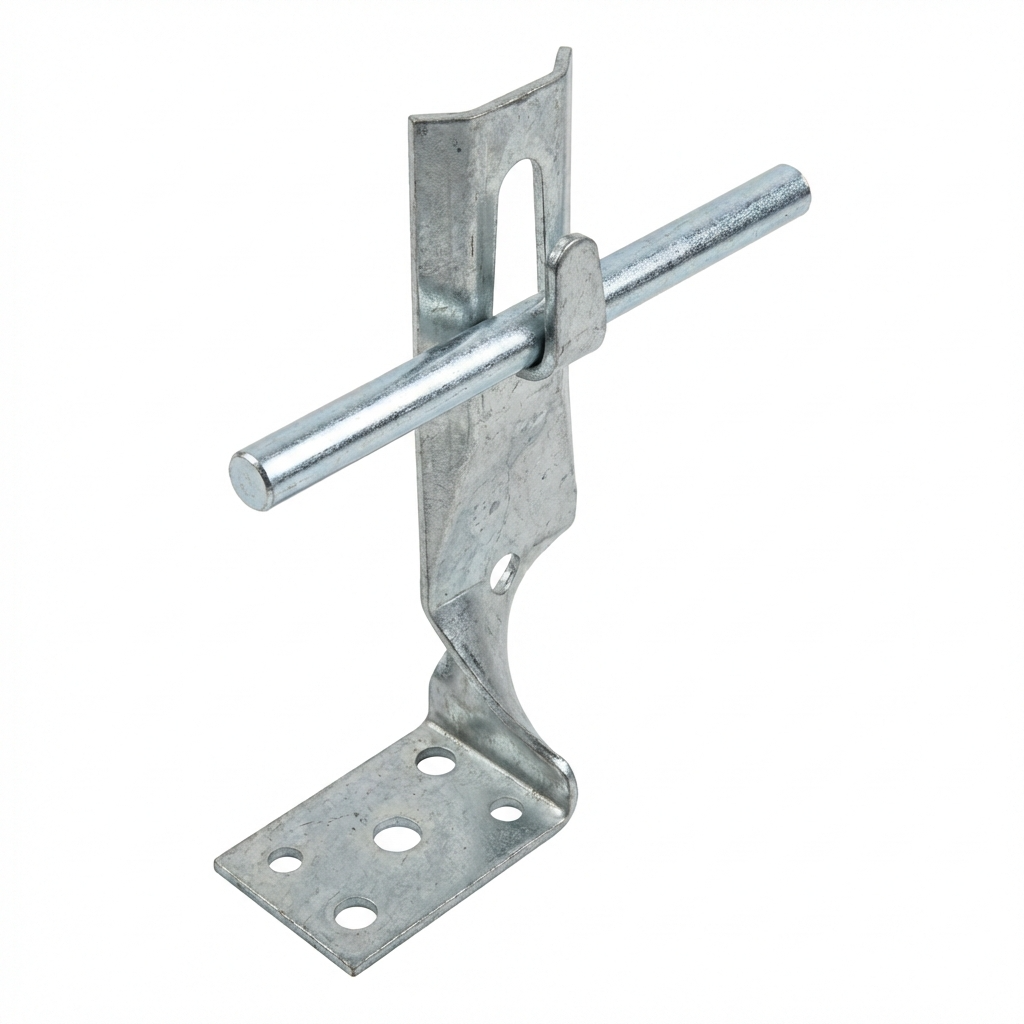

Angle bracket with twist clamp H=70 mm – electrolytically galvanised steel
Angle bracket with twist clamp H=70 mm is a reliable lightning protection installation component, designed for routing lightning conductor wire on various types of surfaces. Thanks to its solid construction made of electrolytically galvanised steel, it ensures durable and secure mounting of round conductor with diameter Ø8–10 mm.
Universal application. The bracket is designed for mounting on roofs and walls made of various materials — masonry, timber, metal sheet, shingle or roofing felt. Fixing to the substrate is carried out using screws, expansion plugs or rivets, which provides complete freedom in choosing the method depending on site conditions.
High corrosion resistance. The steel construction subjected to electrolytic galvanising with additional polymer sealing of the coating ensures the highest class of anti-corrosion protection. As a result, the bracket maintains full functionality for many years, even in harsh weather conditions.
Twist clamp enables quick and secure wire fixing without the need for additional specialist tools. Simply pass the conductor through the bracket and secure it by twisting the clamp — installation is intuitive and does not require extensive experience.

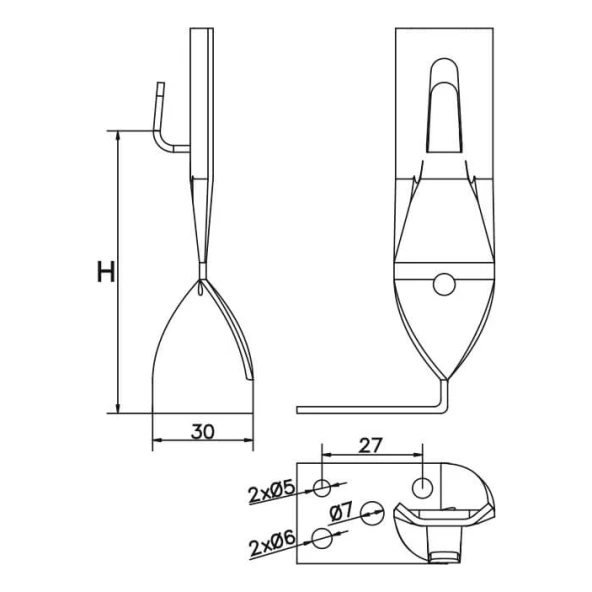

Technical data
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Height (H): 70 mm
- Base dimensions: 30 × 27 mm
- Mounting holes: 2×Ø5 mm, 2×Ø6 mm, Ø7 mm
- GTIN: 5901832912521
