Corner balustrade post for glass fi 42.4x1060/1102.4mm 4 brackets brushed
Description

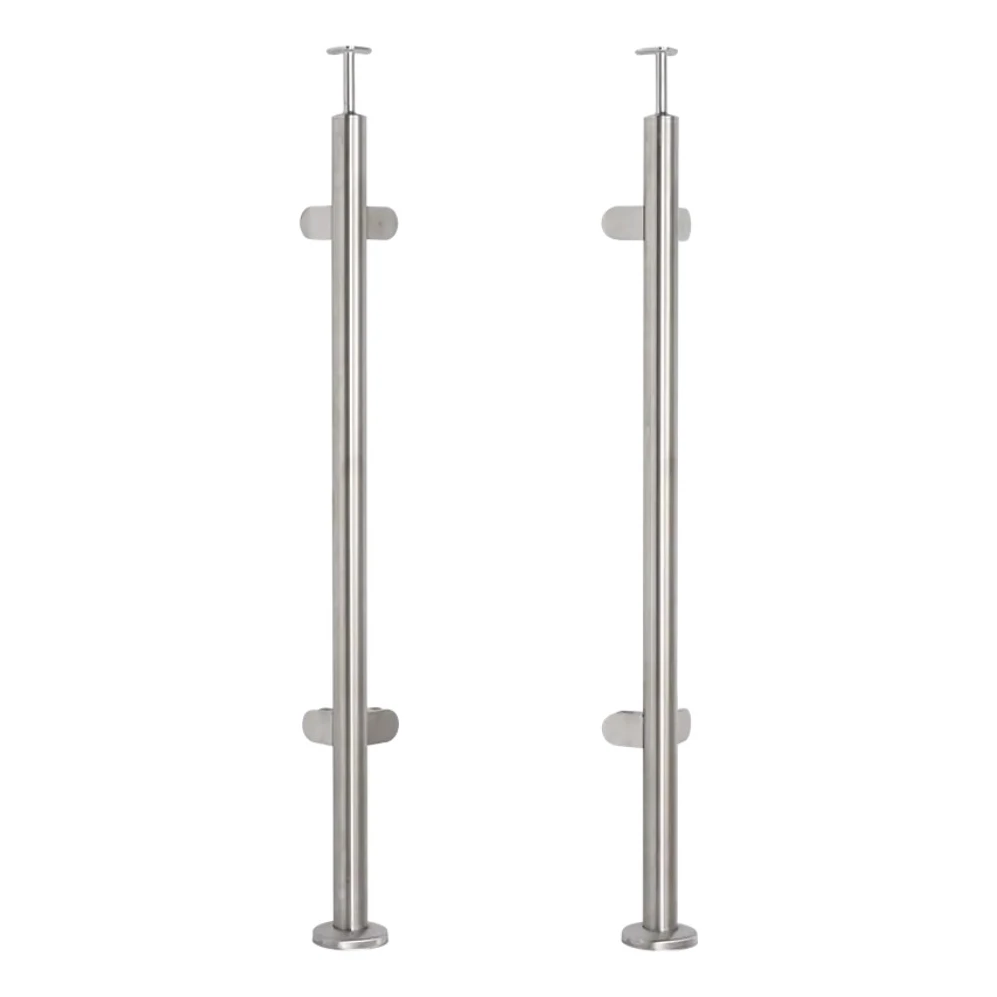

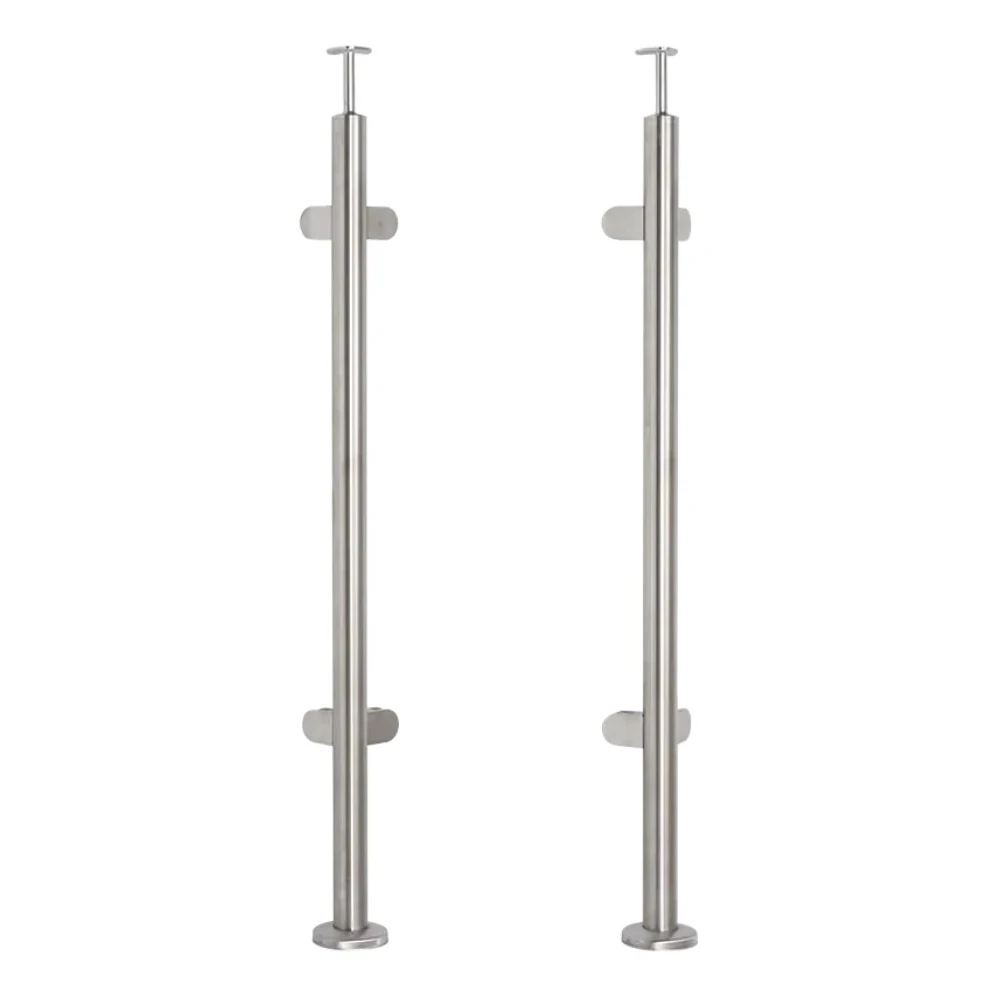

Corner balustrade post stainless steel fi 42.4 mm – 4 glass brackets
Corner balustrade post made of AISI 304 stainless steel with satin finish — ready-to-install element for building professional glass balustrades. Equipped with 4 glass brackets measuring 40×50 mm, accommodating glass panels with thickness from 6 to 10.76 mm. Universal design allows for use in both balcony and stair balustrades.
Easy installation and flexible positioning
The handrail support is not permanently bonded — anaerobic adhesive for stainless steel should be used for its installation. This solution provides several important benefits:
- Handrail installation is easier and faster
- Post positioning can be adjusted to site conditions
- If necessary — e.g. uneven flooring — the post can be shortened
The post is floor-mounted and designed for corner constructions at 90° angle — the handrail bracket has an appropriately shaped mounting plate.

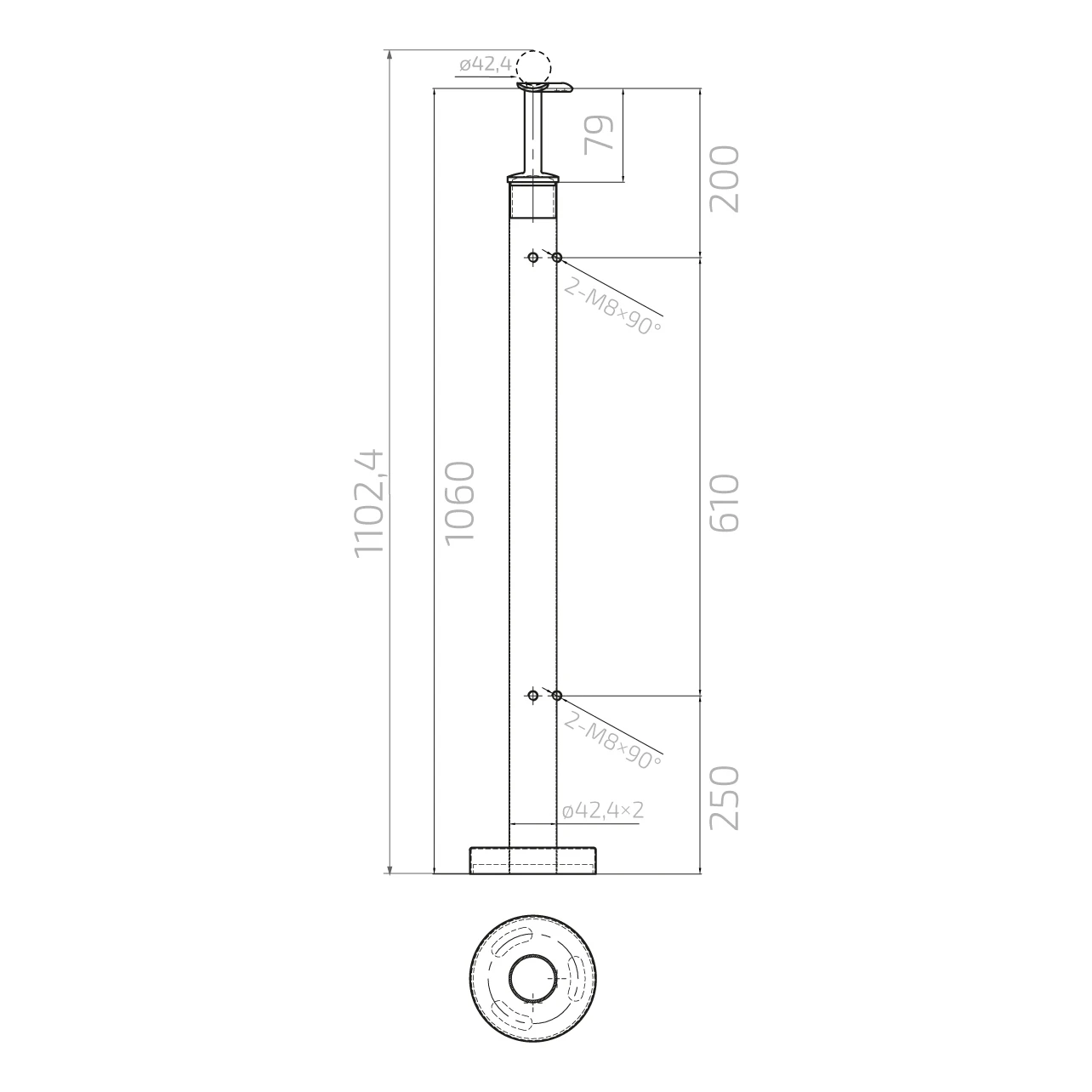

Post dimensions
- Post tube height: 1060 mm
- Total height (to handrail centreline): 1102.4 mm
- Tube diameter: ø42.4 mm, wall thickness: 2 mm
- Glass bracket spacing: 610 mm
- Distance of lower brackets from base: 250 mm
- Distance of upper brackets from tube top: 200 mm
- Handrail bracket height: 79 mm
- Handrail diameter: ø42.4 mm
- Bracket mounting holes: 2×M8 at 90° angle

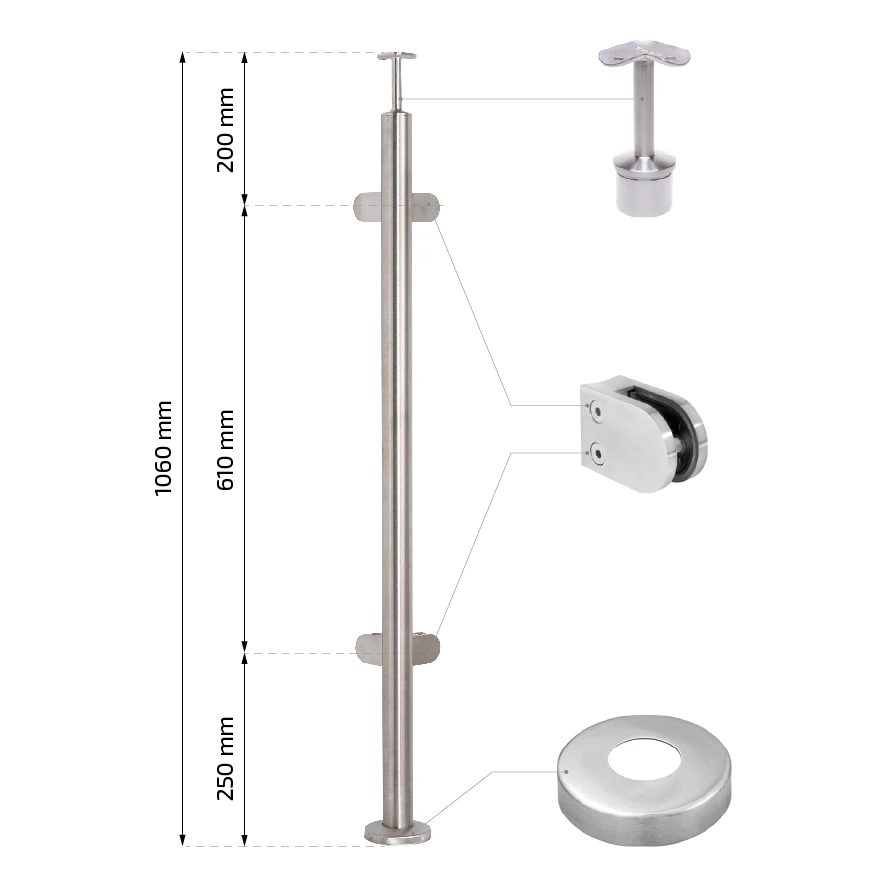

Set contents
- Corner post made of AISI 304 stainless steel
- Glass brackets — 4 pieces (dimensions: 40×50×40 mm)
- Post connector (corner handrail bracket 90°)
- Base cover plate (rosette)
- Complete set of rubber gaskets for 8 mm glass
When using glass of thickness other than 8 mm, it is necessary to select gaskets of appropriate size — the brackets accommodate glass with thickness from 6 to 10.76 mm.

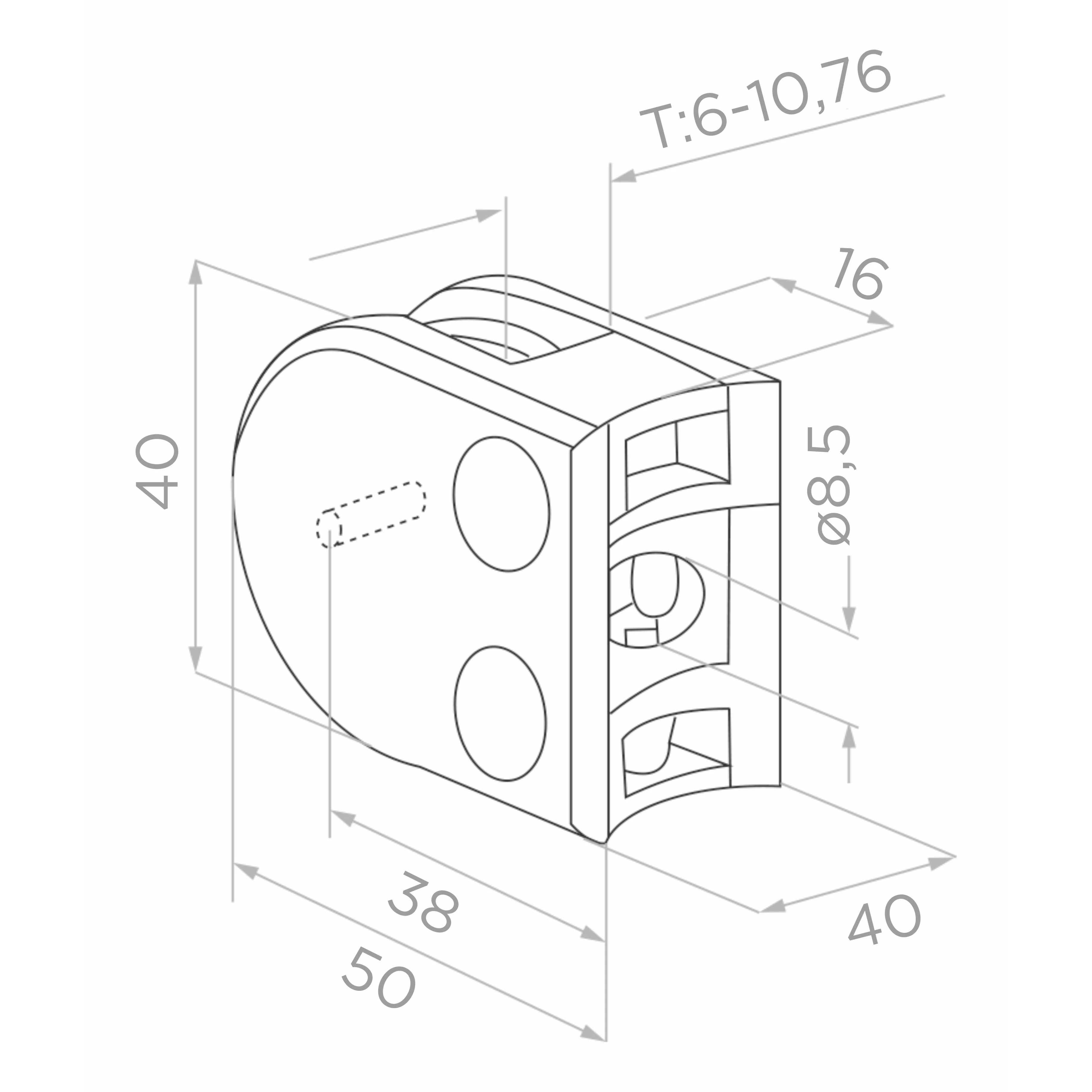

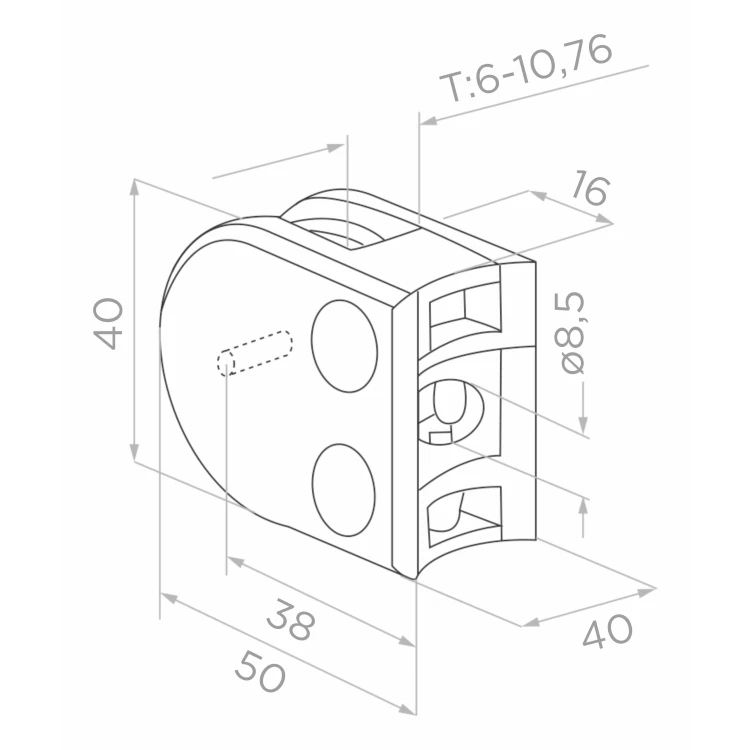

Glass bracket parameters
- Dimensions: 50×40×40 mm (length × height × depth)
- Straight section: 38 mm
- Accommodated glass thickness: 6–10.76 mm
- Mounting hole diameter: ø8.5 mm
- Hole centre distance from edge: 16 mm

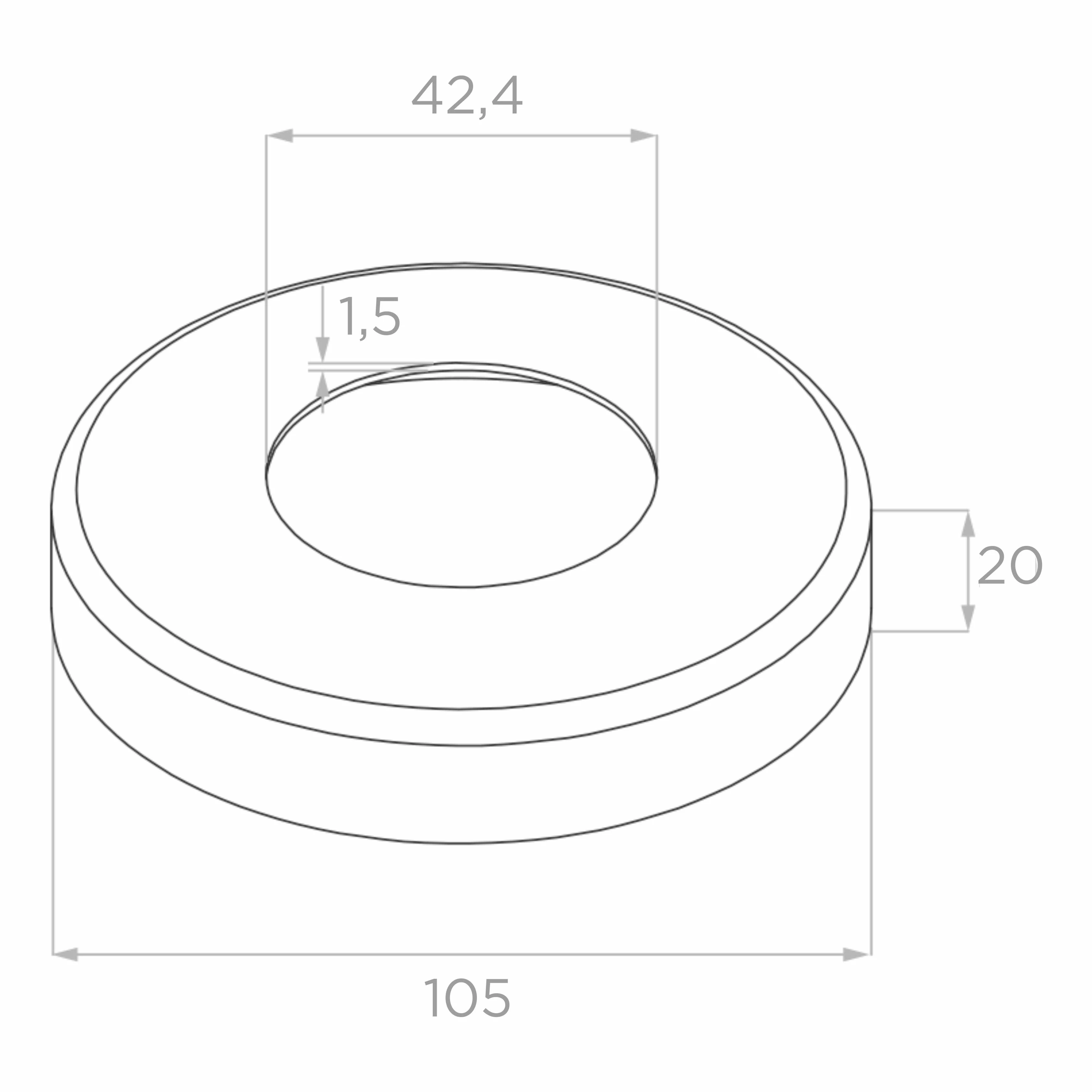

Base cover plate parameters
- External diameter: 105 mm
- Internal diameter: ø42.4 mm
- Height: 20 mm
- Material thickness: 1.5 mm

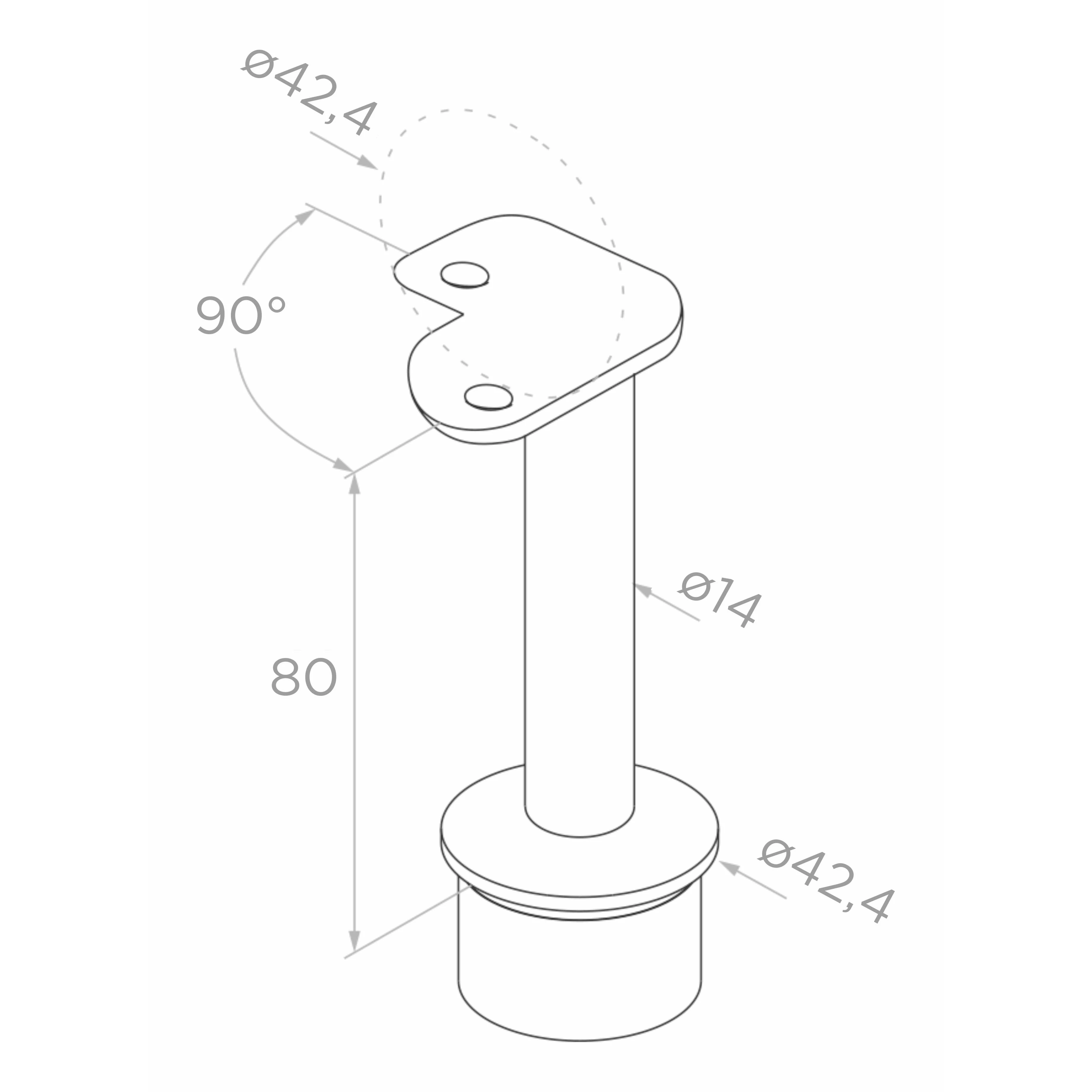

Handrail bracket parameters
- Height from flange to handrail centreline: 80 mm
- Spindle diameter: ø14 mm
- Base diameter: ø42.4 mm
- Handrail diameter: ø42.4 mm
- Mounting plate angle: 90°
General specifications
- Material: AISI 304 stainless steel
- Finish: brushed / satin
- Weight: 3.66 kg
- EAN: 5903313202190
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
