Comunello steel safety cable for gate leaf 700 mm
0
Description

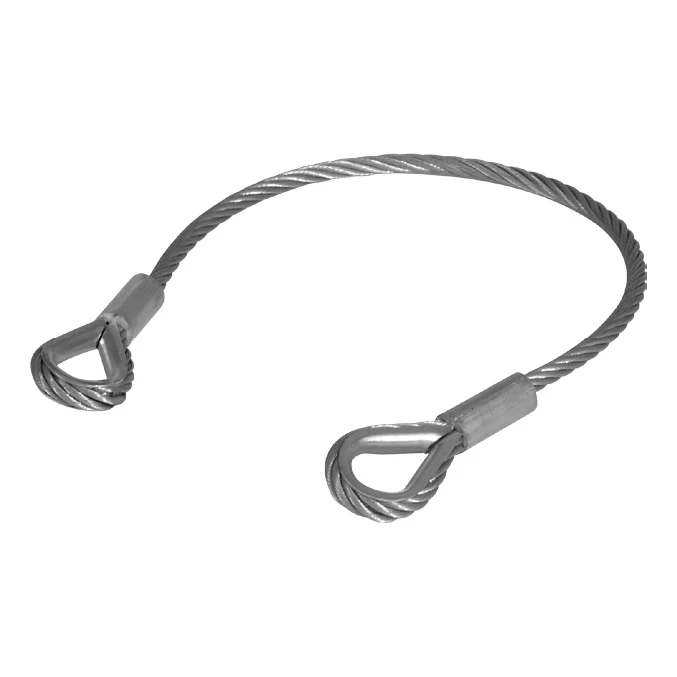

Comunello steel safety cable for gate leaf 700 mm
The steel safety cable from Comunello with a length of 700 mm is a safety component that prevents the gate leaf from falling in case one or both hinges are damaged. A proven solution used by professional swing gate installers — minimises accident risk and protects against costly material damage.
The cable is made of galvanised steel, which guarantees high corrosion resistance and long-term operation in outdoor conditions. Steel thimbles with crimped sleeves are fitted at both ends — ensuring a durable and secure connection with the mounting elements on the post and gate leaf. When properly installed, the cable can secure a leaf weighing up to 400 kg, allowing it to be used in both residential gates and heavy industrial gates.
Technical parameters
- Manufacturer: Comunello

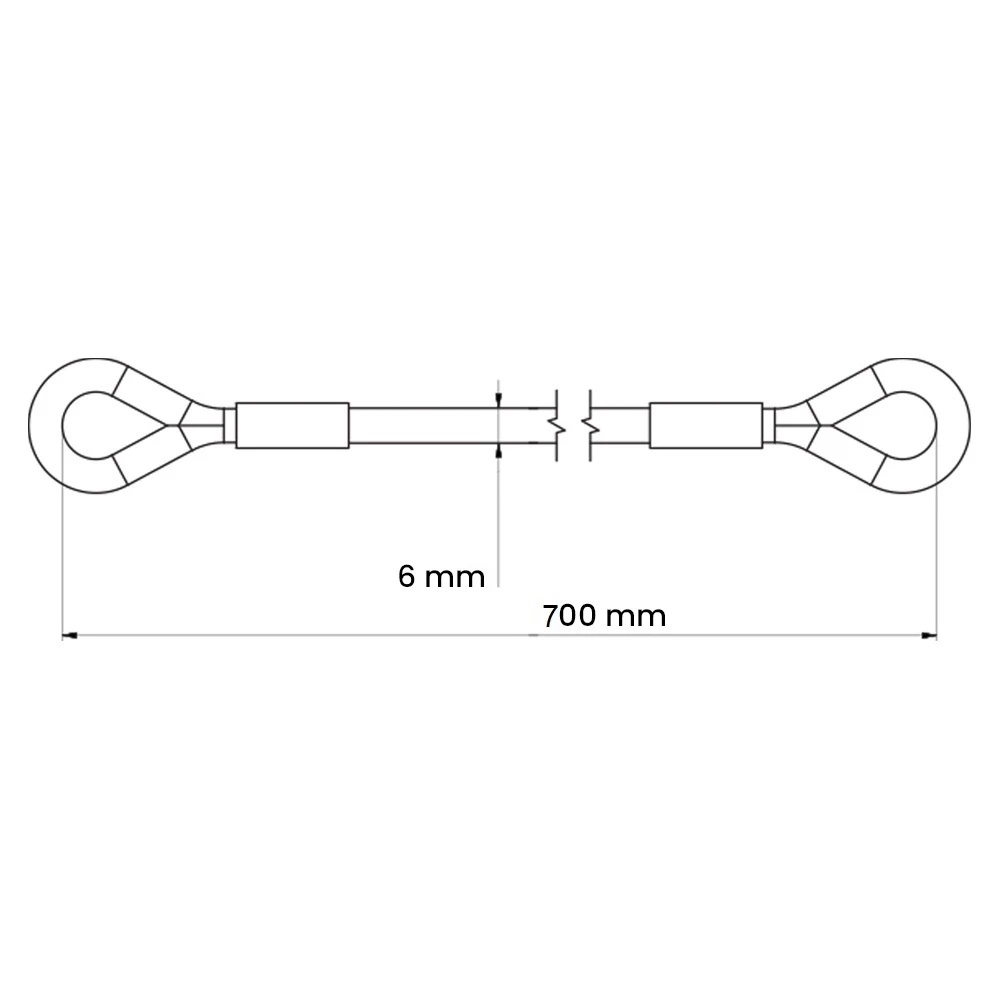

- Overall length: 700 mm
- Cable diameter: 6 mm
- Material: galvanised steel
- Terminations: steel thimbles with crimped sleeves
- Maximum gate leaf weight: 400 kg
- Weight: 0.16 kg
- EAN: 8028390263029
Installation and application

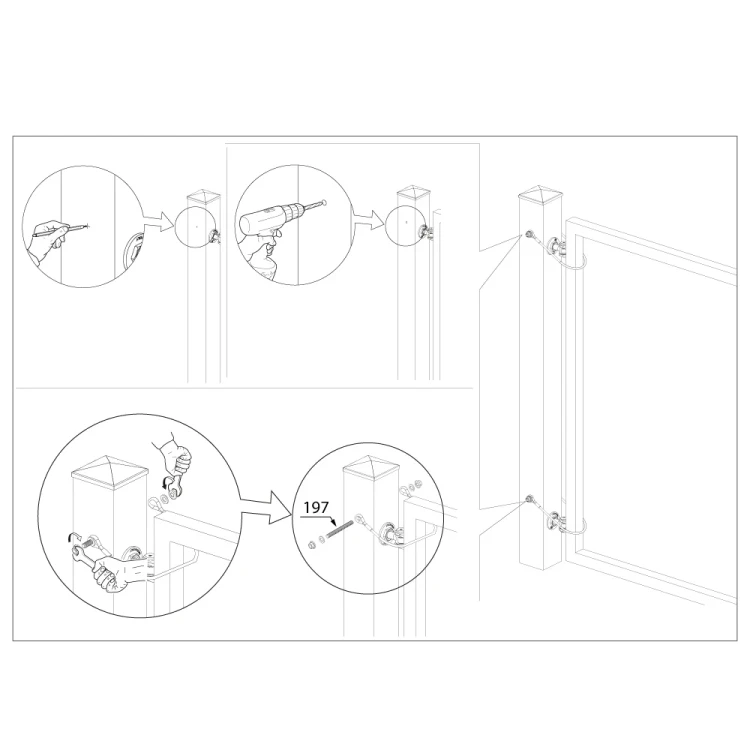

Installation of the safety cable is simple and does not require specialist tools. The cable is secured at one end to the gate post and at the other to the leaf — using bolts with washers and nuts. Mounting holes should be drilled in the post and leaf frame, then bolts passed through the thimble eyes and the connections tightened. The cable should be installed with slight slack so as not to restrict normal gate movement whilst effectively stopping the leaf in case of hinge failure.

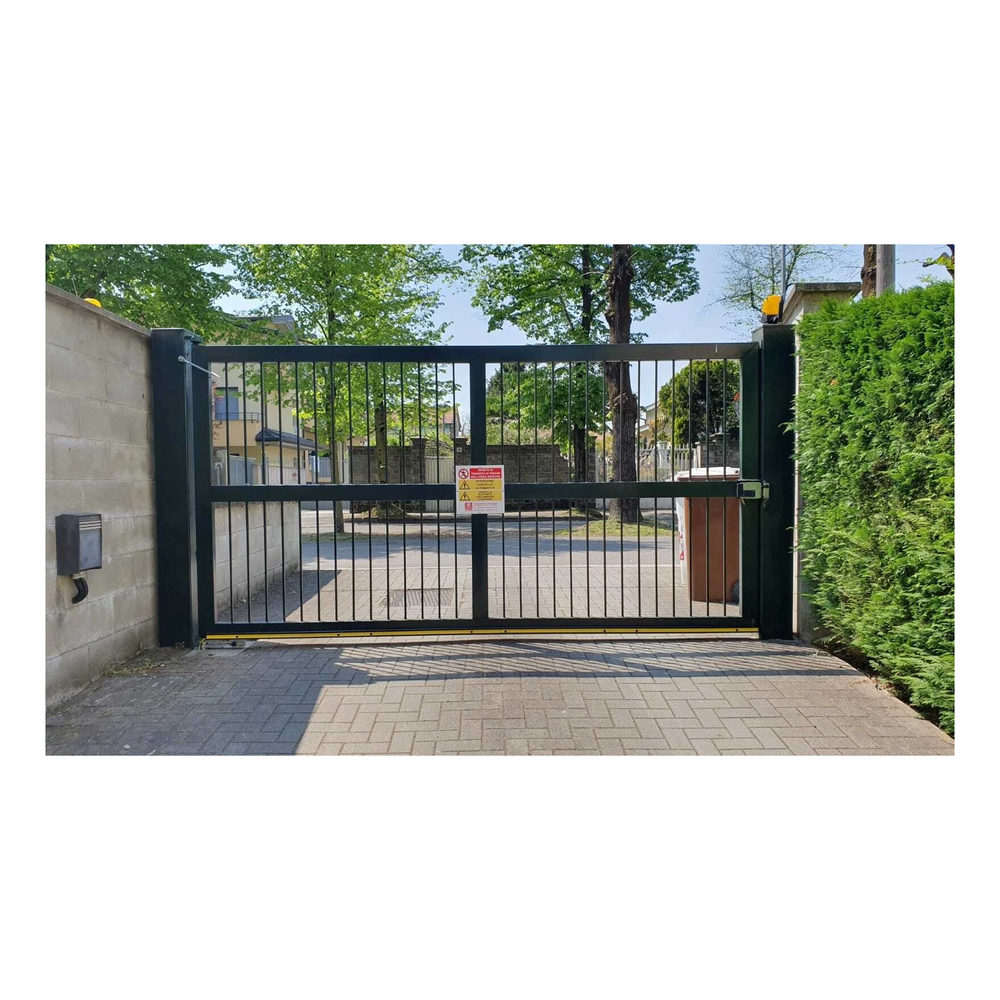

Safety protection is recommended for all swing gates — both single-leaf and double-leaf. For double-leaf gates, one cable should be used for each leaf.
