Comunello gate leaf safety cable steel galvanised 500 mm
0
Description
Comunello gate leaf safety cable steel galvanised 500 mm

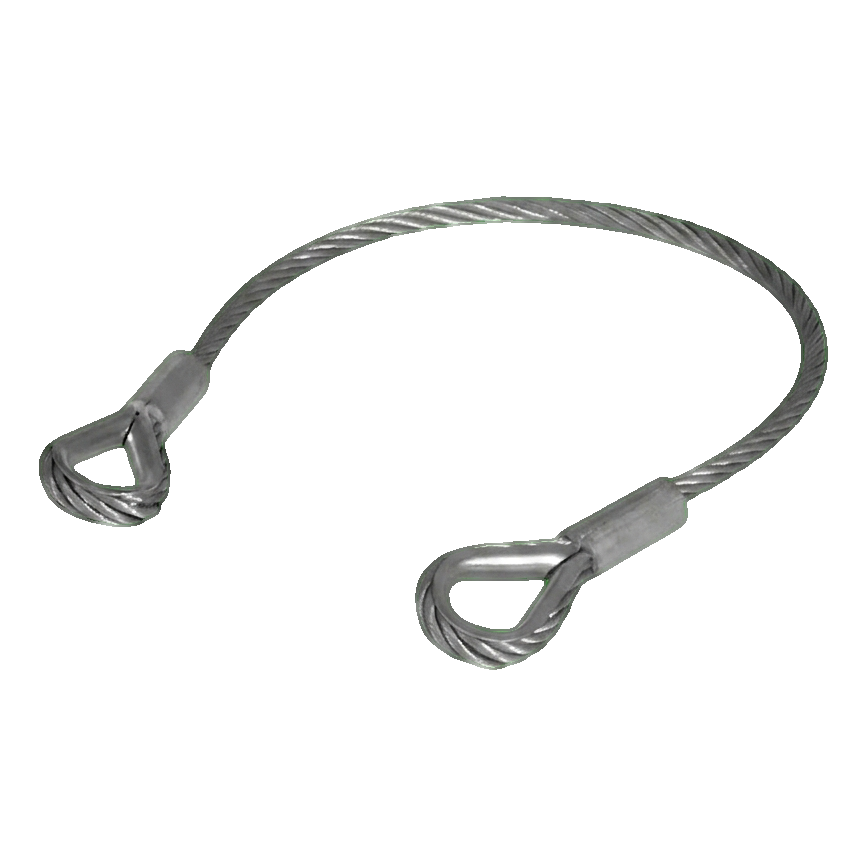

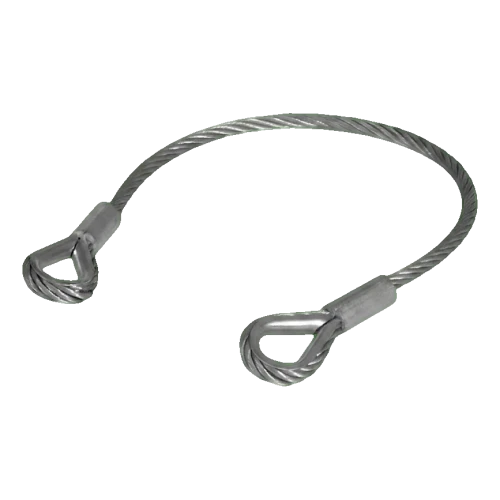

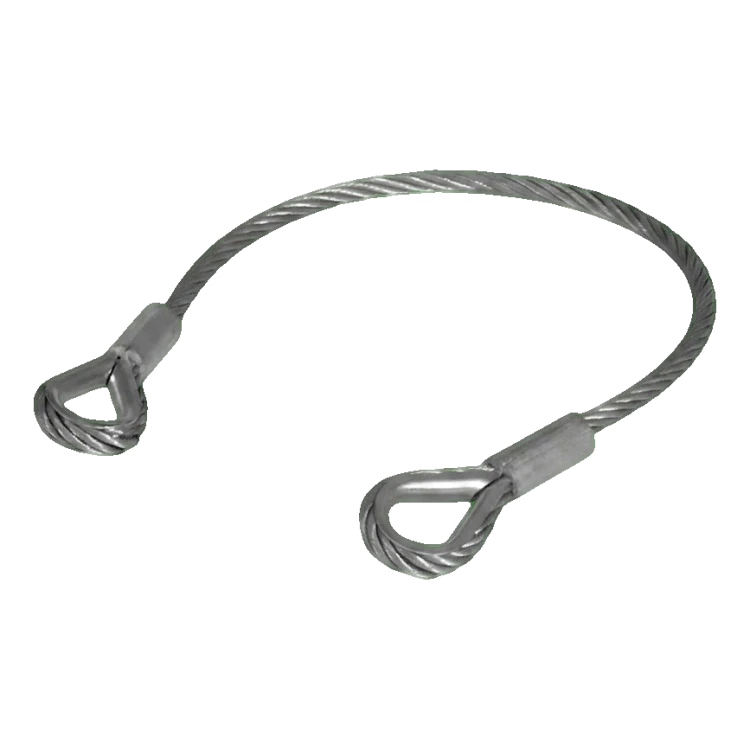

Steel safety cable from Comunello is an essential safety element for every swing gate. It prevents uncontrolled falling of the gate leaf in case of damage to one or both hinges — protecting users, vehicles and the gate itself from serious damage. Properly installed cable secures gate leaves weighing up to 400 kg, which covers the vast majority of swing gates used in residential and commercial construction.
Made from galvanised steel, the cable is resistant to corrosion and weather conditions, ensuring it maintains full strength throughout years of outdoor use. Both ends are fitted with steel thimbles (loops with metal inserts), which protect the cable from wear and deformation at mounting points — this solution significantly extends the life of the entire safety system.

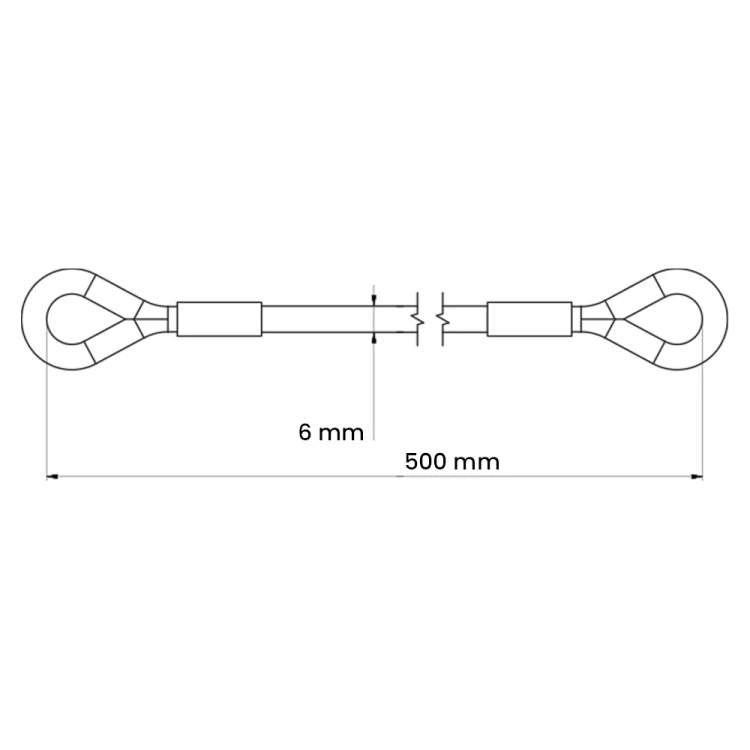

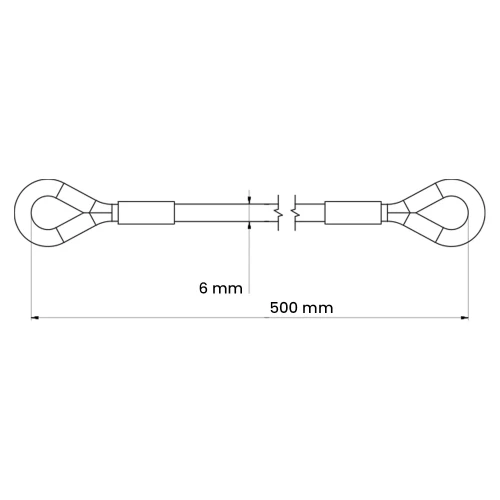

Dimensions and technical parameters
- Cable length: 500 mm
- Cable diameter: 6 mm
- Material: galvanised steel
- Terminals: steel thimbles (loops with metal inserts)
- Maximum gate leaf weight: 400 kg
- Weight: 0.11 kg
- Manufacturer: Comunello
- EAN: 8028390263005
Installation and application

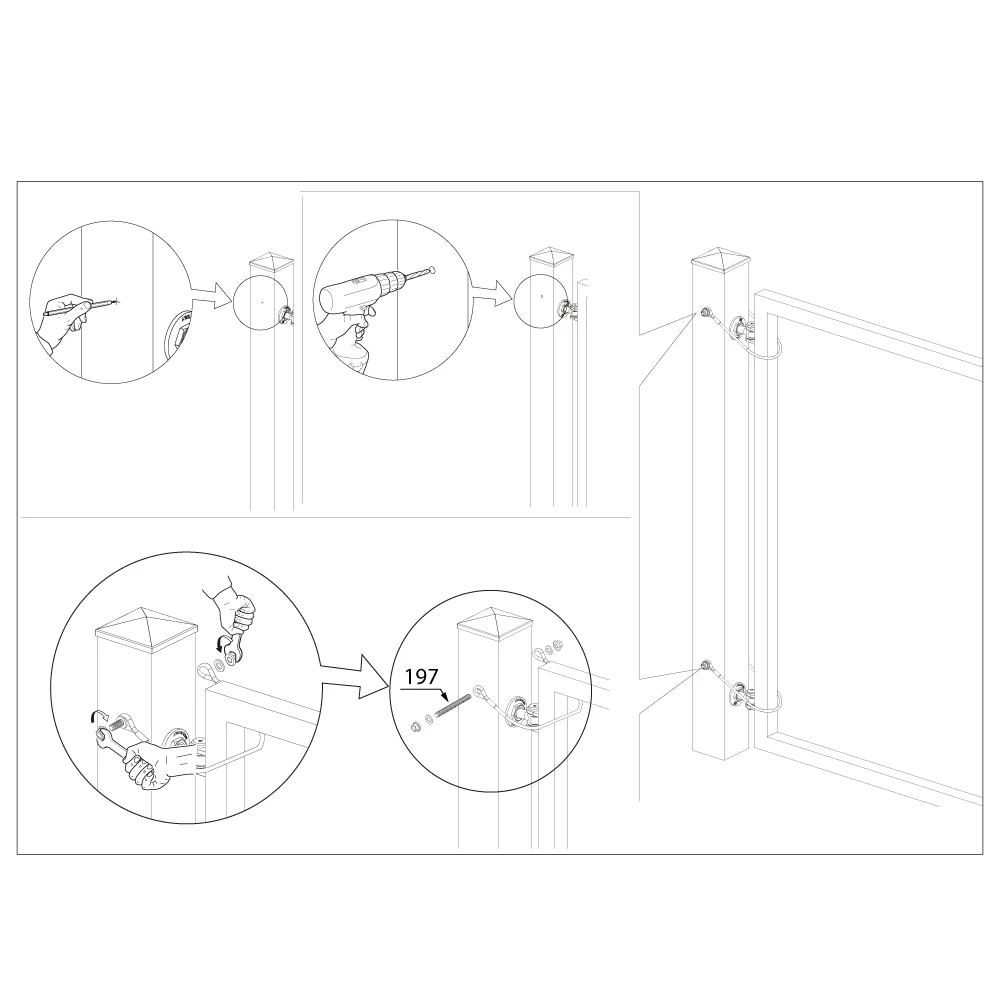

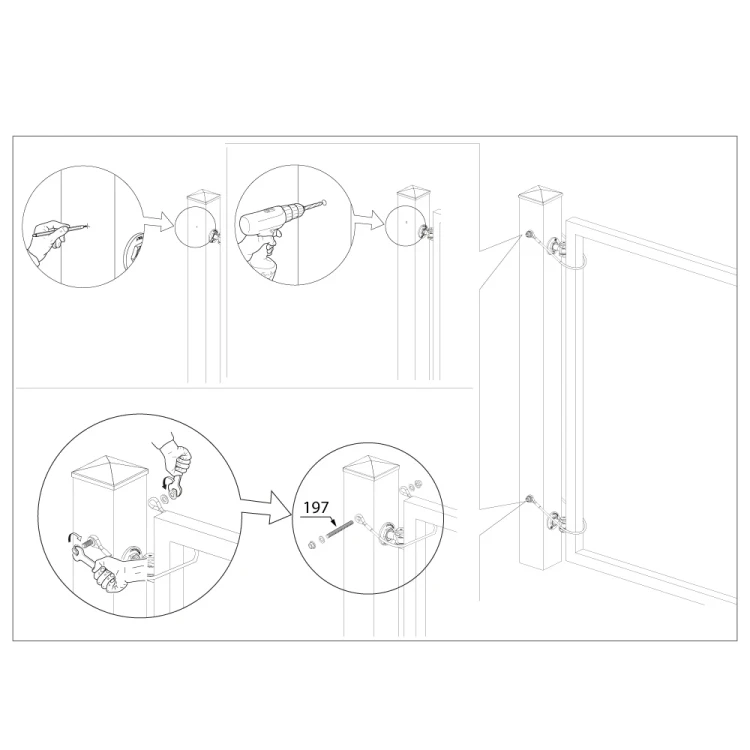

The cable is mounted between the post and gate leaf. One end is fixed to the fence post, the other to the leaf frame. Installation requires drilling holes in the post and leaf, then screwing on the brackets with bolts. Thimbles facilitate attachment to eye bolts or shackles — the entire process is quick and requires no specialist tools.
The cable is mandatory safety protection particularly for heavy swing gates operated by automation — in case of hinge failure it prevents the leaf from falling on people or vehicles in the gate opening zone.
