Comunello – gate hinge set for welding on slopes, 50×50 post, left
Leave feedback on the product
Comunello left gate hinge set for welding to 50×50 mm post. Electrolytically galvanised steel. Maximum leaf length 3 m, weight 120 kg. Tilt adjustment up to 10°. Plate dimensions 110×65 mm, thickness 5 mm.
Product code: 001-526
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Comunello – gate hinge set for welding on slopes, 50×50 post, left

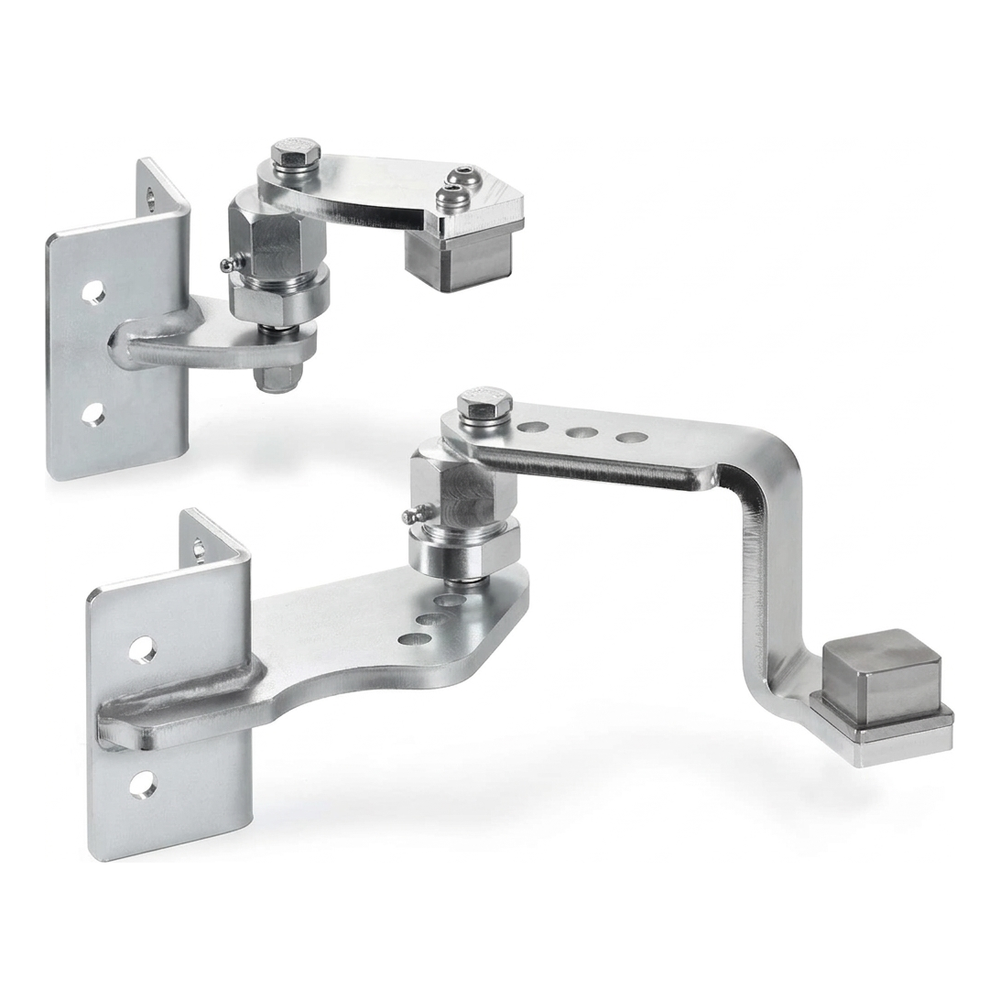

Comunello – left hinge set for welding designed for mounting swing gates on rising slopes. The set enables precise adjustment of leaf position thanks to the eccentric screw connecting the leaf bracket with the joint — rotation of the joint allows the leaf to be set perfectly level and aligned with the post, even when the terrain is sloped.
Key features of the set
- Maximum leaf length: 3 m
- Maximum leaf weight: 120 kg
- Maximum leaf lifting angle: 10° (~20%)
- Adjustable leaf tilt — compensation for terrain level differences
- Version: left
- Material: electrolytically galvanised steel — anti-corrosion protection
- Post mounting: 50×50 mm
- Application: steel and concrete posts
- Joints equipped with grease nipples — easy lubrication without dismounting
- Brackets with 4 mounting holes — secure fastening
Solution dedicated to installation companies carrying out gate installation on sloped driveways and uneven terrain. The eccentric screw eliminates the need for multiple adjustment corrections — one turn is sufficient for precise adjustment of leaf angle and level.

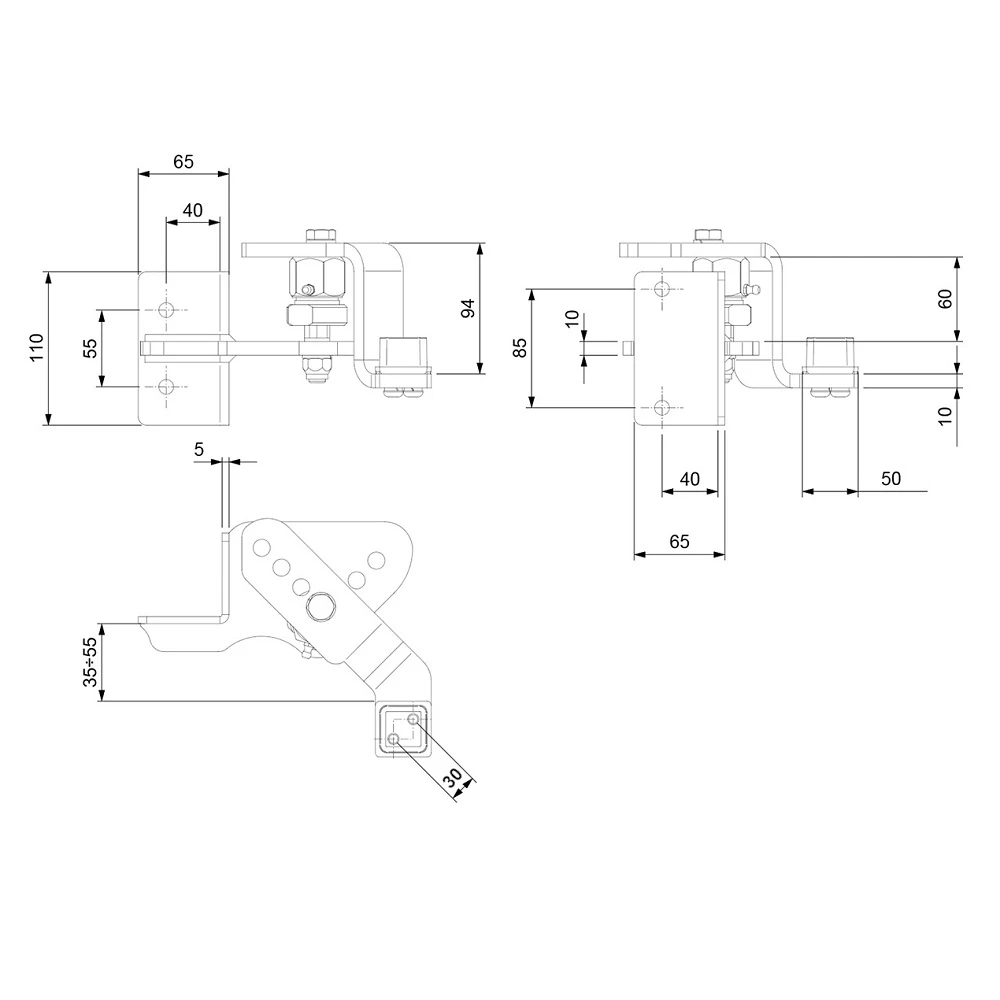

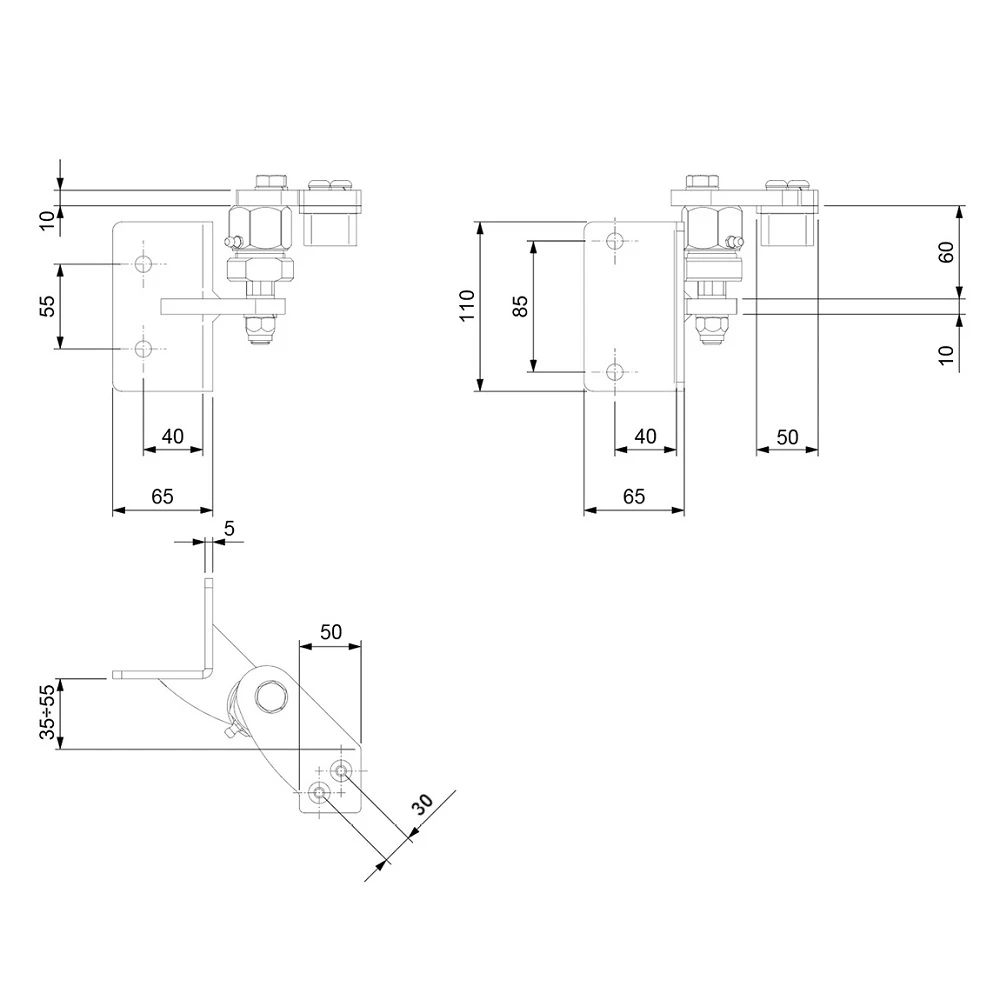

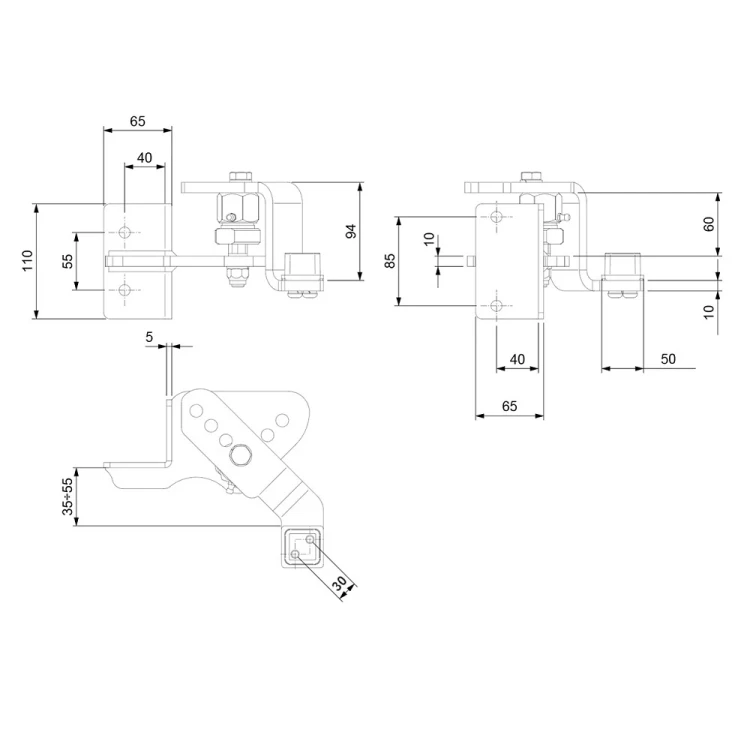

Dimensions and mounting data
- Mounting plate height: 110 mm
- Mounting plate width: 65 mm
- Mounting hole spacing (vertical): 55 mm (bracket) / 85 mm (side plate)
- Distance of hole centres from edge: 40 mm
- Mounting plate thickness: 5 mm
- Hinge arm thickness: 10 mm
- Hinge mechanism height: 94 mm
- Distance between arms: 60 mm
- Post fixing element width: 50 mm
- Square pin: 30 mm
- Distance adjustment range: 35–55 mm
- Total length (L): 220 mm
- Set weight: 5.8 kg
- EAN: 8028390517504
The Comunello hinge set is a proven solution for professional swing gate installations in difficult terrain conditions. Electrolytic galvanising provides long-lasting anti-corrosion protection, and grease nipples guarantee maintenance-free operation for years.
