Comunello – adjustable welding hinge M24 for leaf gates
Description

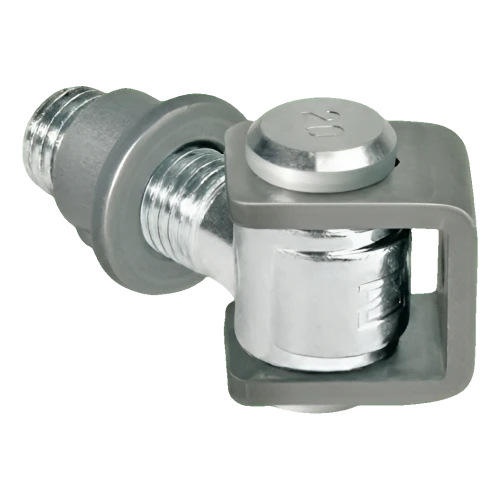

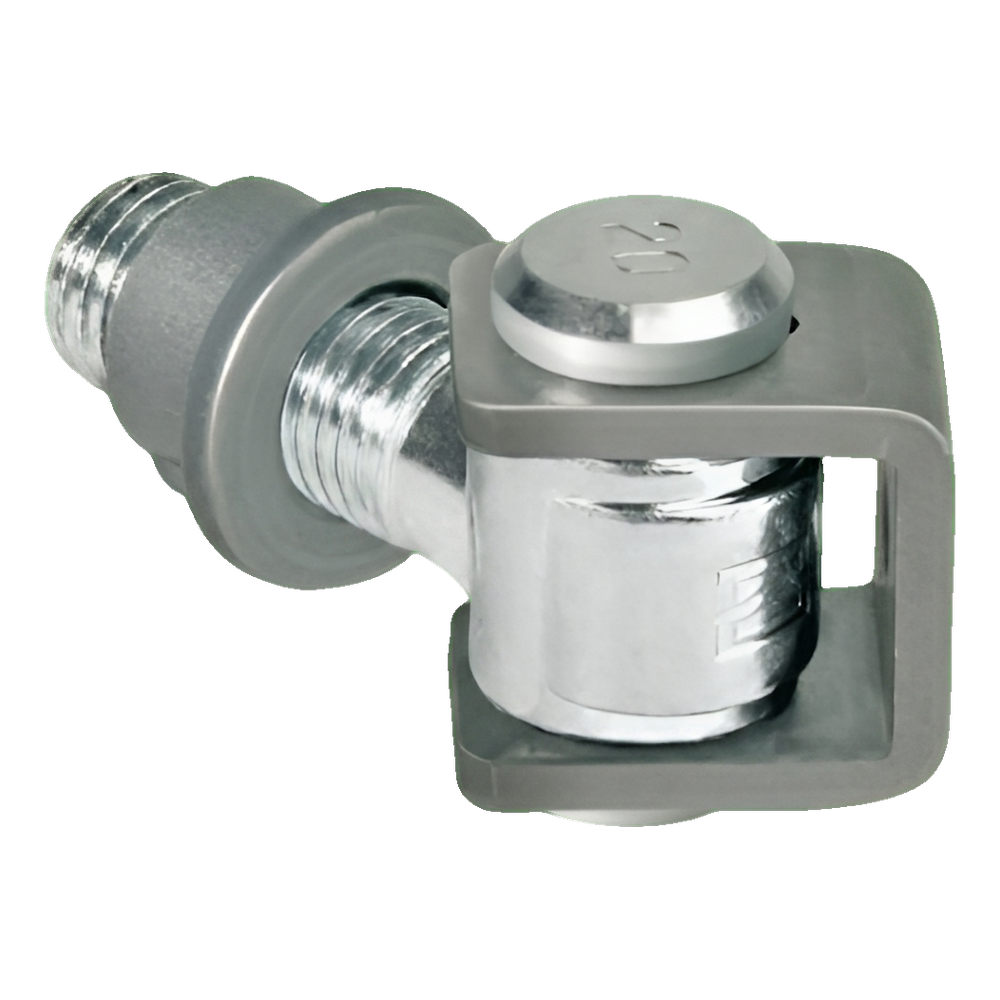

Comunello – adjustable welding hinge M24 for leaf gates
Comunello adjustable hinge with M24 thread is a durable hardware component designed for welding into leaf gate structures. Thanks to threaded adjustment, it allows precise gate leaf positioning even after installation is complete — simply turn the adjustment nut to correct sagging or displacement of the leaf. This provides enormous time savings during final adjustment, especially with heavy steel gates.
The hinge surface is galvanised, ensuring high corrosion resistance and long-lasting operation in outdoor conditions — rain, snow or moisture pose no threat. Solid steel construction with M24 thread guarantees load capacity suitable for heavy entrance and perimeter gate leaves.

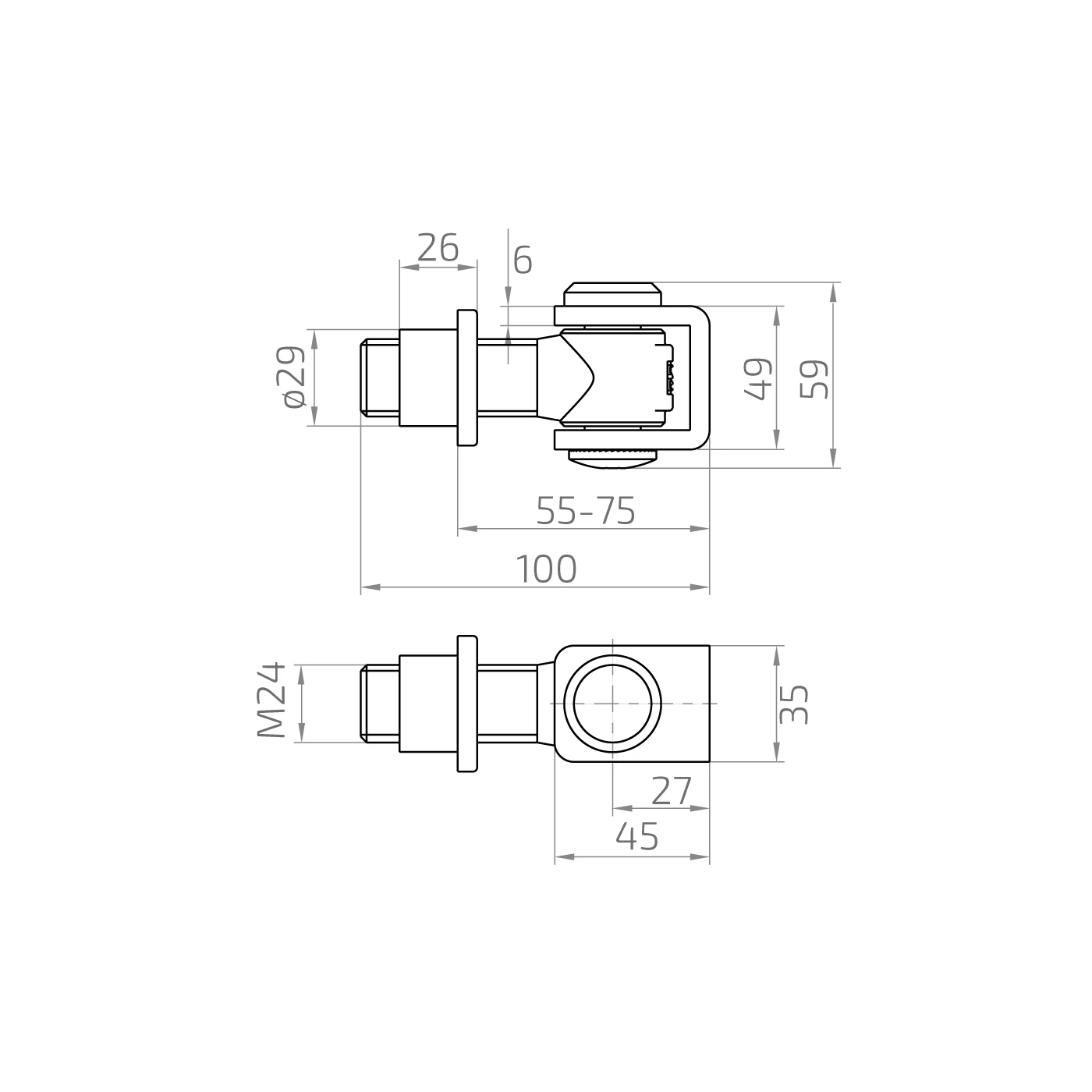

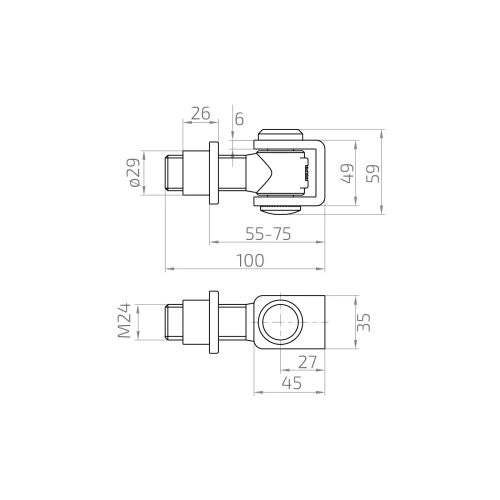

Dimensions and technical data
- Manufacturer: Comunello
- Pin thread: M24
- Overall length: 100 mm
- Adjustment range: 55–75 mm
- Sleeve diameter: Ø29 mm
- Sleeve length: 26 mm
- Thrust collar thickness: 6 mm
- External bracket height: 59 mm
- Internal bracket clearance: 49 mm
- Welding bracket width: 35 mm
- Bracket length (U element): 45 mm
- Weight: 0.76 kg
- Coating: galvanised (anti-corrosion protection)
- Material: steel
- EAN: 8028390207092
Application and installation
The hinge is designed for welding directly into the steel structure of the gate post and gate leaf. The U-shaped element is welded to the post or leaf, whilst the M24 threaded pin with adjustment nut enables smooth vertical gate position correction. The adjustment range is 55–75 mm, providing 20 mm clearance for precise leaf positioning without the need for re-welding.
Comunello hinges are ideal wherever durability and reliability are required: in entrance, perimeter and industrial gates. They are a proven choice for installation teams seeking hardware that allows quick and repeatable adjustment.
Technical data
| Thread type | M24 |
| Mounting Method | Weld-On |
| Material | Steel |
