Coach Bolt M10x25 DIN 603 A2 Stainless Steel – PV Mounting

Go to Product feedback

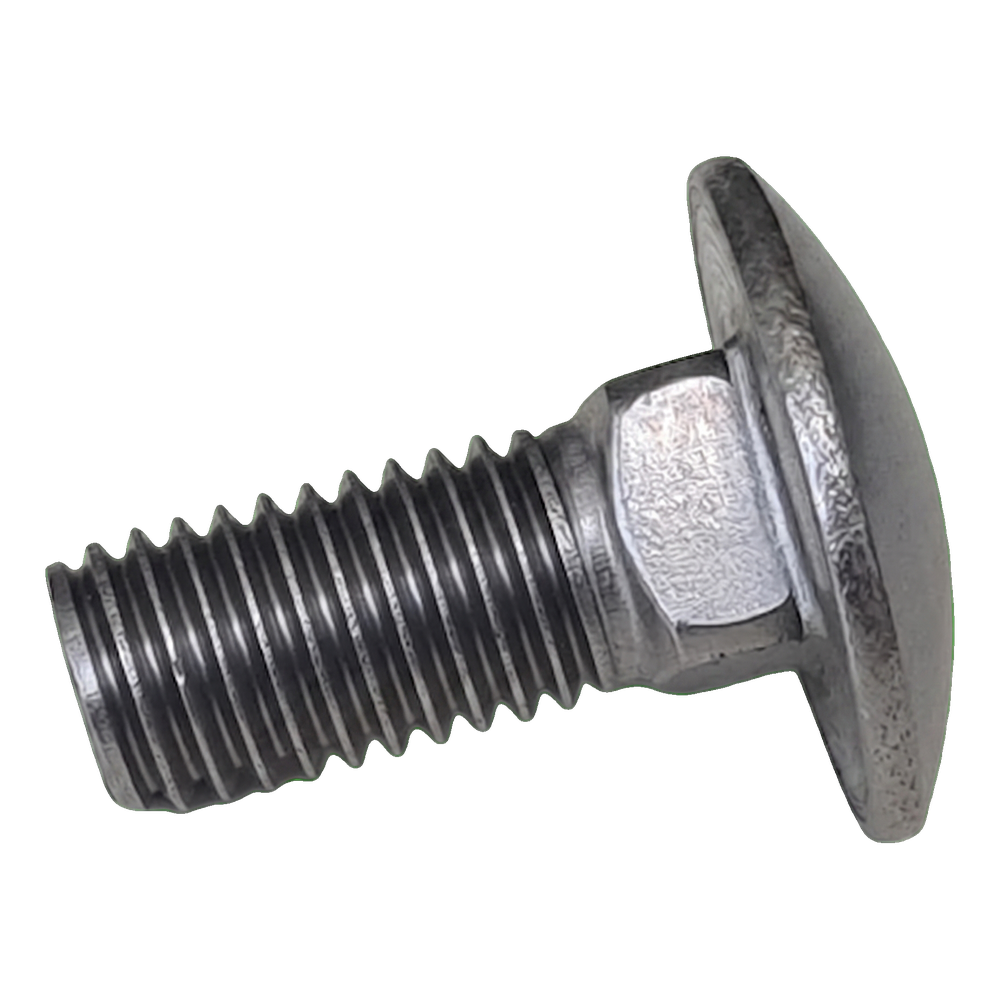

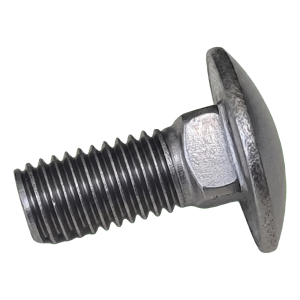

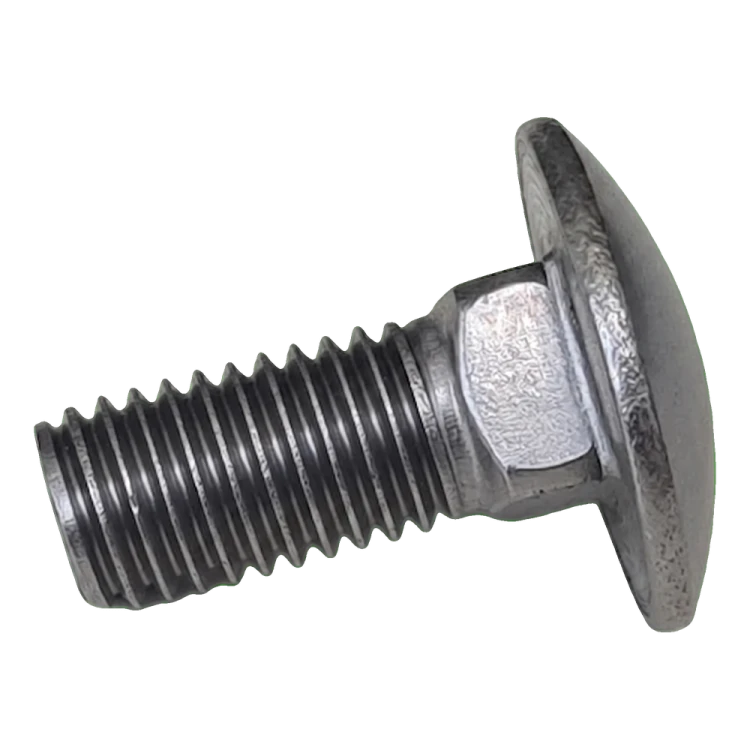

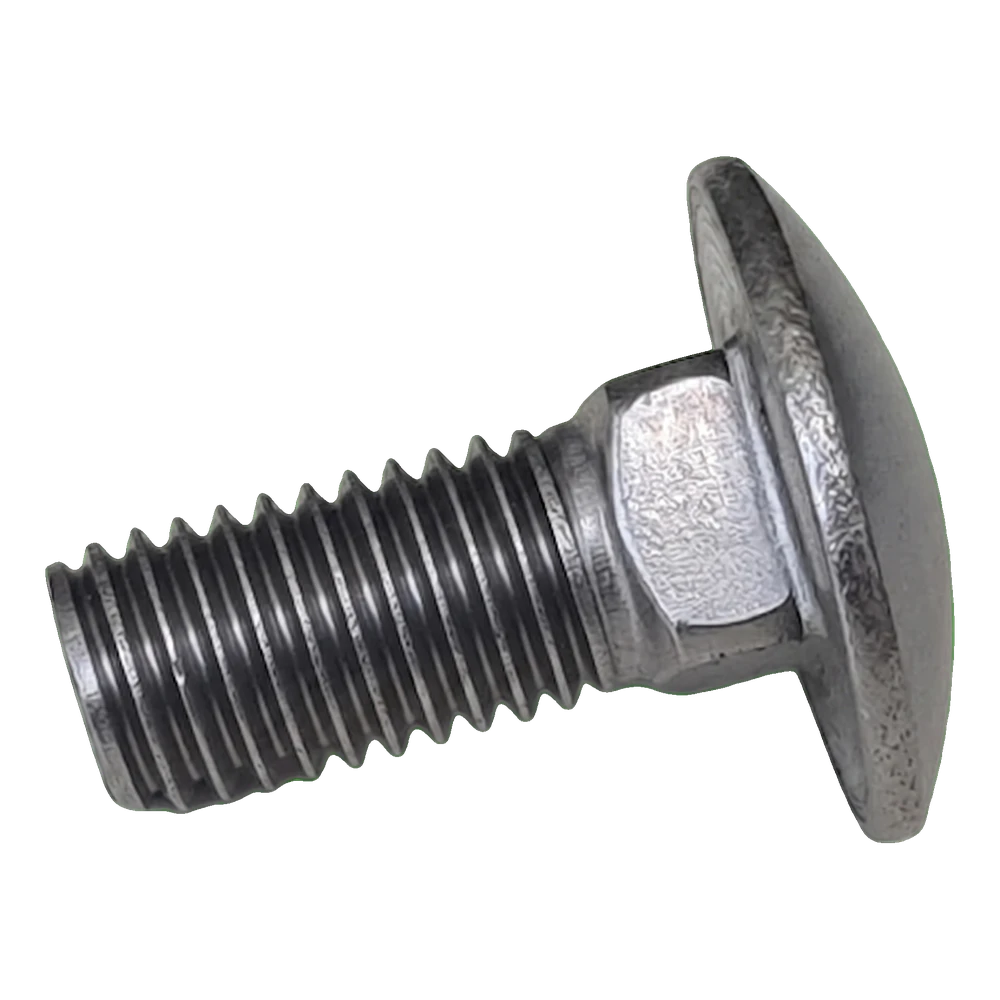

Coach bolt M10x25 DIN 603 made of A2 stainless steel (1.4301, grade 304). Round head with square neck to prevent rotation. Weight 0.025 kg. For mounting photovoltaic structures.

Go to full description
with VAT without VAT
Price €0.20
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Śruby i wkręty #38

  • Thread type M10
  • DIN DIN 603
  • Length [mm] 25
  • Steel Grade A2

Description

Coach Bolt M10x25 DIN 603 A2 Stainless Steel – PV Mounting

Coach bolt M10x25 DIN 603 A2 stainless steel
Coach bolt M10x25 DIN 603 A2 stainless steel

Coach bolt M10x25 DIN 603 made of A2 stainless steel (1.4301, grade 304) is a fastener designed for mounting photovoltaic structures. The round head with square neck (so-called locking head) prevents the bolt from rotating while the nut is being tightened, which significantly speeds up work on the roof and eliminates the need to hold the head with a second spanner. The locking function of the square neck effectively prevents the connection from loosening due to ambient vibrations, ensuring lasting stability of the entire solar infrastructure. Austenitic A2 stainless steel guarantees exceptional corrosion resistance thanks to the nickel content in the alloy — the bolt retains its full mechanical properties across a wide range of weather conditions, from intense sunlight to rain and frost.

Advantages of the DIN 603 coach bolt in PV installations

  • Square neck locks rotation — one-handed installation, no need to hold the head
  • Round head with no sharp edges — does not damage aluminium profiles or anti-corrosion coatings
  • A2 austenitic steel — non-magnetic, flexible and resistant to stress
  • Corrosion resistance in all environmental conditions — ideal for outdoor installations
  • Compliance with DIN 603 ensures interchangeability and repeatability of connections
Video presenting the DIN 603 coach bolt

Technical parameters

Thread / nominal diameterM10
Length25 mm
StandardDIN 603
Head type / shaperound with square neck (coach type)

Material and coating

MaterialA2 stainless steel – 1.4301 (grade 304)
Corrosion resistancehigh — austenitic stainless steel with added nickel

Other parameters

Weight0.025 kg
Applicationmounting photovoltaic structures
