Carport Car Shelter VICA 1 car SOLO

Go to Product feedback
with VAT without VAT
Price €3,073.38
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 6 Business days

Description

Carport VICA 1 car SOLO – one car, 9 panels, ready-to-install turnkey solution

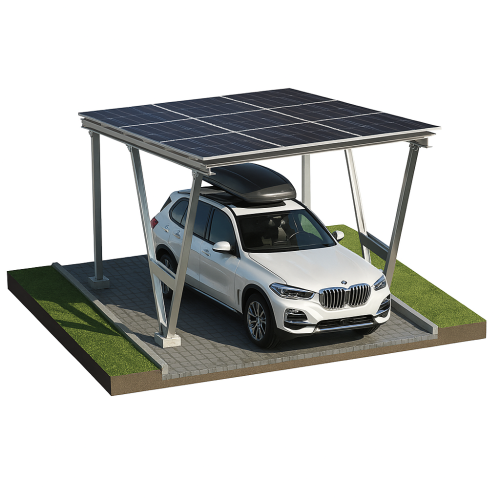

VICA 1 car SOLO carport sheltering a car on a driveway – single parking space, 9 PV panels on the structure
VICA 1 car SOLO carport sheltering a car on a driveway – single parking space, 9 PV panels on the structure's roof.

Carport VICA 1 car SOLO is a ready-made photovoltaic set for one car and 9 PV panels – all the equipment arrives to you on a single pallet. The structure was designed with installers serving individual customers in mind, as well as for owners of single-family homes wanting to combine car shelter with electricity generation in one investment. (Please note: the price includes the structure itself – profiles, fasteners, panel clamps and assembly instructions. PV panels, inverter, DC cabling and the entire electrical part are not included in the set – these are selected and purchased separately.)

Made in Poland, 100% within the European Union. The VICA structure is manufactured at the Synerga Polska Sp. z o.o. factory – we do not resell imports from Asia here. Steel, profiles, clamps and fasteners are inspected at every stage, in accordance with Eurocode standards. Hence constant availability from a Polish warehouse, consistent batch quality and a 25-year warranty on the anti-corrosion coating.

Delivery to your chosen address – yours or directly to the customer

We pack the whole set onto a single pallet and dispatch it by courier straight to your door – you can collect it yourself or provide the destination installation address. If you work on-site and don't want to transport the material twice, we'll ship the carport straight to the building site. The invoice is sent by email once the parcel has been dispatched – you don't have to wait for anything in your postbox or chase up archives.

Assembly – even one person can manage it

The VICA 1 car SOLO is the lightest version in the entire range – the whole structure weighs 480 kg, and no single element exceeds 2.37 m or requires two people to lift. In practice, one person can assemble the carport in a single day (when installing on typical paving blocks), or two people in a few hours – no cherry picker, no specialist equipment needed. All connections are bolted, using standard screws – all you need is a socket wrench and a power drill.

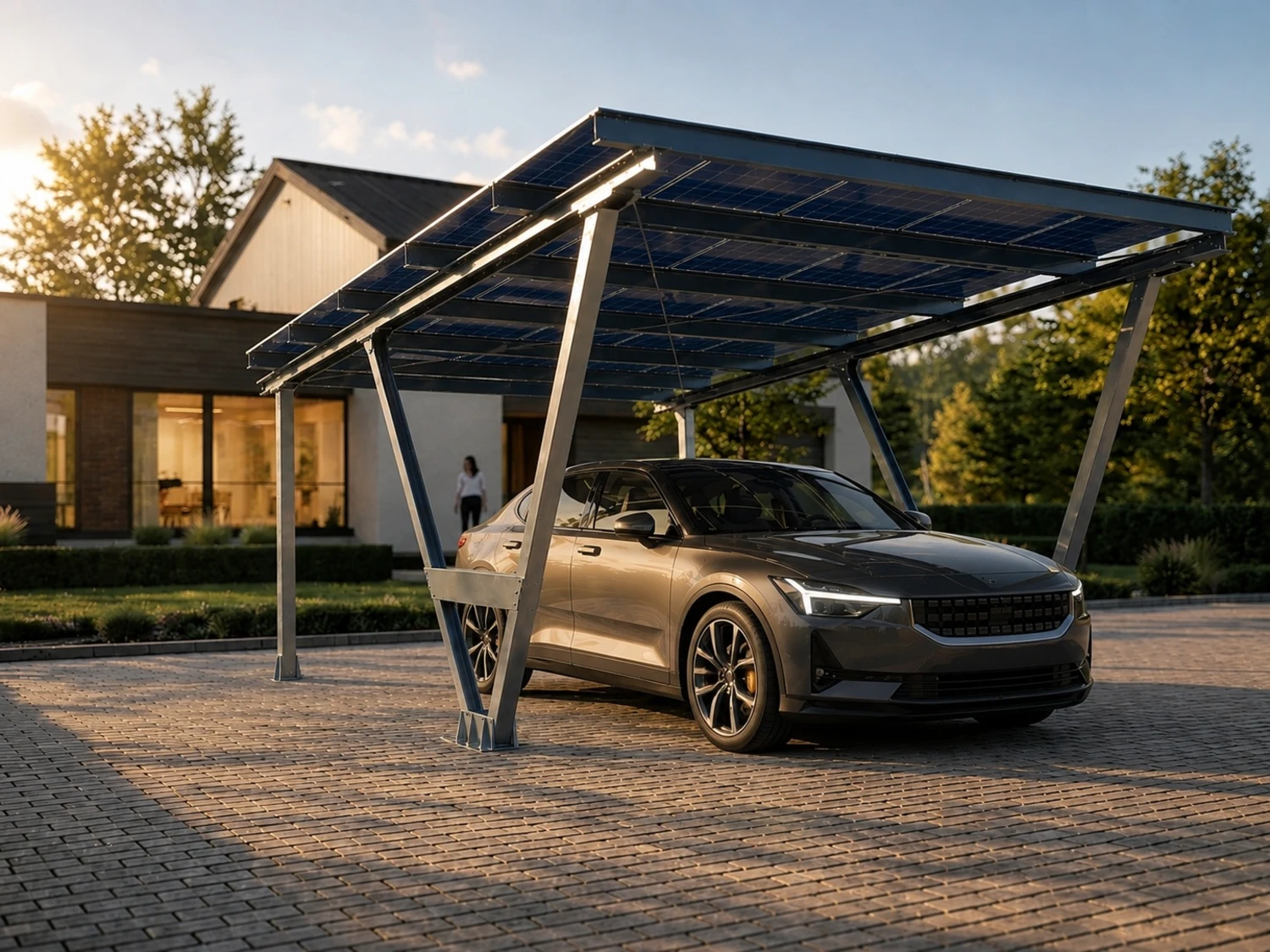

Steel structure of the VICA 1 car SOLO carport with photovoltaic roof, one car underneath the canopy, house in the background.
Steel structure of the VICA 1 car SOLO carport with photovoltaic roof, one car underneath the canopy, house in the background.

Small footprint, high weather resistance

The single-space version of VICA has noticeably higher design parameters than the larger models in the range – a smaller load-catching surface means that the same steel operates with a greater safety margin. In practice: wind up to 30 m/s (108 km/h) and snow load up to 2.6 kN/m² (approx. 265 kg/m²). These values cover the vast majority of locations in Poland, including mountain and coastal regions, where 2+ space models would require design consultation.

Before ordering, check the address of the planned installation using the tool below – it will show you the approximate wind and snow zone for the given location. Treat the result as a design guideline – in borderline locations (above 600 m above sea level, direct coastline, open agricultural areas), it is worth verifying the design with a local structural engineer.

Planning an installation for more than one car? Choose the appropriate VICA model

If you're ultimately covering 2, 4, 6 or 8 parking spaces – check out the larger variants of the VICA family (2 cars SOLO, 2×2, 3×2, 4×2 and the asymmetric 2 + 1). They all use the same mounting system and the same panel family, so the experience gained when installing VICA 1 translates 1:1 to larger configurations. The table below lets you quickly compare prices and technical parameters of all variants side by side.

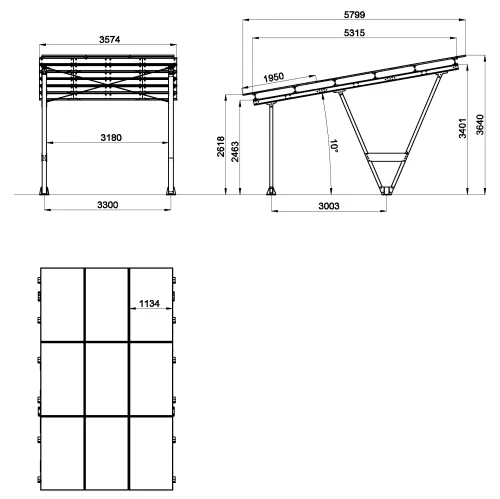

Detailed technical parameters

A complete overview of dimensions, materials and design loads for the VICA 1 car SOLO – for quick verification of compliance with the project or specification of the ordered PV system.

Number of parking spaces1
Number of PV panels9 (vertical orientation)
Wind load30 m/s (108 km/h)
Snow load2.6 kN/m² (approx. 265 kg/m²)
Execution classEXC2
Structural materialS350GD steel + Magnelis ZM310 coating
FastenersA2-70 austenitic stainless steel
Maximum component length2370 mm
Panel compatibilitythickness 30–40 mm, max. dimensions 1140 × 1950 mm
Panel mounting systemadjustable side clamps included
Set weight480 kg
Packaging1 pallet
Coating warranty25 years

Steel that we weld ourselves. A coating that works for you.

The carport profiles are made from high-grade S350GD structural steel (yield strength min. 350 MPa) coated on both sides with hot-dip Magnelis ZM310 coating in accordance with EN 10346. The connecting elements are made of A2-70 austenitic stainless steel – resistant to moisture, condensation and industrial atmospheres. The construction execution class EXC2 is confirmed by the EN 1090-1 certificate.

What is Magnelis ZM310? It is a coating developed by ArcelorMittal consisting of zinc + 3.5% aluminium + 3% magnesium, applied by hot-dip process to both sides of the sheet. Magnesium activates the edge self-healing mechanism after cutting – the protective layer regenerates in the event of mechanical damage. In practice, corrosion resistance is approx. 3 times higher than hot-dip galvanising of the same thickness, and the coating performs excellently in chloride environments (road salt, coastal atmosphere) and ammonia environments (areas near farms). Magnelis is the standard recommended by ArcelorMittal for ground-mounted photovoltaic farms designed for decades of operation.

The VICA structure meets the requirements of European standards:

  • EN 1090-1, EN 1090-2, EN 1090-4 – manufacturing of steel and aluminium structures
  • PN-EN 1991-1-3 (Eurocode 1) – actions on structures, snow loads
  • PN-EN 1991-1-4 (Eurocode 1) – wind loads
  • PN-EN 1993-1-8 (Eurocode 3) – design of steel joints
  • ISO 9001 – quality management system

A complete set of documents – DXF technical drawings, assembly instructions, EN 1090-1 and ISO 9001 certificates, and the product safety card (GPSR) – can be found in the document gallery below the description.

Why choose VICA 1 car SOLO

AdvantageDetails
Highest strength parameters in the familywind 30 m/s, snow 2.6 kN/m², EXC2
Lowest weight (480 kg)entire structure on a single pallet, easy transport
Self-assemblybasic tools are sufficient, no lift required
Ideal for a single-family homeone car + 9 panels (usually 4–5 kWp installation)
Magnelis ZM310the same coating standard as used in ground-mounted PV farms
Compatible with most panels on the marketthickness 30–40 mm, up to 1140 × 1950 mm
25-year warrantyon the anti-corrosion coating
Full documentation: DXF, manual, certificatesfor design and commissioning
Availability from a Polish warehouseshort lead times, invoice by email

Set contents

Included in the setPurchased separately
All structural components – profiles, posts, beams, purlinsPhotovoltaic (PV) panels
A2-70 stainless steel fasteners – bolts, nuts, washersInverter and any power optimisers
Panel mounting clampsDC cabling and MC4 connectors
Illustrated installation instructionsAC equipment and protective devices – all electrical components
