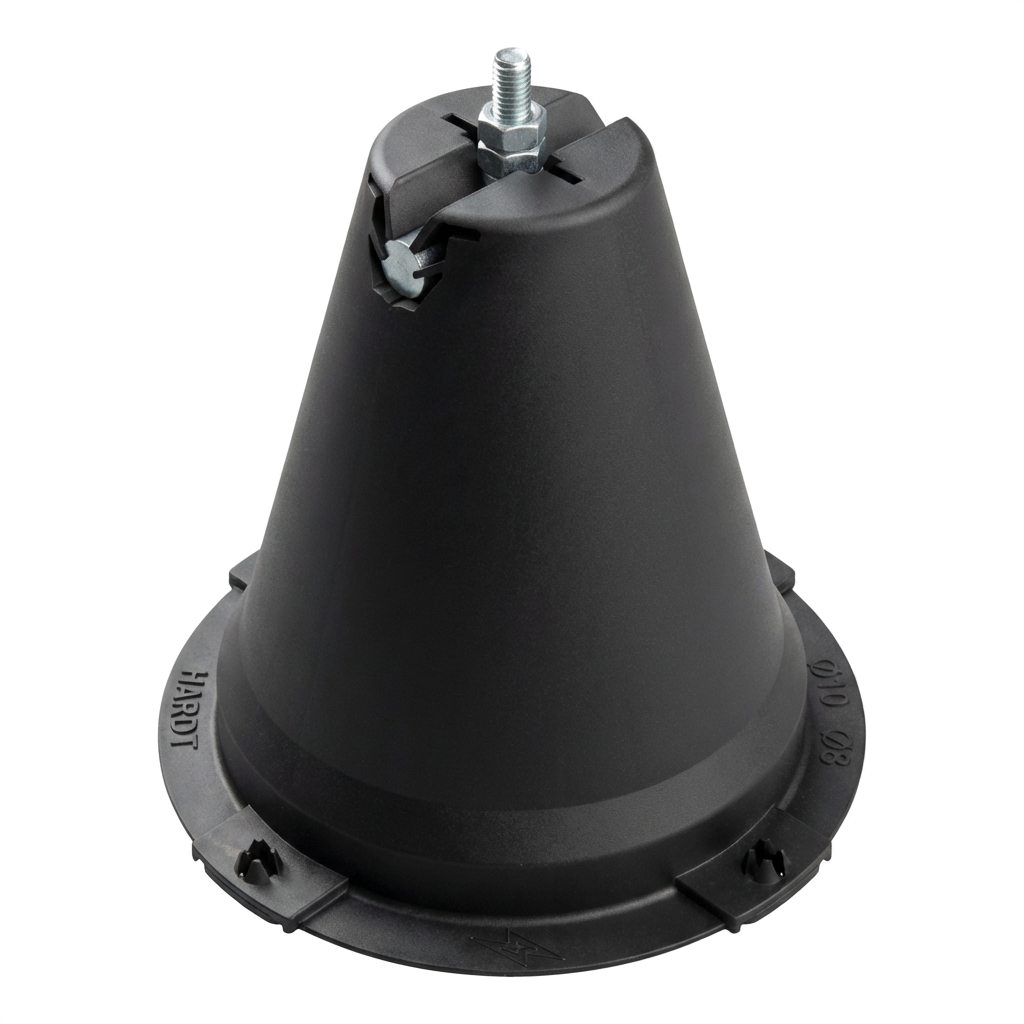

Cable tray bracket M6 electrogalvanised steel / plastic

The support housing is made from frost-resistant polypropylene enhanced with UV stabilisers, ensuring the product retains its properties after years of exposure to outdoor conditions. Installation involves bonding the base to the roof covering using adhesive compound — no drilling, no damage to the waterproofing membrane.

The electrolytically galvanised steel bracket with M6 thread provides a secure fixing point for the cable tray. Thanks to its universal design, the support is compatible with a wide range of cable management systems.

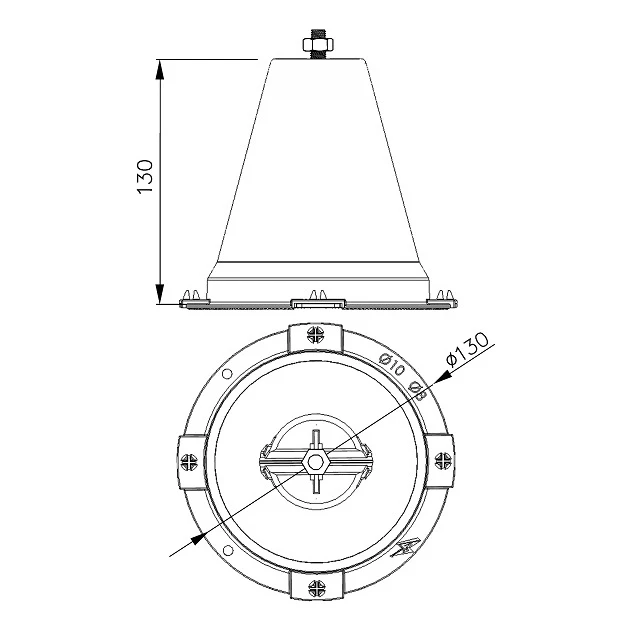

Technical Specifications

• Material: electrolytically galvanised steel, plastic (polypropylene)
• Weight: 0.95–1.05 kg
• Base diameter: Ø 130 mm
• Height: 130 mm
• Bracket thread: M6
• GTIN: 5907675563791

Compatibility and modularity: the bracket is compatible with the AH12150 base. The concrete base housing and the bracket are also available separately, providing flexibility when configuring the system for a specific project.

Key Benefits

• Non-invasive installation: adhesive bonding to the roof covering — no penetration of the waterproofing membrane
• Frost resistance: cement mortar and UV-protected polypropylene withstand harsh weather conditions
• Stable ballast: the concrete core provides reliable weighting of the cable route on flat roofs
• Modular design: base and bracket also available separately
