Black AISI 304 flat handrail wall mounting bracket with cover plate fi 70 mm
0
Description

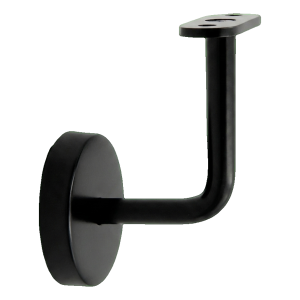

Black AISI 304 flat handrail wall mounting bracket with cover plate fi 70 mm
Black flat handrail mounting bracket with cover plate is a robust balustrade element designed for wall mounting. Made from AISI 304 stainless steel and painted in matt black RAL 9005, it works perfectly in modern arrangements – minimalist, industrial and loft-style. Thanks to the cover plate construction, the mounting looks aesthetically pleasing whilst the fixing holes remain invisible.
The product is designed for mounting handrails on flat wall surfaces. The flat system with bracket and three mounting holes ensures a stable and secure connection between the handrail and wall. Installation is quick and simple – only standard tools are required.
Construction and components

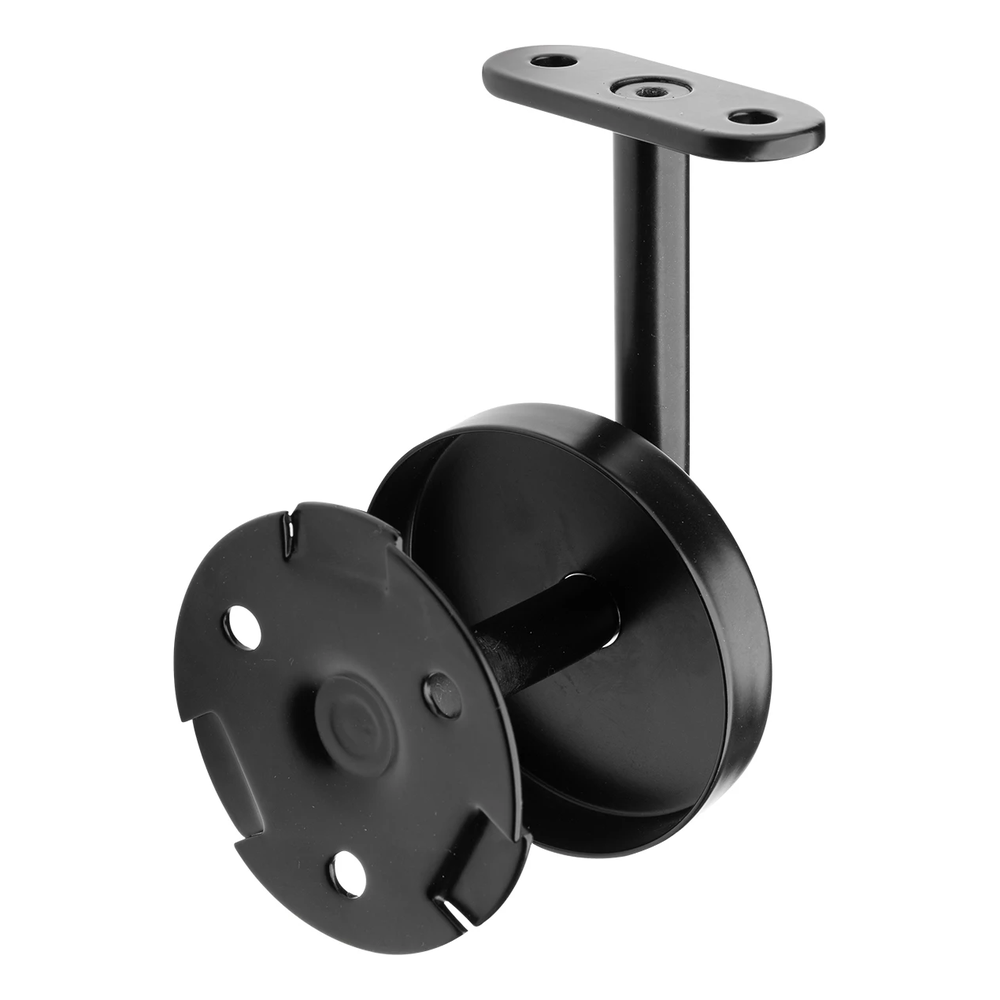

The bracket consists of five elements: wall mounting base, L-shaped arm with 90° bend, bracket (handrail mounting plate), countersunk screw and masking rose. The cover plate with 70 mm diameter conceals the mounting base and gives the whole assembly an elegant, clean appearance.

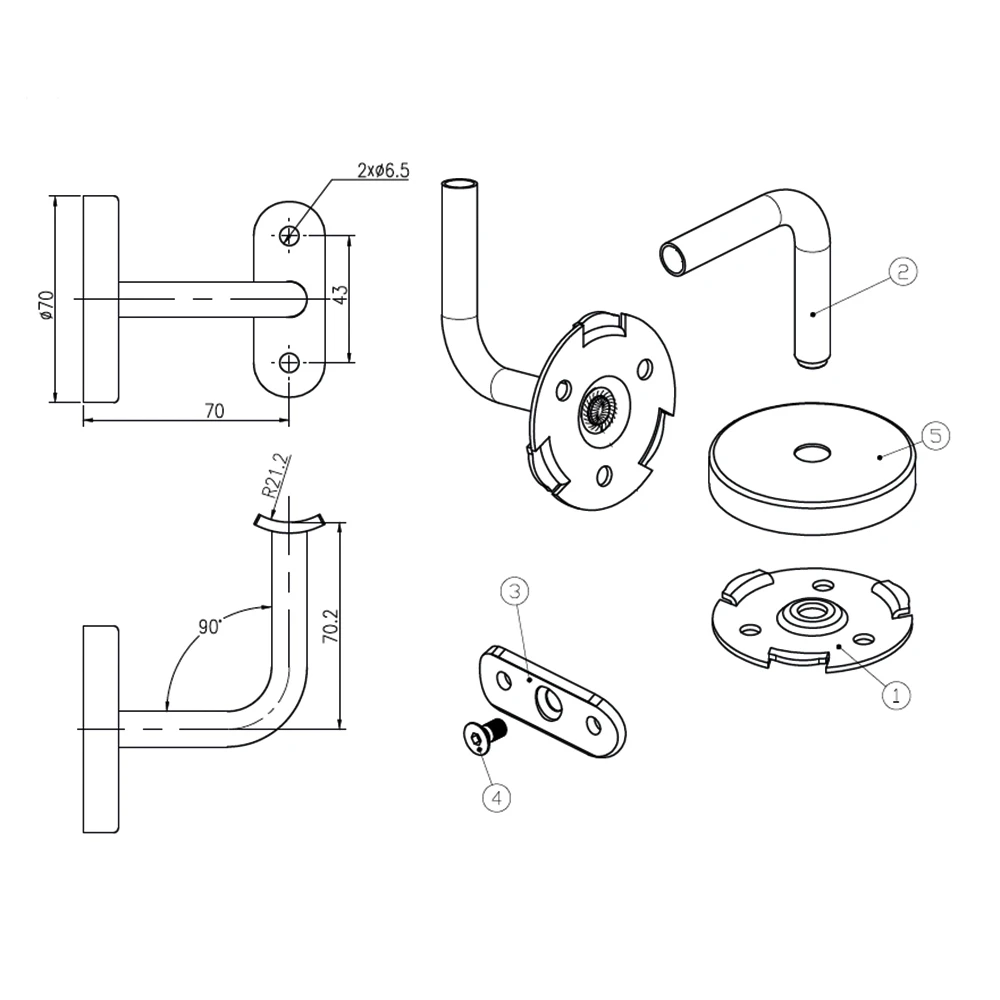

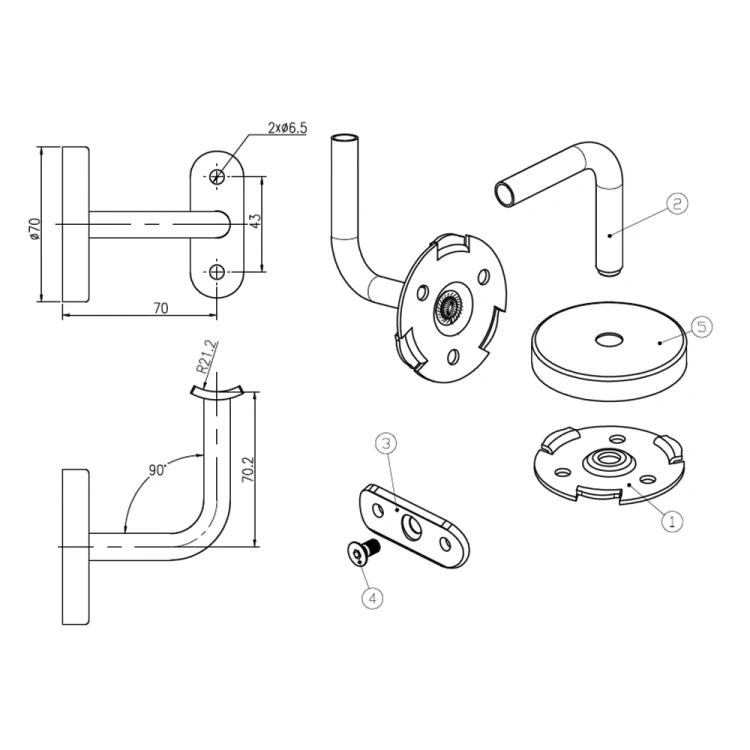

Dimensions and technical parameters
- Material: AISI 304 stainless steel
- Colour: matt black RAL 9005
- System: flat
- Mounting: to wall
- Cover plate diameter: 70 mm
- Bar diameter: 12 mm
- Wall offset: 70 mm
- Height: 70.2 mm
- Bracket radius of curvature: R 21.2 mm
- Bracket hole spacing: 43 mm
- Bracket hole diameter: 2× ⌀6.5 mm
- Plate mounting thread: M6
- Arm bend angle: 90°
- Number of mounting holes: 3
- Weight: 0.26 kg
- EAN: 5903313216333

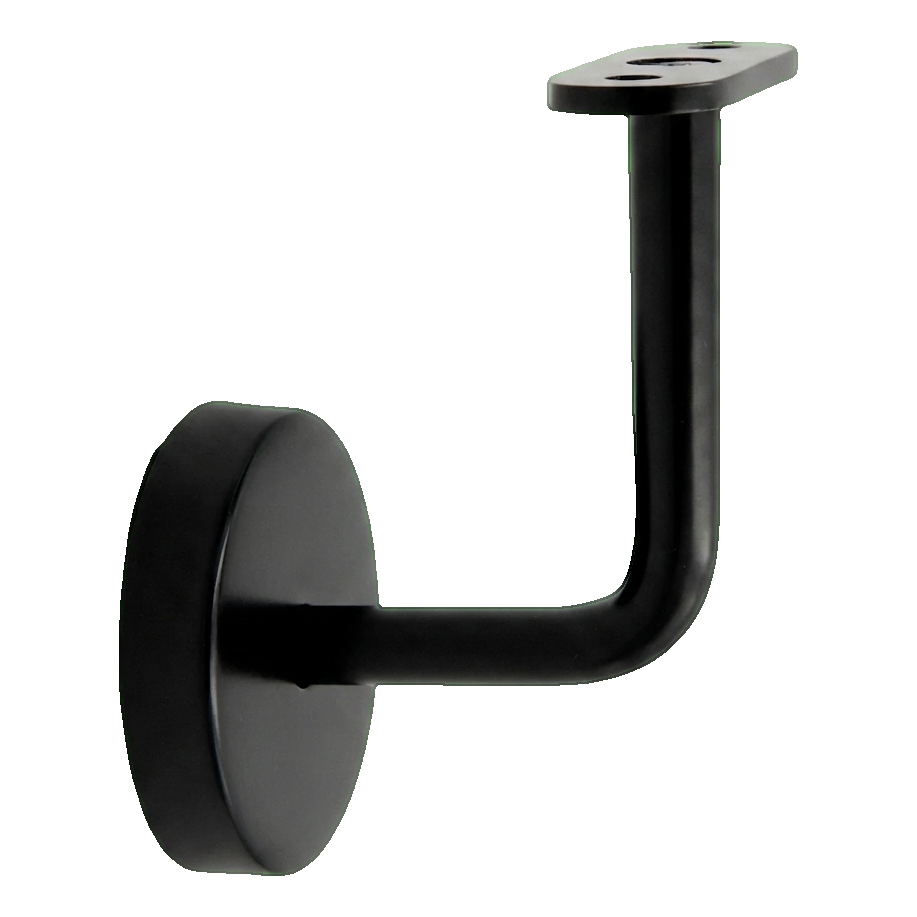

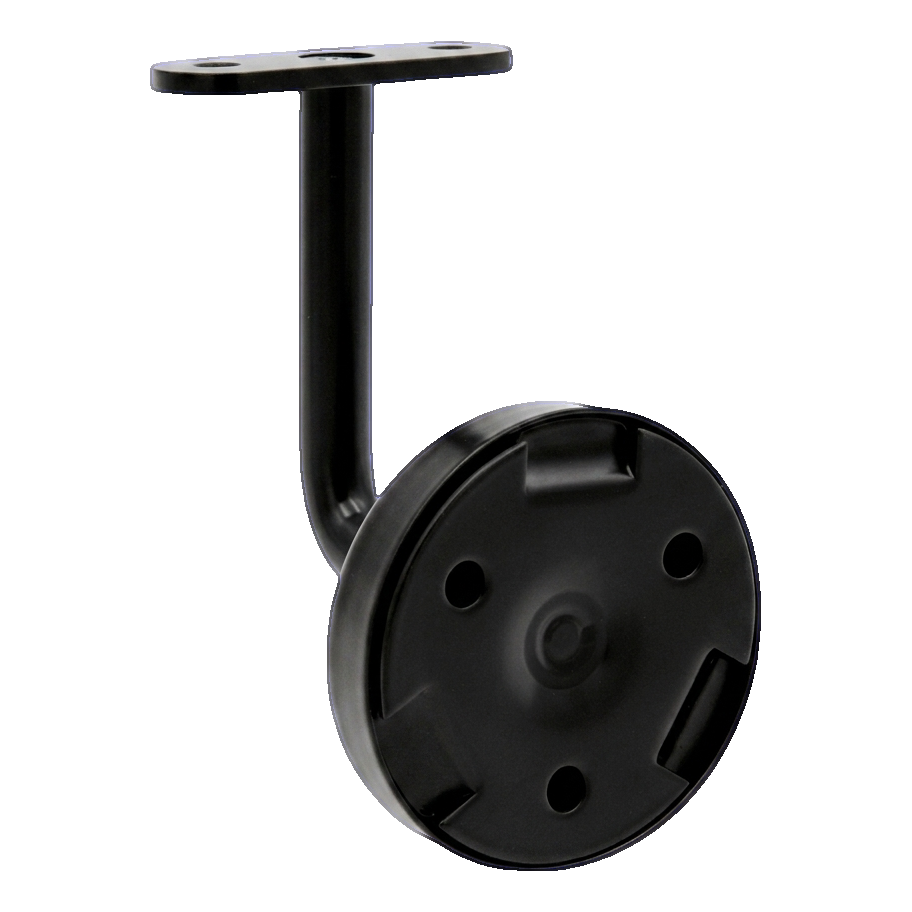

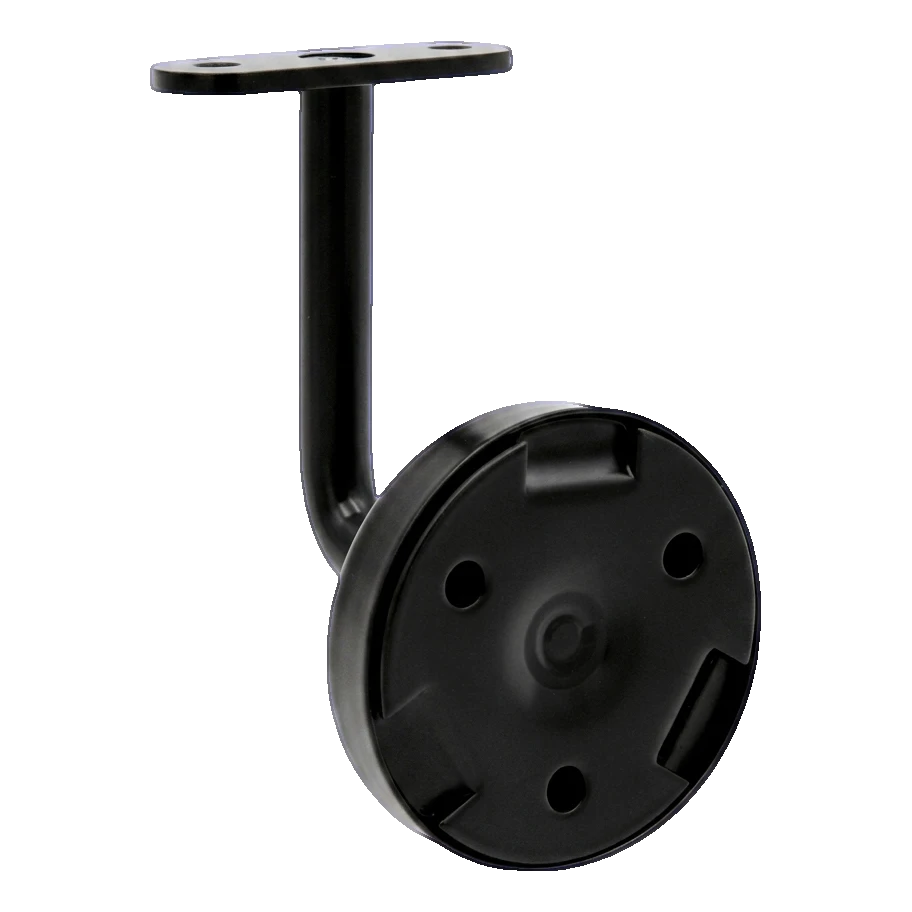

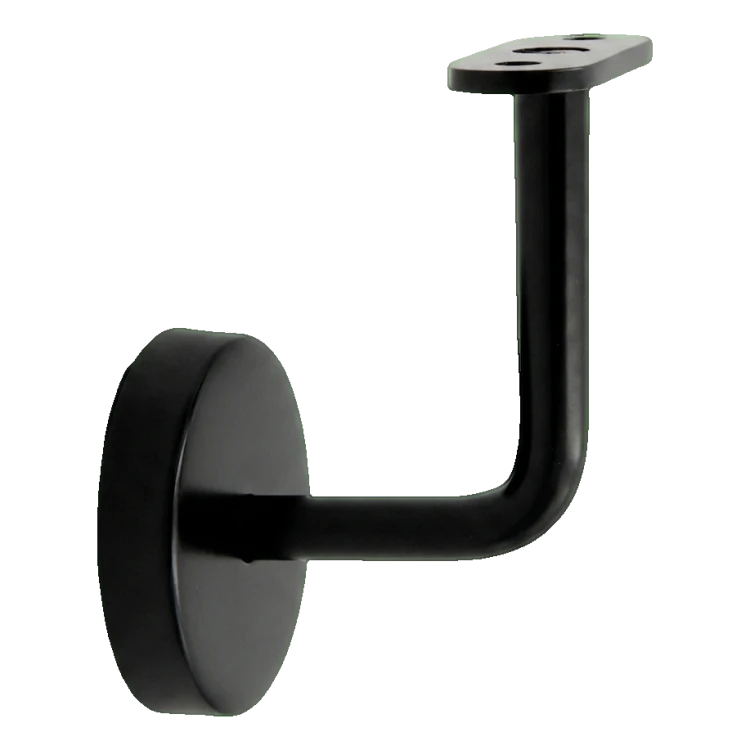

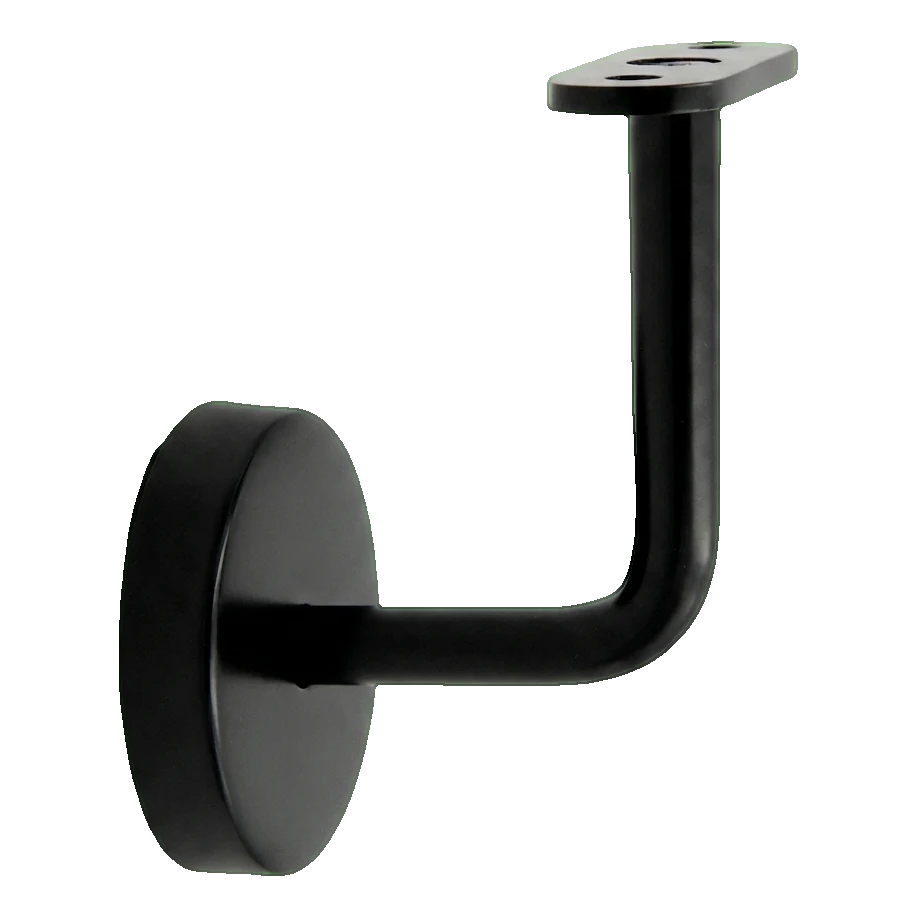

Product views
Maintenance – AISI 304 stainless steel with black lacquer is easy to maintain. For daily cleaning, a dry soft microfibre cloth is sufficient. Greasy stains should be removed with a specialist stainless steel cleaning agent.
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Mounting System | Flat |
