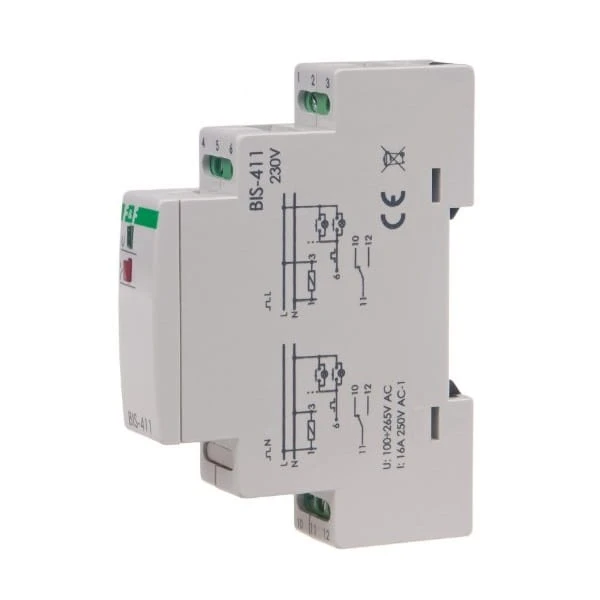

Bistable relay on/off rail-mounted BIS-411 F&F FILIPOWSKI
Leave feedback on the product
Bistable relay on/off rail-mounted BIS-411 F&F FILIPOWSKI allows lighting or other appliances to be switched on from several different locations using control buttons connected in parallel. The receiver is switched on after a current pulse, triggered by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] styczniki-i-przekazniki #98
- Device Type bistable relay
- Rated current [A] 16A
- Contact configuration 1NO/NC
- Coil voltage [V] 230V AC
- Brand F&F FILIPOWSKI
Description
Bistable relay on/off rail-mounted BIS-411 F&F FILIPOWSKI
Bistable relay on/off rail-mounted BIS-411 F&F FILIPOWSKI allows lighting or other appliances to be switched on from several different locations using control buttons connected in parallel. The receiver is switched on after a current pulse, triggered by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse.
The relay does not have a 'memory' of the contact position, which means that when the supply voltage fails and returns, the relay contact will be set to off. This prevents the controlled consumers from switching on spontaneously without supervision after a prolonged power failure.
BIS- 411 230V can operate with illuminated switches, while BIS-411 24V cannot.
