Balustrade mounting plate 80×80 mm AISI304 system 40×40 raw surface
Description
Balustrade mounting plate 80×80 mm stainless steel AISI304 – 40×40 hole

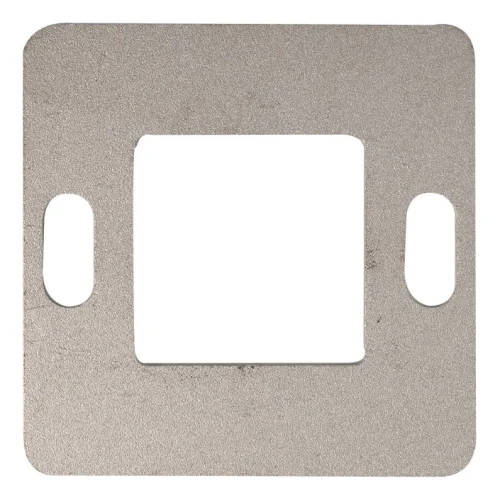

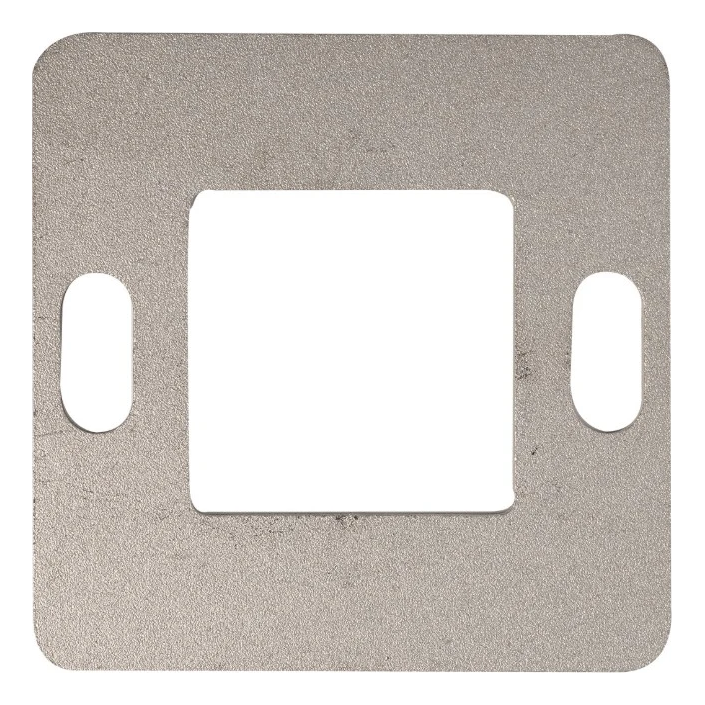

Balustrade mounting plate 80×80 mm made from stainless steel AISI304 is a solid construction element designed for balustrade systems. The square baseplate with central 40×40 mm hole and two oval holes enables precise and durable mounting of posts or other balustrade components. Raw surface finish.
Compact dimensions and minimal thickness of just 4 mm make the plate ideal as a base element in stainless steel balustrade systems. Oval holes (slots) with 9 mm width allow for adjustment of mounting position, which is particularly useful when mounting on uneven surfaces or when screw spacing needs to be adjusted. The central square hole 40×40 mm allows secure seating of the balustrade post profile.

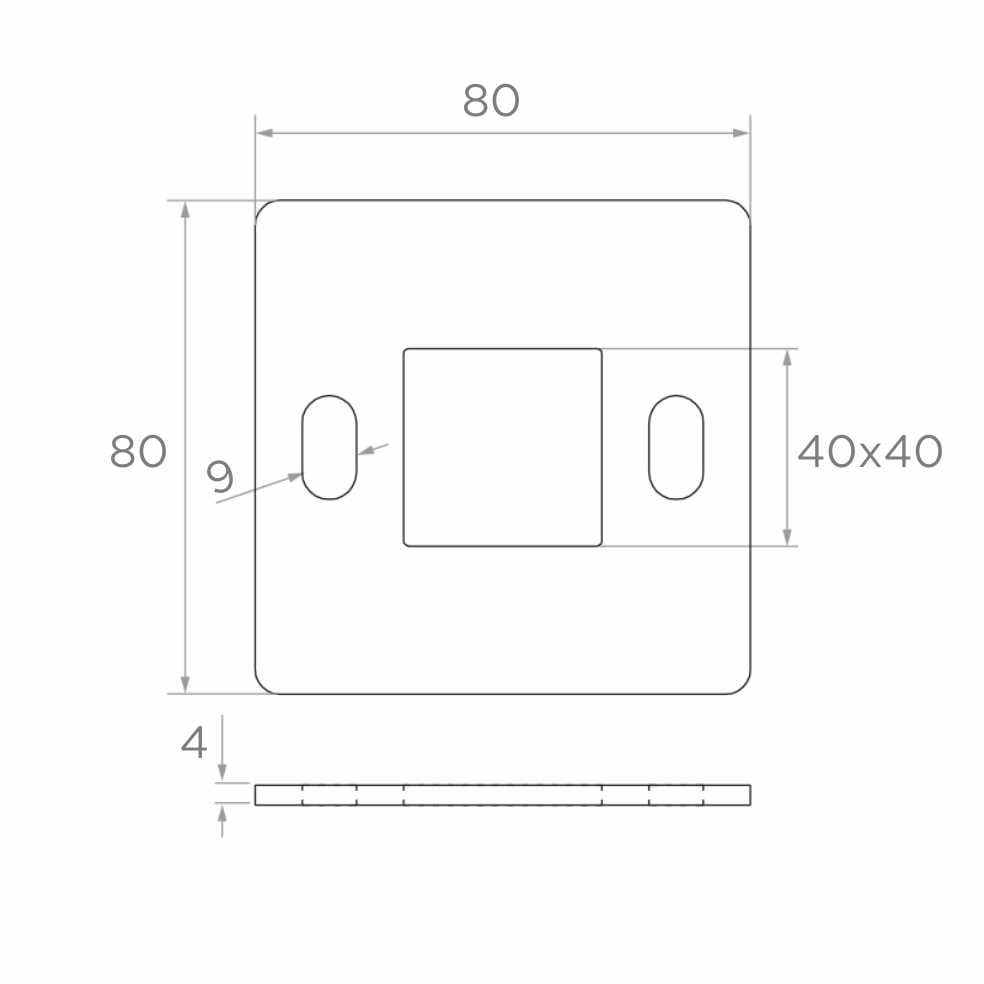

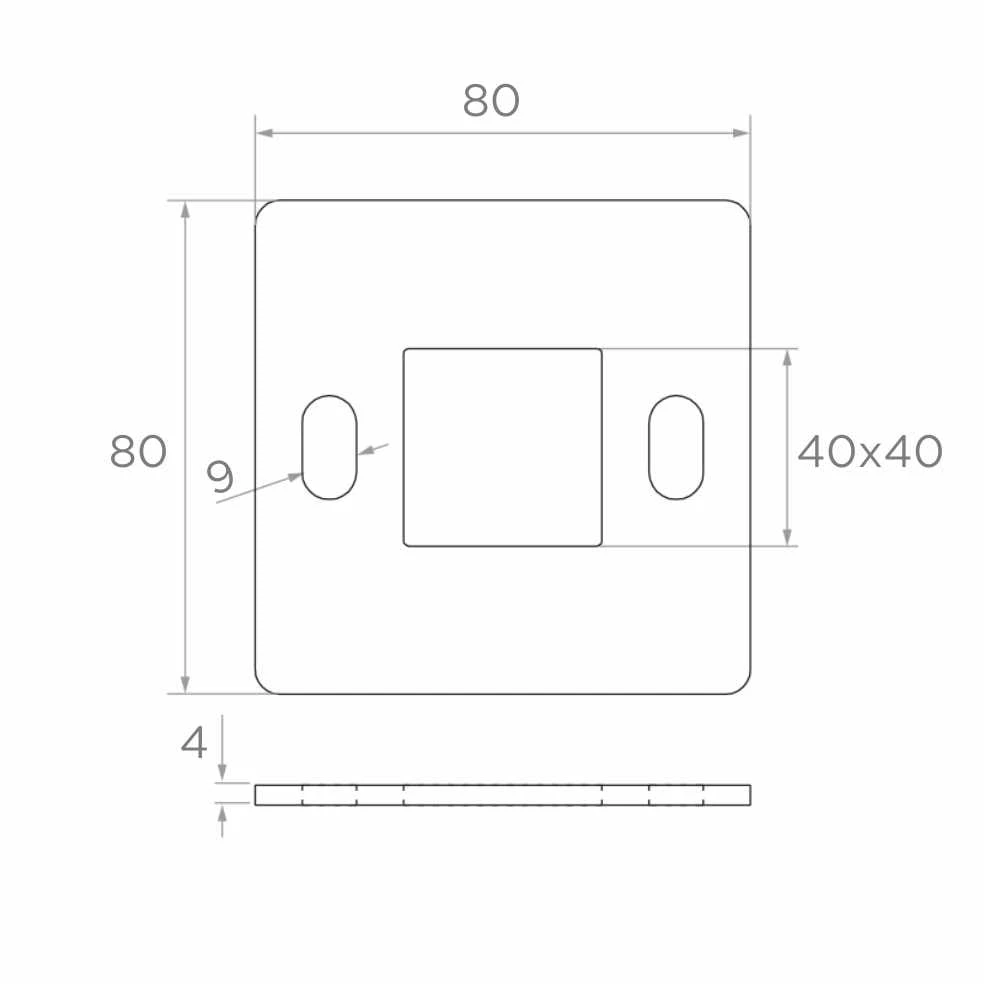

Dimensions and technical parameters
- External dimensions: 80 × 80 mm
- Thickness: 4 mm
- Central hole (square): 40 × 40 mm
- Oval holes (slots): width 9 mm – 2 pcs
- Material: stainless steel AISI304
- Surface: raw
- Shape: square with rounded corners
Application
The plate serves as a base element for mounting balustrade posts with 40×40 mm profile. Two symmetrically positioned oval holes allow for adjustable screw mounting to the substrate, whilst the central square hole ensures stable seating of the profile. Stainless steel AISI304 with raw finish guarantees corrosion resistance — the element can be used both indoors and outdoors without the need for additional surface protection.
Product advantages
- Corrosion resistance
- Construction stabilisation
- Simple installation
Technical data
| Material | AISI 304 |
| Finish | Raw |
