B-SAFE Locinox Safety Cable for Gates max. 500 kg Stainless Steel
Leave feedback on the product
Stainless steel safety cable for gates up to 500 kg, load capacity up to 1000 kg, Quick-Fix mounting system, compliant with EN 12604, weight 0.17 kg.
Product code: 000-273
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material AISI 304
Description

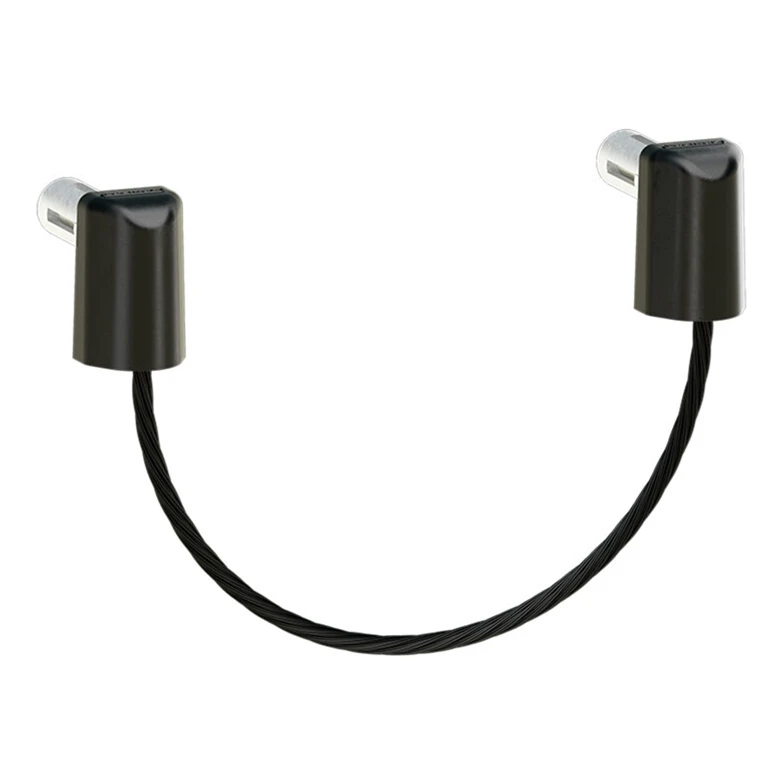

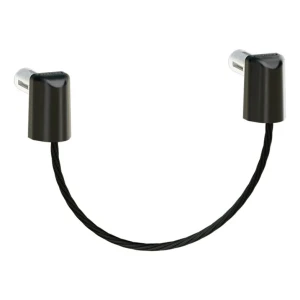

Locinox B-Safe – Safety Cable for Gates, Stainless Steel, up to 500 kg
Locinox B-Safe is a professional stainless steel safety cable designed to prevent gates weighing up to 500 kg from uncontrolled falling. Compliant with the EN 12604 standard, it provides reliable protection in the event of hinge failure or other structural gate component failure — safeguarding both people and property.
The B-Safe cable is an ideal solution for installation companies carrying out industrial, commercial and residential gate installations. Thanks to the patented Quick-Fix system, installation is fast and requires no specialist tools — saving you time on every job. The cable can bear loads of up to 1,000 kg and effectively prevents a gate weighing up to 500 kg from falling in the event of one or both hinges failing.
Key Benefits
- Load capacity of up to 1,000 kg — secures gates weighing up to 500 kg
- Stainless steel construction resistant to corrosion — long-lasting durability with no maintenance required
- Patented Quick-Fix system — rapid installation without specialist tools
- Compliance with EN 12604 — European mechanical safety standard for gates
- 1 mm thick transparent protective cover — protects the cable and gate components
- Flexible mounting — to the gate leaf or to the post

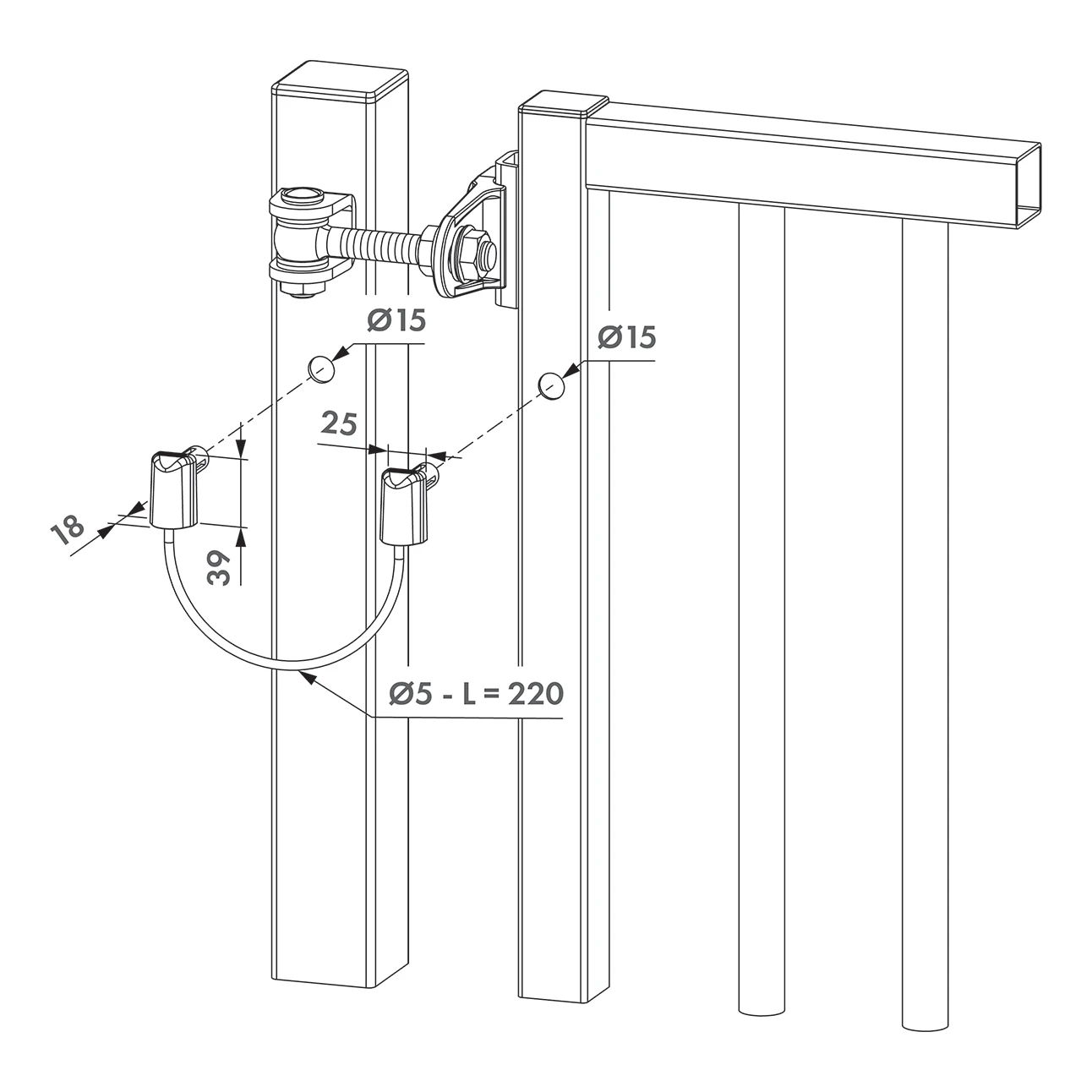

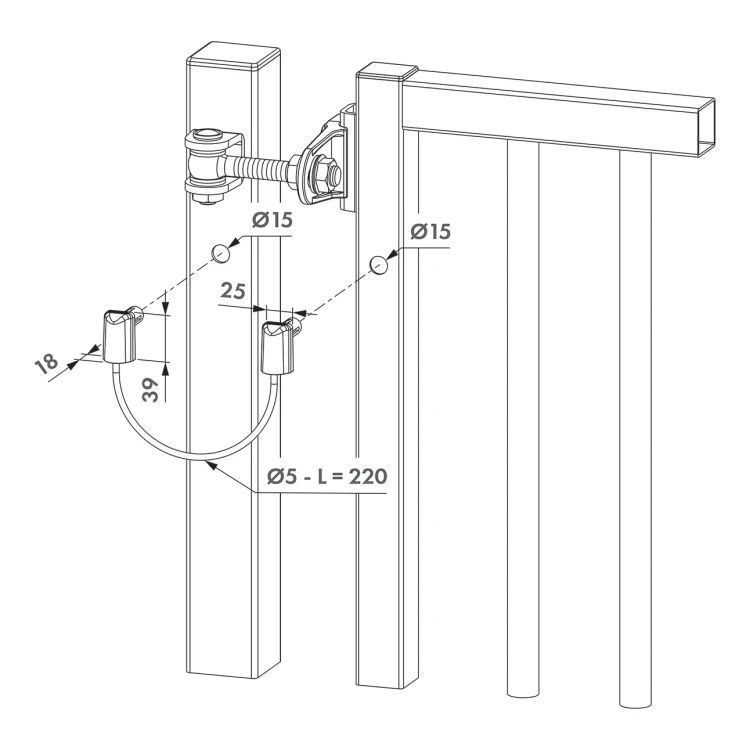

Dimensions and Technical Specifications
- Cable length: 220 mm
- Cable diameter: 5 mm
- Mounting pin diameter: Ø15 mm
- Fixing point spacing: 25 mm
- Bracket height: 39 mm
- Cover width: 18 mm
- Overall dimensions (H × L): 79 × 98 mm
- Protective cover thickness: 1 mm (transparent)
- Weight: 0.17 kg
- Colour: black
- Maximum gate weight: 500 kg
- Mounting system: Quick-Fix
- Standard: EN 12604
Installation and Application

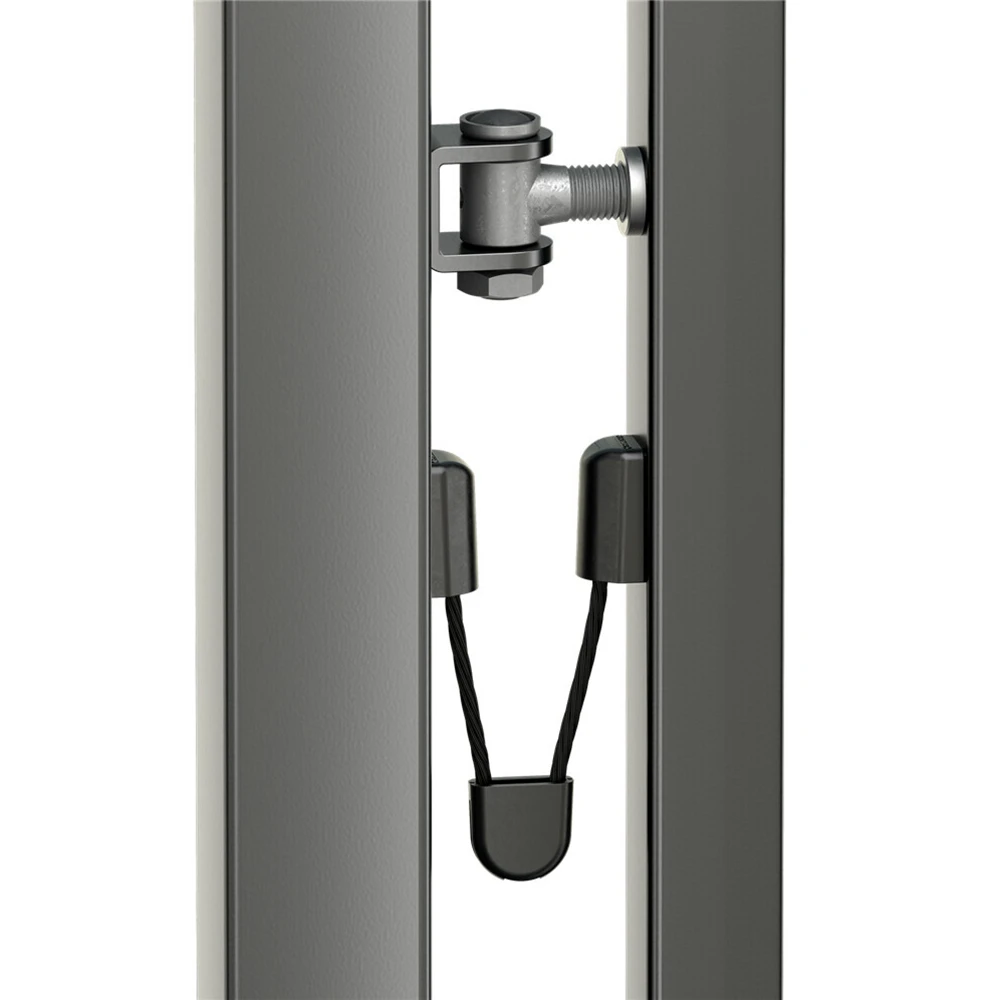

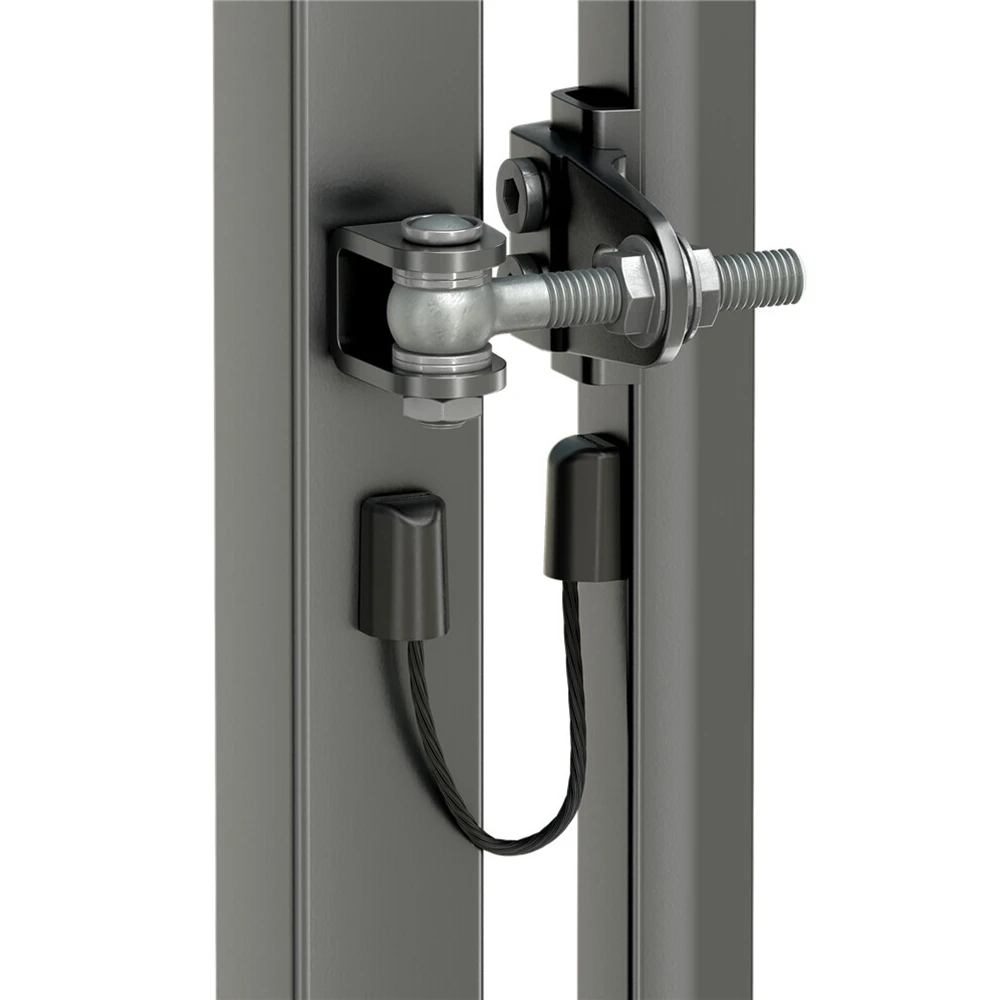

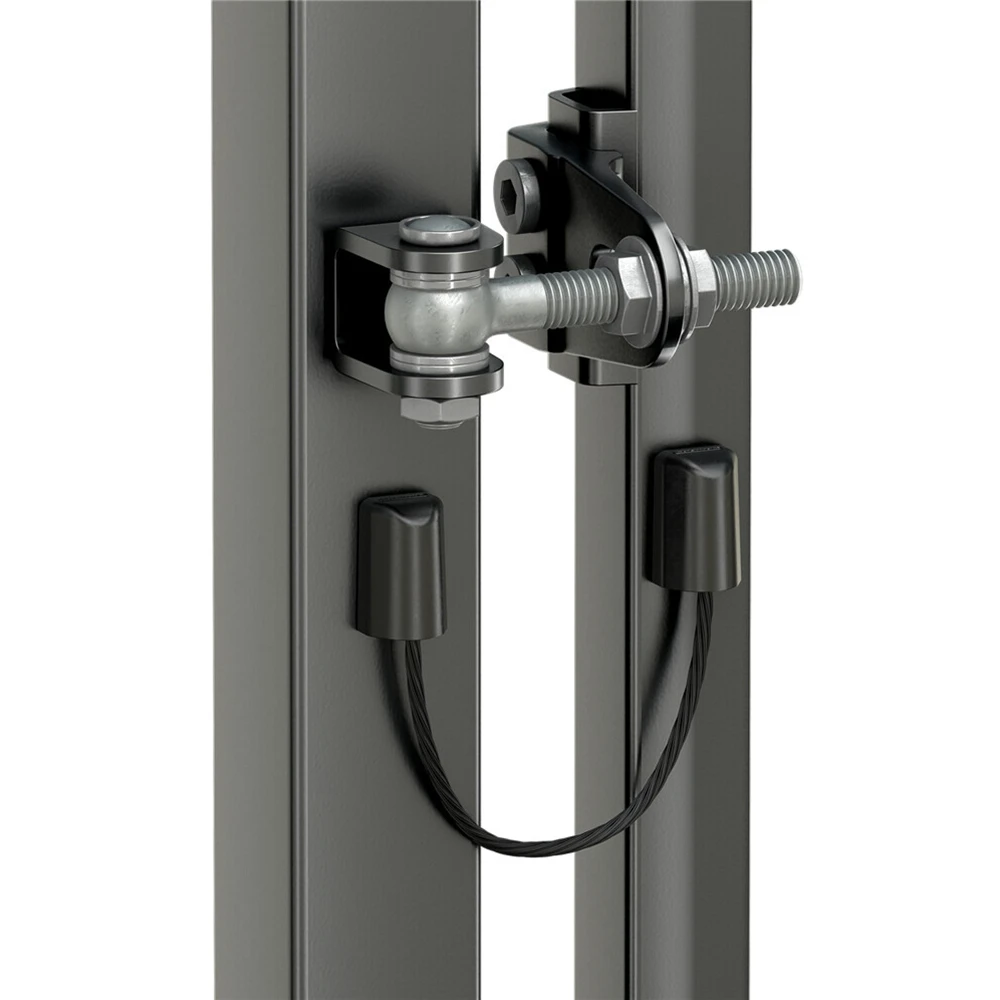

Installation of the B-Safe safety cable is flexible and suited to a wide range of gate types. The cable can be fixed to either the gate leaf or the gate post, enabling optimal protection regardless of the gate's construction. The patented Quick-Fix system eliminates the need for specialist tools — standard equipment carried by any installation team is sufficient to complete the installation quickly and efficiently.
EN 12604 Compliance
The Locinox B-Safe safety cable meets the requirements of the European standard EN 12604, which defines the design and safety requirements for the mechanical aspects of gates. Using products that comply with this standard enables installation companies to provide end customers with the highest level of protection, whilst also simplifying technical sign-off and certification of completed installations.
