Articulated handrail support rod Ø 12×75 mm AISI 304 – 42.4 mm system, M8 thread
0
Description
Articulated handrail support rod Ø 12×75 mm AISI 304 – 42.4 mm system, M8 thread

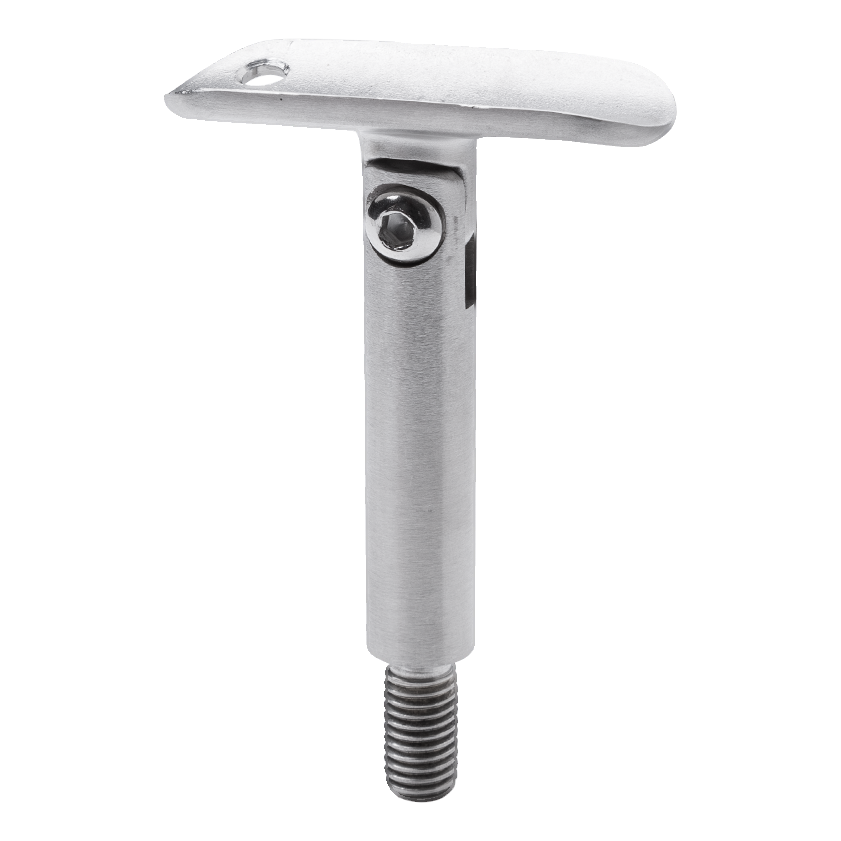

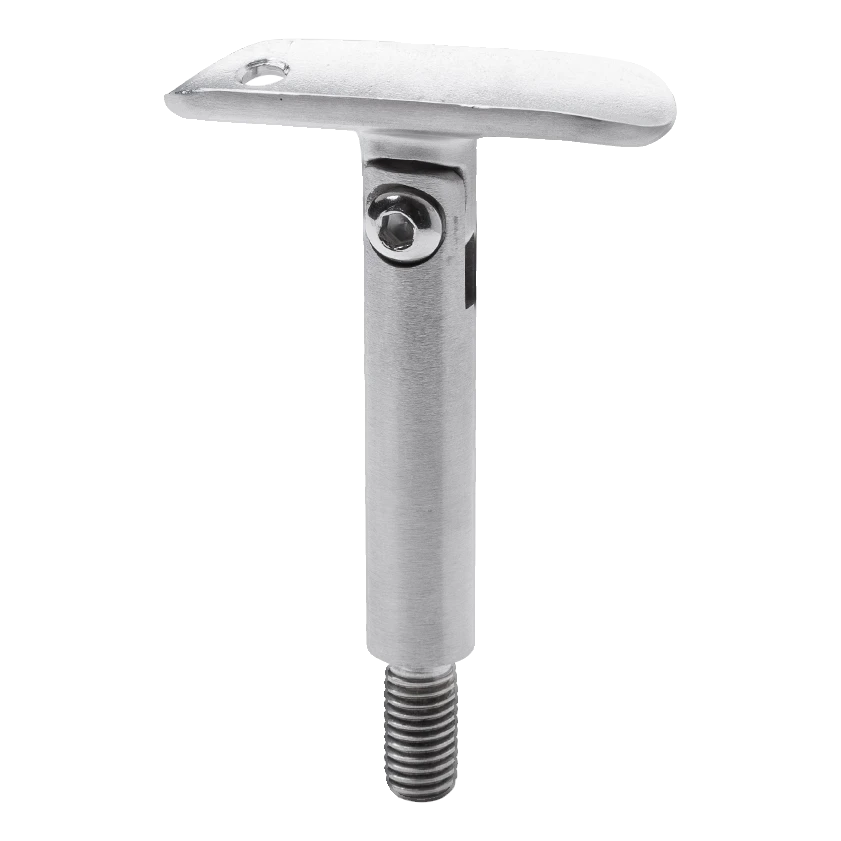

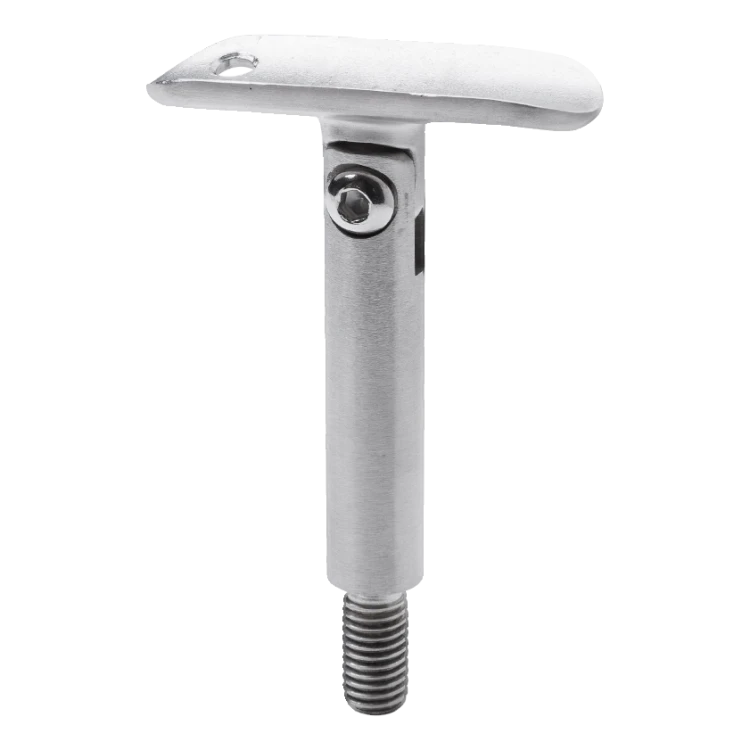

Articulated handrail support rod made from stainless steel AISI 304 with satin finish, designed for balustrade systems with Ø 42.4 mm tube. Thanks to the built-in joint, it enables smooth handrail angle adjustment, which is particularly useful when installing stair balustrades — allowing precise adjustment of the handrail gradient to match the stair flight without the need for cutting or welding components.
The lower part of the rod is finished with an M8 external thread, allowing quick screwing of the element into the balustrade post. The upper mounting bracket with a profile matched to the Ø 42.4 mm tube ensures stable and aesthetic handrail support. The articulated construction significantly reduces installation time and eliminates the need for individual bending of elements on site.

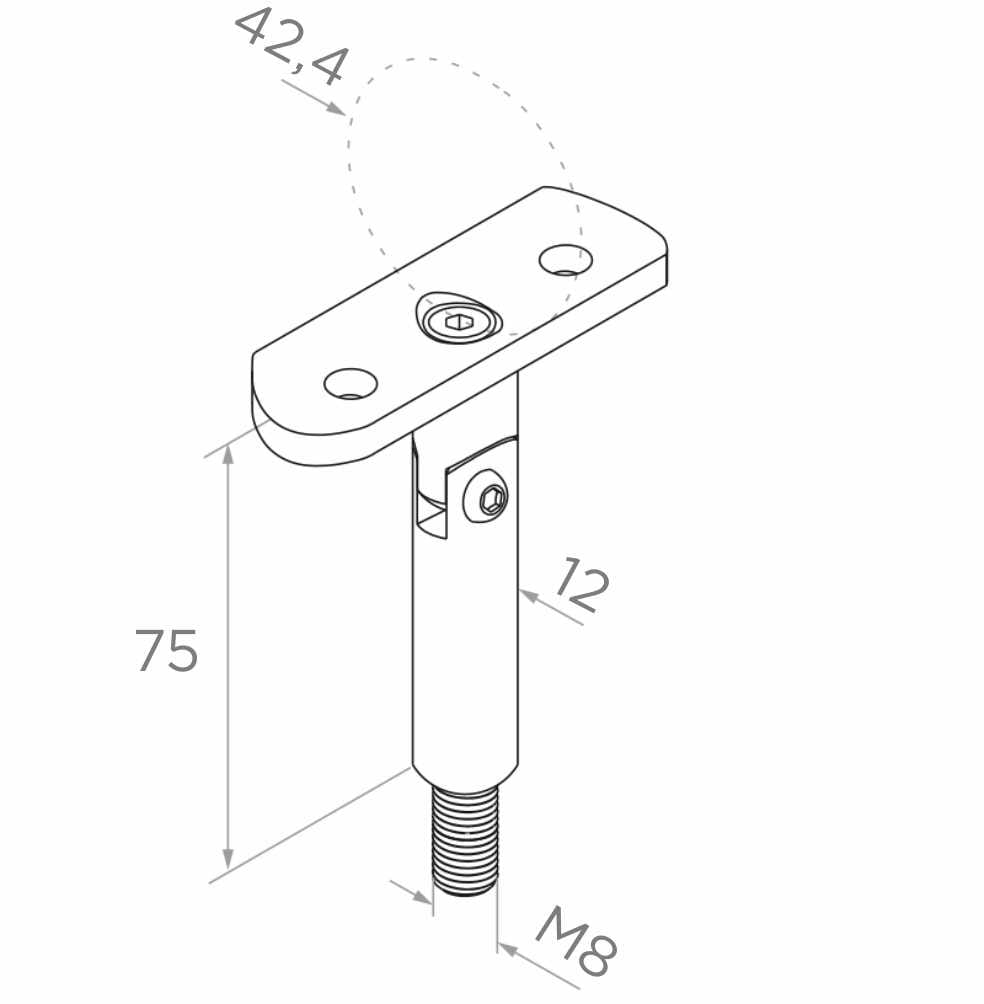

Dimensions and technical data
- Rod diameter: Ø 12 mm
- Working height (rod): 75 mm
- Mounting bracket diameter (handrail tube fitting): 42.4 mm
- External thread: M8
- Material: stainless steel AISI 304
- Surface finish: satin
- Connection type: articulated (angle adjustment)
- Weight: 0.11 kg
- EAN: 5901289672221
Application
Component designed for professional stainless steel balustrade systems based on Ø 42.4 mm tube. Ideal for stair balustrades where handrail angle adjustment is required. The joint provides freedom of positioning, whilst the M8 thread enables quick installation by screwing into a prepared hole in the post. The satin finish of AISI 304 steel guarantees corrosion resistance and an aesthetic, matt appearance — consistent with other components of the balustrade system.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
