PSG

Articulated handrail support glued fi 42.4 mm, pin fi 14 mm, H80, AISI 304, satin, system 42.4 mm (24 pcs)

Go to Product feedback

Articulated handrail support for 42.4 mm system, bonded installation using anaerobic adhesive, adjustable angle. Material: stainless steel AISI 304, satin finish, weight 0.18 kg.

Go to full description
with VAT without VAT
Price €4.21
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] mocowania-poreczy #132

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm

Description

42.4 mm Articulated Glued Handrail Bracket – AISI 304 Stainless Steel Satin

Articulated handrail bracket for 42.4 mm balustrade systems, designed to be bonded into the post using anaerobic adhesive. Its articulated construction allows smooth angle adjustment of the handrail, greatly simplifying the installation of stair balustrades and eliminating the need to cut components at individual angles.

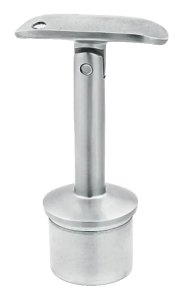

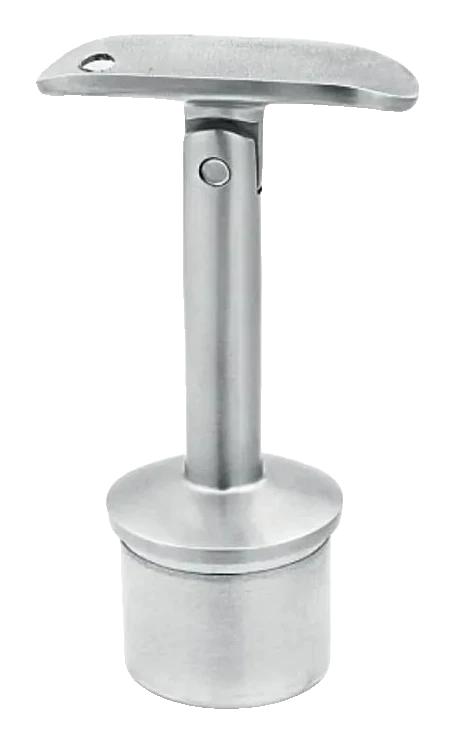

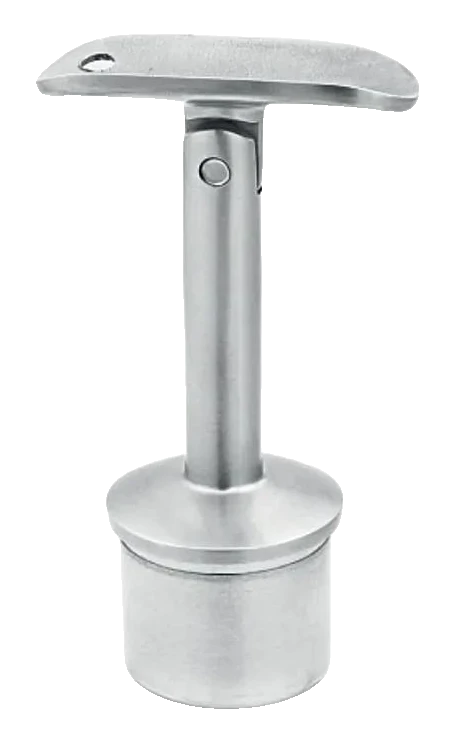

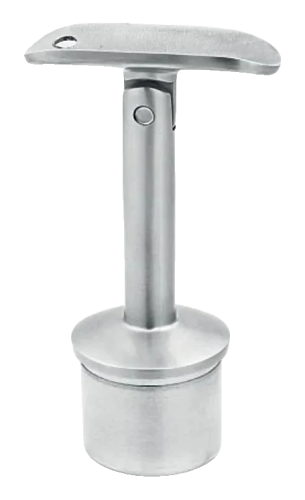

42.4 mm articulated glued handrail bracket – product view
42.4 mm articulated glued handrail bracket – product view

Bonded installation — the bracket is designed to be fitted into the post sleeve using anaerobic adhesive (available separately). This type of adhesive cures upon contact with metal and hardens once the oxygen supply is cut off, providing a strong and reliable connection without the need for welding. It is an ideal solution for installation teams carrying out interior balustrade projects — it reduces working time and requires no specialist welding equipment.

Manufactured from AISI 304 stainless steel with a satin finish, the bracket offers an attractive appearance and excellent corrosion resistance for interior applications. The satin surface complements the other components of stainless steel balustrade systems perfectly, ensuring a consistent look throughout the entire structure.

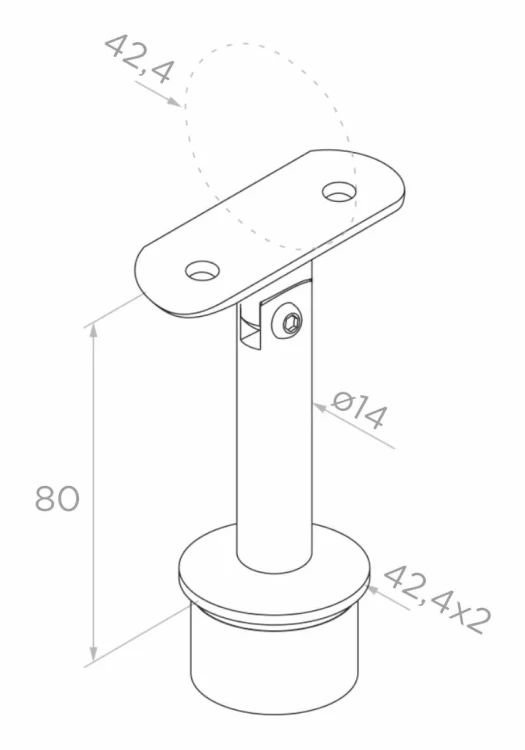

42.4 mm handrail bracket – dimensional drawing with annotations
42.4 mm handrail bracket – dimensional drawing with annotations

Technical Specification

  • System: 42.4 mm
  • Bracket height: 80 mm
  • Spindle diameter: ø14 mm
  • Compatible post: 42.4 x 2 mm
  • Upper handrail saddle: ø42.4 mm
  • Material: AISI 304 stainless steel
  • Intended use: interior use
  • Finish: satin
  • Connection type: bonded (anaerobic adhesive)
  • Angle adjustment: yes – articulated construction
  • Weight: 0.18 kg
  • EAN: 5901289671859
