Angle bracket with plate twist h=7cm galvanized
Description

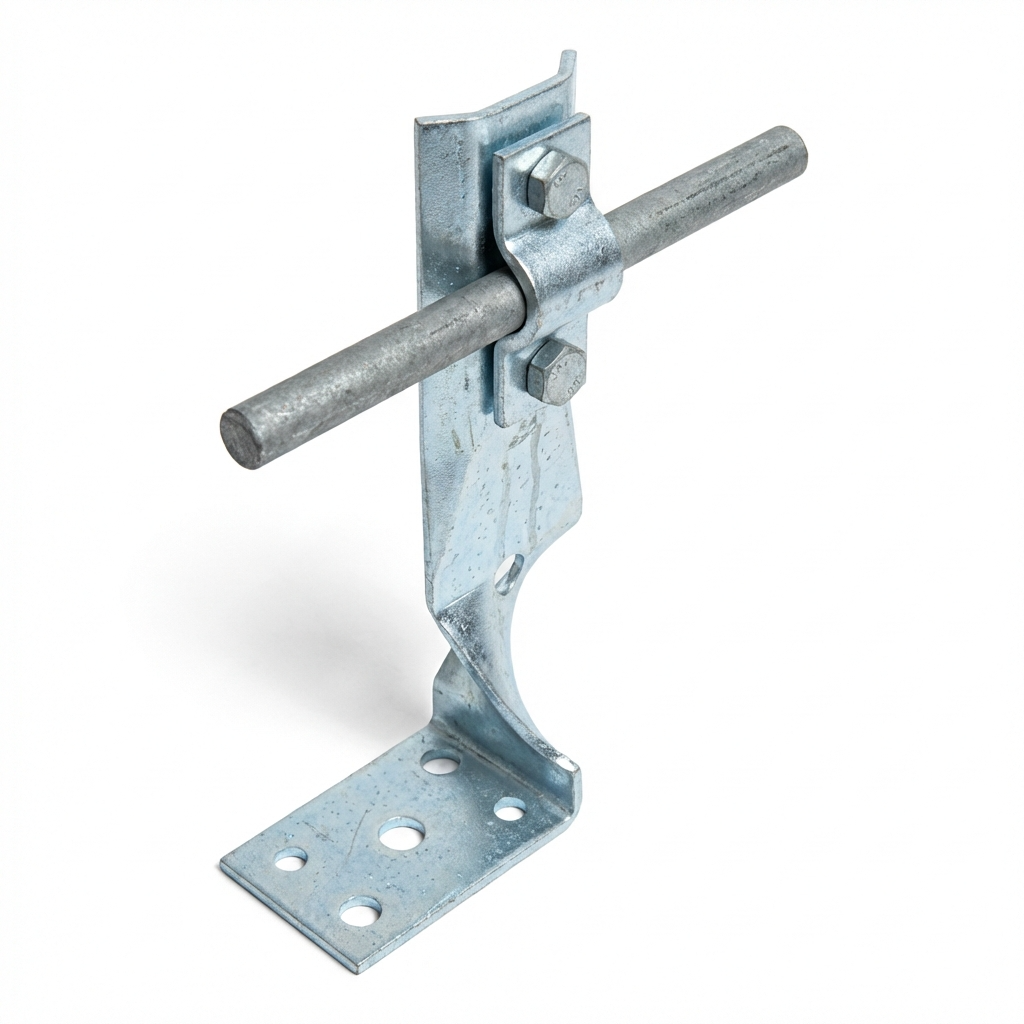

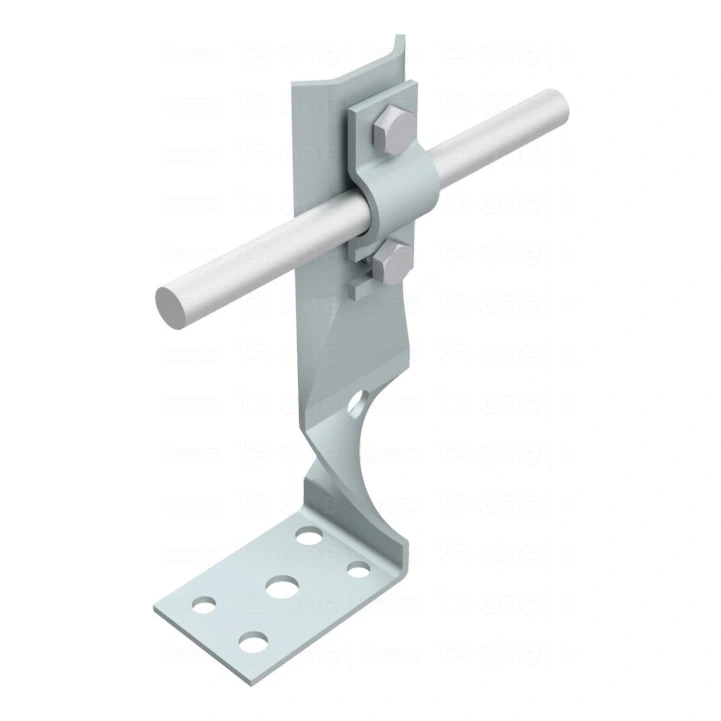

Angle Bracket with Swivel Plate H70 – Electrolytic Galvanised Steel
Angle bracket with swivel plate H70 is a reliable lightning protection installation component designed for routing lightning conductor wire along roofs and walls. Thanks to its robust construction made of electrolytically galvanised steel, it ensures durable and secure mounting of round conductors with a diameter of Ø8–10 mm.
Universal application. The bracket is suitable for masonry, timber substrates and roofs covered with metal sheeting, shingles or roofing felt. Installation is carried out using screws, expansion plugs or rivets — the base plate features mounting holes enabling quick and secure attachment to various surfaces.
High anti-corrosion protection. The product has undergone a special electrolytic galvanising process with additional polymer sealing of the coating, which provides the highest class of anti-corrosion protection. This guarantees long-lasting durability even in demanding weather conditions.
Technical data
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Screw: 2×M5×16
- Screw/nut material: galvanised steel

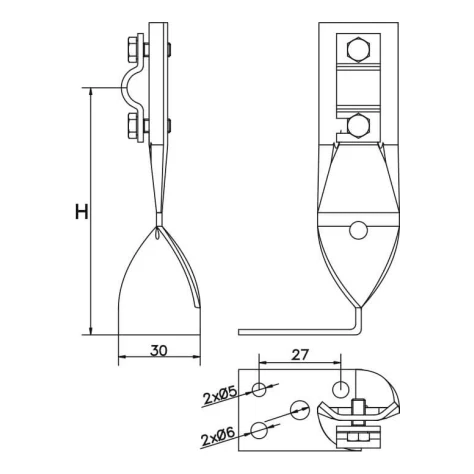

- Height: H = 70 mm
- GTIN: 5901832912538
Swivel plate allows for precise adjustment of the mounting angle to the geometry of the roof or wall. This ensures that the lightning conductor wire is routed smoothly, without sharp bends — which contributes to the quality and aesthetics of the entire lightning protection installation.
