Angle bracket with plate h=8cm galvanized
Leave feedback on the product
H80 angle bracket for lightning conductor wire Ø8-10 mm. Galvanised steel, mounting plate 27×30 mm with fixing holes. Installation on 2×M5×16 screws.
Product code: 000-146
Description

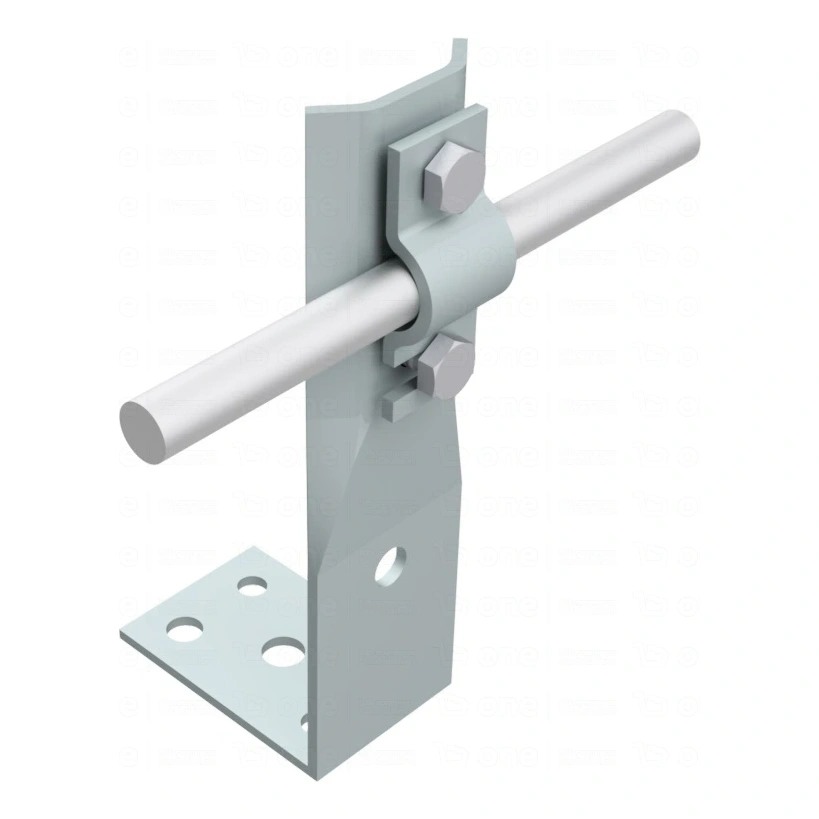

Angle Bracket with Plate H80 – Electrolytically Galvanised Steel
Angle bracket with plate H80 is a robust lightning protection installation component designed for routing lightning conductor wire on roofs and walls. It performs excellently on masonry, timber and surfaces covered with metal sheeting, shingles or roofing felt.
The bracket is fixed to the substrate using screws, expansion plugs or rivets – thanks to the plate with mounting holes, installation is quick and secure. The angle construction ensures stable routing of the lightning conductor at an appropriate height from the roof or wall surface.
The product is manufactured from electrolytically galvanised steel, which guarantees the highest class of anti-corrosion protection. The special galvanising process with polymer coating sealing ensures durability even in demanding atmospheric conditions.
Technical data
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Screw: 2×M5×16
- Screw/nut material: galvanised steel
- Height (H): 80 mm
- GTIN: 5901832912491

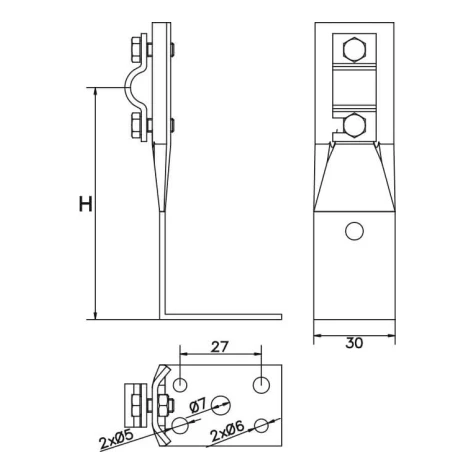

Mounting plate dimensions are 27×30 mm, and mounting holes with diameters of Ø5 and Ø6 mm allow flexible selection of fixing elements for different substrate types. The Ø7 mm through-hole provides additional application versatility.
Application: the bracket is ideal for routing lightning protection installations on residential, agricultural and industrial buildings. Thanks to its compact dimensions and simple installation, it enables installation companies to complete projects efficiently.
