Angle bracket clamp h=8cm galvanised
Leave feedback on the product
Angle bracket H8 cm | Galvanised zinc | Ø8–10 mm. Lightning conductor wire guide for roofs and walls, universal mounting.
Product code: 000-144
Description

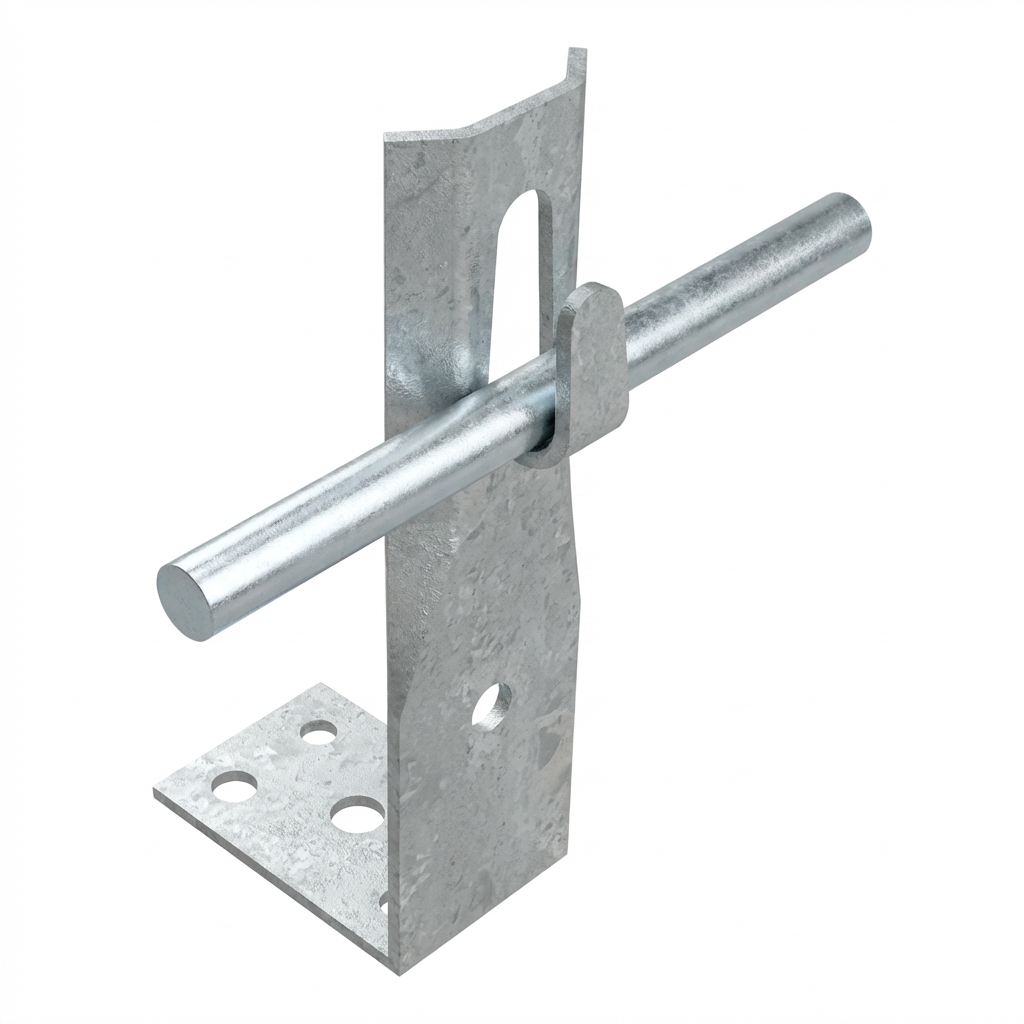

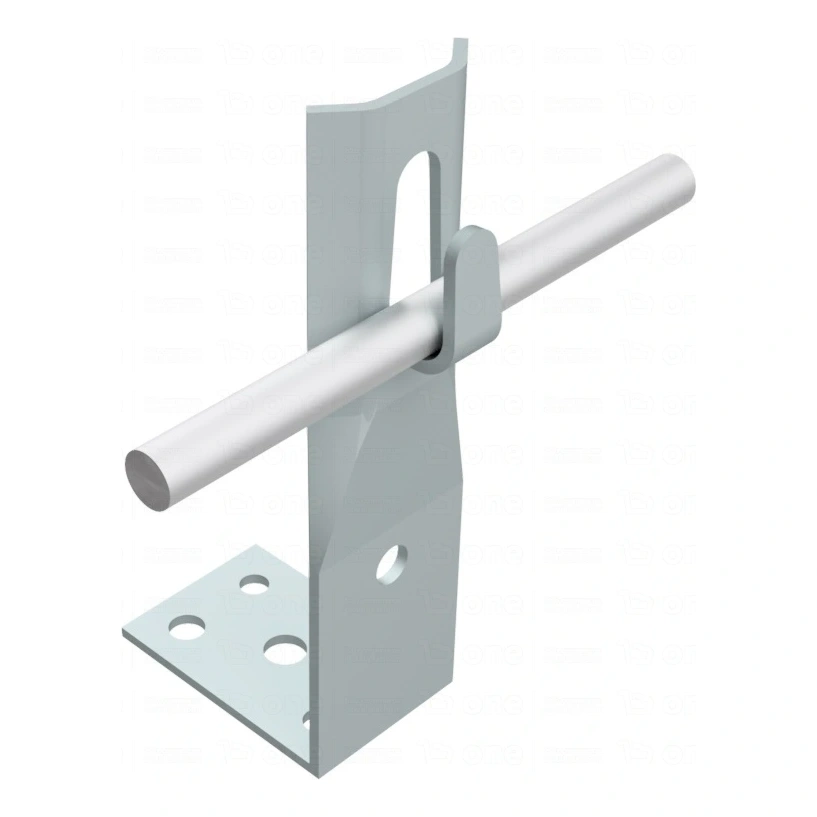

Corner Bracket – Clamp H8 cm (Galvanised Steel)
Corner bracket – clamp H8 cm made of galvanised steel is a reliable component of lightning protection systems, designed for routing lightning conductors on roofs and walls. Thanks to the use of electrolytically galvanised steel, the product provides the highest class of anti-corrosion protection — even in demanding atmospheric conditions.
The bracket is universal — it can be mounted on both masonry and wooden substrates, as well as on roofs covered with sheet metal, shingles or roofing felt. Screws, expansion plugs or rivets are sufficient for fixing, allowing quick adaptation to on-site conditions.
Built to last. The special electrolytic galvanising process combined with polymer coating sealing guarantees exceptional corrosion resistance. Full production process control ensures high quality and repeatability of parameters for each batch.
Technical Data
- Material: electrolytically galvanised steel
- Round/flat conductor range: Ø8–10 mm
- Height (H): 80 mm
- GTIN: 5901832912484
Application: routing lightning conductors on roofs and walls of buildings — masonry and wooden structures, as well as sheet metal, shingle and roofing felt coverings.
Installation: fixing to substrate using screws, expansion plugs or rivets.
