Aluminium Profile 235cm 40x40mm for Hammer Head Bolts Anodised
Availability:
Temporarily unavailable
Weight:
2.09 kg
Price / pcs.:
incl. 20% TAX, excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
Description

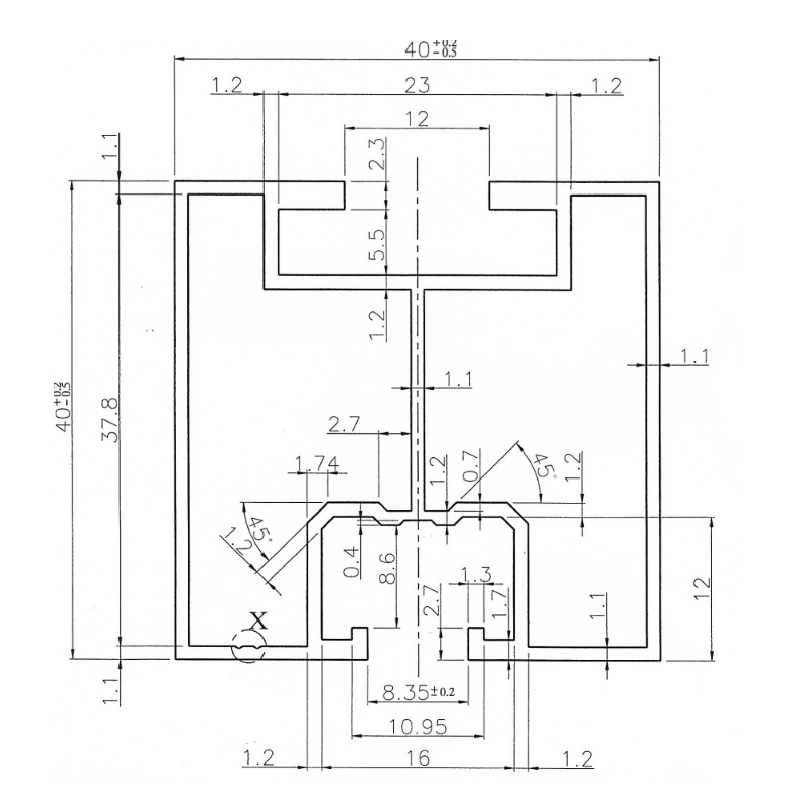

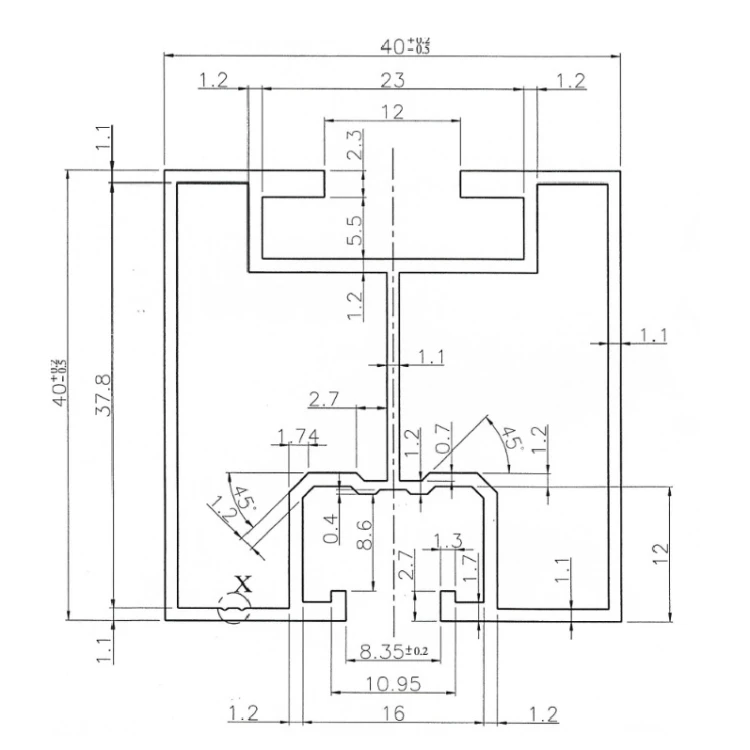

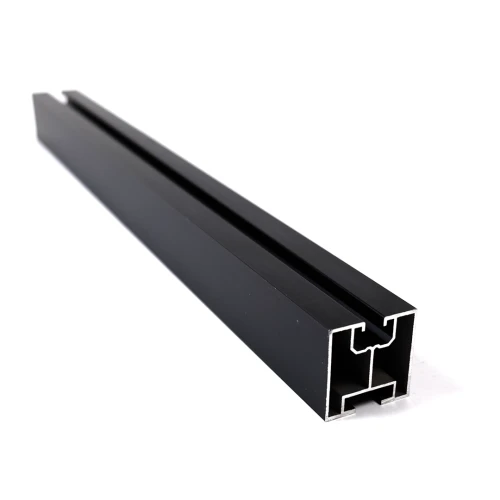

Aluminium Profile 235cm 40x40 for Hammer Head Bolts Anodised
Example mounting profile made of Aluminium 6060 Anodised 235cm for hammer head bolt type 28/15 M10, for photovoltaic modules.

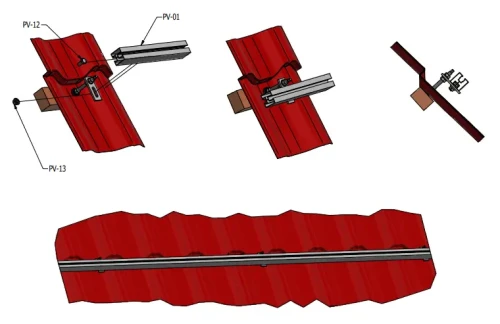

The mounting profile is suitable for fixing photovoltaic panels using mid and end clamps. The clamps are attached to the upper channel of the rail profile. The lower channel enables mounting of the profile on adapters, roof hooks or triangles.
Installation is carried out using T-bolts M10 and flange nuts M10.
- Mounting profiles with dimensions 4x4cm for hexagonal bolts are made of high-quality aluminium 6060.
- The length of the profiles can be extended using profile connectors, which are sold separately.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Coating type | Anodised – black |
| Mounting type | T-bolt |
| Cross-section | 40x40 |
| Length [cm] | 235 |
| Cable channel | None |
| Length [mm] | 2350 |
| Profile [mm] | 40×40 |
| Slot Type | Hammer bolt groove |
| Finish | Anodised |
