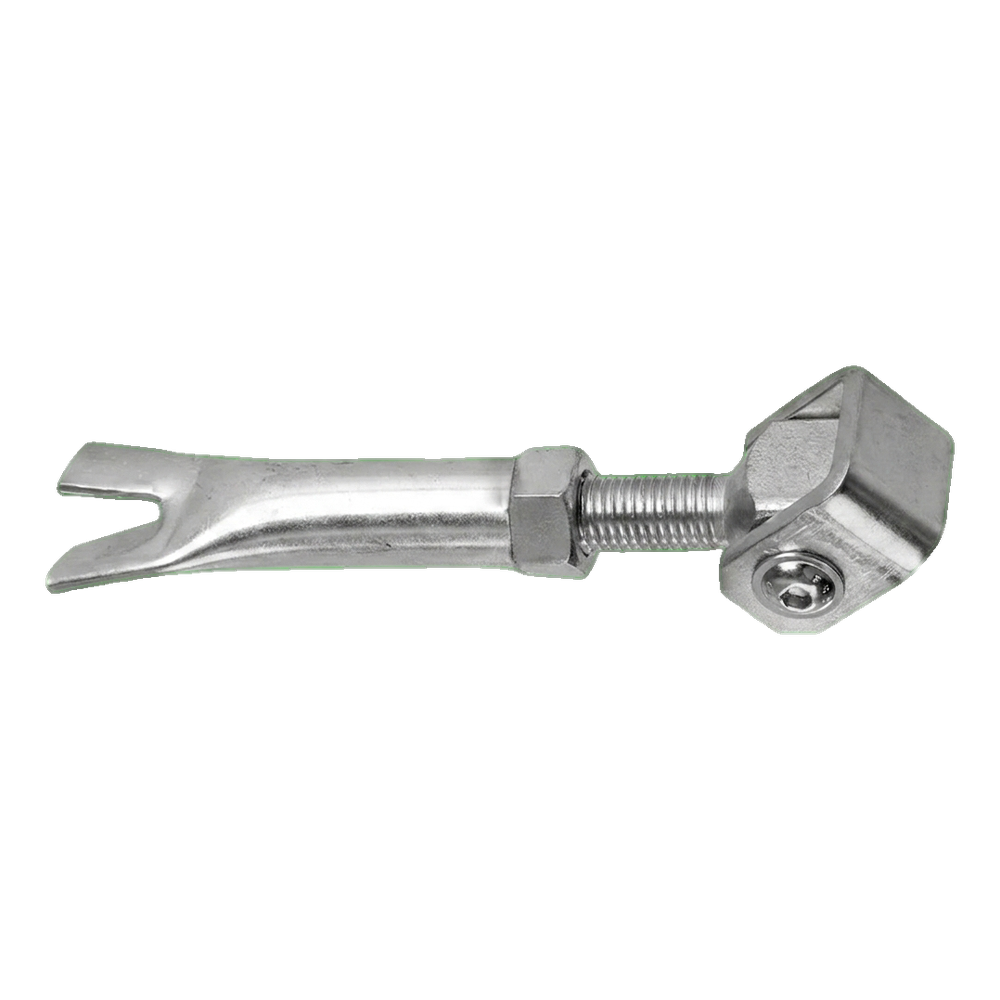

Adjustable weldable hinge galvanised steel M20
Leave feedback on the product
Adjustable weldable hinge galvanised steel M20. M20 thread, pin diameter 20 mm, length 117 mm. Lug width 38 mm. Permissible load per pair 105 kg on 2 m leaf. Weight 0.48 kg.
Product code: 001-355
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable weldable hinge galvanised steel M20
Steel adjustable weldable hinge with M20 thread — a durable solution for mounting gates and wickets in brick or concrete posts. Thanks to the adjustment nut, you can precisely correct the leaf position at any time — both after installation completion and during operation, e.g. when the structure sags or metal changes dimensions under extreme temperatures.
Galvanised coating provides effective, long-lasting corrosion protection, making the hinge fully adapted for outdoor use. Permissible load per hinge pair on a leaf of 2 m length is 105 kg, which is sufficient for standard garden gates and wickets.
Advantages
- Galvanised coating — long-lasting protection against corrosion in outdoor conditions
- Post-installation adjustment — easy tightening or loosening with adjustment nut
- High mechanical strength and wear resistance
- Aesthetic, uniform surface finish

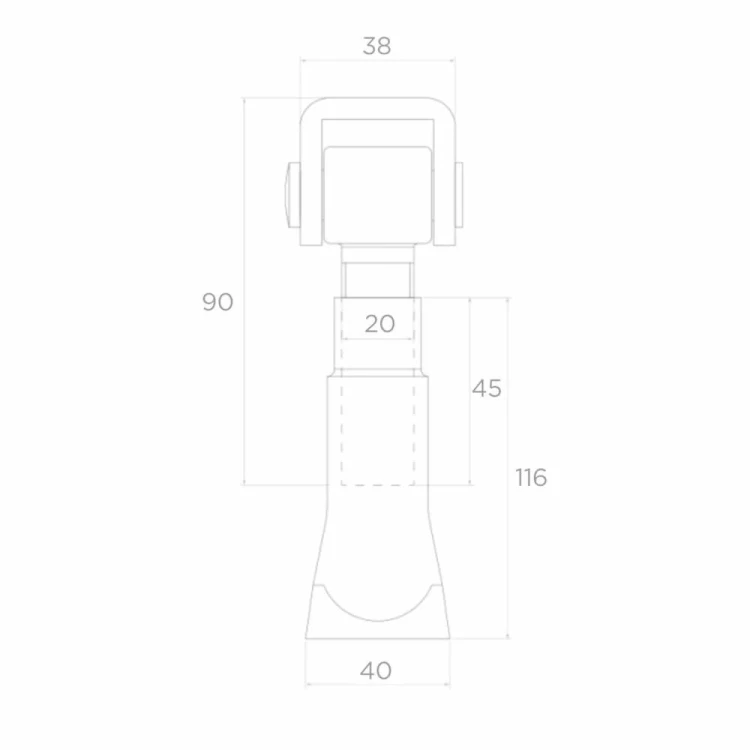

Dimensions and technical data
- Material: steel
- Corrosion protection: zinc (lug galvanised)
- Thread: M20
- Pin diameter: 20 mm
- Pin length: 117 mm
- Lug width (bracket): 38 mm
- Protruding part length: 90 mm
- Anchoring element length (for welding): 116 mm
- Anchoring base width: 40 mm
- Permissible load per pair (2 m leaf): 105 kg
- Weight: 0.48 kg
- EAN: 5901289675840
