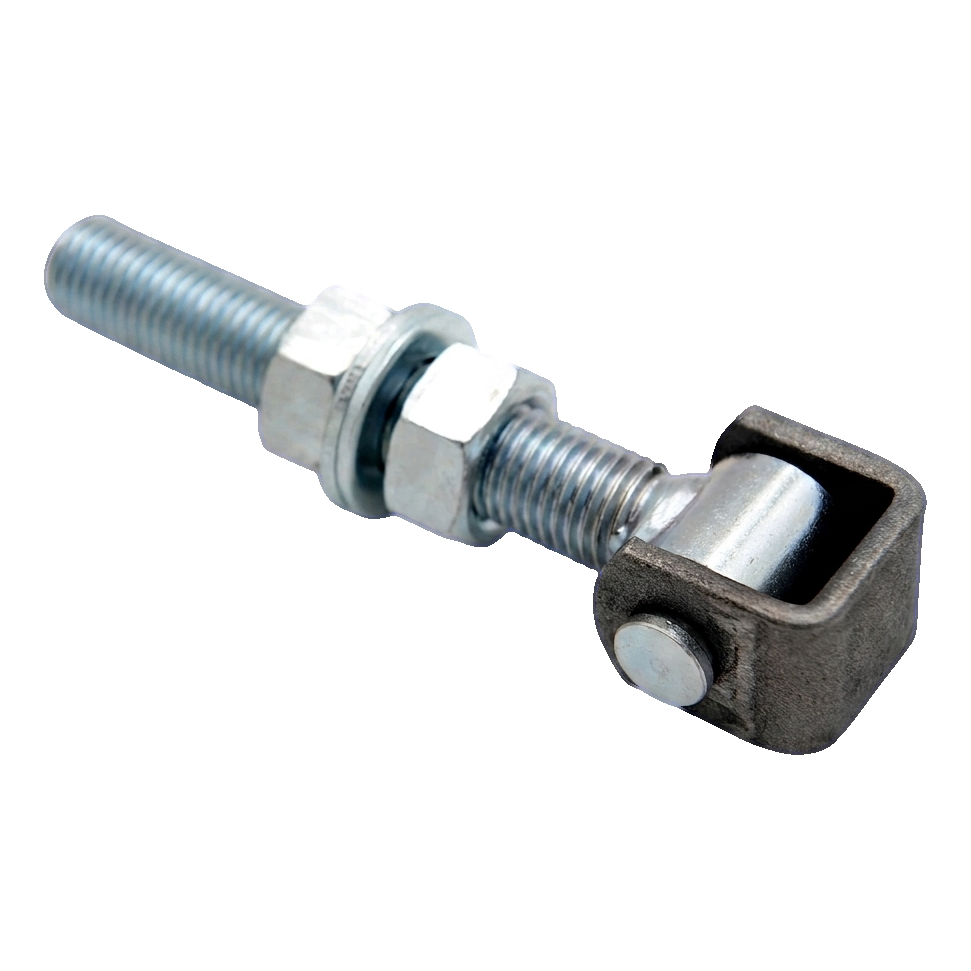

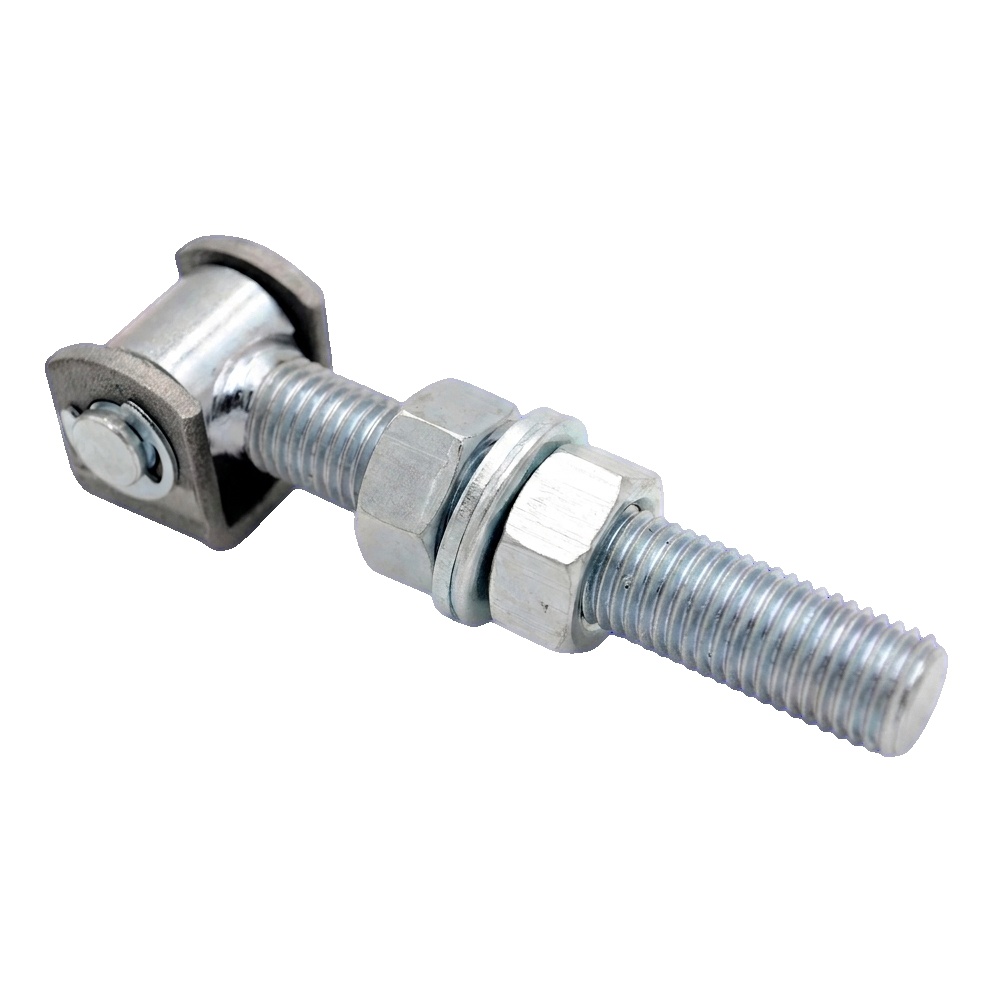

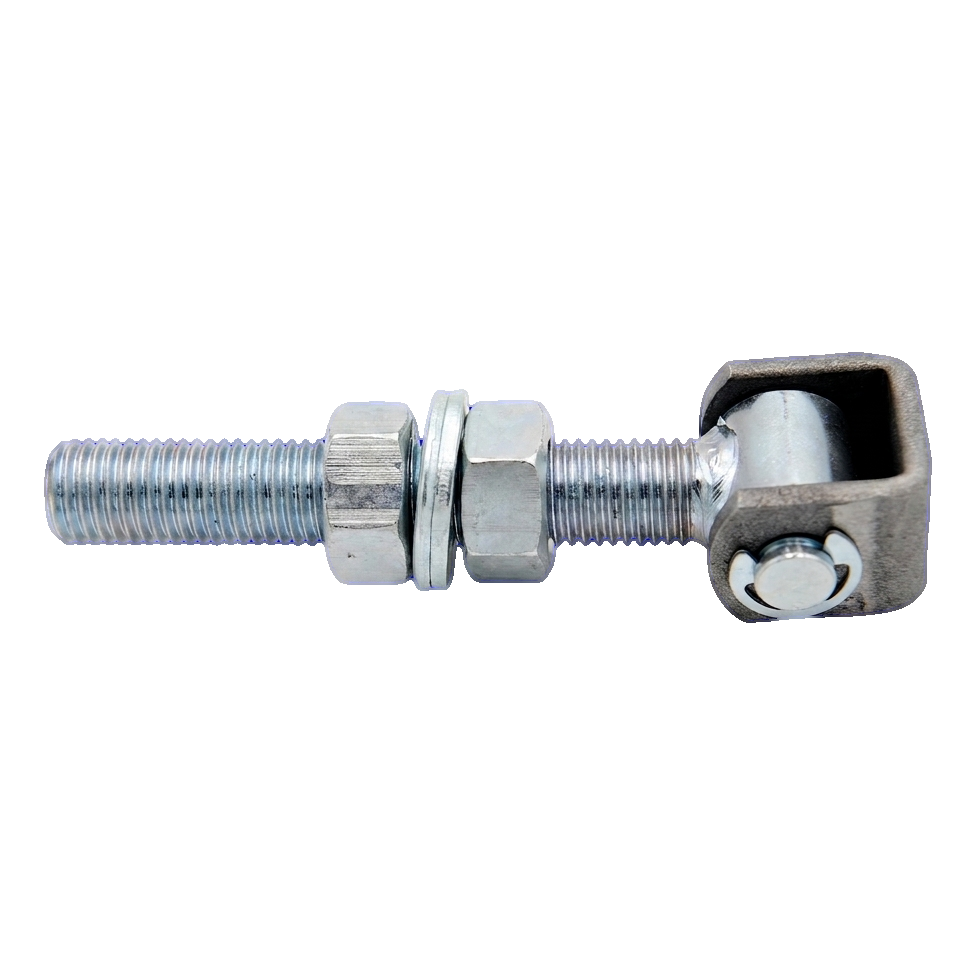

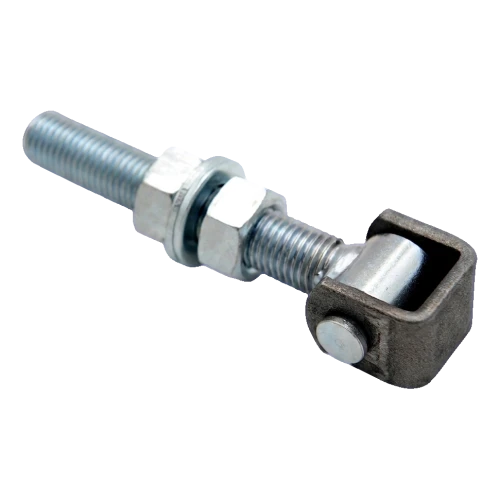

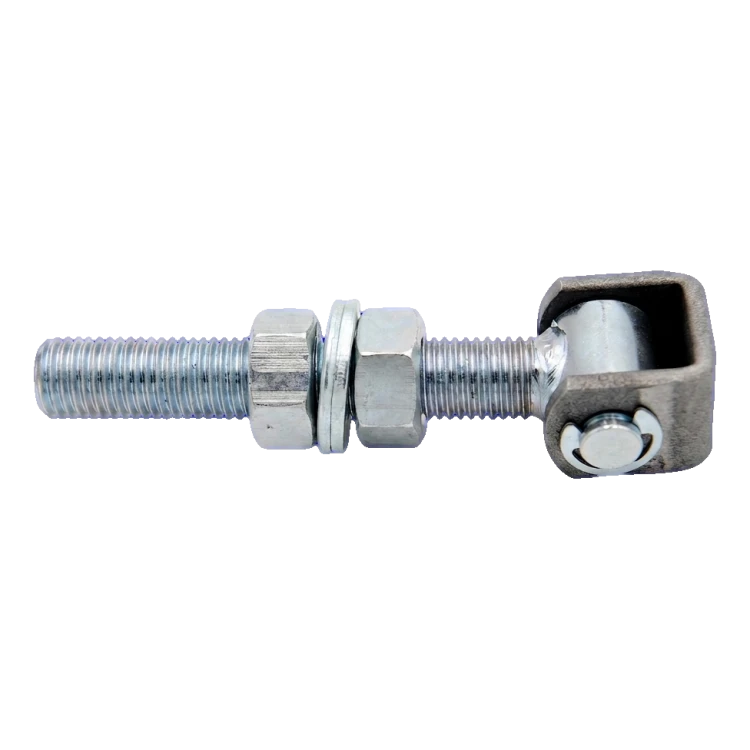

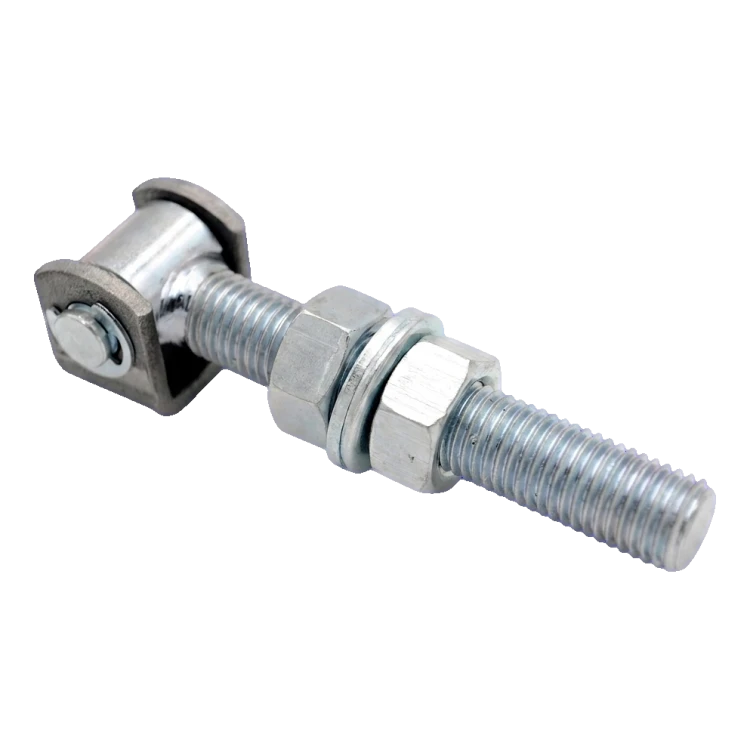

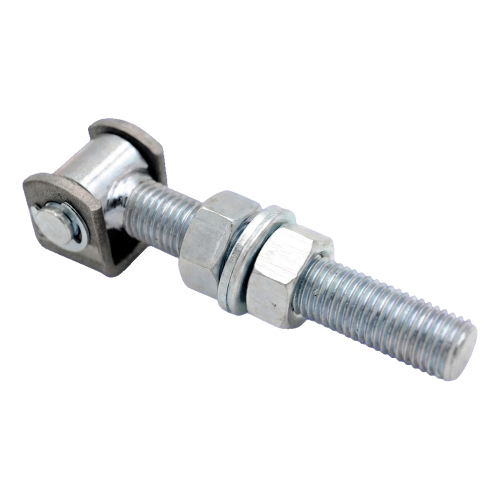

Adjustable steel hinge M20 for swing gates – galvanised, L150 mm
Leave feedback on the product
Adjustable galvanised steel hinge M20 for swing gates. Length 150 mm, M20 thread, eye 36 mm, plate thickness 6 mm. Load capacity of hinge pair 105 kg for 2 m wing. Steel with galvanised coating, weight 0.62 kg.
Product code: 001-350
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable steel hinge M20 for swing gates – galvanised, L150 mm
Adjustable steel hinge M20 is a durable suspension element designed for swing gates and garden gate posts. Thanks to the M20 thread and adjustment nut, it enables precise adjustment of wing position even after installation completion — without the need to dismantle the gate. The galvanised surface ensures years of resistance to weather conditions, making this hinge an ideal solution for outdoor applications.
Adjustment in any conditions — using the nut, the hinge can be adjusted at any time. This is particularly useful when the gate structure sags under its own weight or when extreme temperatures cause thermal movement of the metal (shrinking in winter, expanding in summer). Simply tighten or loosen the nut to restore proper wing alignment.
Load capacity and durability — a pair of M20 hinges provides an allowable load of 105 kg on a wing with a length of 2 m. Solid steel construction with a thick eye of 6 mm thickness guarantees resistance to mechanical damage and wear, resulting in trouble-free operation for years of intensive use.

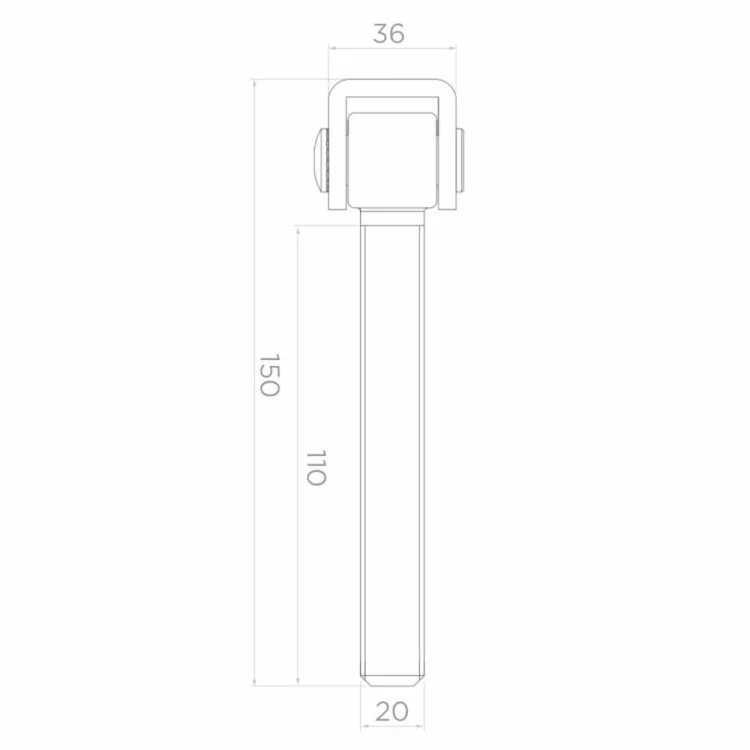

Technical specification
- Type: adjustable steel hinge
- Thread: M20
- Total length: 150 mm
- Bolt length (threaded part): 110 mm
- Eye width: 36 mm
- Pin diameter: 20 mm
- Eye plate thickness: 6 mm
- Material: steel
- Anti-corrosion protection: galvanised (black eye)
- Weight: 0.62 kg
- Allowable load of hinge pair (2 m wing): 105 kg
Main advantages
- Post-installation adjustment — adjustment nut allows quick correction of gate wing alignment at any time
- Galvanised surface — high corrosion resistance and designed for permanent outdoor operation
- Solid construction — thick steel eye (6 mm) ensures resistance to mechanical damage and wear
- High load capacity — pair of hinges can support wings up to 105 kg at 2 m length
- Universal application — for swing gates, garden gate posts and other structures hung on posts
